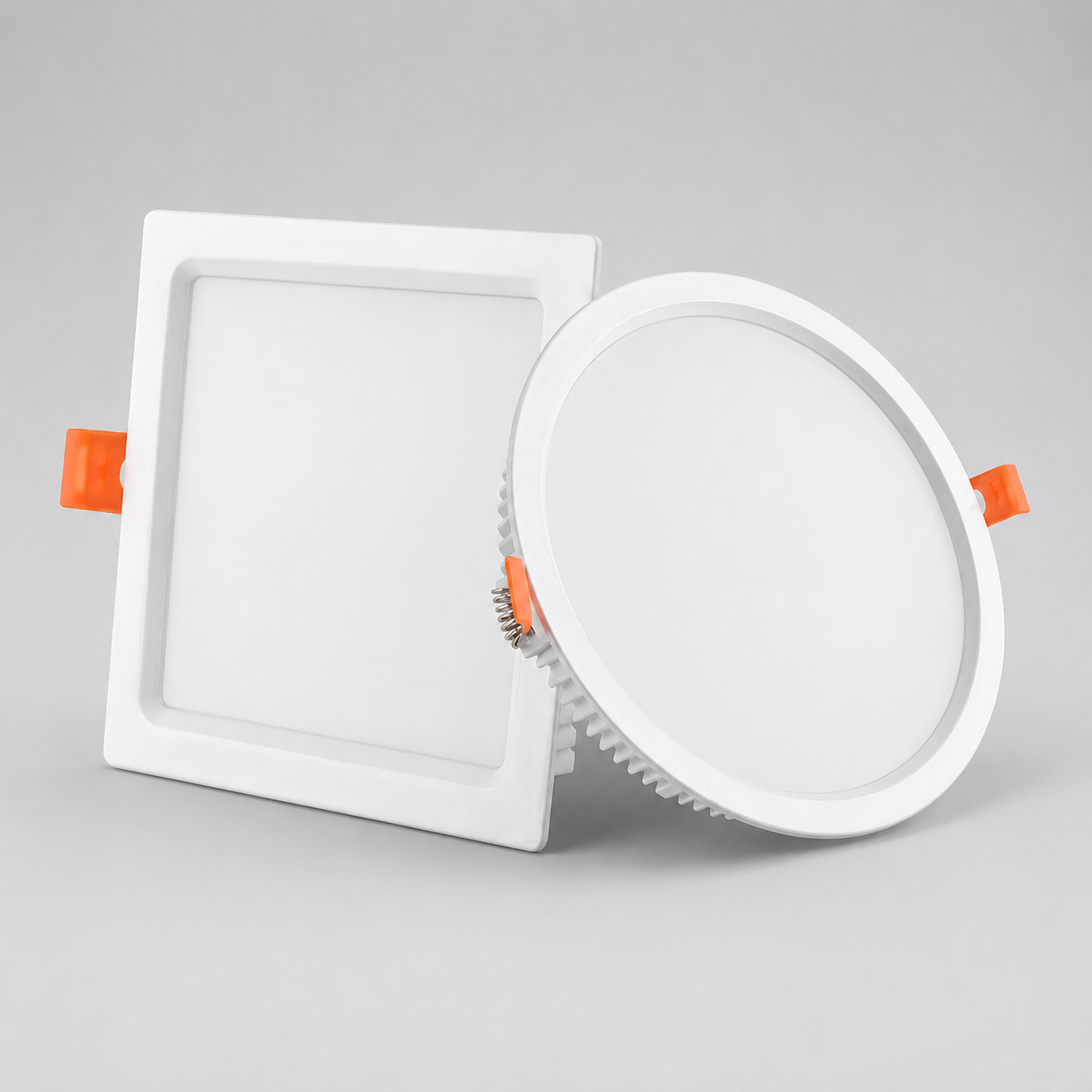

CT-A01 Series Slim Recessed LED Panel Downlight

PRODUCT OVERVIEW

• CT-A01 slim recessed LED panel downlight designed for commercial and architectural ceiling lighting.
• Available in both round and square versions with the same four size and power options.
• Low-profile 25-30mm housing is suitable for ceiling spaces with limited installation depth.

KEY FEATURES

• Round and square trim options for flexible project matching.
• 7W / 16W / 24W / 32W complete power range.
• Ultra-slim recessed construction with 25mm, 28mm and 30mm housing heights.
• Matte white housing for clean integration with modern ceilings.
• SMD LED configuration for wide and uniform general illumination.
• Aluminum housing with SMD LED panel design for slim construction and reliable thermal performance.
• Ra90+ color rendering for professional commercial interiors.
• Optional Lifud, OSRAM, Eaglerise, Philips and Tridonic drivers.
• Optional 0-10V, Phase Dimming and DALI Dimming control.

RECOMMENDED APPLICATIONS

• Offices and meeting rooms
• Retail stores and shopping spaces
• Hotels and hospitality interiors
• Restaurants and cafés
• Commercial corridors and reception areas
• Residential and apartment interiors

TECHNICAL OPTIONS

• 2.5 Inch Round: Ø90×H25mm — Cut-out Ø70mm — 7W
• 3.5 Inch Round: Ø120×H28mm — Cut-out Ø100mm — 16W
• 6 Inch Round: Ø170×H30mm — Cut-out Ø150mm — 24W
• 8 Inch Round: Ø225×H30mm — Cut-out Ø205mm — 32W
• 2.5 Inch Square: 90×90×H25mm — Cut-out 70×70mm — 7W
• 3.5 Inch Square: 120×120×H28mm — Cut-out 100×100mm — 16W
• 6 Inch Square: 170×170×H30mm — Cut-out 150×150mm — 24W
• 8 Inch Square: 225×225×H30mm — Cut-out 205×205mm — 32W
• CCT: 3000K / 4000K / 6000K
• Input Voltage: 220V / 110V Option
• Protection: IP20
• Dimming: 0-10V / Phase Dimming / DALI Dimming Optional
