PRODUCT OVERVIEW

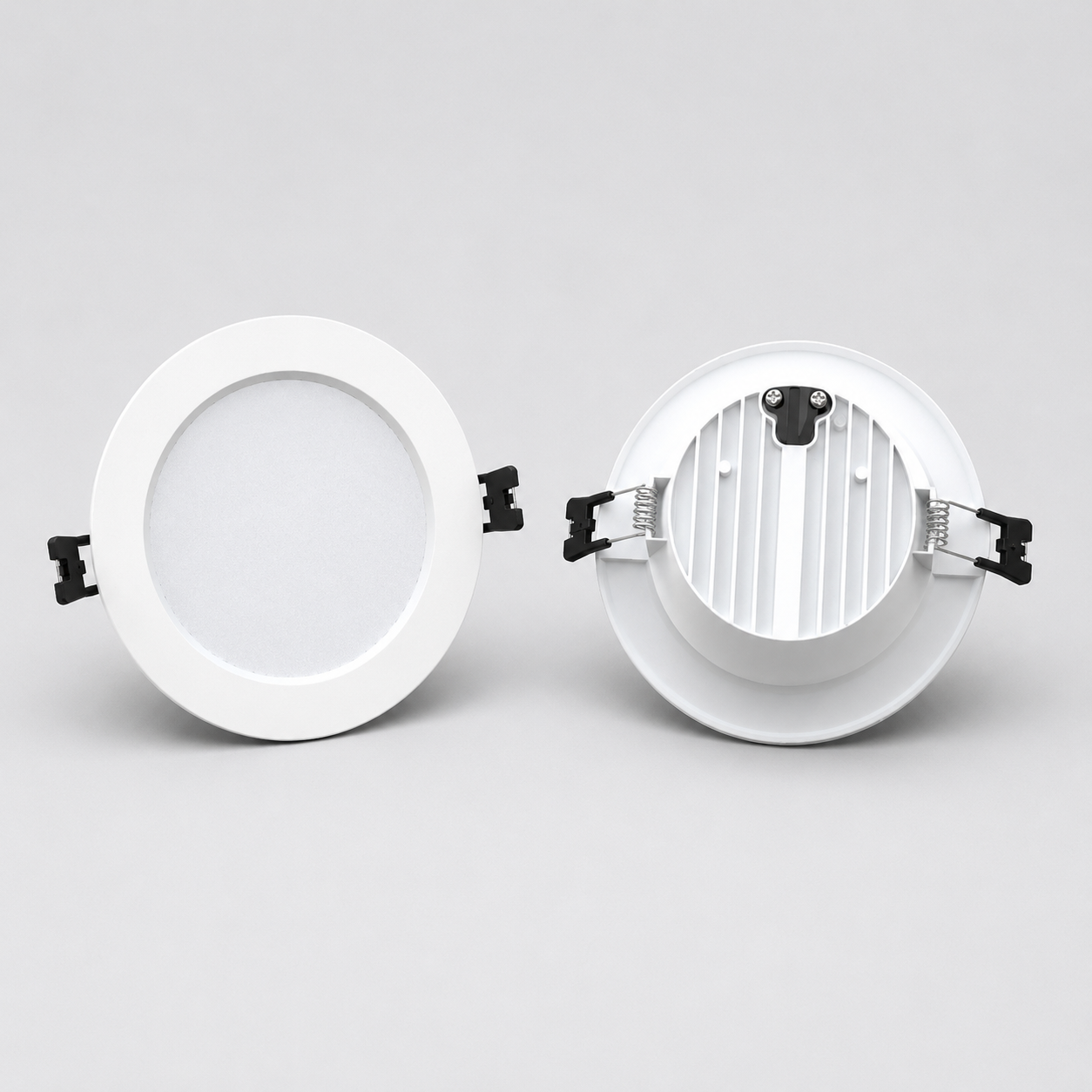

The CT-A05 Series Recessed SMD LED Downlight is a slim, clean-design ceiling luminaire for commercial and architectural indoor lighting. Its low-profile 33mm body supports installations where ceiling depth is limited while maintaining a simple round appearance.
The series is available in five sizes from 7W to 30W, covering cut-outs from 70–80mm up to 180mm. The diffused SMD light source provides broad, even illumination for general lighting applications.
KEY FEATURES
- Slim 33mm Profile
Low-profile housing is suitable for ceilings with limited installation depth. - Five Power & Size Options
Available in 7W, 12W, 15W, 24W and 30W for different room sizes and illumination requirements. - Wide SMD Light Distribution
Wide-beam SMD illumination supports uniform ambient lighting in commercial interiors. - Clean Round Design
Minimal recessed appearance integrates easily into offices, retail stores, hotels and other modern interiors. - Multiple Finish Options
The 2.5-inch version is available in full white, white + silver, white + black and white + gold; larger versions use sand white finish. - High Color Rendering
Ra90+ CRI option supports accurate color appearance for professional interior applications. - Optional Dimming
0-10V, Phase Dim and DALI dimming options support different commercial lighting control requirements. - Indoor IP20 Rating
Designed for dry indoor ceiling applications.
SIZE & POWER OPTIONS
- 2.5 inch — Ø100×H33mm, Cut-out Ø70–80mm — 7W
- 3.5 inch — Ø117×H33mm, Cut-out Ø90mm — 12W
- 4 inch — Ø137×H33mm, Cut-out Ø110mm — 15W
- 5 inch — Ø175×H33mm, Cut-out Ø140mm — 24W
- 8 inch — Ø220×H33mm, Cut-out Ø180mm — 30W
TECHNICAL OPTIONS
- Product Type: Recessed SMD LED Downlight
- Model: CT-A05 Series
- Power: 7W / 12W / 15W / 24W / 30W
- Material / Process: ADC12 Die-Cast Aluminum
- UGR: <19
- Input Voltage: 220V / 110V Option
- Protection Rating: IP20
- Installation: Recessed
- Beam Angle: 90°–120°
- CCT: 3000K / 4000K / 6000K
- CRI: Ra90+
- Luminous Efficiency: 80 lm/W
- Body Color: Full White / White + Silver / White + Black / White + Gold (2.5 inch); Sand White (3.5 / 4 / 5 / 8 inch)
- Driver: Lifud / Osram / Eaglerise / Philips / Tridonic Optional
- Dimming: 0-10V / Phase Dim / DALI Dim Option
RECOMMENDED APPLICATIONS
- Offices & Meeting Rooms
- Retail Stores & Shopping Areas
- Hotels & Restaurants
- Residential Common Areas
- Commercial Corridors
- General Architectural Lighting
