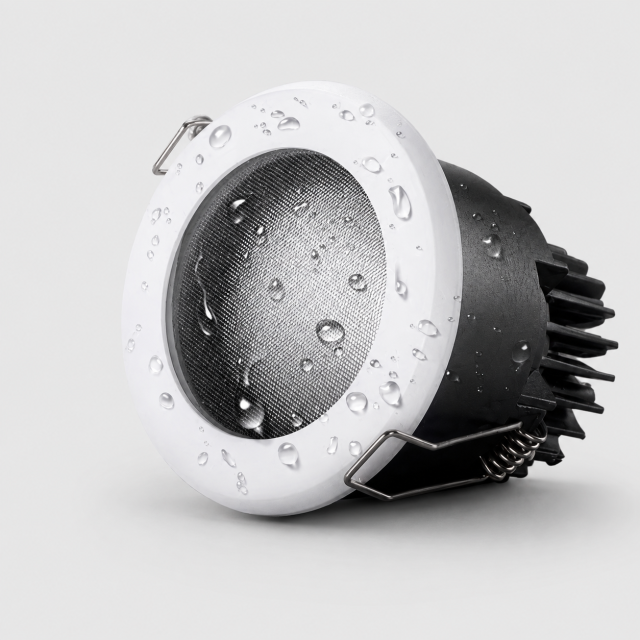

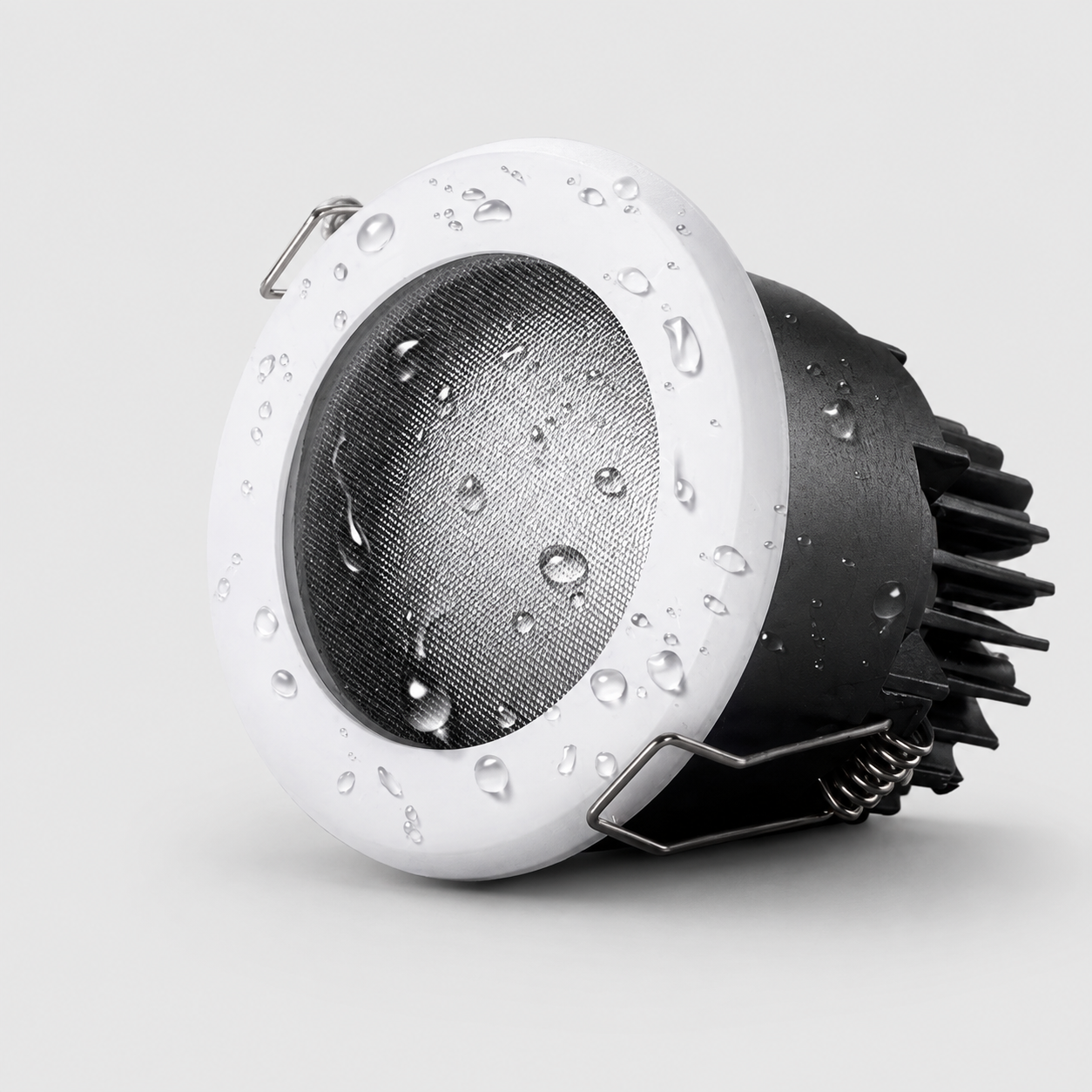

CT-FS01 IP65 Waterproof COB Recessed LED Downlight

PRODUCT OVERVIEW

• CT-FS01 Series IP65 waterproof COB recessed downlight designed for commercial and architectural ceiling lighting.
• Three compact sizes cover 7W, 12W and 20W applications with matching Ø55mm, Ø75mm and Ø95mm cut-outs.
• Reflector optical design provides controlled light distribution for accent, display and general commercial lighting.

KEY FEATURES

• IP65 protection for enhanced resistance to dust and moisture.
• COB LED light source with reflector optics for focused and controlled illumination.
• 15° / 24° / 38° beam angles for narrow accent, medium and wider spot lighting.
• Three size and power options: 7W, 12W and 20W.
• Standard white face ring; custom matte black, bright silver, sand silver and sand gold finishes available.
• ADC12 die-cast aluminum construction for stable heat dissipation.
• Ra90+ color rendering for retail, hospitality and architectural applications.
• Optional Lifud, Osram, Eaglerise, Philips and Tridonic drivers.
• Optional 0-10V, Phase Dimming and DALI dimming control.

RECOMMENDED APPLICATIONS

• Hotels and hospitality spaces
• Restaurants and cafés
• Retail stores and boutiques
• Showrooms and display areas
• Commercial offices and reception areas
• Bathrooms and moisture-prone interior areas
• Architectural accent lighting

TECHNICAL OPTIONS

• CT-FS01-S: Ø65×H70mm — Cut-out Ø55mm — 7W
• CT-FS01-M: Ø90×H90mm — Cut-out Ø75mm — 12W
• CT-FS01-L: Ø106×H110mm — Cut-out Ø95mm — 20W
• Beam Angle: 15° / 24° / 38°
• CCT: 3000K / 4000K / 6000K
• CRI: Ra90+
• Input Voltage: 220V / 110V Option
• Protection Rating: IP65
• Dimming: 0-10V / Phase Dimming / DALI Dimming Optional
