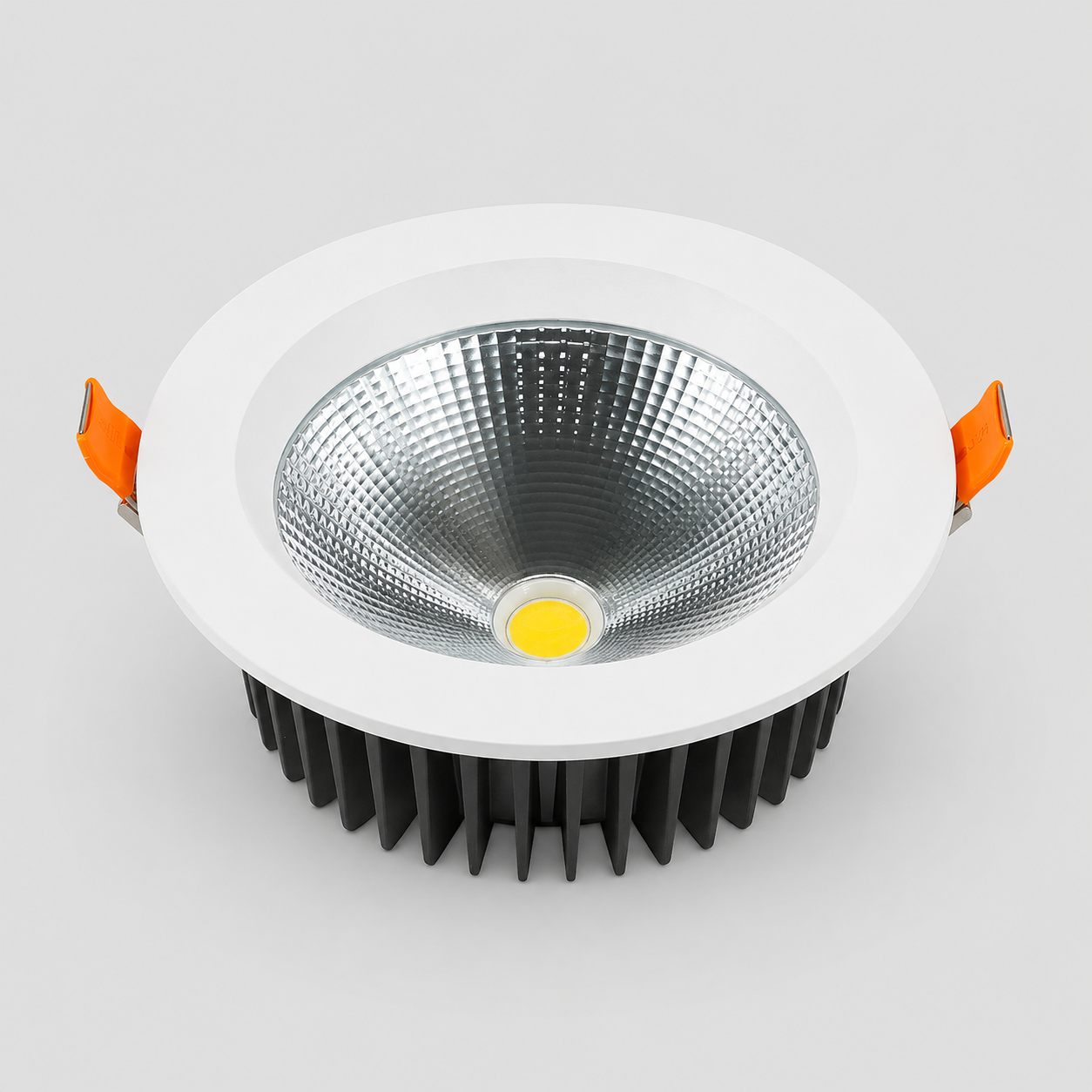

CT-FS02 IP65 Waterproof Recessed COB Downlight

PRODUCT OVERVIEW

• CT-FS02 is an IP65 waterproof recessed COB downlight designed for commercial and moisture-prone interior ceiling applications.
• Five sizes cover 10W, 15W, 20W, 30W and 40W, with cut-outs from Ø95mm to Ø200mm.
• Deep reflector optics provide practical glare control with 60° or 90° light distribution.

KEY FEATURES

• IP65 protection for improved resistance to dust and water ingress.
• COB LED light source for clean and uniform commercial illumination.
• 60° / 90° beam angle options for general and wide-area lighting.
• Five wattage options: 10W / 15W / 20W / 30W / 40W.
• Recessed installation with five cut-out sizes for flexible ceiling applications.
• Die-cast aluminum housing for efficient heat dissipation and stable operation.
• Ra90+ color rendering suitable for commercial and hospitality projects.
• Optional 0-10V, Phase Dimming, DALI and Tuya Zigbee control configurations.

SIZE & POWER OPTIONS

• FS02-3 — Ø115×H48mm, Cut-out Ø95mm — 10W
• FS02-4 — Ø145×H60mm, Cut-out Ø125mm — 15W
• FS02-5 — Ø160×H60mm, Cut-out Ø140mm — 20W
• FS02-6 — Ø190×H60mm, Cut-out Ø165mm — 30W
• FS02-8 — Ø230×H72mm, Cut-out Ø200mm — 40W

TECHNICAL OPTIONS

• Product Type: IP65 Waterproof Recessed COB Downlight
• Model: CT-FS02 Series
• Power: 10W / 15W / 20W / 30W / 40W
• Material / Process: Die-Cast Aluminum
• UGR: <19
• Input Voltage: AC220V / AC110V Optional
• Protection Rating: IP65
• Installation: Recessed
• Beam Angle: 60° / 90°
• CCT: 3000K / 4000K / 6000K
• CRI: Ra90+
• Luminous Efficiency: 80 lm/W
• Reflector: Deep Reflector
• Surface Finish: White
• Driver: Lifud / OSRAM / Eaglerise / Philips / Tridonic Optional
• Dimming / Control: 0-10V / Phase Dimming / DALI / Tuya Zigbee Optional

RECOMMENDED APPLICATIONS

• Hotels & Hospitality Areas
• Bathrooms & Washrooms
• Retail Stores & Showrooms
• Restaurants & Cafés
• Commercial Corridors & Public Areas
• Kitchens & Moisture-Prone Interior Areas
• General Commercial Ceiling Lighting
