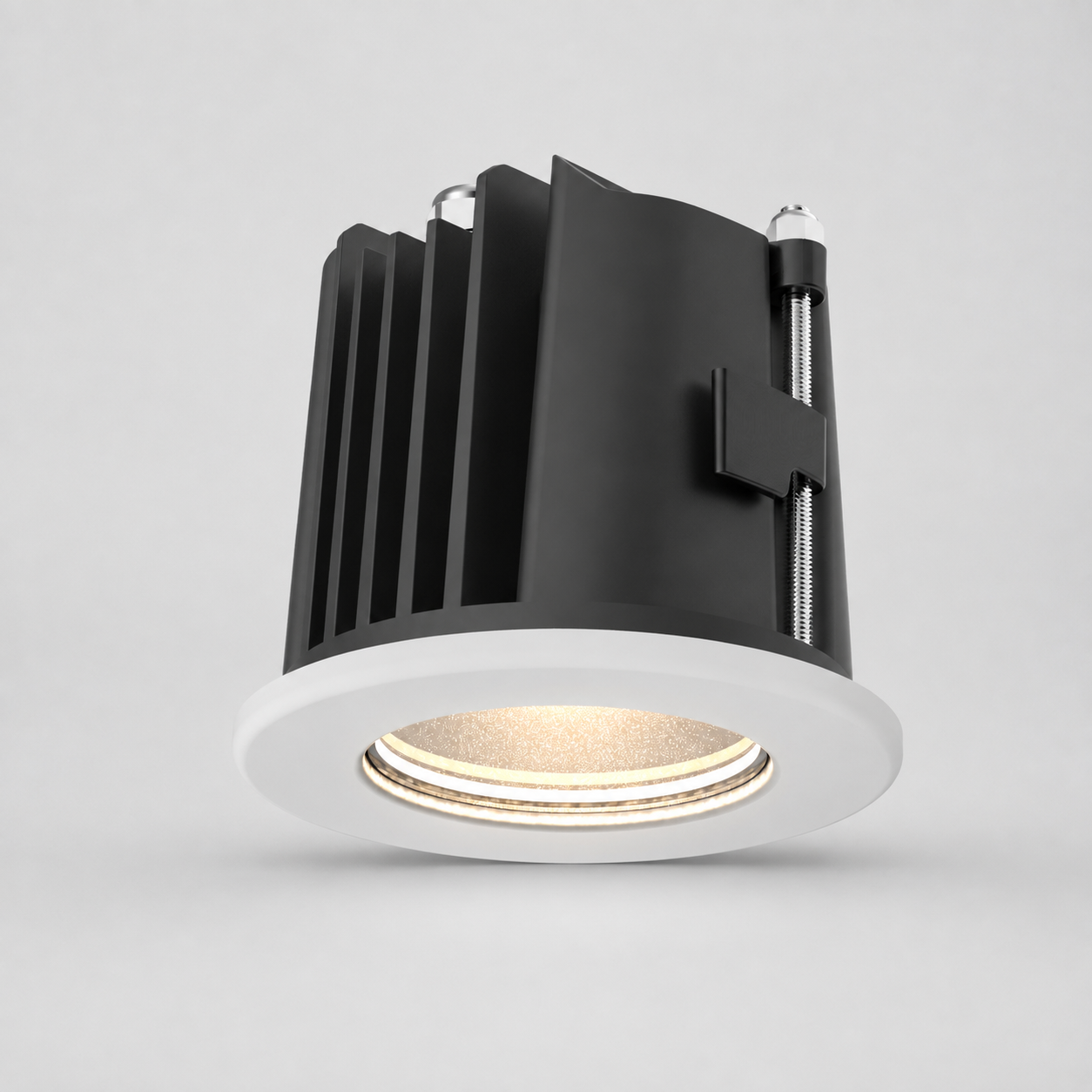

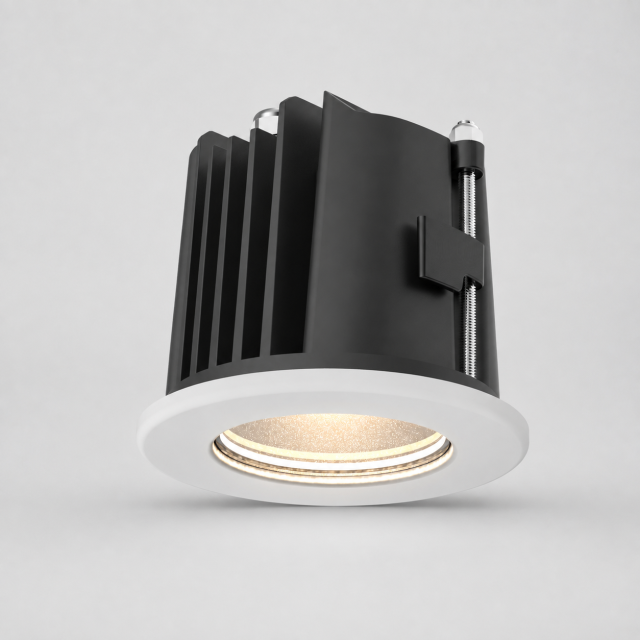

CT-FS04 IP65 Waterproof Recessed COB Downlight

PRODUCT OVERVIEW

• CT-FS04 is an IP65 waterproof recessed COB downlight designed for medium- to high-output commercial and architectural lighting.
• Three sizes cover 15W, 25W and 40W, with cut-outs from Ø75mm to Ø130mm.
• Deep reflector optics provide controlled light distribution with enhanced glare reduction.

KEY FEATURES

• IP65 waterproof protection for moisture-prone indoor ceiling applications.
• COB LED light source for concentrated, clean and uniform illumination.
• 15° / 24° / 36° / 45° / 60° beam angle options for flexible accent and general lighting.
• White or black anti-glare reflector with optional honeycomb louver.
• 15W / 25W / 40W power range for medium and large commercial spaces.
• ADC12 die-cast aluminum housing for efficient heat dissipation and stable operation.
• Ra90+ color rendering suitable for retail, hospitality and architectural projects.
• Optional 0-10V, Phase Dimming, DALI and Tuya Zigbee control configurations.

SIZE & POWER OPTIONS

• CT-FS04-75 — Ø92×H78mm, Cut-out Ø75mm — 15W
• CT-FS04-115 — Ø123×H93mm, Cut-out Ø110mm — 25W
• CT-FS04-145 — Ø145×H106mm, Cut-out Ø130mm — 40W

TECHNICAL OPTIONS

• Product Type: IP65 Waterproof Recessed COB Downlight
• Model: CT-FS04 Series
• Power: 15W / 25W / 40W
• Material / Process: ADC12 Die-Cast Aluminum
• UGR: <19
• Input Voltage: AC220V / AC110V Optional
• Protection Rating: IP65
• Installation: Recessed
• Beam Angle: 15° / 24° / 36° / 45° / 60°
• CCT: 3000K / 4000K / 6000K
• CRI: Ra90+
• Luminous Efficiency: 80 lm/W
• Anti-Glare Reflector: White / Black; Honeycomb Louver Optional
• Surface Finish: Sand White + Gray
• Driver: Lifud / OSRAM / Eaglerise / Philips / Tridonic Optional
• Dimming / Control: 0-10V / Phase Dimming / DALI / Tuya Zigbee Optional

RECOMMENDED APPLICATIONS

• Hotels & Hospitality Areas
• Retail Stores & Showrooms
• Restaurants & Cafés
• Commercial Lobbies & Corridors
• Office Reception & Public Areas
• Moisture-Prone Interior Ceiling Areas
• Architectural Accent Lighting
