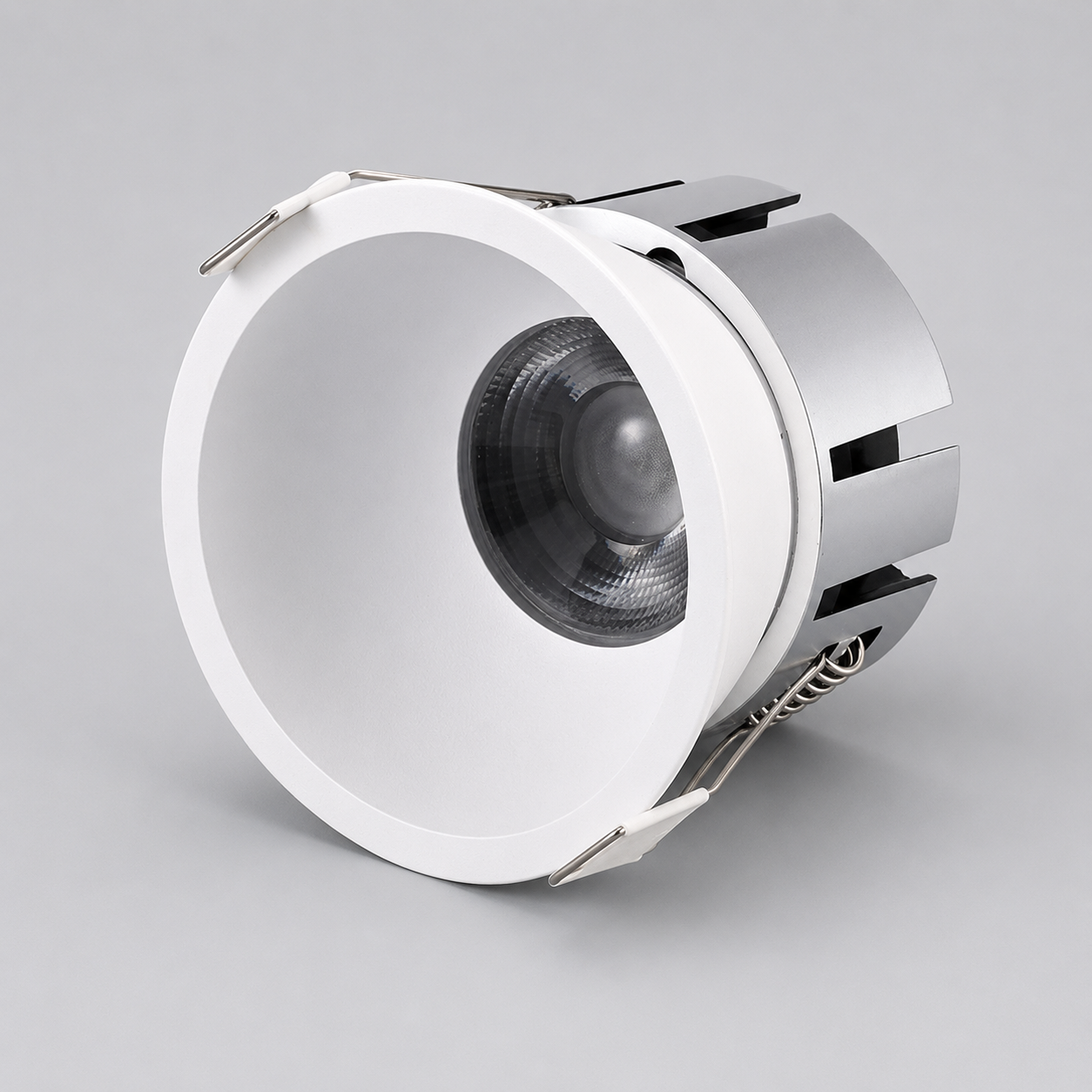

CT-FS06 IP65 Waterproof Recessed COB Downlight

PRODUCT OVERVIEW

• CT-FS06 is an IP65 waterproof recessed COB downlight designed for commercial and architectural interior lighting.
• Available in 2 inch, 3 inch and 3.5 inch sizes with 7W, 12W and 15W power options.
• Deep reflector optical design helps reduce direct glare while providing precise accent and general lighting.

KEY FEATURES

• IP65 waterproof protection for moisture-prone indoor ceiling applications.
• COB LED light source for concentrated, clean and uniform illumination.
• 15° / 24° / 36° / 55° beam angle options for flexible lighting design.
• White or black anti-glare reflector options for different visual requirements.
• Compact recessed structure with cut-outs from Ø55mm to Ø95mm.
• ADC12 die-cast aluminum housing for efficient heat dissipation and reliable operation.
• Ra90+ color rendering suitable for retail, hospitality and architectural projects.
• Optional 0-10V, Phase Dimming, DALI and Tuya Zigbee control configurations.

SIZE & POWER OPTIONS

• 2 inch — Ø60×H55mm, Cut-out Ø55mm — 7W
• 3 inch — Ø82×H65mm, Cut-out Ø75mm — 12W
• 3.5 inch — Ø105×H80mm, Cut-out Ø95mm — 15W

TECHNICAL OPTIONS

• Product Type: IP65 Waterproof Recessed COB Downlight
• Model: CT-FS06 Series
• Power: 7W / 12W / 15W
• Material / Process: ADC12 Die-Cast Aluminum
• Input Voltage: AC220V / AC110V Optional
• Protection Rating: IP65
• Installation: Recessed
• Beam Angle: 15° / 24° / 36° / 55°
• CCT: 3000K / 4000K / 6000K
• CRI: Ra90+
• Luminous Efficiency: 80 lm/W
• Anti-Glare Reflector: White / Black
• Surface Finish: Sand White + High Gloss
• Driver: Lifud / OSRAM / Eaglerise / Philips / Tridonic Optional
• Dimming / Control: 0-10V / Phase Dimming / DALI / Tuya Zigbee Optional

RECOMMENDED APPLICATIONS

• Hotels & Hospitality Areas
• Retail Stores & Showrooms
• Bathrooms & Moisture-Prone Interior Areas
• Restaurants & Cafés
• Commercial Corridors & Reception Areas
• Residential Kitchens & Bathrooms
• Architectural Accent Lighting
