pendant / cylinder tube
HS-CXD300
A straight Ø40 × 300 mm tube on a 1–1000 mm adjustable drop, with a Ø40 mm lens opening at the base.
48V · 12W · lens · Ra ≥90 · 24°
HS-CXD 48V magnetic track pendants in four bodies: Ø40 × 300 mm cylinder tubes (HS-CXD300, HS-CXDSL300) and Ø100 × 110 mm globes (HS-CXDY100, HS-CXDYT100). All listed 12W, lens optic, Ra ≥90 — fixed 24°, or 10°–55° zoom on HS-CXDYT100. Suspension: 1–1000 mm cylinders, 10–1000 mm globes.
HS-CXD300
HS-CXDSL300
HS-CXDY100
HS-CXDYT100The four HS-CXD pendant bodies: HS-CXD300 and HS-CXDSL300 in cylinder tubes, HS-CXDY100 and HS-CXDYT100 in Ø100 mm globes. See the reference sheet for dimensions.
View dimensions & the original pendant sheet ↓VOC Lighting’s HS-CXD pendant family places four 48V magnetic track pendants on one system: the cylinder-bodied HS-CXD300 and HS-CXDSL300, and the globe-bodied HS-CXDY100 and HS-CXDYT100. All four are listed at 12W with a lens optic and Ra ≥90; the globes differ in beam — HS-CXDY100 is a fixed 24°, while HS-CXDYT100 zooms from 10° to 55°. The drop is adjustable, 1–1000 mm on the cylinder bodies and 10–1000 mm on the globe bodies.
Ø40 × 300 mm tube · Ø100 × 110 mm globe · 12W · lens optic · Ra ≥90 · 24° fixed / 10°–55° zoom
Finish (BLACK / WHITE) and color temperature selection are carried into the quotation brief. The product photographs do not change with the selected configuration.
The supplied sheet lists the same electrical and optical class for all four VOC Lighting pendants — 48V input, 12W, lens optic, Ra ≥90 — and separates them by body, beam angle and suspension range. Wattage alone does not establish illuminance at the target surface, and the sheet lists no dimming protocol, so the control package is confirmed separately per model.
| Model | Input | Power | Optic | CRI | Beam | Listed CCT |
|---|---|---|---|---|---|---|
| HS-CXD300 | DC 48V | 12W | Lens | Ra ≥90 | 24° | 3000K / 4000K |
| HS-CXDSL300 | DC 48V | 12W | Lens | Ra ≥90 | 24° | 3000K / 4000K |
| HS-CXDY100 | DC 48V | 12W | Lens | Ra ≥90 | 24° | 3000K / 4000K |
| HS-CXDYT100 | DC 48V | 12W | Lens | Ra ≥90 | 10°–55° | 3000K / 4000K |
| Model | Body style | Lamp body dimensions | Adjustable suspension |
|---|---|---|---|
| HS-CXD300 | Cylinder tube | Ø40 × 300 mm, Ø40 mm lens opening | 1–1000 mm (drawing: “Length: 1~1000”) |
| HS-CXDSL300 | Cylinder tube with step collar | Ø40 × 300 mm tube, Ø60 mm step collar, Ø40 mm lens opening | 1–1000 mm (drawing: “Length: 1~1000”) |
| HS-CXDY100 | Globe pendant | Ø100 mm globe, 110 mm deep, Ø60 mm base | 10–1000 mm (drawing: “10-1000”) |
| HS-CXDYT100 | Globe pendant, zoomable lens | Ø100 mm globe, 110 mm deep, Ø60 mm base | 10–1000 mm (drawing: “10-1000”) |
Dimensions above describe the lamp bodies drawn on the supplied sheet; the track adapter, rail and mounting hardware are specified with the track system. The sheet also carries a “More…” entry in the CCT column: additional color temperatures, LED source brand, dimming protocol, warranty and packing details for these four models require confirmation.
Body choice and beam choice are the two decisions that separate these VOC Lighting pendants. The two cylinder bodies and the two globe bodies share 12W, lens optic and Ra ≥90; only HS-CXDYT100 adds a zoomable 10°–55° beam. Each drawing below is the dimension drawing supplied for that model.

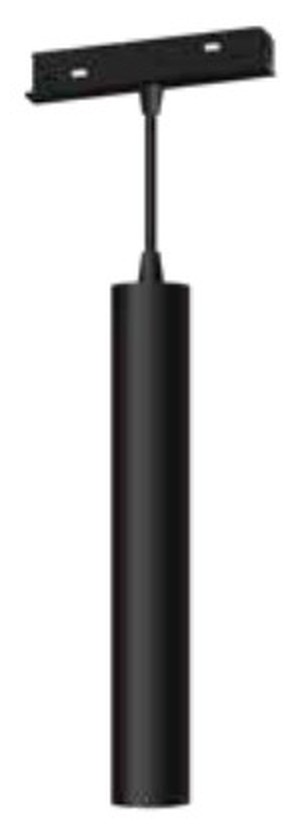

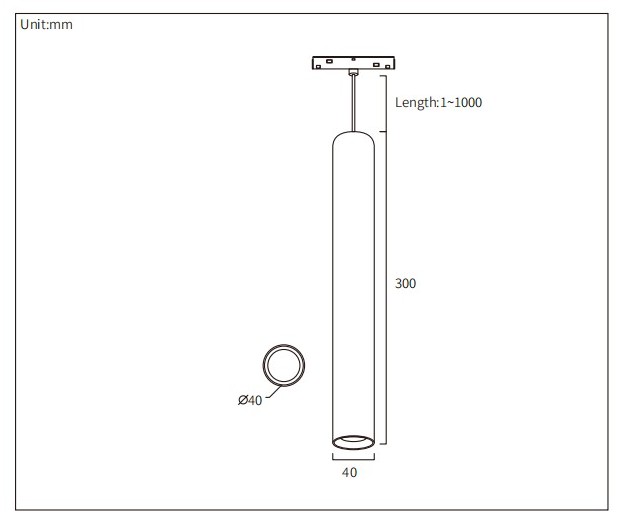

A straight Ø40 × 300 mm tube on a 1–1000 mm adjustable drop, with a Ø40 mm lens opening at the base.
48V · 12W · lens · Ra ≥90 · 24°

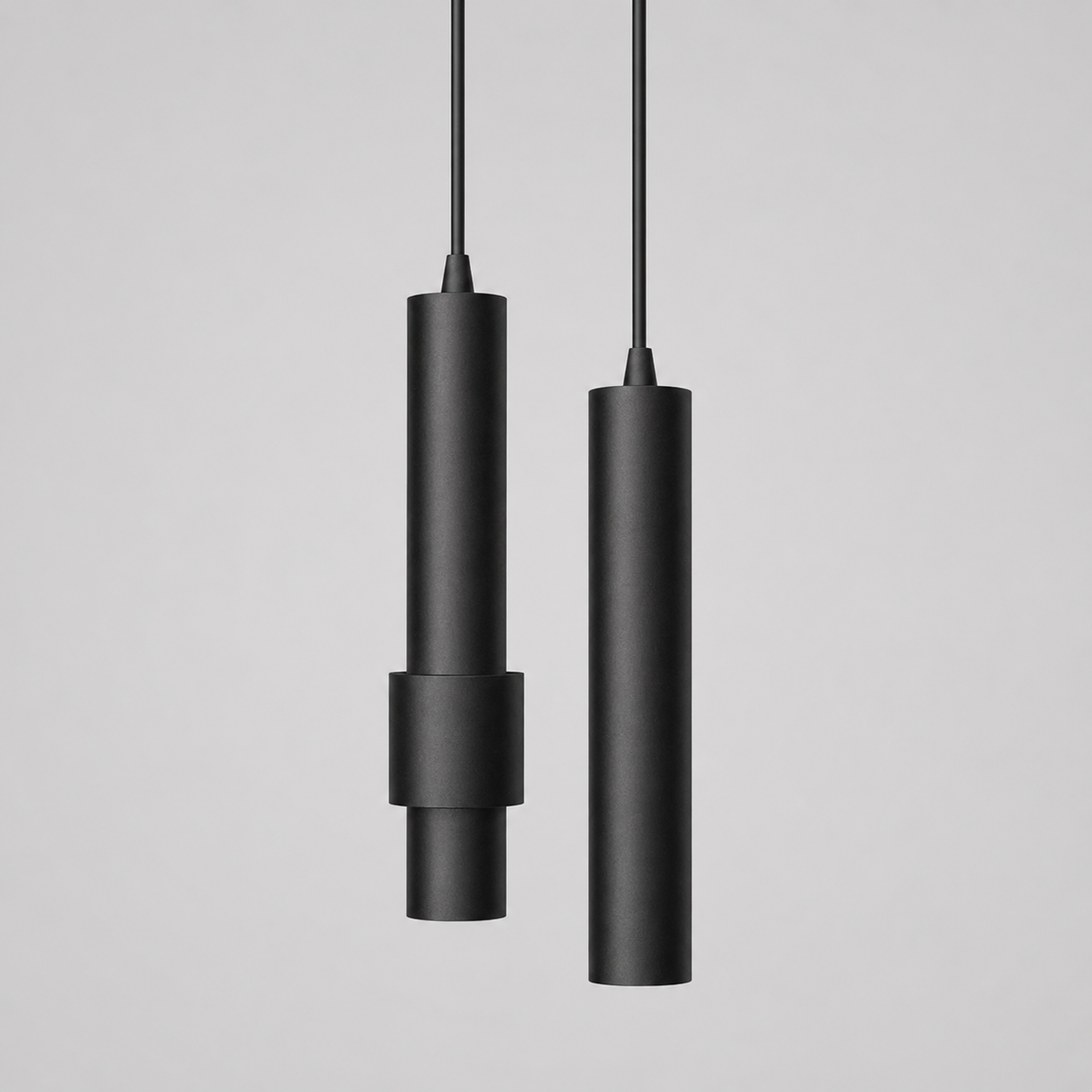

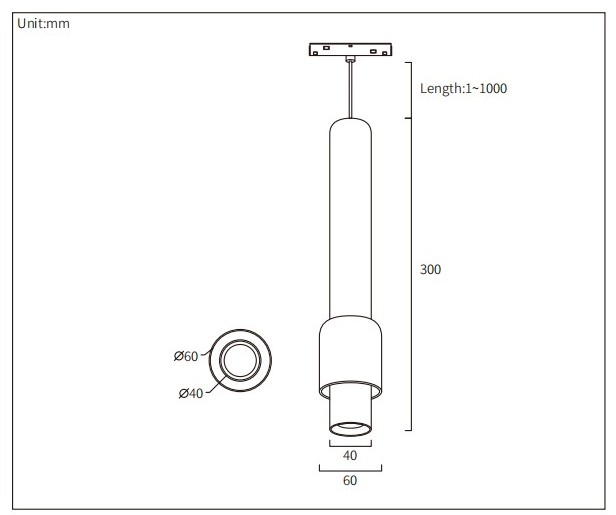

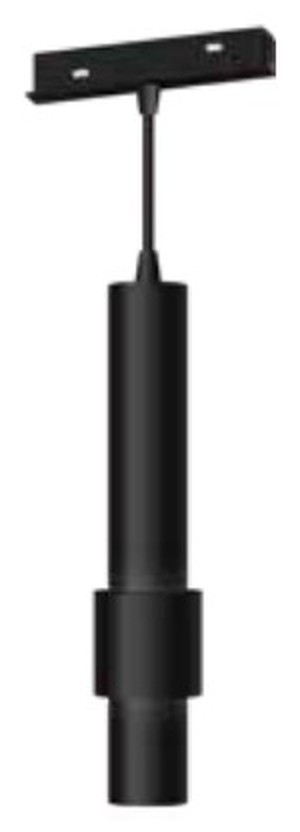

The same Ø40 × 300 mm tube with a Ø60 mm step collar at the lower body, so the pendant reads as a two-part silhouette.
48V · 12W · lens · Ra ≥90 · 24°

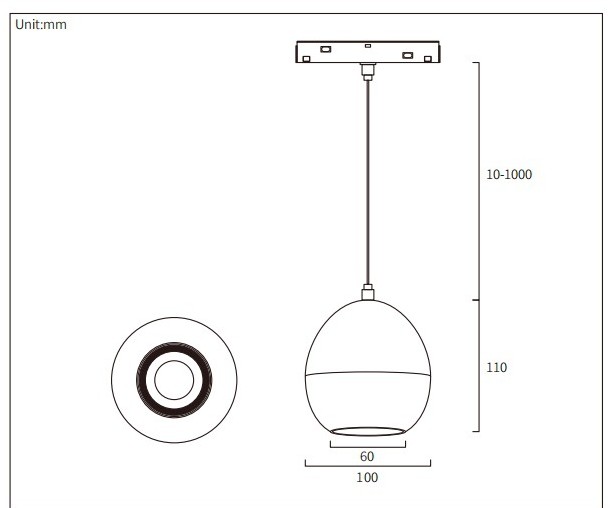

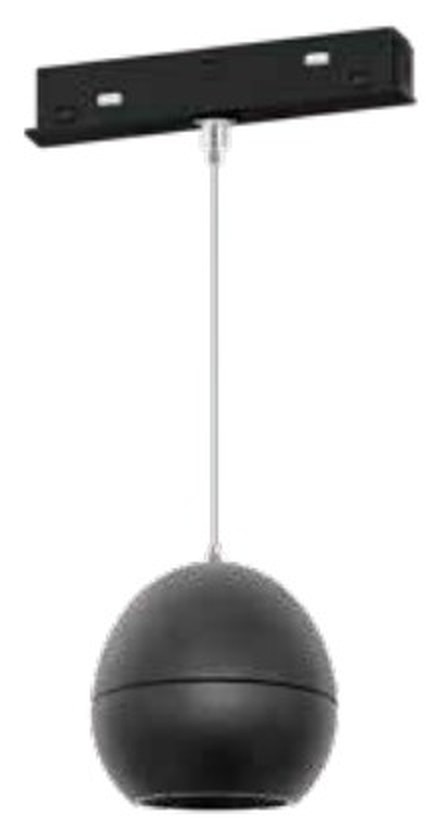

A Ø100 mm globe, 110 mm deep, with a Ø60 mm base and a 10–1000 mm drop. Fixed 24° beam.
48V · 12W · lens · Ra ≥90 · 24°

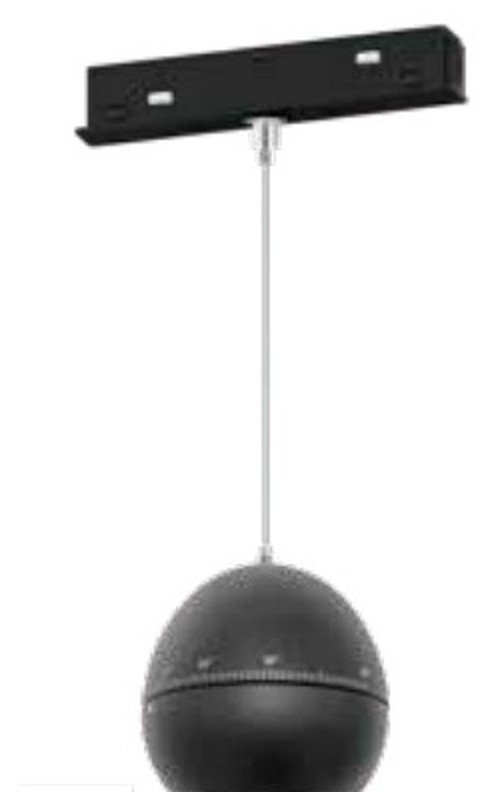

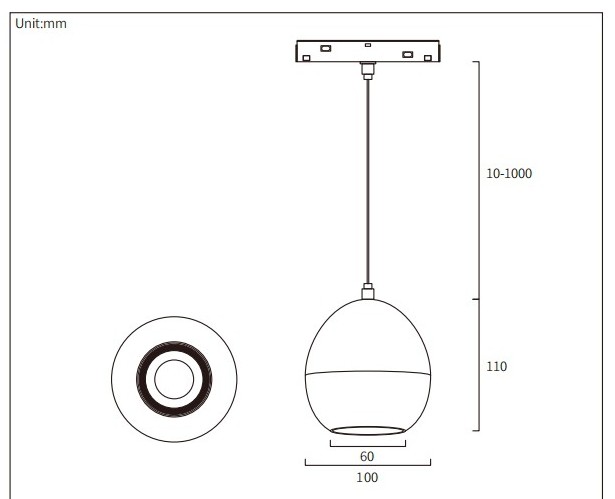

The same Ø100 × 110 mm globe with a zoomable lens, adjustable from 10° to 55° per fixture.
48V · 12W · lens · Ra ≥90 · 10°–55°
All four HS-CXD pendants are listed with a lens optic at Ra ≥90 color rendering and a 12W power rating. The supplied sheet does not name an LED source brand for these models — confirm the source with your quotation.
HS-CXD300 and HS-CXDSL300 are Ø40 × 300 mm tubes ending in a Ø40 mm lens opening; HS-CXDY100 and HS-CXDYT100 are Ø100 mm globes, 110 mm deep. Body choice changes distribution and the pendant line, not the 48V / 12W class.
The cylinder drawings show “Length: 1~1000” and the globe drawings show “10-1000”, with a track adapter at the top of each drop. Confirm the required drop and the track layout for your project.
Dimming for the VOC Lighting HS-CXD pendant family is specified separately from the light source. The supplied sheet for HS-CXD300, HS-CXDY100, HS-CXDSL300 and HS-CXDYT100 lists input, power, optic, CRI, beam and CCT only — the dimming method, driver and control hardware require confirmation for each model.
Wired dimming is not specified on the supplied sheet for these four models. Confirm the protocol, the driver and the control hardware for the method your project uses.
Wireless or smart dimming is likewise not specified on the sheet. Confirm the gateway, app and receiver requirements before the order is placed.
Each control method is specified with its own driver and hardware package. Confirm the exact combination for the model and quantity you are ordering.

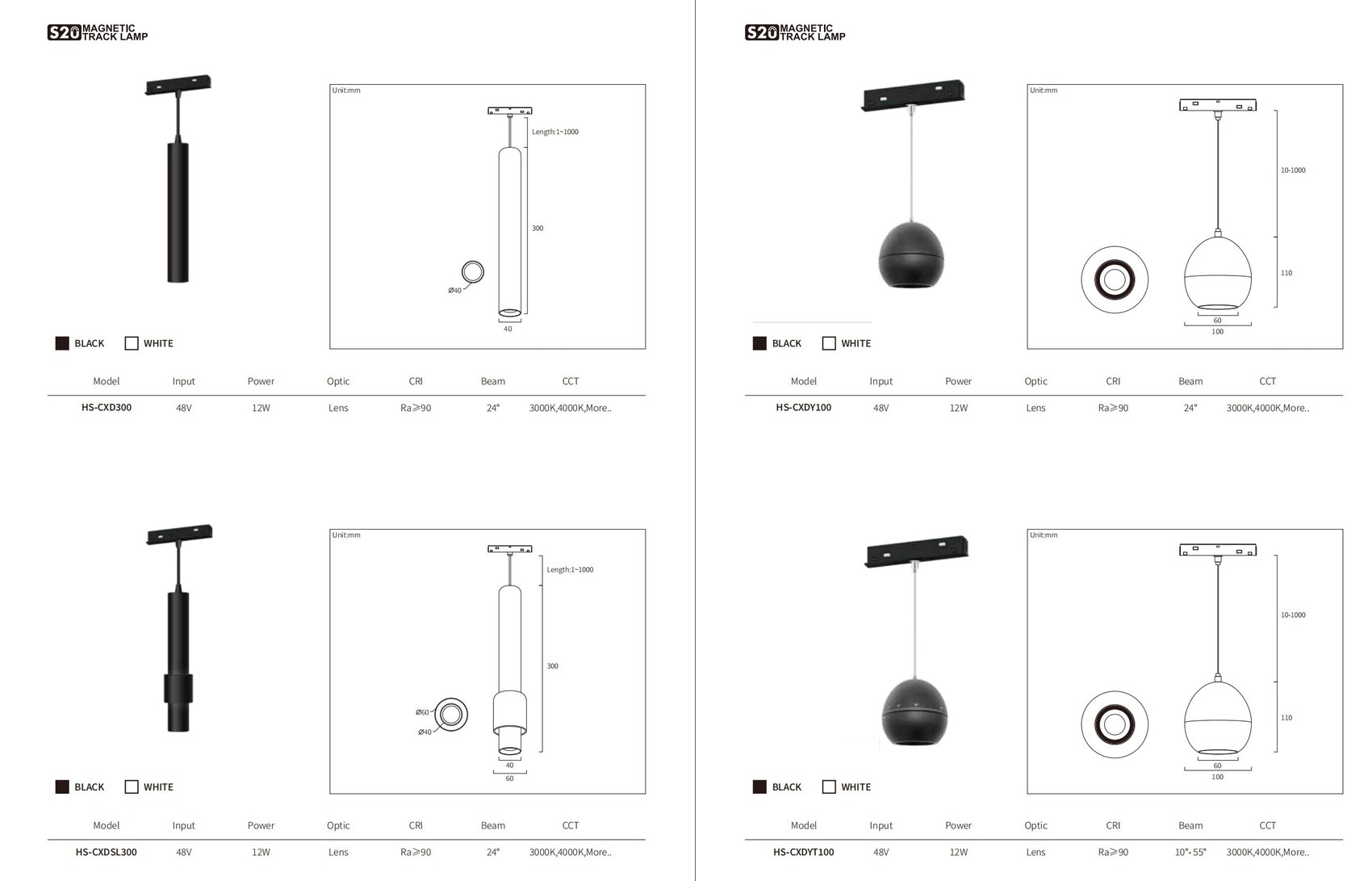

The supplied sheet is headed S20 Magnetic Track Lamp and covers all four models: HS-CXD300 and HS-CXDSL300 cylinder tubes, HS-CXDY100 and HS-CXDYT100 globes — each with its dimension drawing, the BLACK / WHITE finish key and the listed specification row. Refer to the tables above for searchable values.
Reference: pendant sheet supplied for this page. Click the sheet to download it. Request current technical drawings and model-specific documents for project approval.
The VOC Lighting HS-CXD family is four 48V magnetic track pendants listed at 12W with a lens optic and Ra ≥90: the cylinder-bodied HS-CXD300 and HS-CXDSL300, and the globe-bodied HS-CXDY100 and HS-CXDYT100. Suspension is adjustable on all four models.
Body shape sets the pendant line and the light distribution. HS-CXD300 and HS-CXDSL300 are Ø40 × 300 mm tubes that read as a narrow vertical element; HS-CXDY100 and HS-CXDYT100 are Ø100 mm globes, 110 mm deep, that read as a rounded pendant over tables and counters. All four share the listed 48V / 12W / lens / Ra ≥90 class, so the choice is visual and distributional rather than electrical.
No. Both are Ø100 mm globes with a 12W input and a 10–1000 mm drop, but HS-CXDY100 is listed with a fixed 24° beam while HS-CXDYT100 uses a zoomable lens adjustable from 10° to 55°. A zoomable optic does not by itself establish compatibility with a dimming protocol, and the sheet lists no dimming method for either model.
The two cylinder bodies share the Ø40 × 300 mm tube and the same listed 12W / 24° configuration. HS-CXDSL300 adds a Ø60 mm step collar at the lower body, which changes the silhouette and the 40 / 60 mm base details rather than the listed electrical or optical values.
3000K and 4000K are listed on the supplied sheet, which also carries a “More…” entry in the CCT column. Additional color temperatures require confirmation before quotation.
The VOC Lighting drawings show “Length: 1~1000” on the cylinder bodies and “10-1000” on the globe bodies, so the drop is adjustable within those ranges. Drops beyond 1000 mm and the ceiling interface details require confirmation.
No. Dimming is a separate specification from the light source. The supplied sheet lists input, power, optic, CRI, beam and CCT only, so the dimming method, driver and control hardware for HS-CXD300, HS-CXDSL300, HS-CXDY100 and HS-CXDYT100 require confirmation.
All four are 48V magnetic track pendants with a track adapter shown at the top of the drop, so a mixed layout is a track and load question. Confirm the rail, adapter, power supply and total connected load for the layout you plan, and check compatibility against the rail and adapter design — a shared 48V input rating alone does not establish compatibility with another track system.
Specify the model codes (HS-CXD300, HS-CXDSL300, HS-CXDY100 or HS-CXDYT100), quantity, finish, color temperature, required dimming method and the track components needed. Include your track information and project country. Price, lead time, warranty terms and applicable documents are confirmed with the quotation.
Choose components to include in your project brief. Final rail, connection and power compatibility is confirmed against the selected lighting and control configuration.
11 components shown

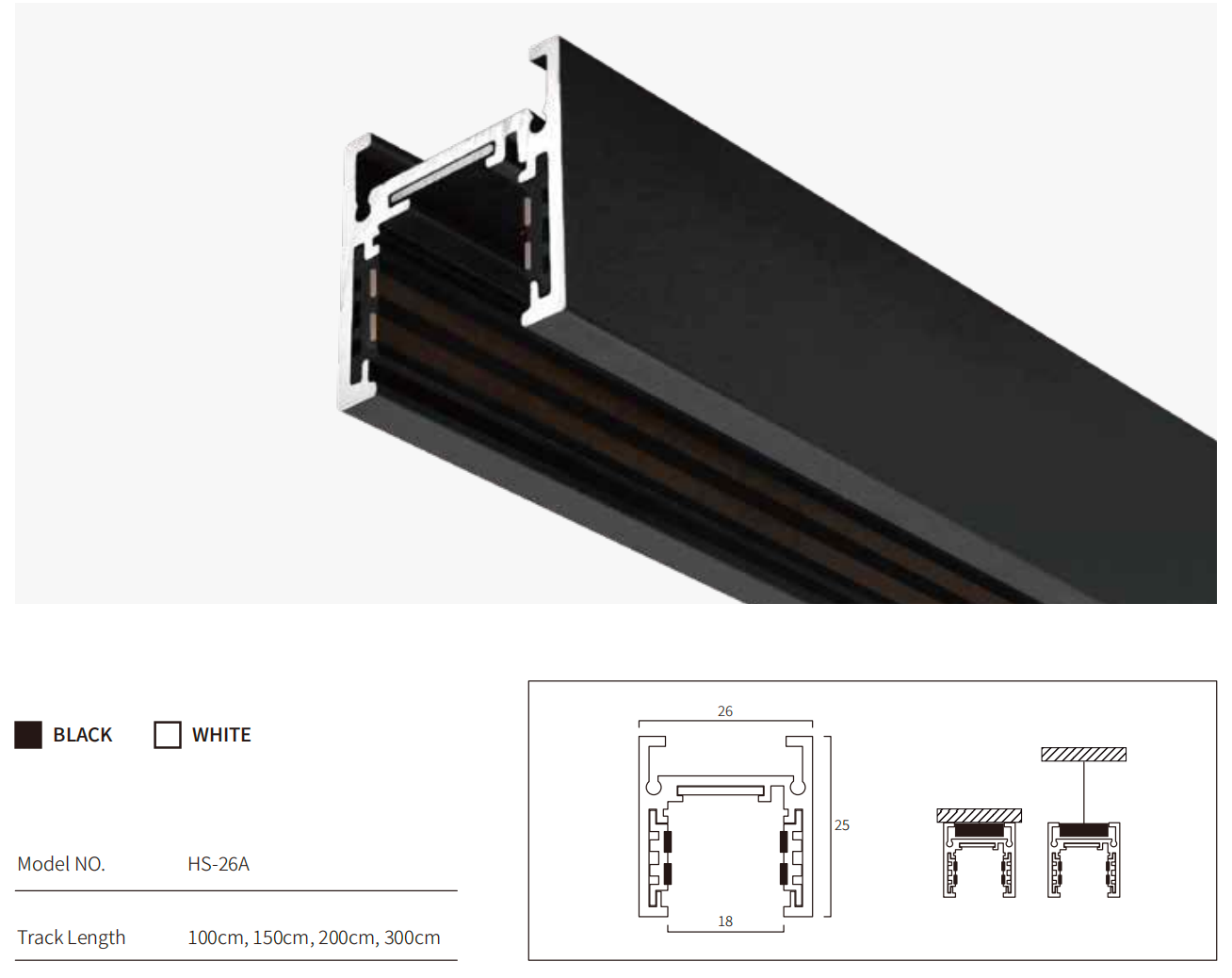

Surface / suspended profile
100 / 150 / 200 / 300 cm; black / white

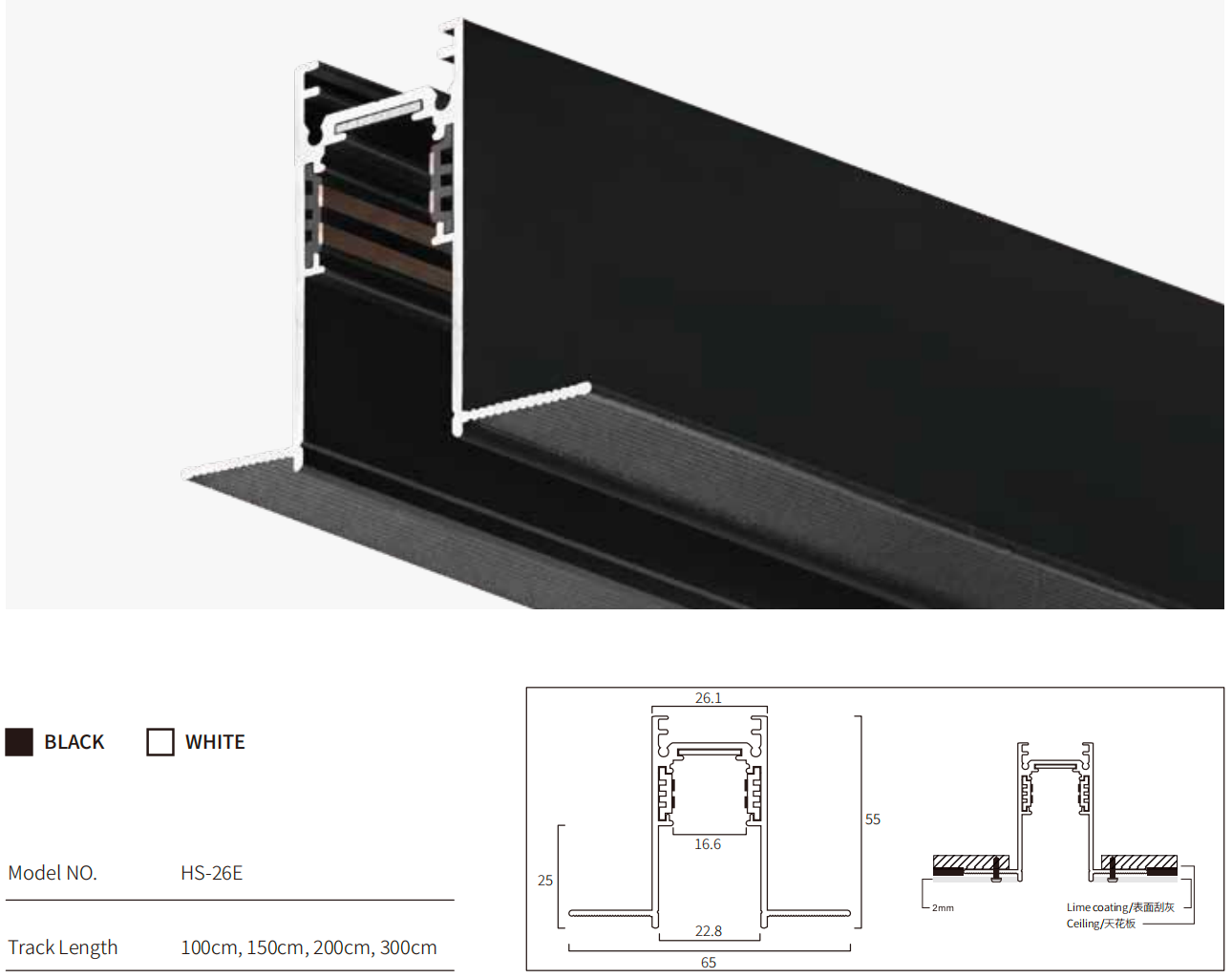

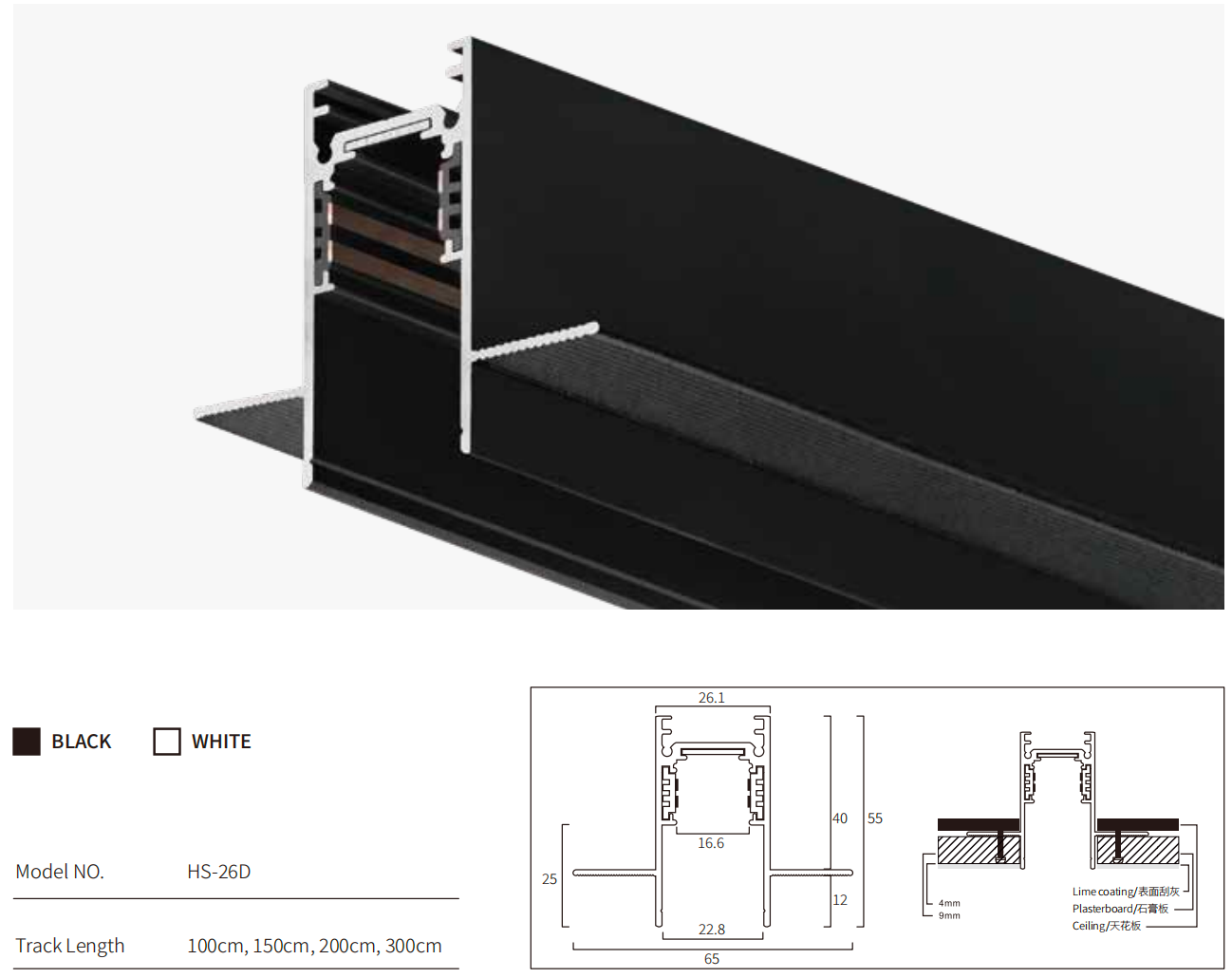

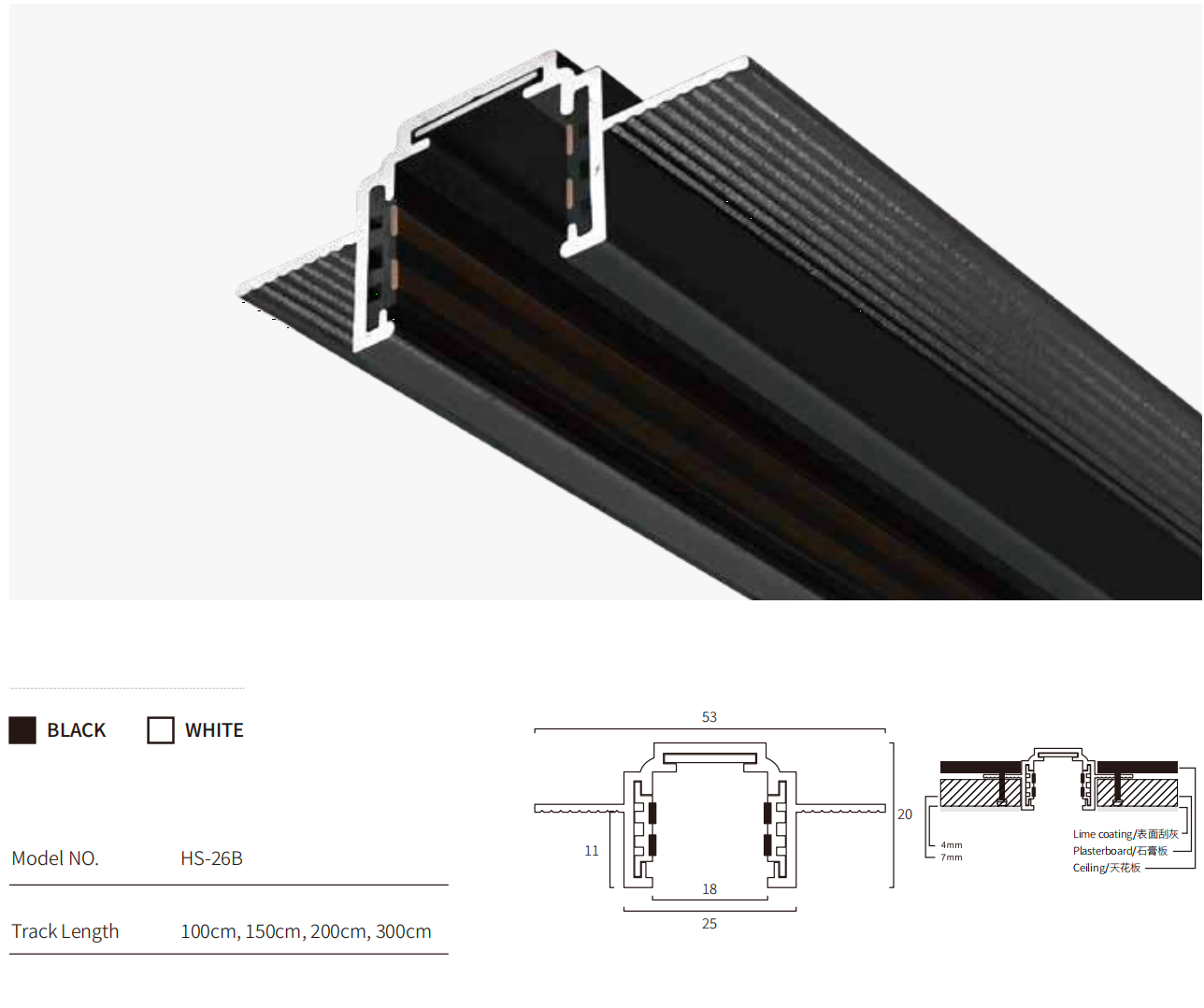

Recessed profile
100 / 150 / 200 / 300 cm; black / white

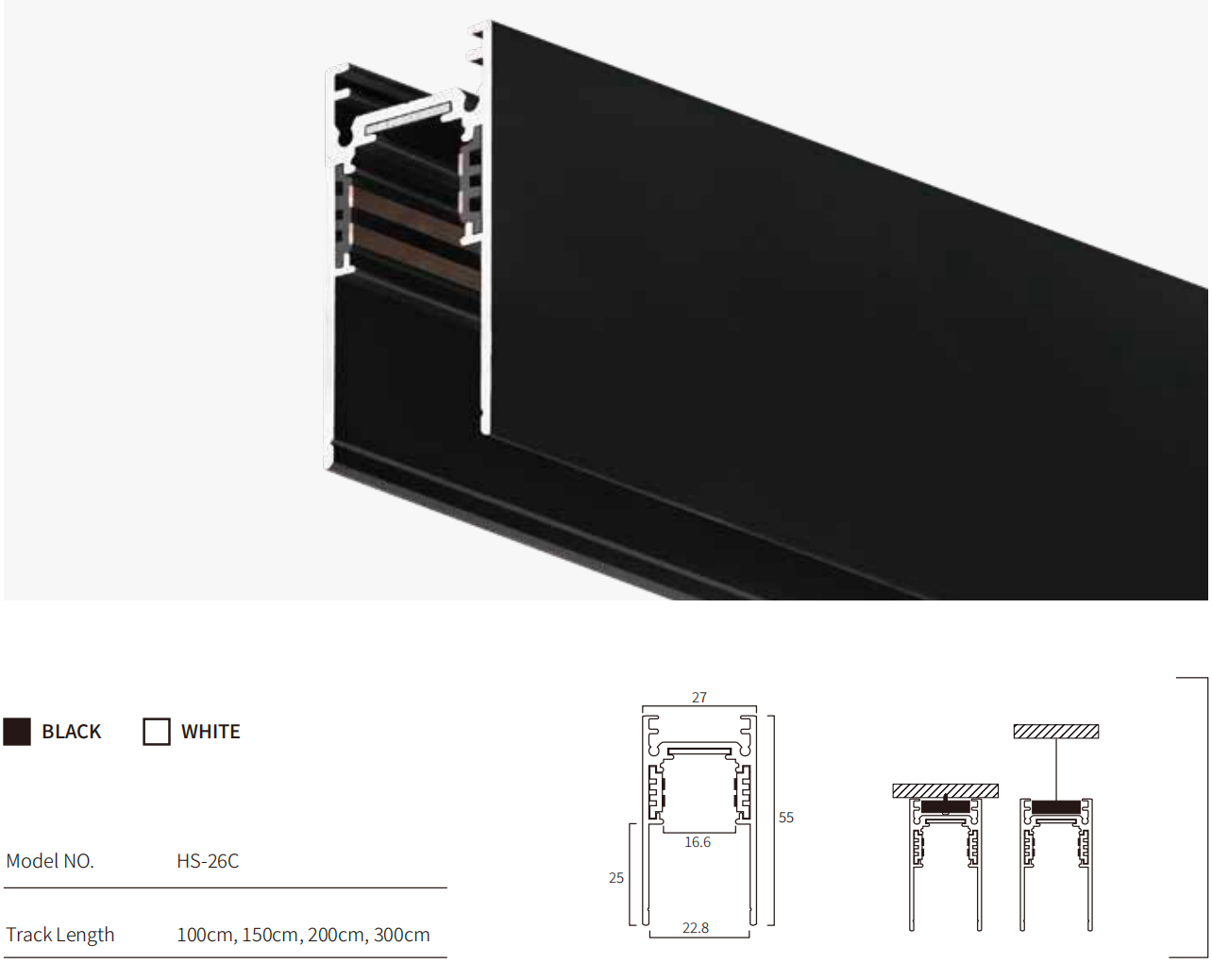

Deep surface / suspended profile
100 / 150 / 200 / 300 cm; black / white
Recessed profile
100 / 150 / 200 / 300 cm; black / white
Recessed profile
100 / 150 / 200 / 300 cm; black / white

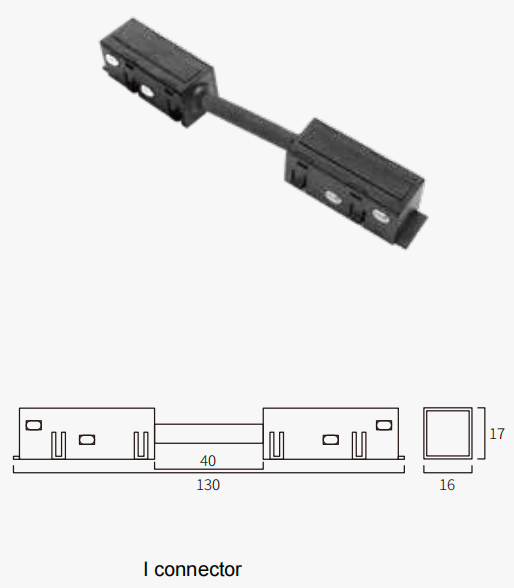

Straight electrical connection
Overall 130 mm; section 16 × 17 mm

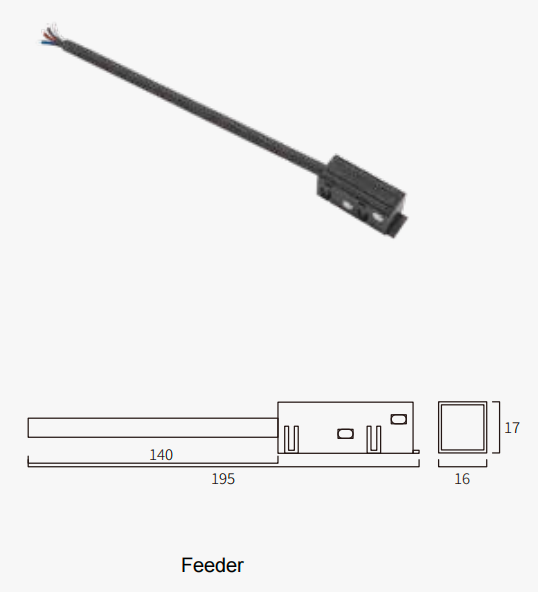

Track power feed
Overall 195 mm; section 16 × 17 mm

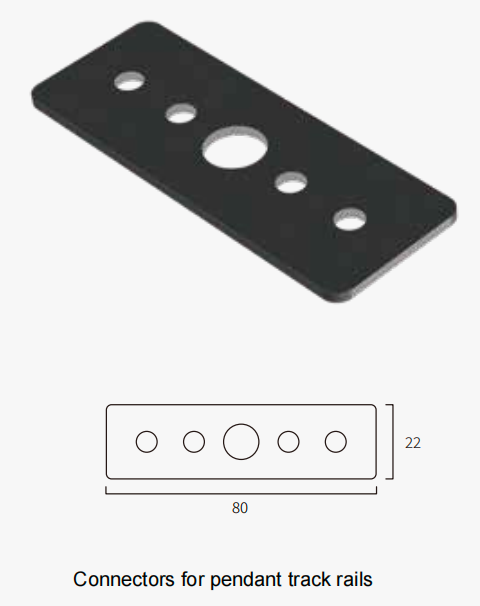

Mechanical connection plate
80 × 22 mm

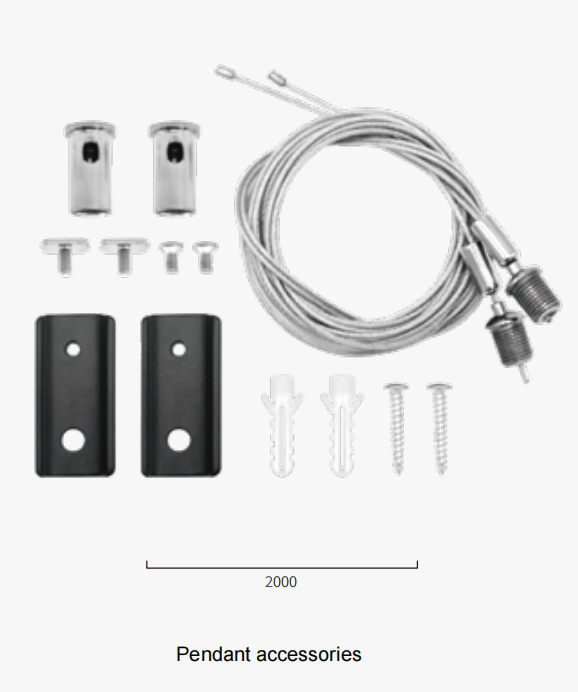

Suspension components
2000 mm as shown in supplied drawing

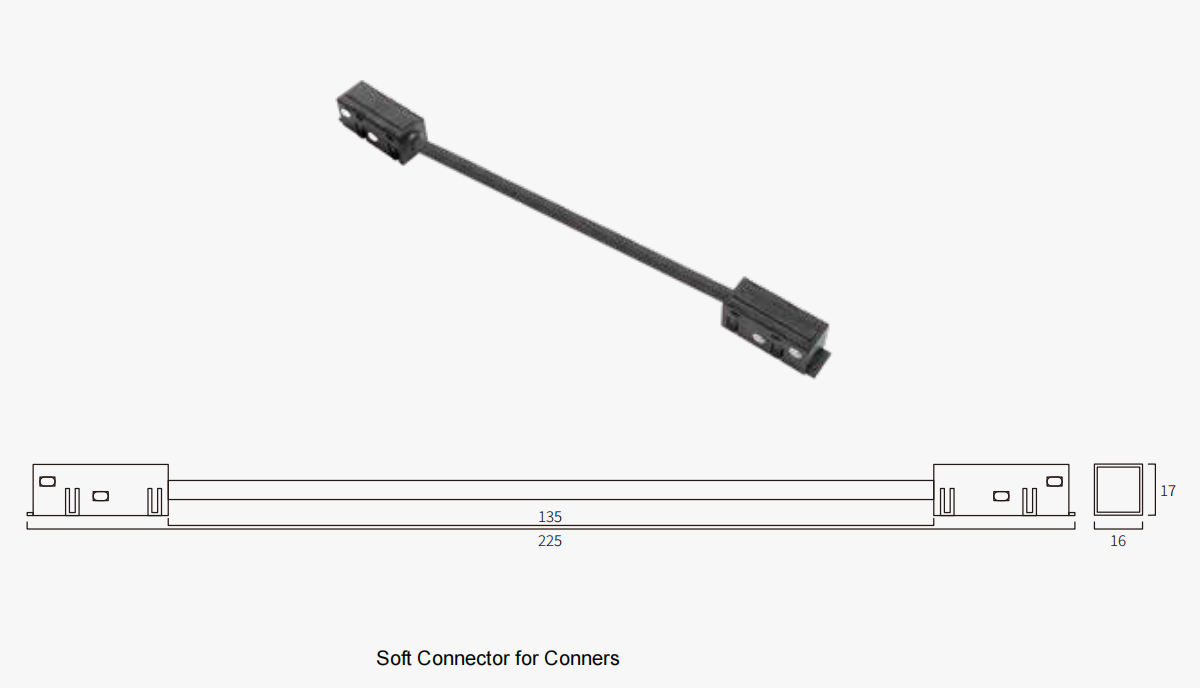

Flexible electrical connection
Overall 225 mm; section 16 × 17 mm

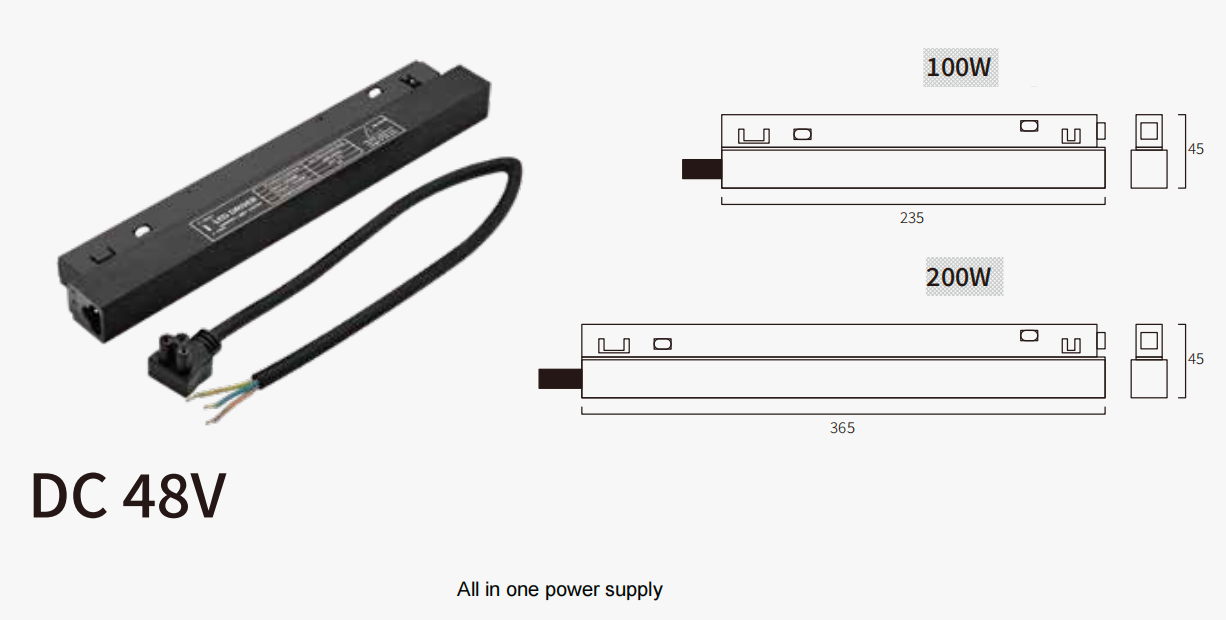

100W / 200W options
