HS-CXD150-DQ is listed with a 7W OSRAM LED source behind a PC optic, at Ra ≥90 color rendering and a 350° beam.

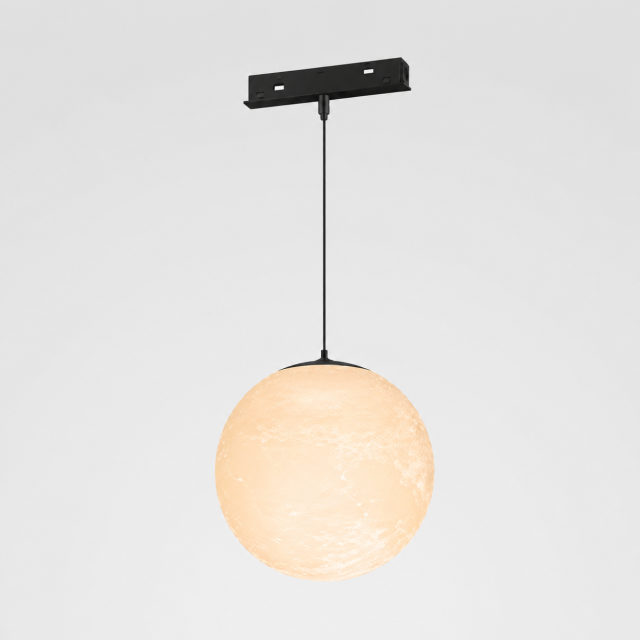

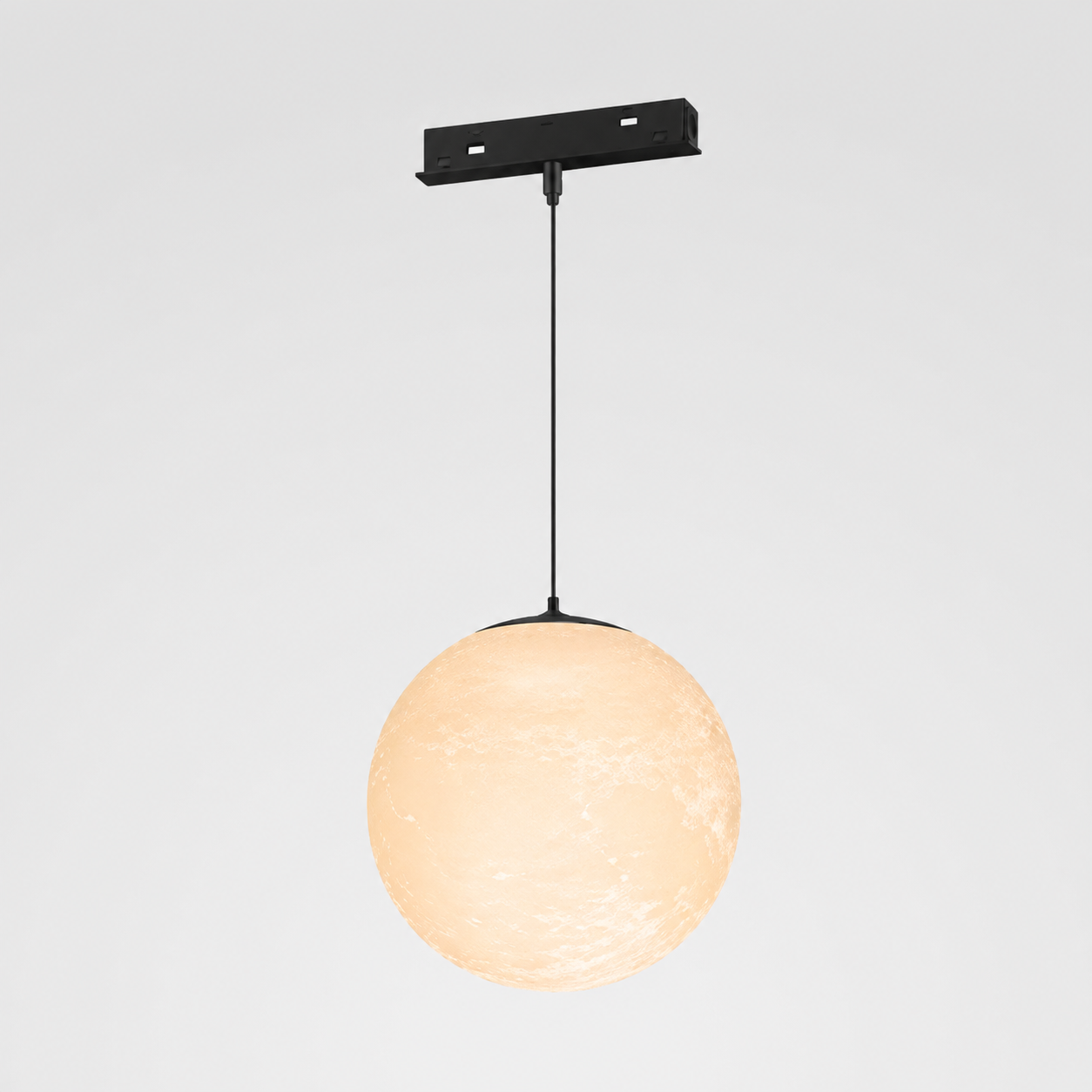

HS-CXD150-DQ planet pendant light, Earth globe. See the reference sheet for dimensions.
View dimensions & original product sheet ↓VOC Lighting’s HS-CXD150-DQ is a Ø150 mm planet globe pendant with a 7W OSRAM LED source behind a PC optic, Ra ≥90 and a 350° beam. The drop is adjustable from 10 mm to 1000 mm, and it runs on the 48V system with a black lamp body.
Ø150 × 150 mm globe · 350° beam · PC optic · 10–1000 mm adjustable drop
Color temperature and finish selection are carried into the quotation brief. The product photograph does not change with the selected configuration.
HS-CXD150-DQ is listed as a single configuration class: 7W, OSRAM LED source, DC 48V input, black lamp body. Confirm the control configuration separately — wattage alone does not establish illuminance at the target surface.
| Item | Listed specification |
|---|---|
| Model | HS-CXD150-DQ |
| Product name | Planet pendant light — Earth |
| Dimensions | Ø150 × 150 mm |
| Optic | PC |
| LED source | OSRAM |
| Power | 7W |
| Beam | 350° |
| Input | DC 48V |
| CRI | Ra ≥90 |
| Warranty | 3 years |
| Listed CCT | 3000K / 4000K / 5700K |
| Lamp body color | Black |
| Suspension | 10–1000 mm adjustable suspension cable |
| Packing | Pearl cotton packaging |
| Packing quantity | 12 pcs per carton |
Dimensions above describe the globe only. The track adapter, mounting hardware and rail are specified with the track system. Other CCT options and drops beyond 1000 mm require confirmation.
HS-CXD150-DQ is listed with a 7W OSRAM LED source behind a PC optic, at Ra ≥90 color rendering and a 350° beam.
The globe measures Ø150 × 150 mm, and the supplied drawing shows the drop adjustable from 10 mm to 1000 mm. Confirm the required drop for your ceiling height.
The supplied drawing shows the pendant mounted on a track adapter at the top of the drop. Confirm rail and adapter compatibility with your track layout.
HS-CXD150-DQ is listed with 0–10V, DALI, 2.4GHz RF and Mi Home (MiJia) smart dimming. Dimming is a separate specification from the light source: match the driver and control package to the requested method.
0–10V and DALI dimming are listed for this model. Confirm the protocol, the driver and the control hardware for the method your project uses.
2.4GHz RF and Mi Home (MiJia) smart dimming are listed for this model. Confirm the gateway and app requirements for your project.
Each control method is specified separately with its own driver and hardware package. Confirm the exact combination for HS-CXD150-DQ before ordering.

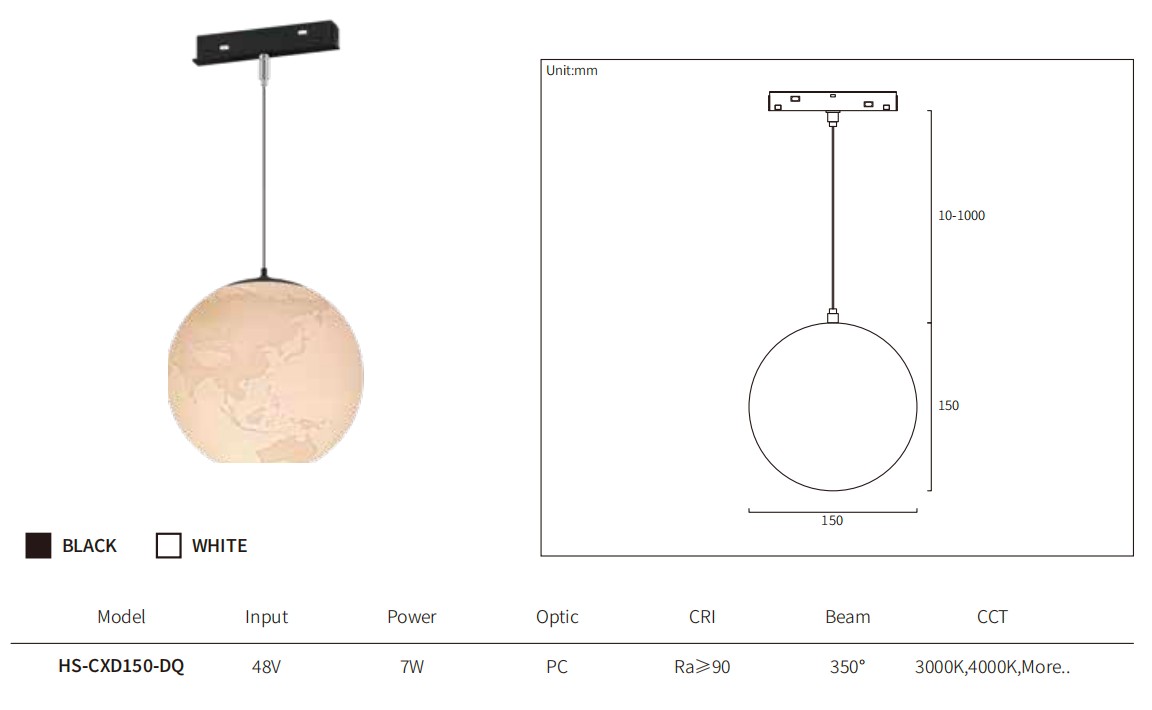

The original supplied sheet shows HS-CXD150-DQ, its dimension drawing, finish key and listed specifications. Refer to the text table above for searchable values.
Reference: product sheet supplied for this page. Click the image to download the reference. Request current technical drawings and model-specific documents for project approval.
The VOC Lighting HS-CXD150-DQ is a 48V pendant light with a Ø150 × 150 mm planet globe, a 7W OSRAM LED source behind a PC optic, Ra ≥90 and a 350° beam. The suspension is adjustable from 10 mm to 1000 mm.
HS-CXD150-DQ is listed in 3000K, 4000K and 5700K. Other color temperatures require confirmation before quotation.
No. Dimming is a separate specification from the light source. HS-CXD150-DQ is listed with 0–10V, DALI, 2.4GHz RF and Mi Home (MiJia) smart dimming, and the driver and control hardware are matched to the method your project uses.
The supplied drawing shows the drop adjustable from 10 mm to 1000 mm. Drops beyond this range and ceiling-interface details require confirmation.
Compatibility must be checked against the rail and adapter design, the electrical connection and the control configuration. A shared 48V input rating alone does not establish compatibility with another track system.
Specify the HS-CXD150-DQ model, quantity, color temperature, lamp body finish, required dimming method and the track components needed. Include your track information and project country. Price, lead time, warranty terms and applicable documents are confirmed with the quotation.
Choose components to include in your project brief. Final rail, connection and power compatibility is confirmed against the selected lighting and control configuration.
11 components shown

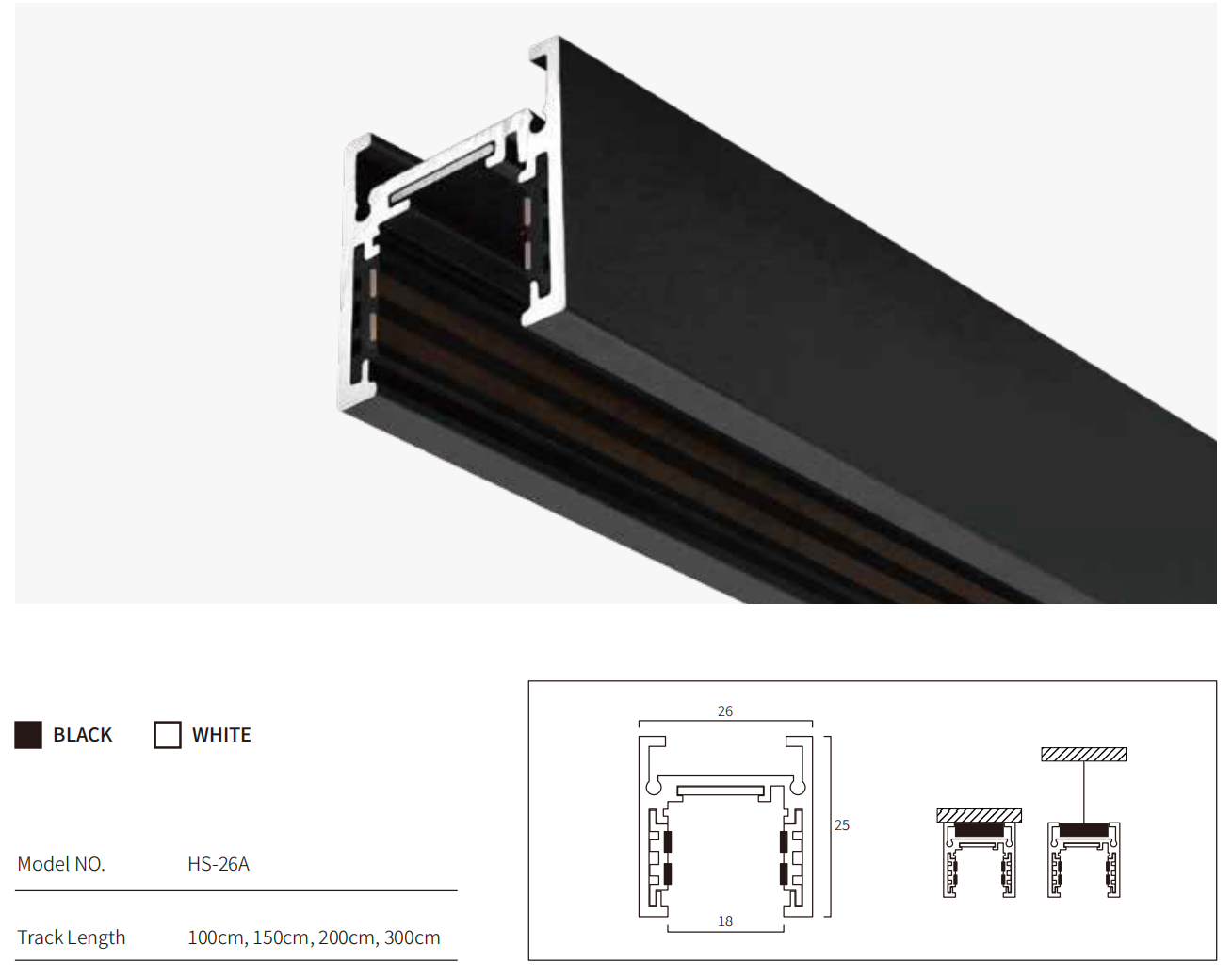

Surface / suspended profile
100 / 150 / 200 / 300 cm; black / white

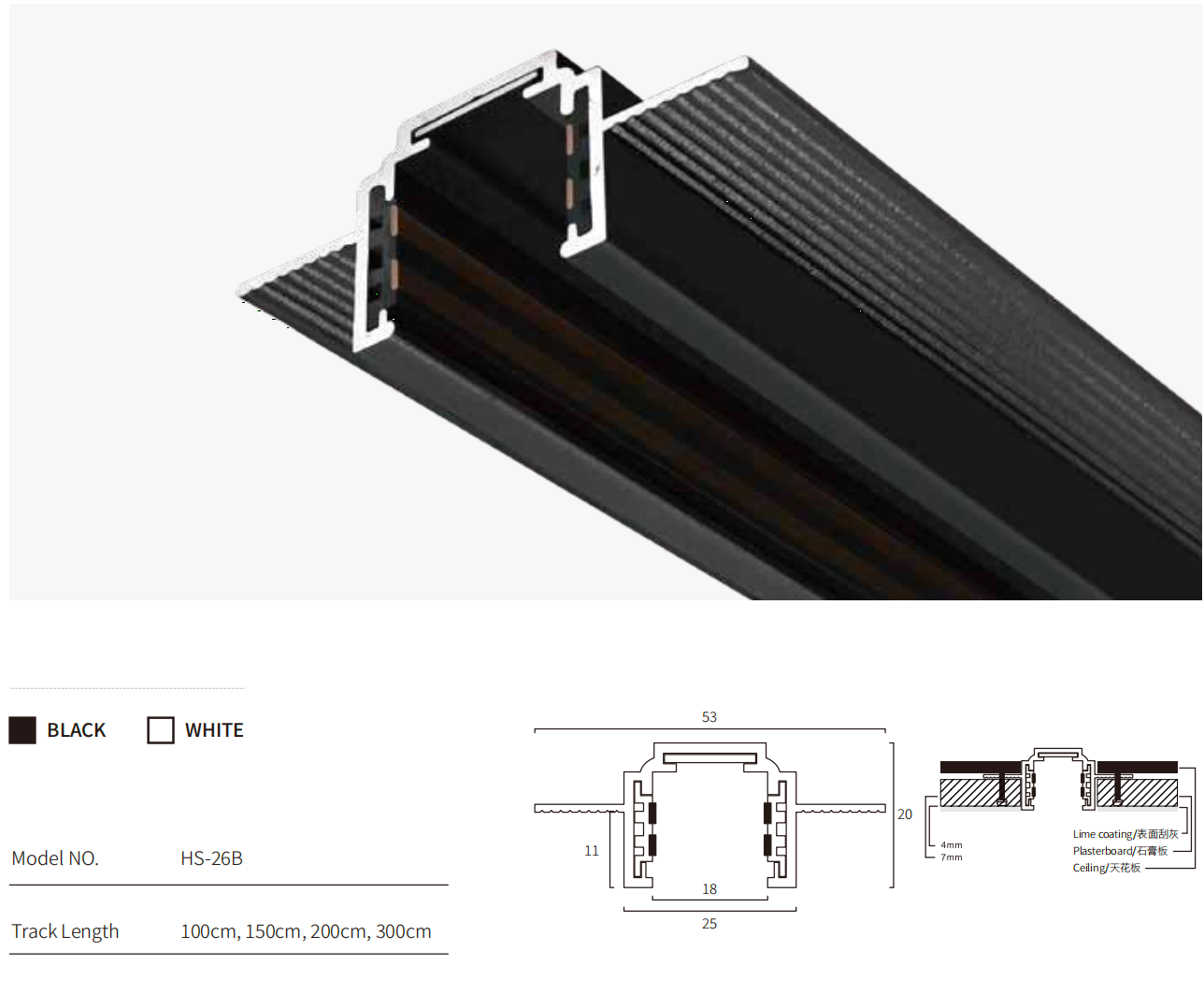

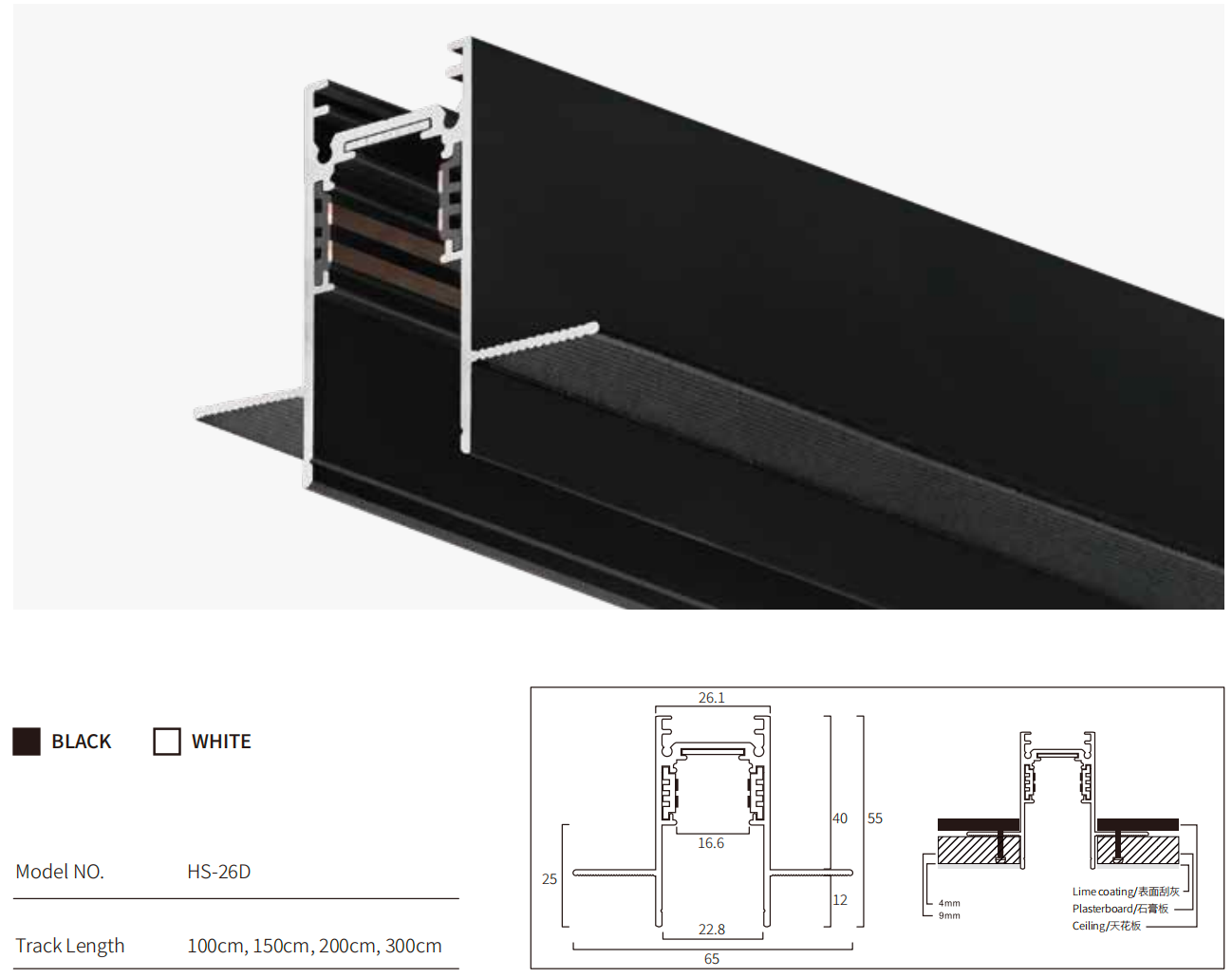

Recessed profile
100 / 150 / 200 / 300 cm; black / white
Deep surface / suspended profile
100 / 150 / 200 / 300 cm; black / white
Recessed profile
100 / 150 / 200 / 300 cm; black / white

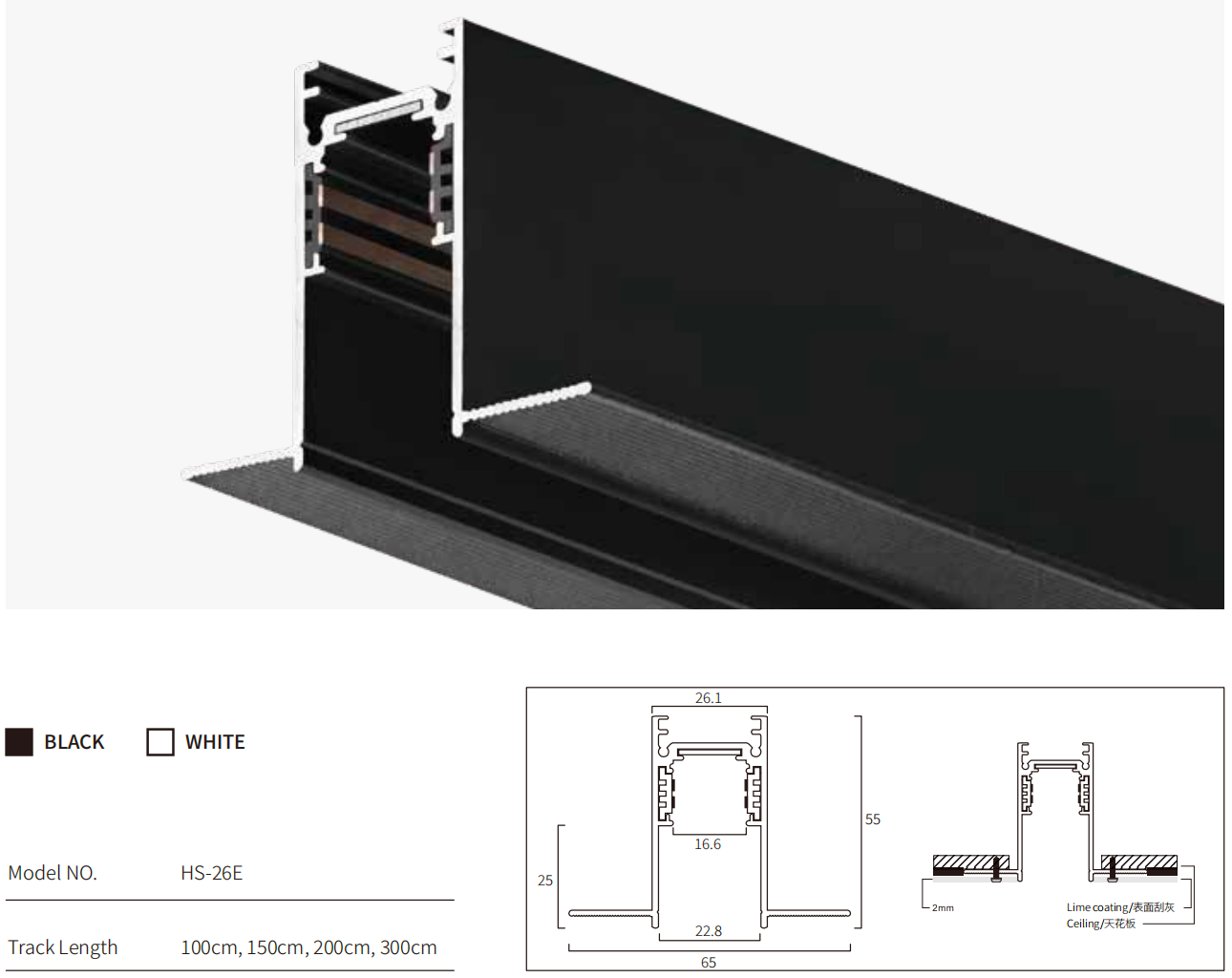

Recessed profile
100 / 150 / 200 / 300 cm; black / white

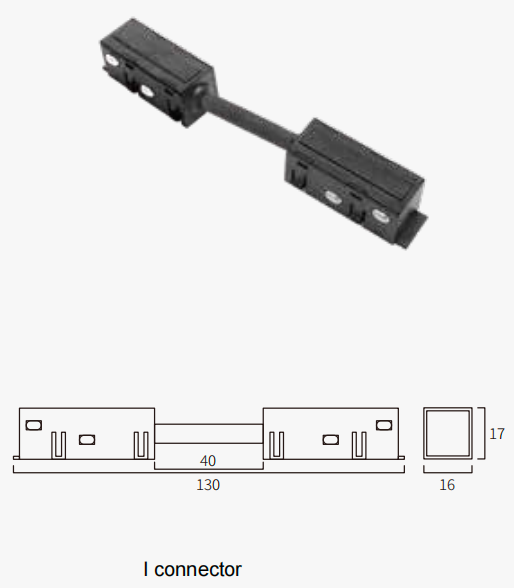

Straight electrical connection
Overall 130 mm; section 16 × 17 mm

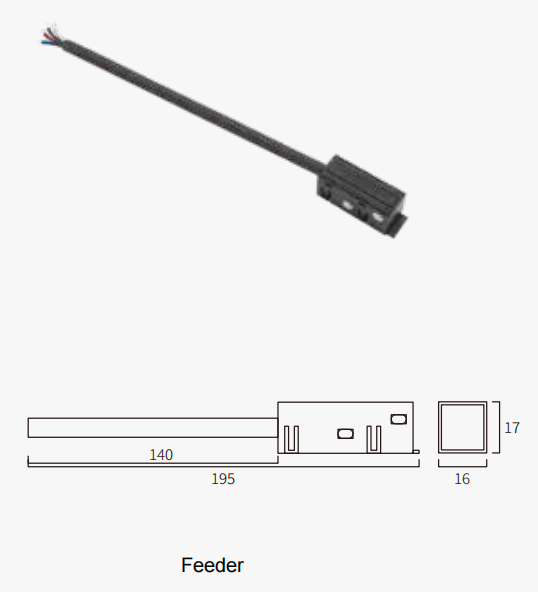

Track power feed
Overall 195 mm; section 16 × 17 mm

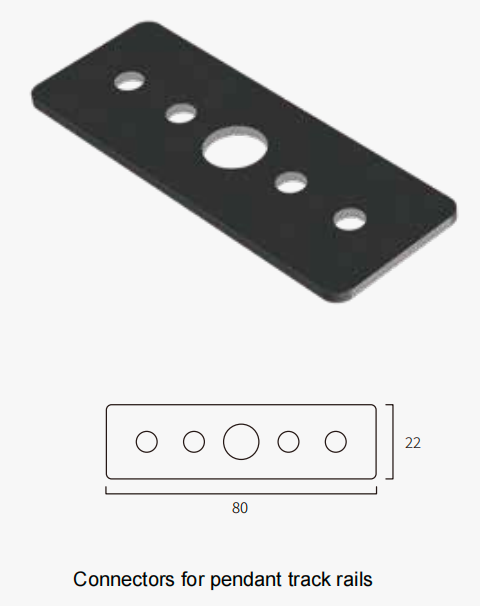

Mechanical connection plate
80 × 22 mm

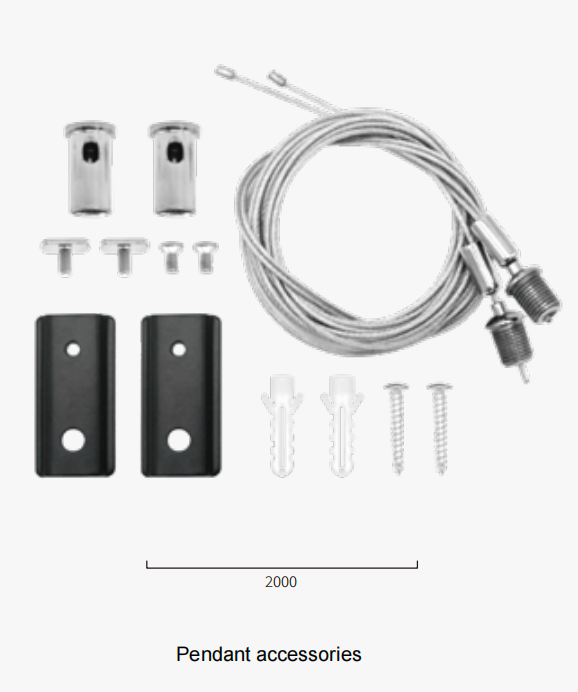

Suspension components
2000 mm as shown in supplied drawing

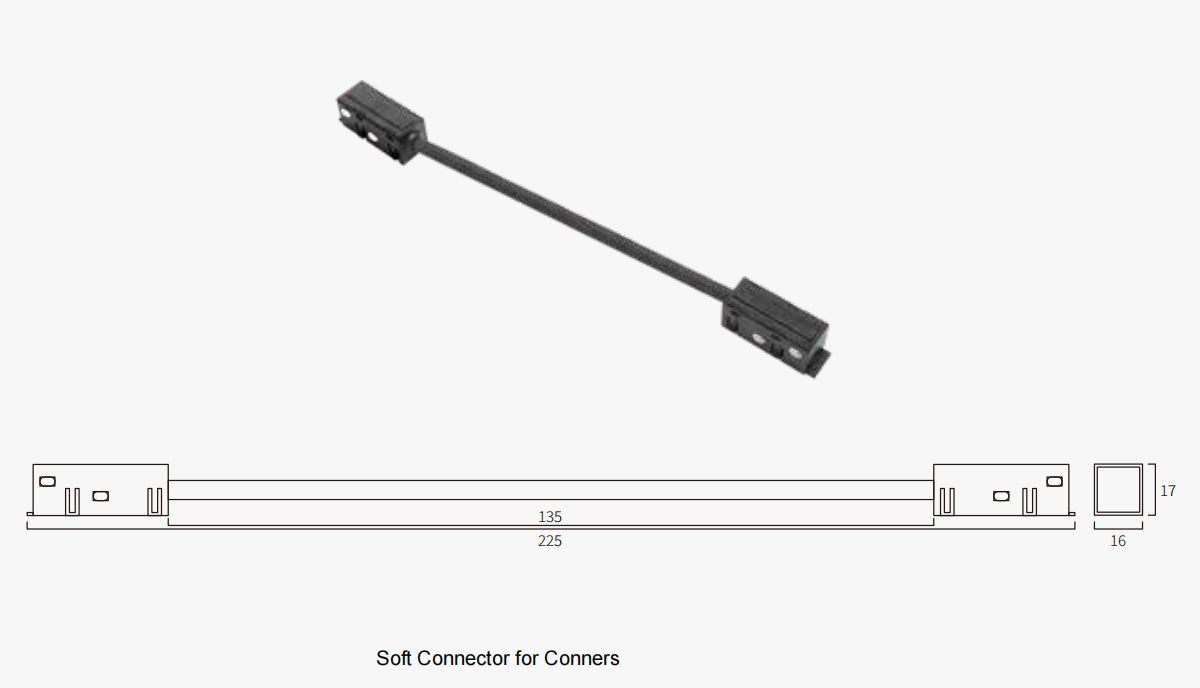

Flexible electrical connection
Overall 225 mm; section 16 × 17 mm

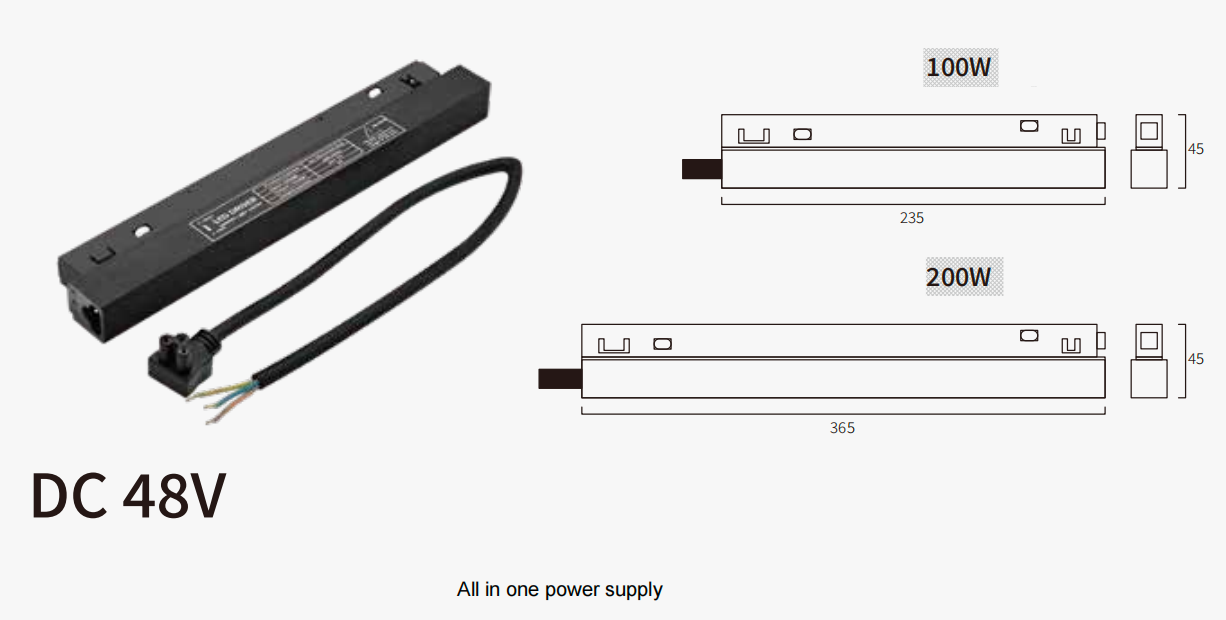

100W / 200W options
100W: 235 mm; 200W: 365 mm; section height 45 mm
Original images and drawing annotations are preserved. Click any image for a larger view. Mechanical mounting parts and electrical connectors serve different purposes. The pictured power supply is not automatically compatible with every dimming method.
