zoomable spot / Ø35 mm
HS-CXT035

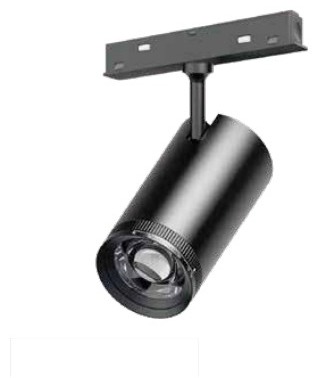

Ø35 × 80 mm cylindrical head listed at 7W with a lens optic, Ra ≥90 and a 15°–50° zoomable beam.
48V · 7W · 15°–50° · Ra ≥90 · Lens
Click the image to enlarge ↗

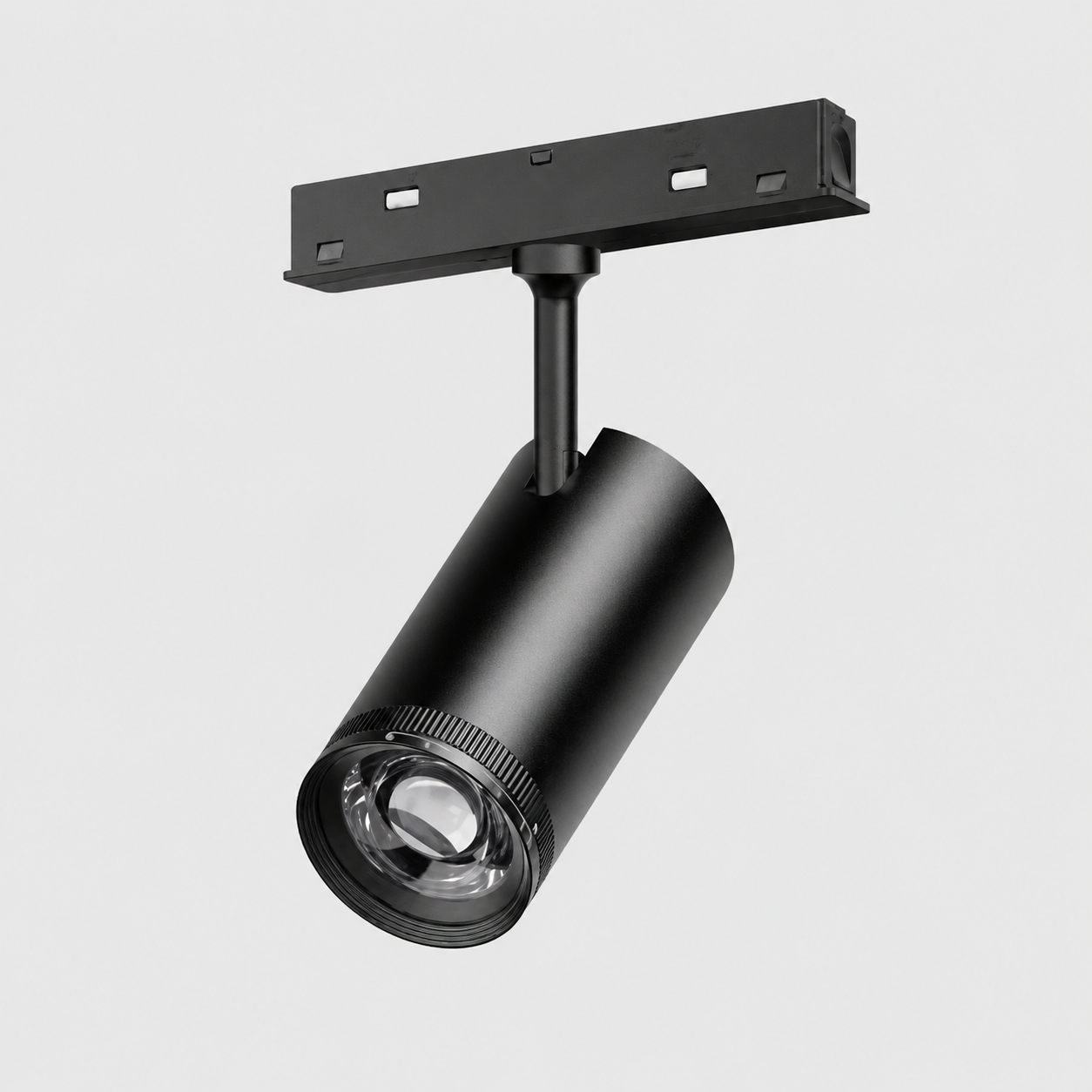

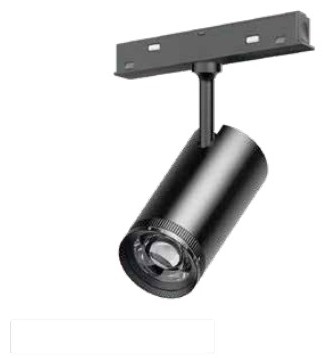

HS-CXT zoomable magnetic track spot light. See the reference sheet for model dimensions.
View all models & dimension drawings ↓VOC Lighting’s HS-CXT pairs a zoomable lens with an adjustable lamp head: four 48V magnetic track models, from the 7W HS-CXT035 to the 24W HS-CXT065. The listed beam range is 15°–50° on HS-CXT035 and HS-CXT045, and 15°–55° on HS-CXT055 and HS-CXT065. All four are listed with a lens optic at Ra ≥90, drawn at 90° tilt and 359° rotation, and offered in black or white.
Ø35–Ø65 mm bodies · 80–135 mm long · 7W–24W · lens optic · Ra ≥90 · 15°–50° / 15°–55° zoom · 90° tilt / 359° rotation
Model, finish (BLACK / WHITE) and color temperature selection are carried into the quotation brief. The product photograph does not change with the selected configuration.
The four models share one electrical and optical class — 48V input, lens optics, Ra ≥90 — and differ by output, lamp-body size and maximum beam angle: 15°–50° on the 7W and 12W models, 15°–55° on the 18W and 24W models. Select the required output class and body size first, then confirm the control configuration. Wattage alone does not establish illuminance at the target surface.
| Model | Input | Power | Optic | CRI | Zoom beam range | Listed CCT |
|---|---|---|---|---|---|---|
| HS-CXT035 | DC 48V | 7W | Lens | Ra ≥90 | 15°–50° | 3000K / 4000K |
| HS-CXT045 | DC 48V | 12W | Lens | Ra ≥90 | 15°–50° | 3000K / 4000K |
| HS-CXT055 | DC 48V | 18W | Lens | Ra ≥90 | 15°–55° | 3000K / 4000K |
| HS-CXT065 | DC 48V | 24W | Lens | Ra ≥90 | 15°–55° | 3000K / 4000K |
| Model | Body size | Aiming (per drawing) | Mounting |
|---|---|---|---|

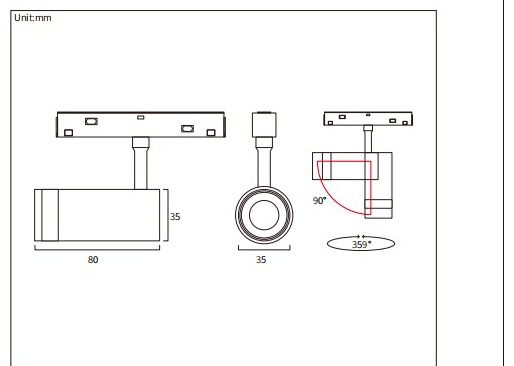

| HS-CXT035 | Ø35 × 80 mm cylindrical head | 90° tilt / 359° rotation (drawing) | Magnetic track adapter plate (drawing) |

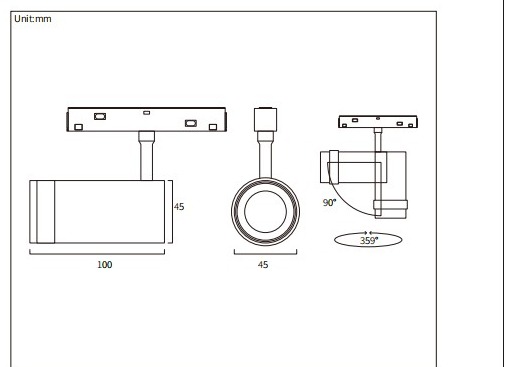

| HS-CXT045 | Ø45 × 100 mm cylindrical head | 90° tilt / 359° rotation (drawing) | Magnetic track adapter plate (drawing) |

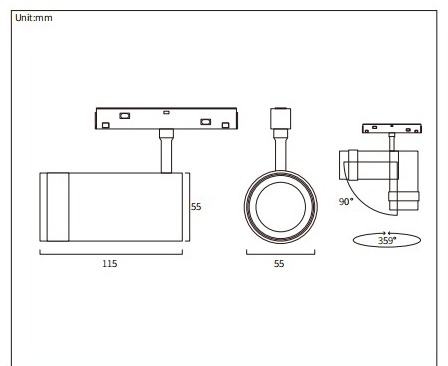

| HS-CXT055 | Ø55 × 115 mm cylindrical head | 90° tilt / 359° rotation (drawing) | Magnetic track adapter plate (drawing) |
| HS-CXT065 | Ø65 × 135 mm cylindrical head | 90° tilt / 359° rotation (drawing) | Magnetic track adapter plate (drawing) |
Body sizes above are the lamp-body dimensions drawn on the supplied sheet and exclude the adapter and stem assembly; the track rail, adapter and mounting hardware are specified with the track system. The sheet also carries a “More..” entry in the CCT column: additional color temperatures, LED source brand, luminous efficiency, warranty and packing details require confirmation.
Output and lamp-body size are linked on the supplied sheet: the Ø35 × 80 mm body is listed at 7W, Ø45 × 100 mm at 12W, Ø55 × 115 mm at 18W and Ø65 × 135 mm at 24W. All four share the 48V input, the lens optic and the Ra ≥90 rating, and each pair of images below is the product photograph and the dimension drawing supplied for that model.
Ø35 × 80 mm cylindrical head listed at 7W with a lens optic, Ra ≥90 and a 15°–50° zoomable beam.
48V · 7W · 15°–50° · Ra ≥90 · Lens
Ø45 × 100 mm cylindrical head listed at 12W with a lens optic, Ra ≥90 and a 15°–50° zoomable beam.
48V · 12W · 15°–50° · Ra ≥90 · Lens
Ø55 × 115 mm cylindrical head listed at 18W with a lens optic, Ra ≥90 and a 15°–55° zoomable beam.
48V · 18W · 15°–55° · Ra ≥90 · Lens
Ø65 × 135 mm cylindrical head listed at 24W with a lens optic, Ra ≥90 and a 15°–55° zoomable beam.
48V · 24W · 15°–55° · Ra ≥90 · Lens
Each model is listed with a zoomable beam — 15°–50° on HS-CXT035 and HS-CXT045, 15°–55° on HS-CXT055 and HS-CXT065 — so the same head can be set narrow for accent detail or wider for a soft wash. Confirm the beam setting you need for the mounting distance on the drawing.

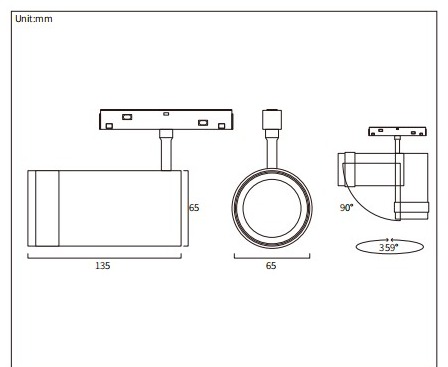

Every supplied drawing shows the head tilting 90° and rotating 359° on the magnetic track adapter plate. Check clearance in the planned track layout before ordering.
The sheets dimension the four lamp bodies at Ø35 × 80, Ø45 × 100, Ø55 × 115 and Ø65 × 135 mm; the adapter and stem assembly are additional. For displays, artwork or interior accents, confirm mounting distance and required illuminance, and request the available photometric files for the exact model.
Zooming changes the beam angle; dimming changes brightness — the two are specified separately. The HS-CXT family is offered with DALI, 0–10 V, phase-cut, Tuya Zigbee or 2.4 GHz RF control. All four wattages support whole-track dimming configurations, while individual / group dimming is available on the 18W and 24W models only. Match the driver and control package to the requested method.
HS-CXT035 (7W), HS-CXT045 (12W), HS-CXT055 (18W) and HS-CXT065 (24W) can all be configured for whole-track dimming with DALI, 0–10 V, phase-cut, Tuya Zigbee or 2.4 GHz RF.
Choose HS-CXT055 (18W) or HS-CXT065 (24W) for individual / group dimming. HS-CXT035 (7W) and HS-CXT045 (12W) are not offered in this configuration.
For individual / group dimming, confirm the specific protocol and the matched hardware for the 18W or 24W model you select. Independent switching capability is not specified on the supplied sheet.

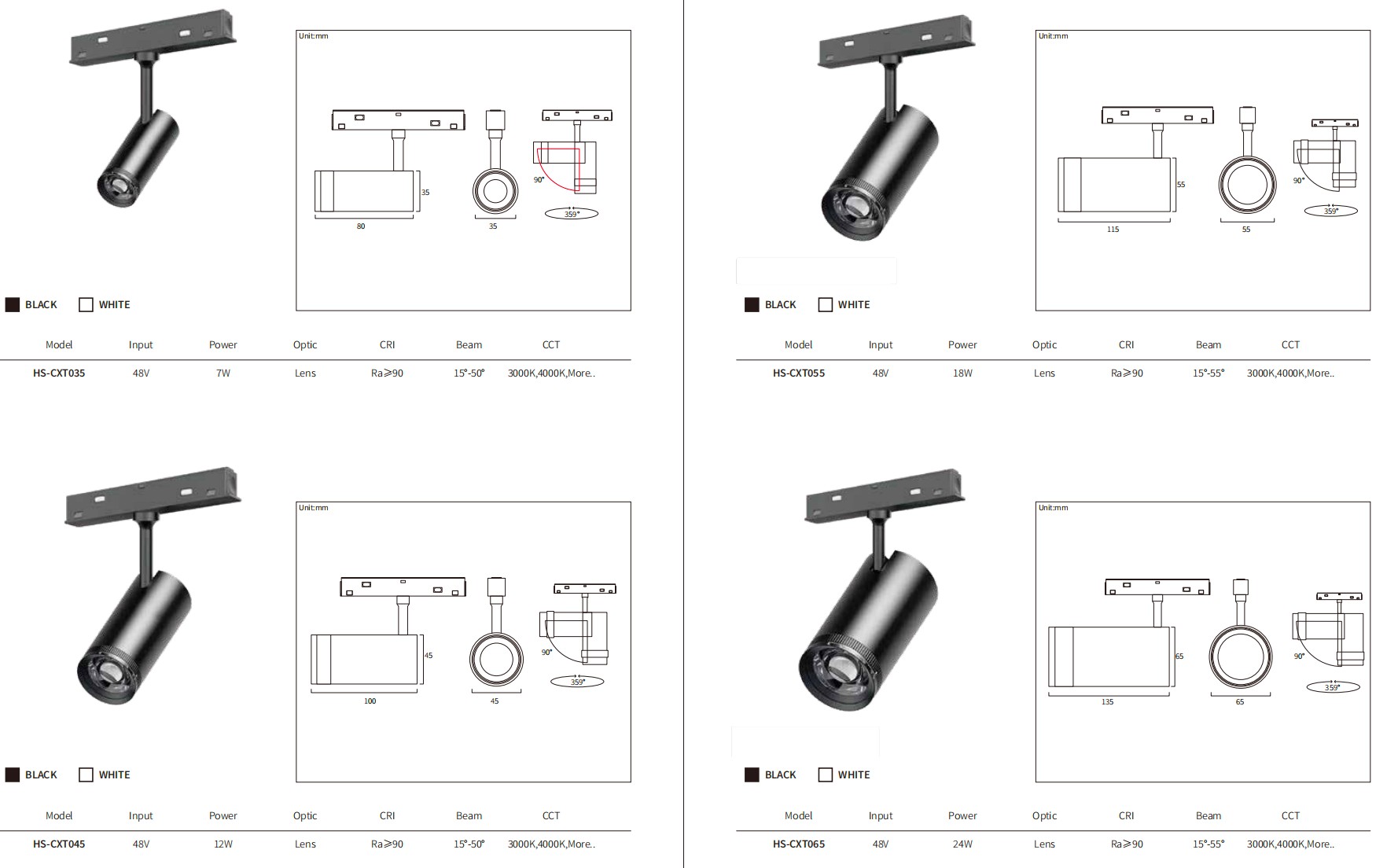

The supplied sheet covers all four models — HS-CXT035, HS-CXT045, HS-CXT055 and HS-CXT065 — each with its dimension drawing, the BLACK / WHITE finish key and the listed specification row. Refer to the tables above for searchable values.
Reference: spotlight sheet supplied for this page. Click the sheet to download it. Request current technical drawings and model-specific documents for project approval.
The VOC Lighting HS-CXT is a 48V magnetic track spot light with a zoomable lens and an adjustable lamp head, offered in four models from 7W to 24W. The listed beam range is 15°–50° on the 7W and 12W models and 15°–55° on the 18W and 24W models.
No. Zooming changes the beam angle of the optic, while dimming changes brightness. A zoomable optic does not by itself establish compatibility with a dimming protocol, so the control method is specified separately.
Output, lamp-body size and maximum beam angle: Ø35 × 80 mm at 7W (15°–50°), Ø45 × 100 mm at 12W (15°–50°), Ø55 × 115 mm at 18W (15°–55°) and Ø65 × 135 mm at 24W (15°–55°). All four specify 48V input, a lens optic, Ra ≥90 and black or white finish.
Individual / group dimming is available on the 18W HS-CXT055 and the 24W HS-CXT065. The 7W HS-CXT035 and 12W HS-CXT045 support whole-track dimming configurations only. Confirm the specific protocol and matched hardware for the model you select.
3000K and 4000K are listed on the supplied sheet, which also carries a “More..” entry in the CCT column. Additional color temperatures require confirmation before quotation.
Each supplied drawing shows the head tilting 90° and rotating 359° on the magnetic track adapter plate. Confirm the aiming range you require for the installation height and the display layout.
Compatibility must be checked against the rail and adapter design, the electrical connection and the control configuration — a shared 48V input rating alone does not establish compatibility with another track system.
Specify the model codes (HS-CXT035, HS-CXT045, HS-CXT055 or HS-CXT065), quantity, finish, color temperature, the required dimming method and control scope, and the track components needed. Include your track information and project country. Price, lead time, warranty terms and applicable documents are confirmed with the quotation.
Choose components to include in your project brief. Final rail, connection and power compatibility is confirmed against the selected lighting and control configuration.
11 components shown

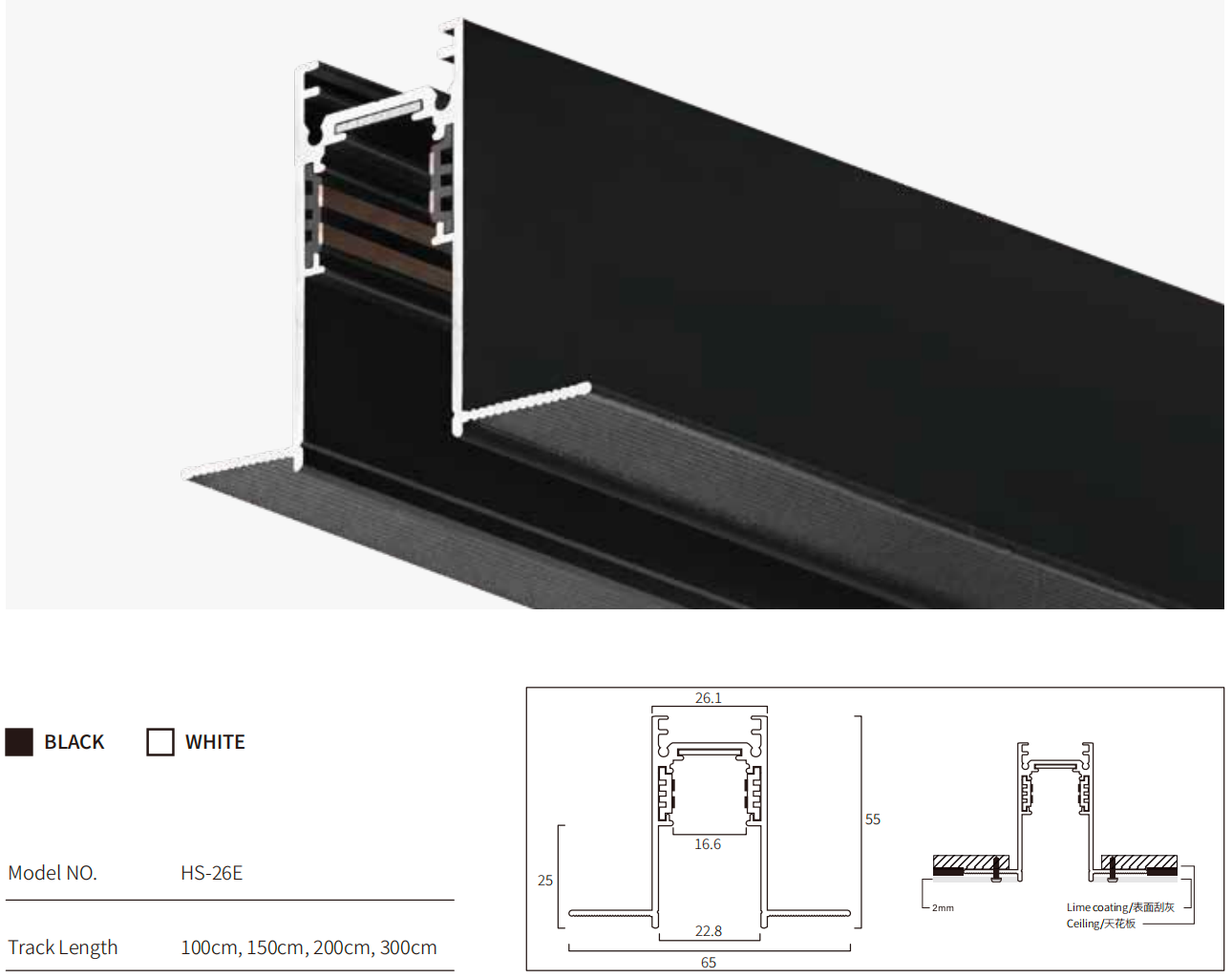

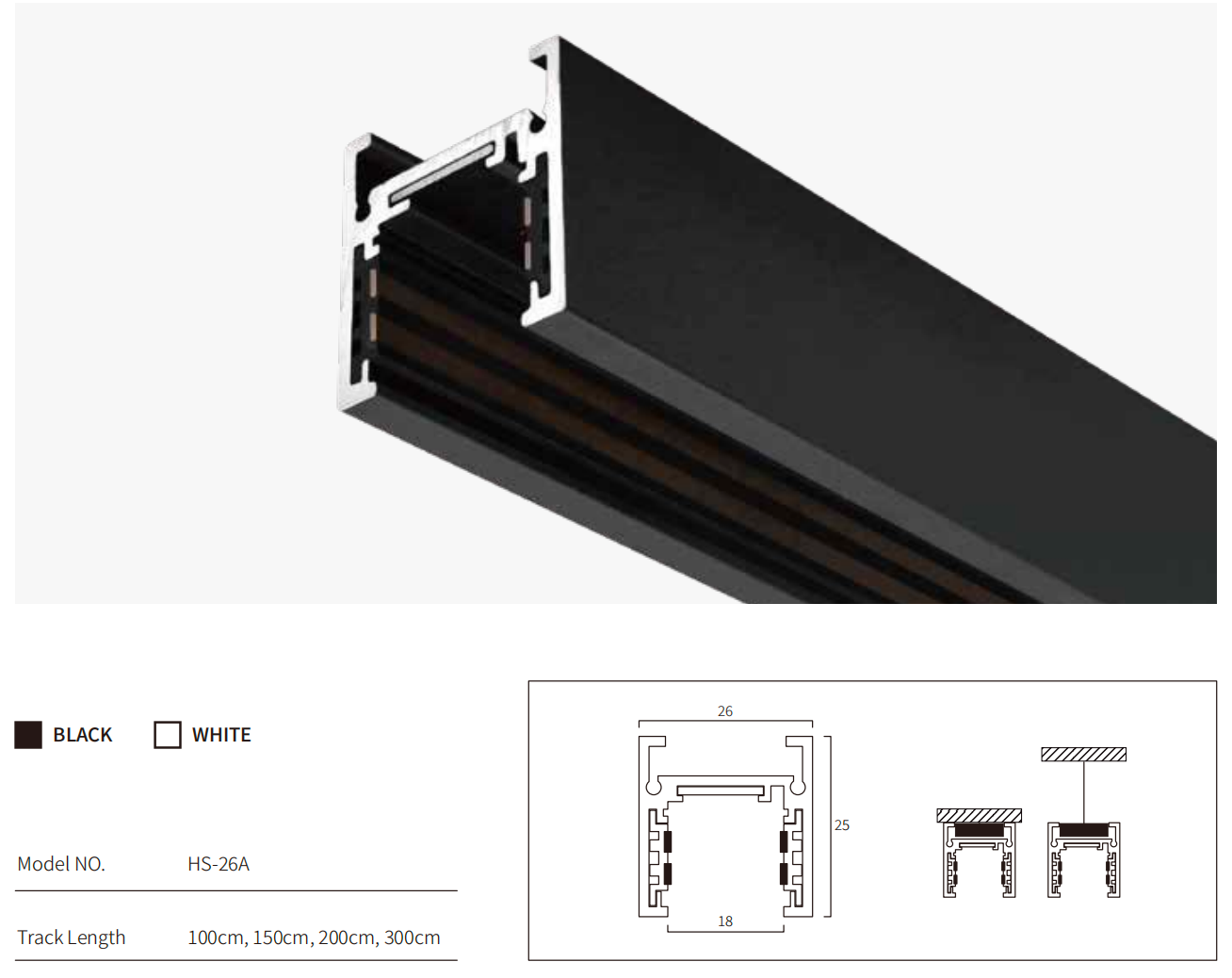

Surface / suspended profile
100 / 150 / 200 / 300 cm; black / white

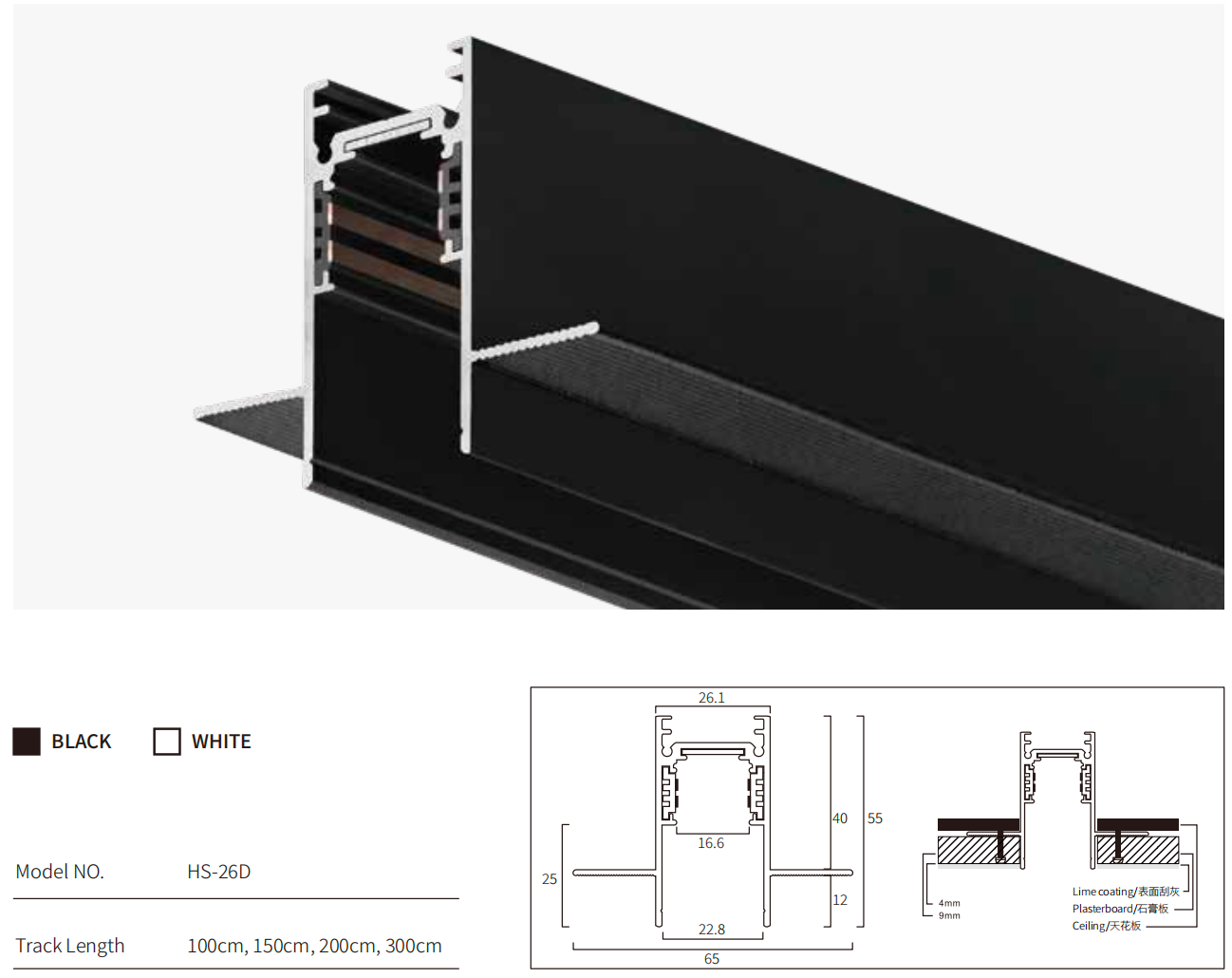

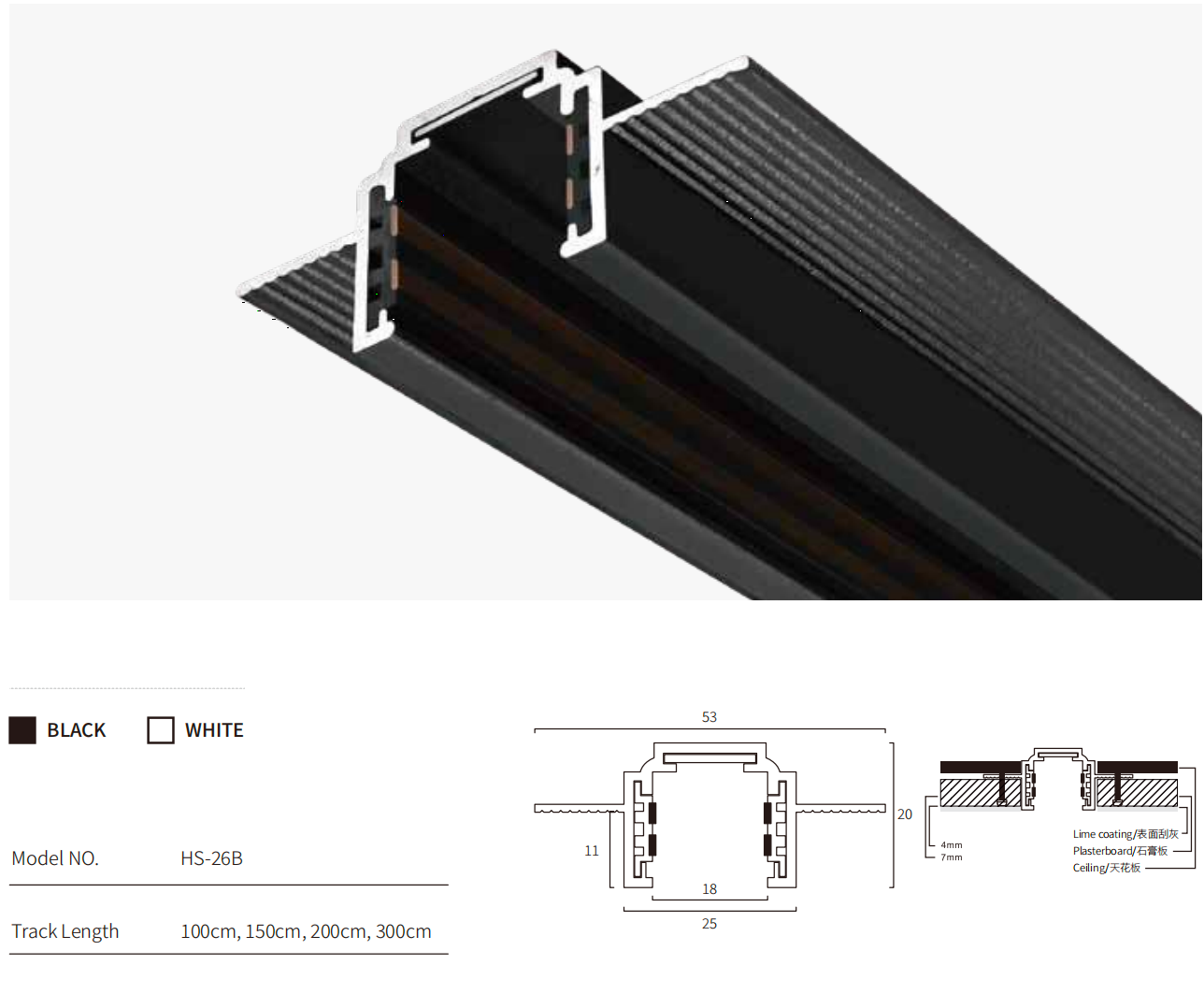

Recessed profile
100 / 150 / 200 / 300 cm; black / white

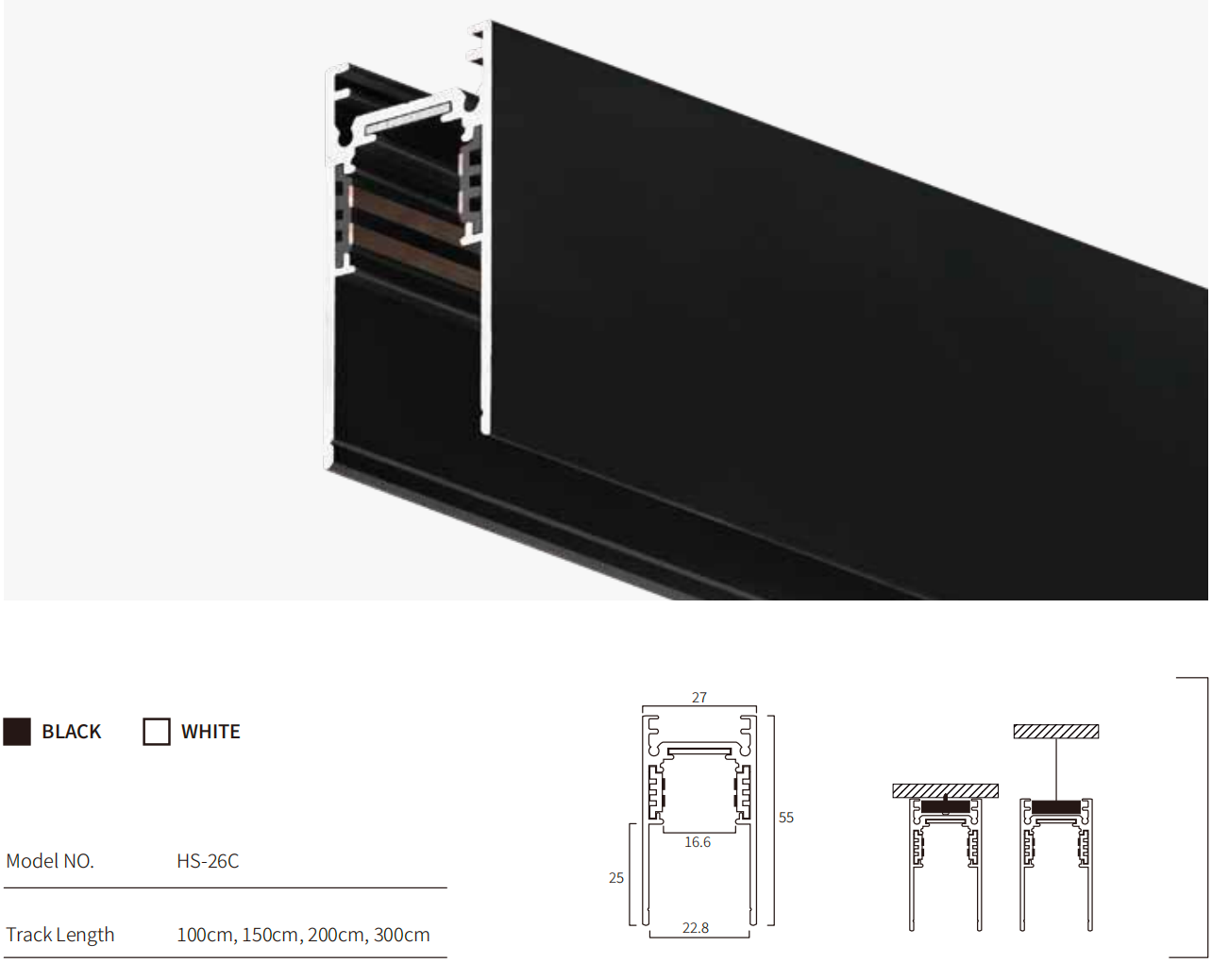

Deep surface / suspended profile
100 / 150 / 200 / 300 cm; black / white
Recessed profile
100 / 150 / 200 / 300 cm; black / white
Recessed profile
100 / 150 / 200 / 300 cm; black / white

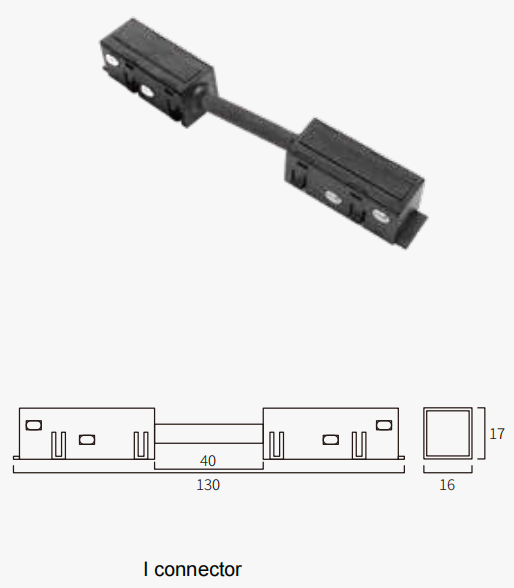

Straight electrical connection
Overall 130 mm; section 16 × 17 mm

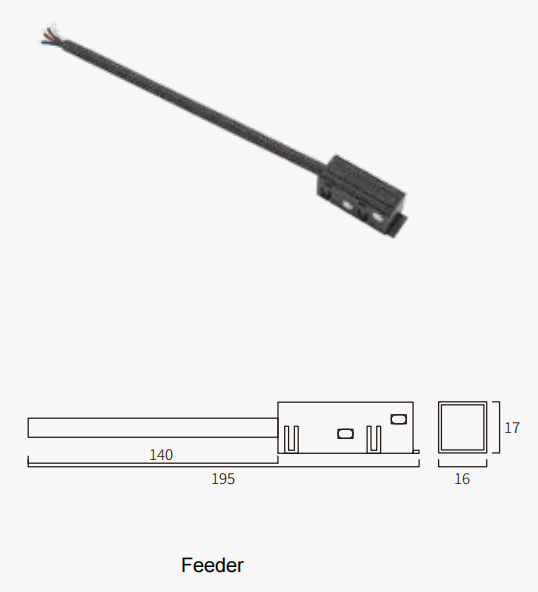

Track power feed
Overall 195 mm; section 16 × 17 mm

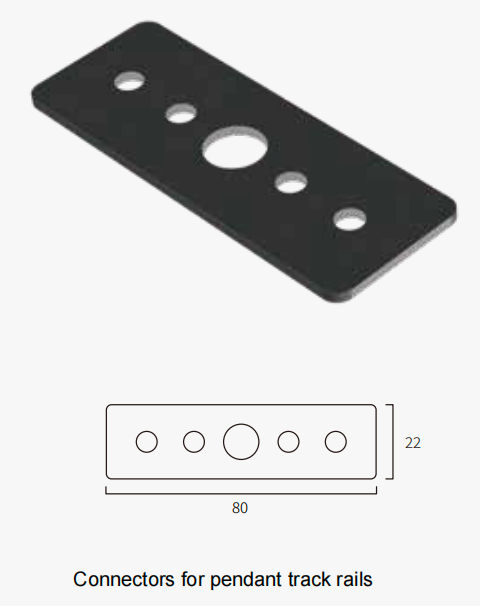

Mechanical connection plate
80 × 22 mm

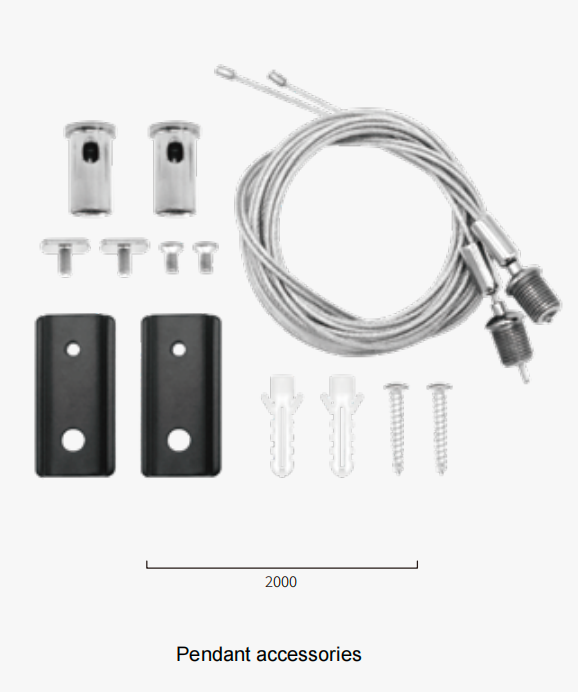

Suspension components
2000 mm as shown in supplied drawing

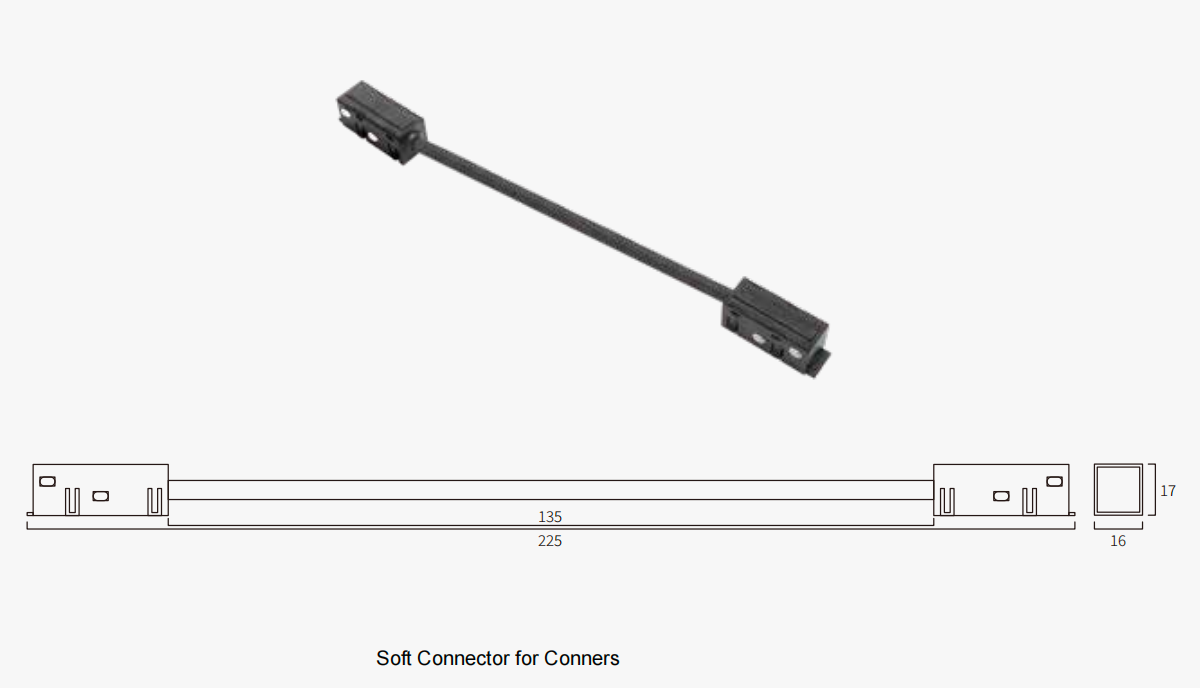

Flexible electrical connection
Overall 225 mm; section 16 × 17 mm

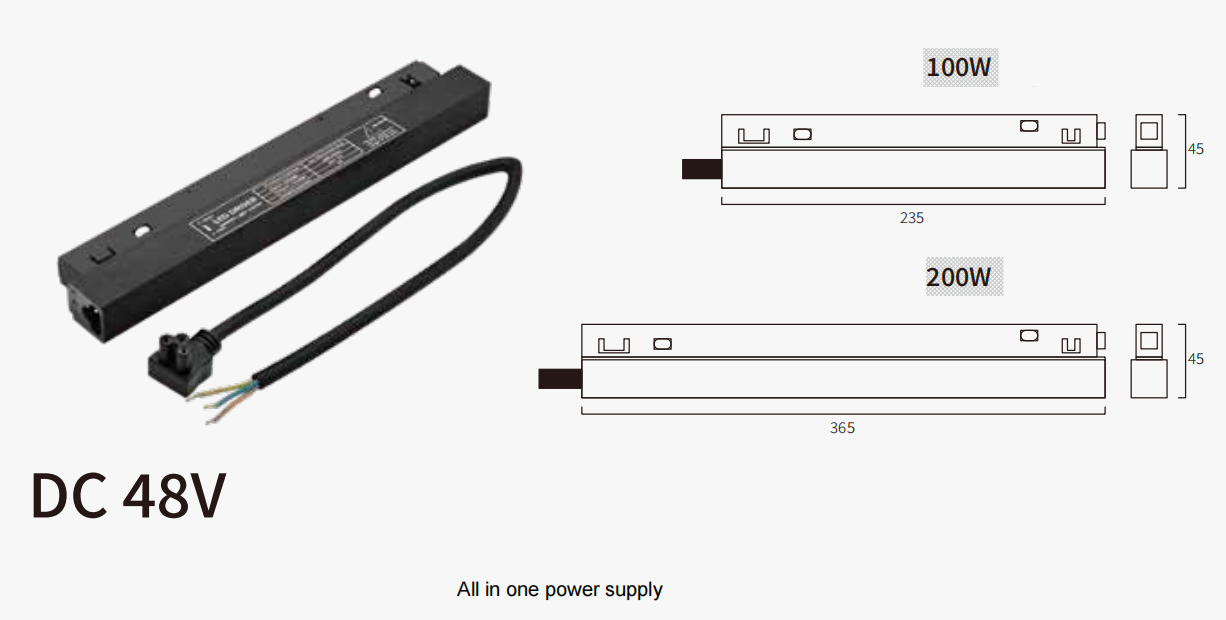

100W / 200W options
100W: 235 mm; 200W: 365 mm; section height 45 mm
Original images and drawing annotations are preserved. Click any image for a larger view. Mechanical mounting parts and electrical connectors serve different purposes. The pictured power supply is not automatically compatible with every dimming method.
Send the model codes, quantity, finish, color temperature, required dimming method and control scope, and the track components you need — including how the heads are grouped along the run. Pricing, delivery and the final control package are confirmed with your quotation.
