flood module
HS26-300F
300 mm · 10W system power · black / white
The shortest module in the series, for accents and short runs.

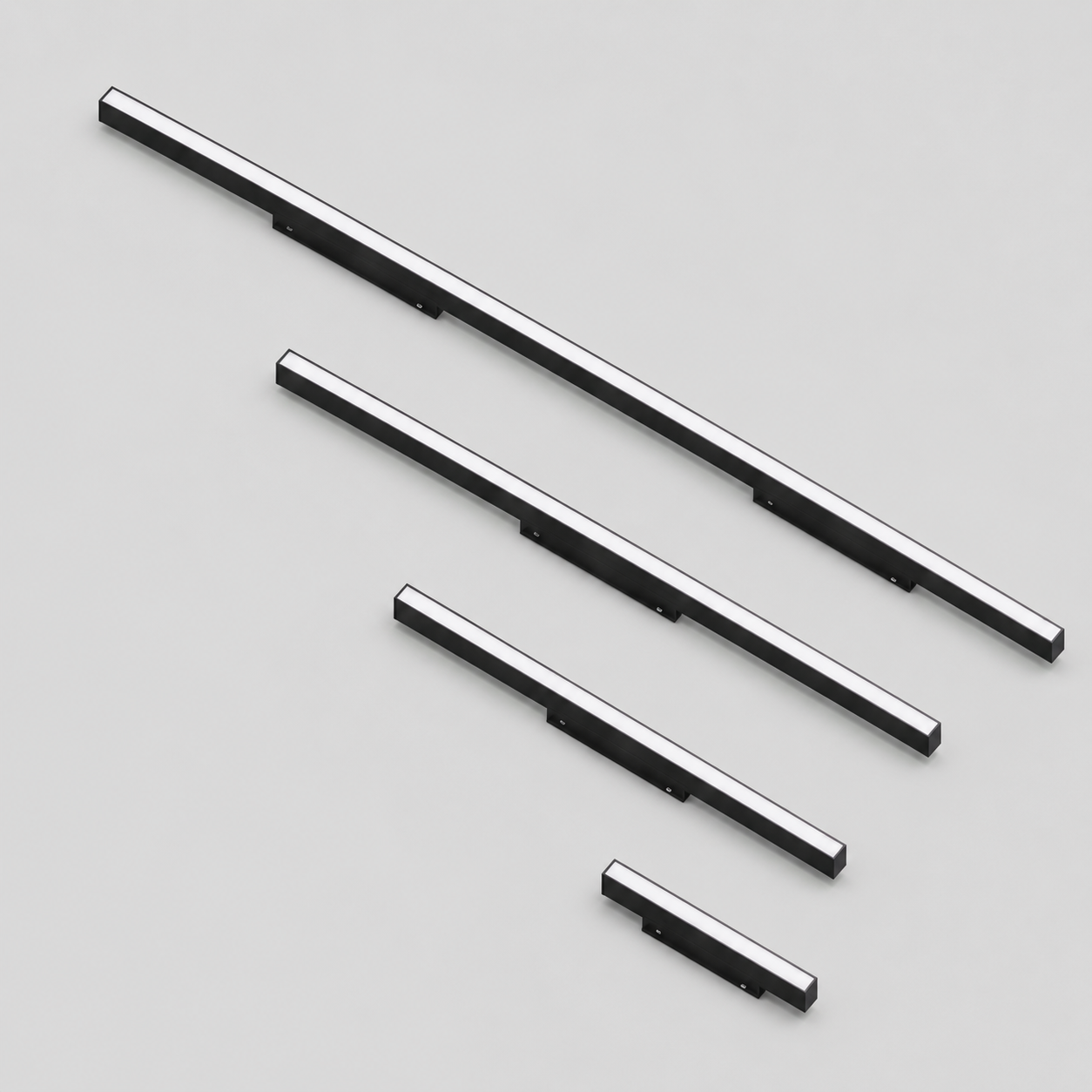

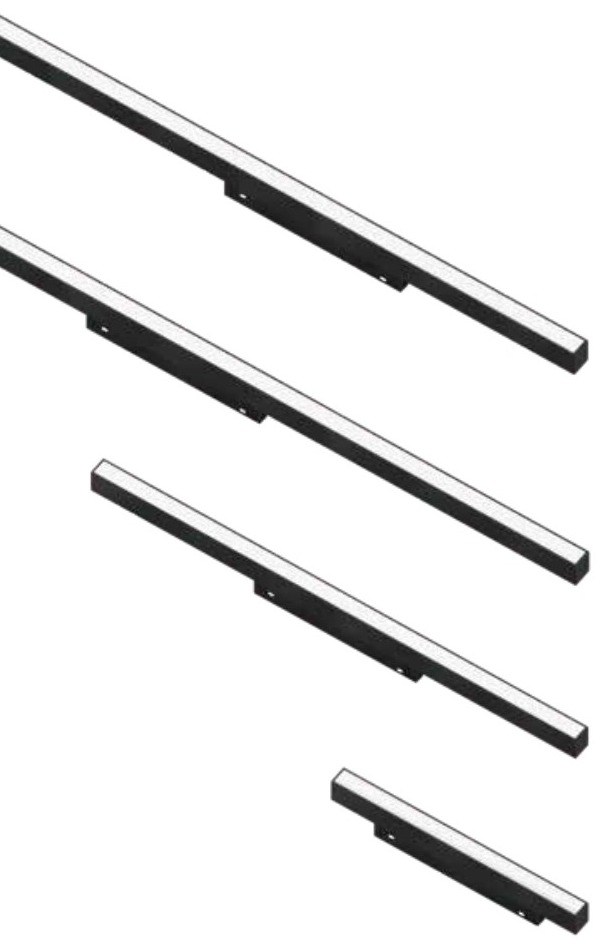

The HS26 flood light series in black: four module lengths, from HS26-300F at 300 mm to HS26-1200F at 1200 mm.
View the original sheet & the four module drawings ↓The VOC Lighting HS26 magnetic flood light is a linear module that mounts to the magnetic track and is listed in four lengths. System power rises evenly with length, from 10W on the 300 mm HS26-300F to 40W on the 1200 mm HS26-1200F — 3.3W per 100 mm at every size — in black or white. The supplied sheet lists the model number, overall length and system power of each module; optical, driver and dimming values are confirmed per project.
Listed on the supplied sheet: 300 / 600 / 900 / 1200 mm · 10 / 20 / 30 / 40W · black / white
Overall lengths are the module lengths listed on the supplied sheet. The finish selection is carried into your quotation brief; the drawings do not change with the selected configuration.
Length and system power are the two values that decide which module you specify, and they are listed per model on the supplied sheet. In this family the ratio is constant: every model works out at 3.3W per 100 mm, so a longer module adds light output in proportion to its length.
| Model | Overall length | System power | W per 100 mm (derived) | Finish |
|---|---|---|---|---|
| HS26-300F | 300 mm | 10W | 3.3W | Black / white |
| HS26-600F | 600 mm | 20W | 3.3W | Black / white |
| HS26-900F | 900 mm | 30W | 3.3W | Black / white |
| HS26-1200F | 1200 mm | 40W | 3.3W | Black / white |
| Listed on the supplied sheet | Requires confirmation |
|---|---|
| Model number, overall length (300 / 600 / 900 / 1200 mm), system power (10 / 20 / 30 / 40W) and the black / white finish key | Input voltage, CCT, CRI, beam angle, dimming method, driver and power supply, IP rating, body material, warranty and packing |
“W per 100 mm” is derived for comparison only, using system power ÷ overall length × 100, rounded to 0.1W. It is not a listed specification. No value in the second table appears on the supplied sheet, so nothing is assumed for HS26-300F to HS26-1200F.
Each module is a linear flood bar, drawn to scale below. The longest and shortest modules differ by a factor of 4 in overall length, while the power ratio stays at 3.3W per 100 mm.
Bar lengths are drawn to scale from the overall module lengths listed on the supplied sheet.

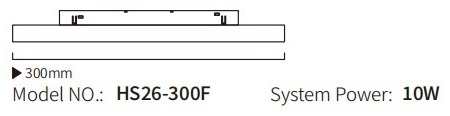

300 mm · 10W system power · black / white
The shortest module in the series, for accents and short runs.

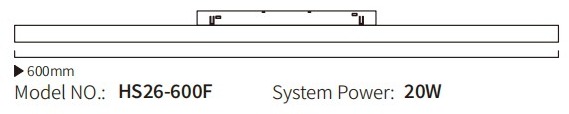

600 mm · 20W system power · black / white
A mid-length module for counters, bays and display walls.

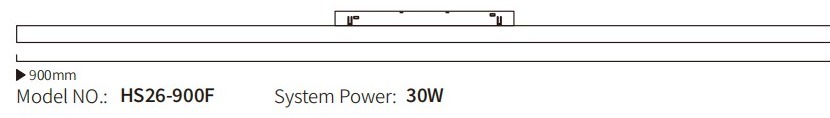

900 mm · 30W system power · black / white
For longer runs where fewer fixtures are preferred.

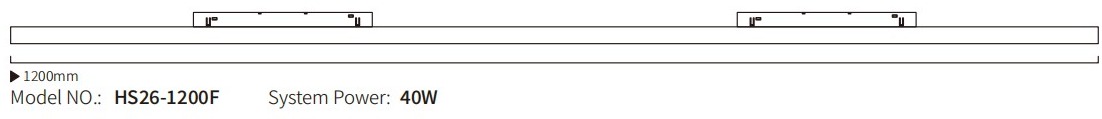

1200 mm · 40W system power · black / white
The longest module, covering 1200 mm per fixture at 40W.
HS26-300F is 300 mm and HS26-1200F is 1200 mm — a factor of 4. That ratio, not the wattage, is what changes how many fixtures a rail run needs.
Every model works out at 3.3W per 100 mm: 10W at 300 mm, 20W at 600 mm, 30W at 900 mm and 40W at 1200 mm. Adding a longer module adds output in proportion, which makes total load easy to estimate for a layout.
The modules are flood bars with magnetic mounting for the track. The supplied sheet lists module length and system power; the rail profile, connector, feeder and power supply are specified separately and confirmed by VOC Lighting with your quotation.
The supplied sheet for this series lists model, overall length and system power only. It does not list a dimming protocol, a driver model or a voltage, so no control value is assumed here — the package is confirmed against your track layout before quotation.
Not listed on the supplied sheet for HS26-300F to HS26-1200F. Confirm whether you need a wired protocol or wireless control, and ask for the matching driver for the modules you select.
System power is listed per module, from 10W to 40W, and the ratio is even at 3.3W per 100 mm. The driver and power supply must still be sized against the number and mix of modules on the rail, so send the layout and the total load is confirmed.
Send the rail layout with the module list and the control requirement — VOC Lighting confirms the complete package, including driver sizing, in the quotation.

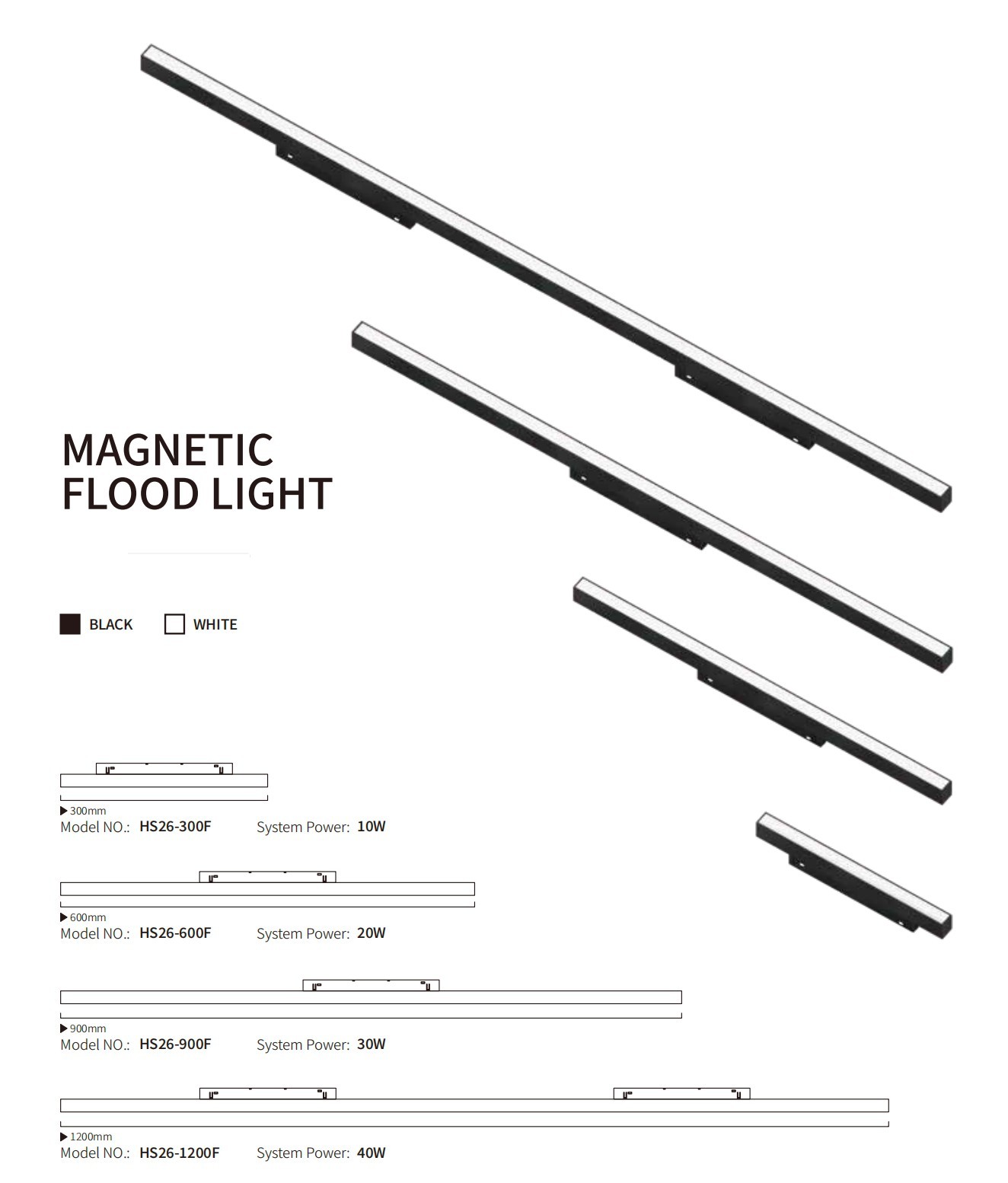

The supplied sheet is headed “MAGNETIC FLOOD LIGHT”. It shows the black / white finish key, the four module drawings with their overall lengths (300 / 600 / 900 / 1200 mm) and the listed system power for each model number. The module drawings are repeated per model in the four-length section above.
Overall length is the only dimension carried by the sheet. Depth, beam angle and driver data are not shown and require confirmation.
It is the VOC Lighting linear flood module for the HS26 magnetic track, listed in four lengths: HS26-300F (300 mm / 10W), HS26-600F (600 mm / 20W), HS26-900F (900 mm / 30W) and HS26-1200F (1200 mm / 40W), in black or white.
No. The supplied sheet lists HS26-1200F at 40W system power over 1200 mm. In this series the digits in the model code are the overall length in millimetres, not the wattage, so a 1200 mm module is 40W.
3.3W per 100 mm on every model. 10W at 300 mm, 20W at 600 mm, 30W at 900 mm and 40W at 1200 mm all resolve to 3.3W per 100 mm (derived: system power ÷ overall length × 100, rounded to 0.1W). This series is even across its range, unlike the HS26 grille series where the 1080 mm module sits lower at 4.2W per 100 mm.
The sheet lists module lengths, not rail lengths. As a starting point each module covers its own length — 1200 mm for HS26-1200F, 900 mm for HS26-900F, 600 mm for HS26-600F and 300 mm for HS26-300F. Rail lengths, joints and the load per power supply are confirmed with your layout.
The supplied sheet does not list CCT, CRI or beam angle for this series. All three require confirmation for your project before quotation.
The sheet does not list a dimming protocol for HS26-300F to HS26-1200F, so it is confirmed per project rather than assumed. Tell us the control system you use and the matching driver is quoted with the modules.
Both are HS26 magnetic track modules. This series is listed as a flood module in four lengths from 300 mm to 1200 mm at 10W to 40W; the grille series is listed in six lengths from 112 mm to 1080 mm at 6W to 45W with a grille face. Neither supplied sheet lists a beam angle, so the distribution for your project is confirmed with the quotation.
HS26 is the 48V magnetic track system. The module sheet lists system power only, so the driver and voltage compatibility are confirmed in the quotation against your track layout.
Send the module list with model codes and quantities, the rail run length, the finish, the control requirement and the project country. VOC Lighting confirms length compatibility, driver sizing, price and lead time in the quotation.
Choose components to include in your project brief. Final rail, connection and power compatibility is confirmed against the selected lighting and control configuration.
11 components shown

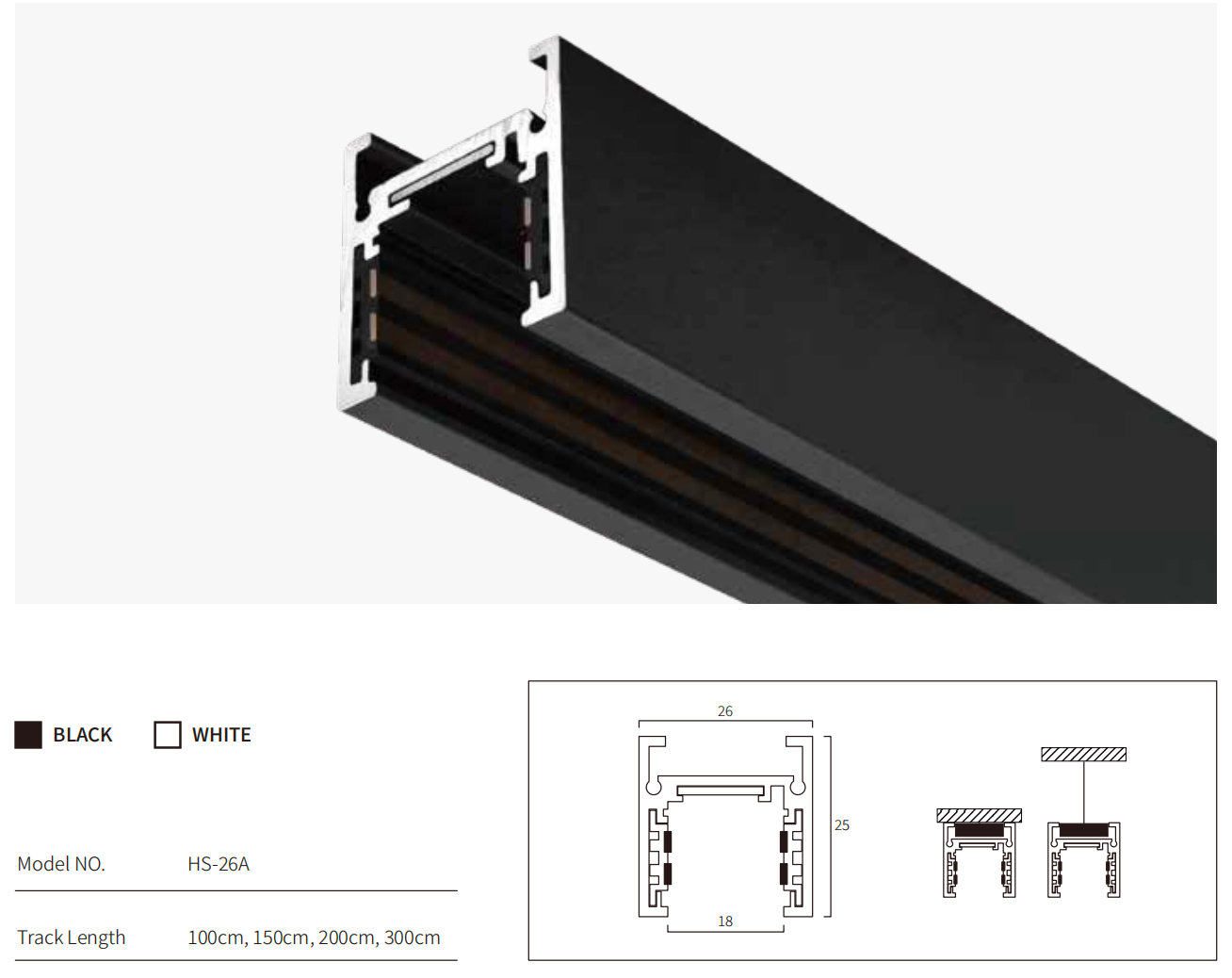

Surface / suspended profile
100 / 150 / 200 / 300 cm; black / white

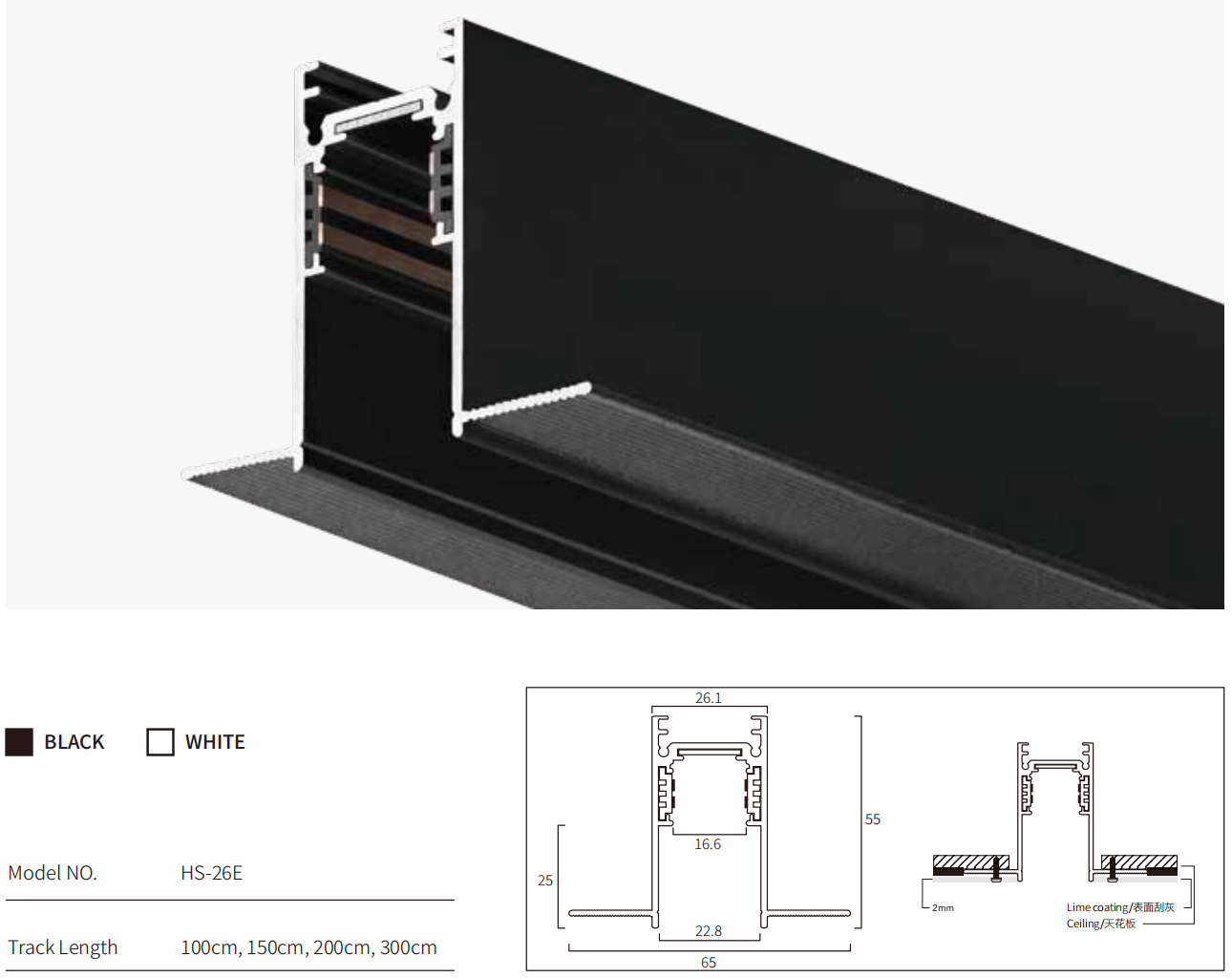

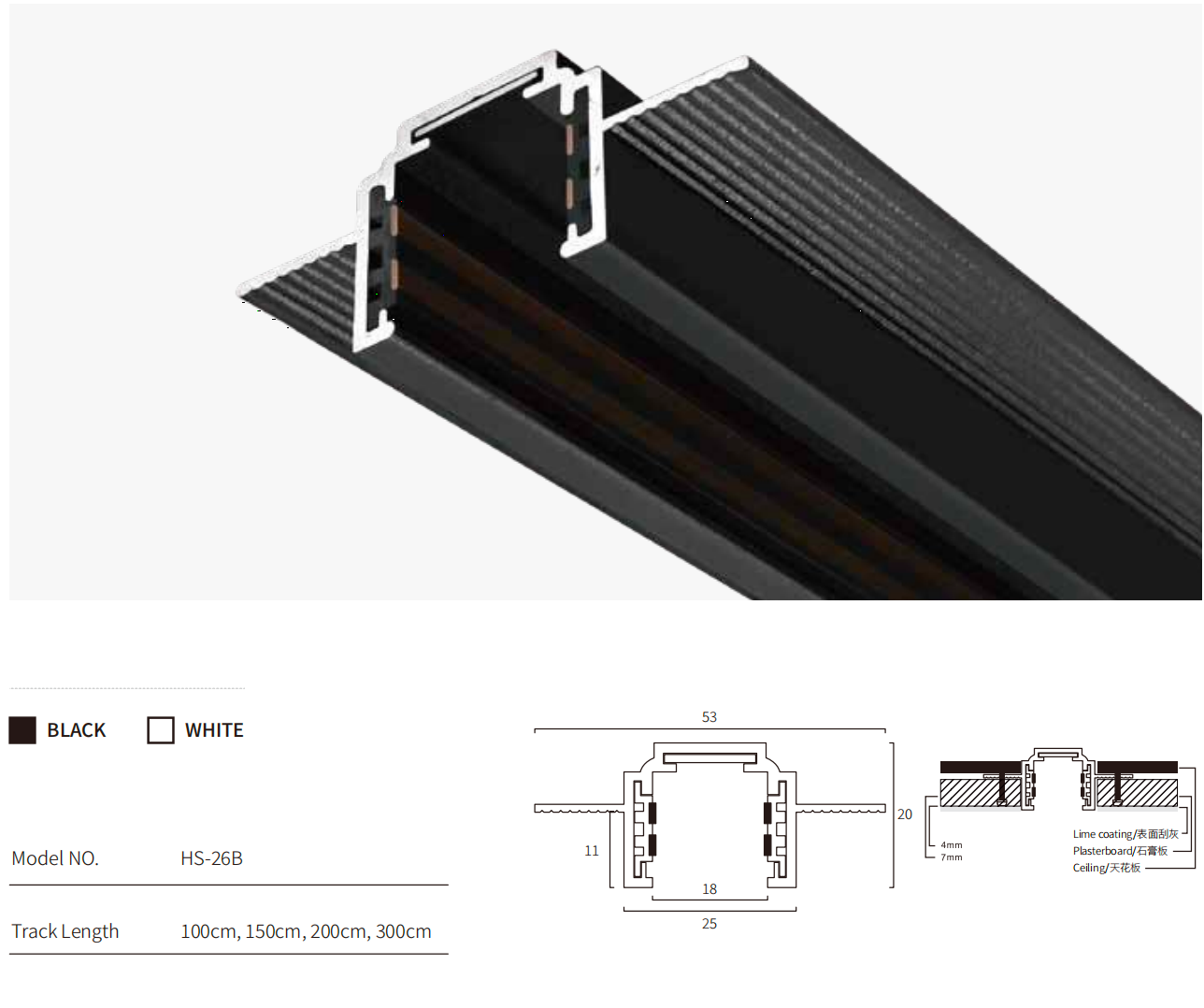

Recessed profile
100 / 150 / 200 / 300 cm; black / white

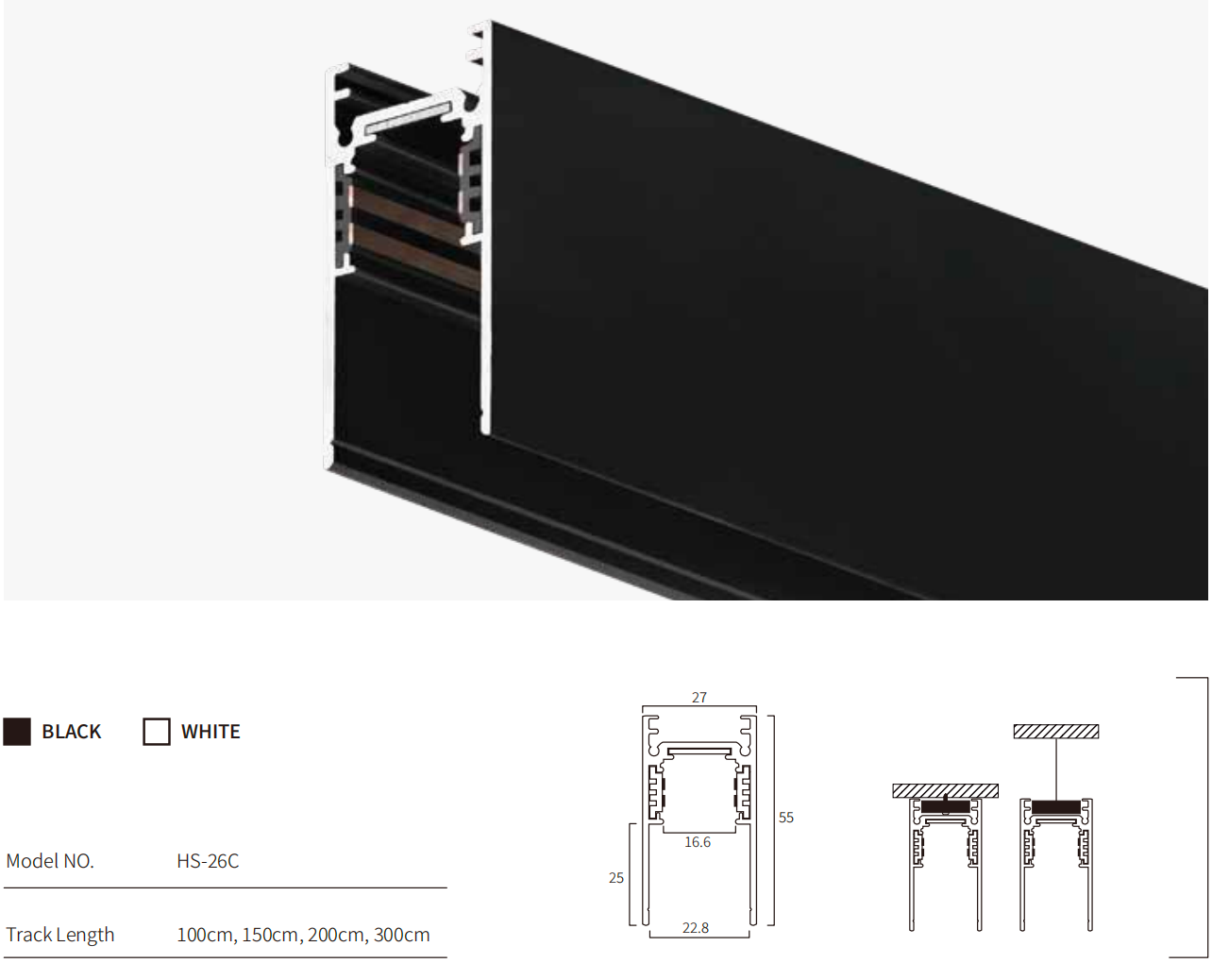

Deep surface / suspended profile
100 / 150 / 200 / 300 cm; black / white

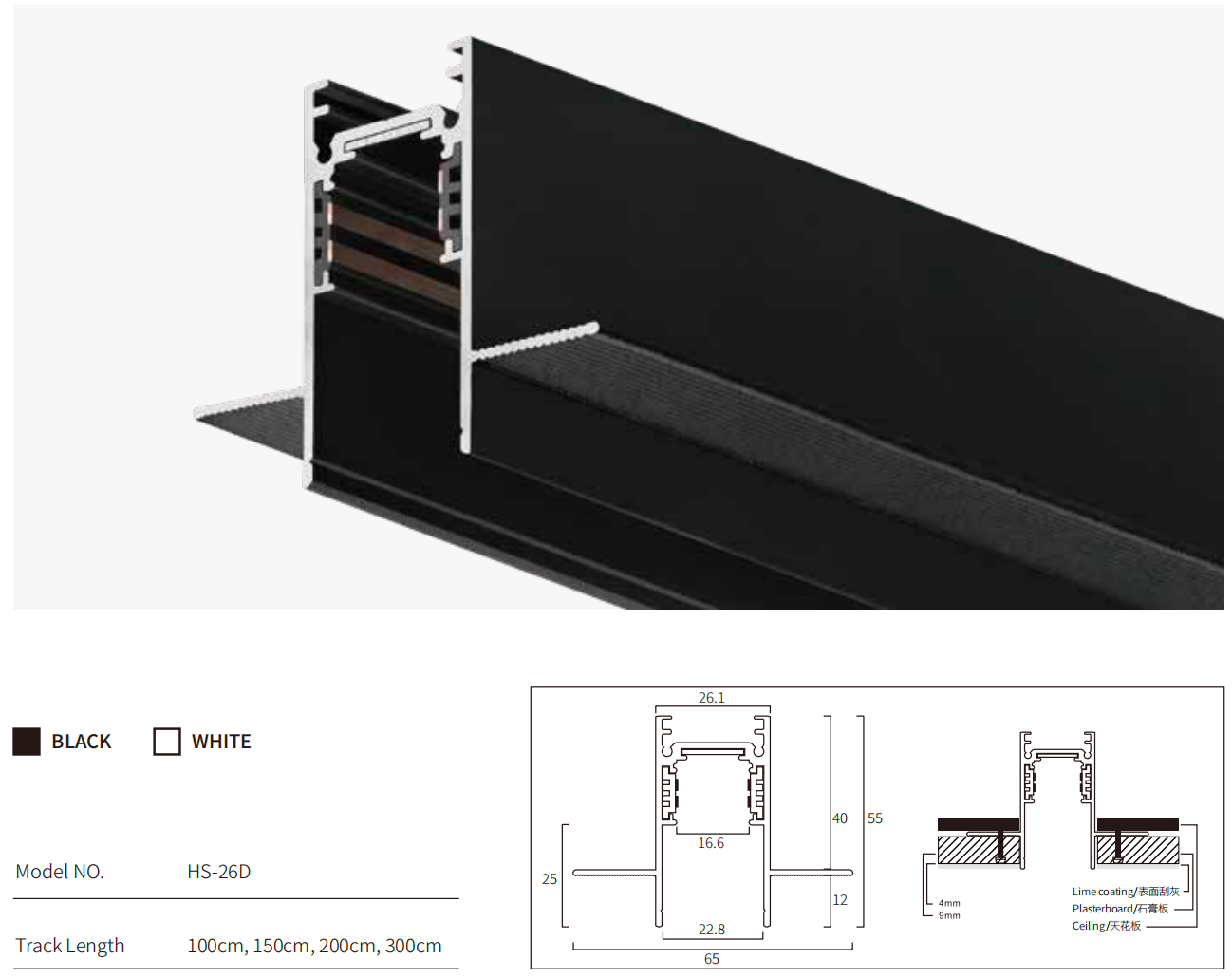

Recessed profile
100 / 150 / 200 / 300 cm; black / white
Recessed profile
100 / 150 / 200 / 300 cm; black / white

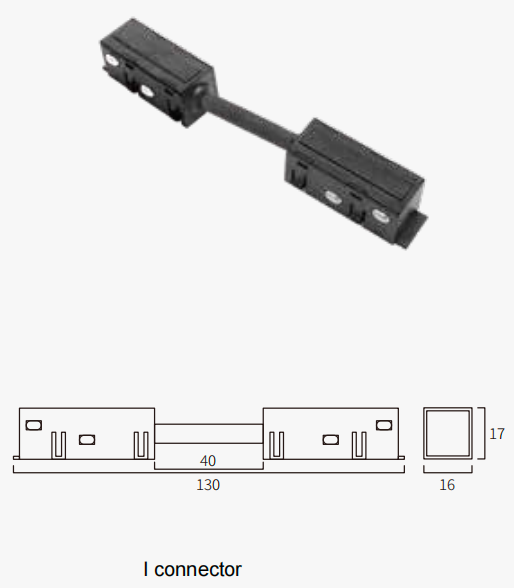

Straight electrical connection
Overall 130 mm; section 16 × 17 mm

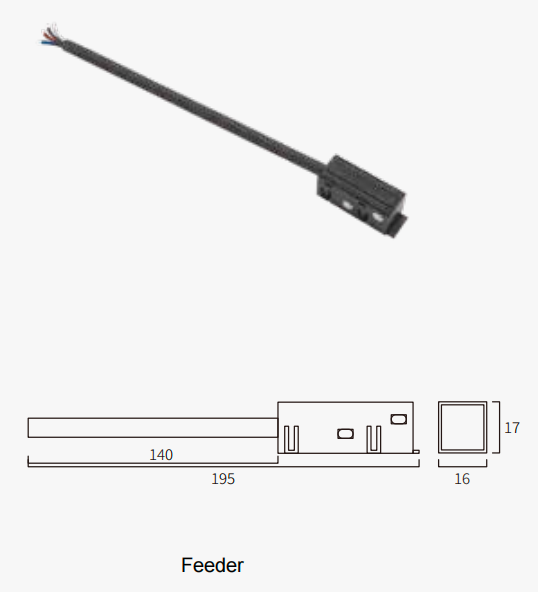

Track power feed
Overall 195 mm; section 16 × 17 mm

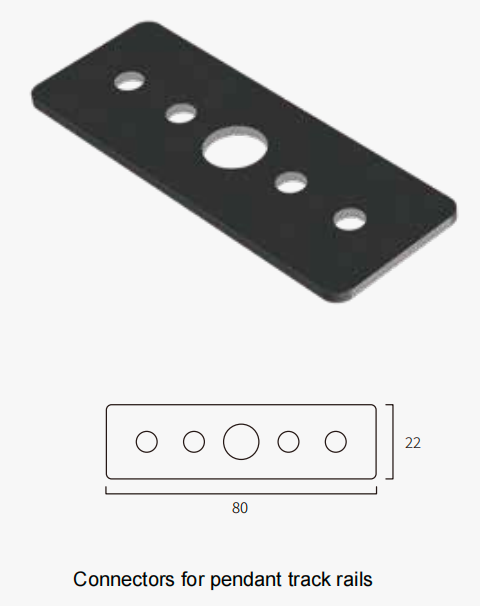

Mechanical connection plate
80 × 22 mm

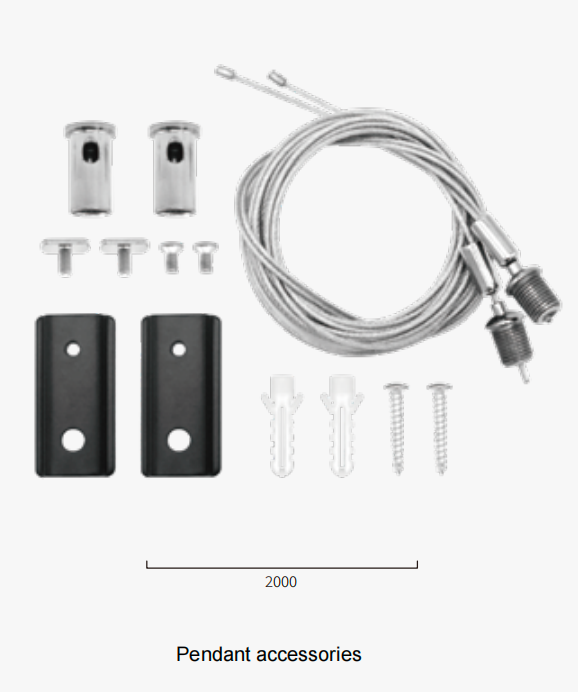

Suspension components
2000 mm as shown in supplied drawing

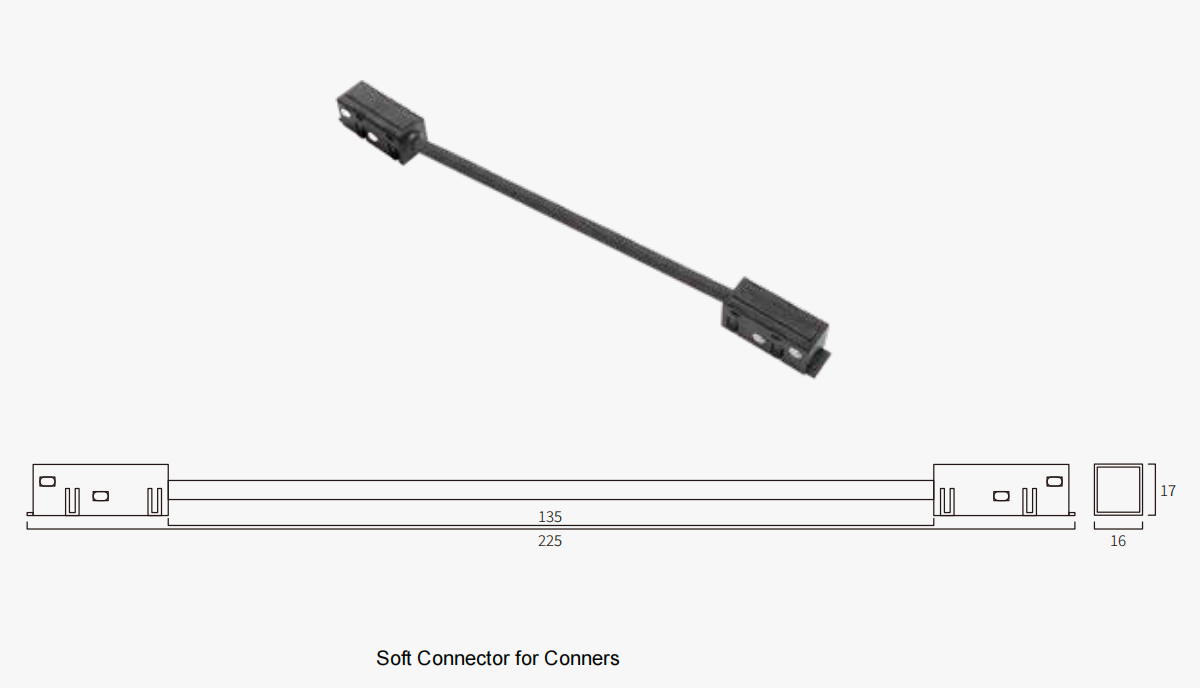

Flexible electrical connection
Overall 225 mm; section 16 × 17 mm

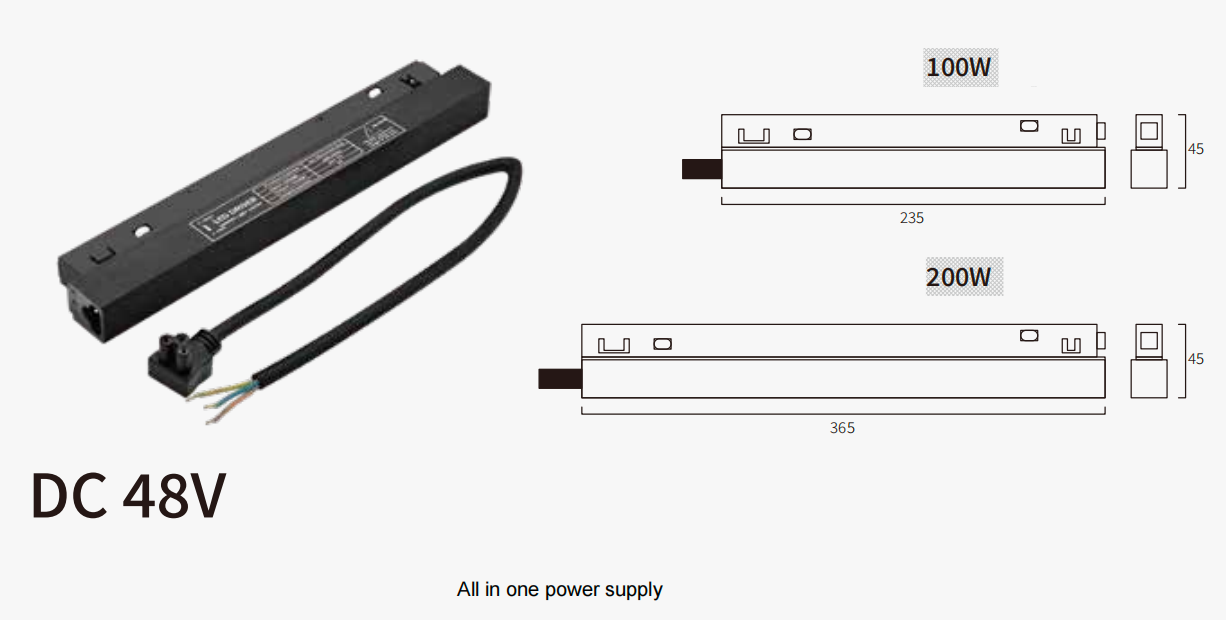

100W / 200W options
100W: 235 mm; 200W: 365 mm; section height 45 mm
Original images and drawing annotations are preserved. Click any image for a larger view. Mechanical mounting parts and electrical connectors serve different purposes. The pictured power supply is not automatically compatible with every dimming method.
Send the module models and quantities, the rail run, the finish and the control requirement. VOC Lighting confirms driver sizing, total load, price and lead time with your quotation.
