Flexible silica gel tube
The body is a flexible silica gel diffuser, listed with a 360° beam so the lit face reads from any direction of the curve.

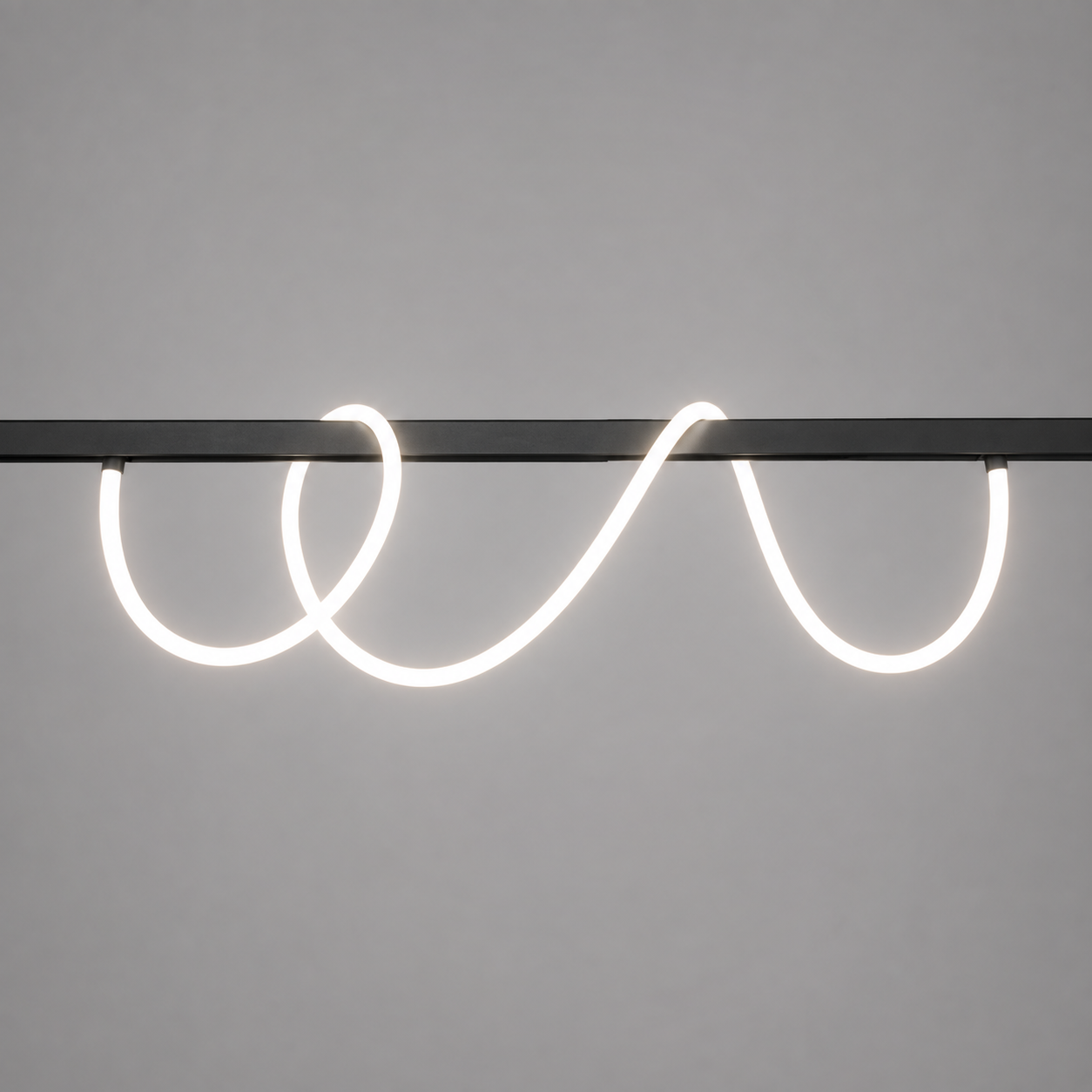

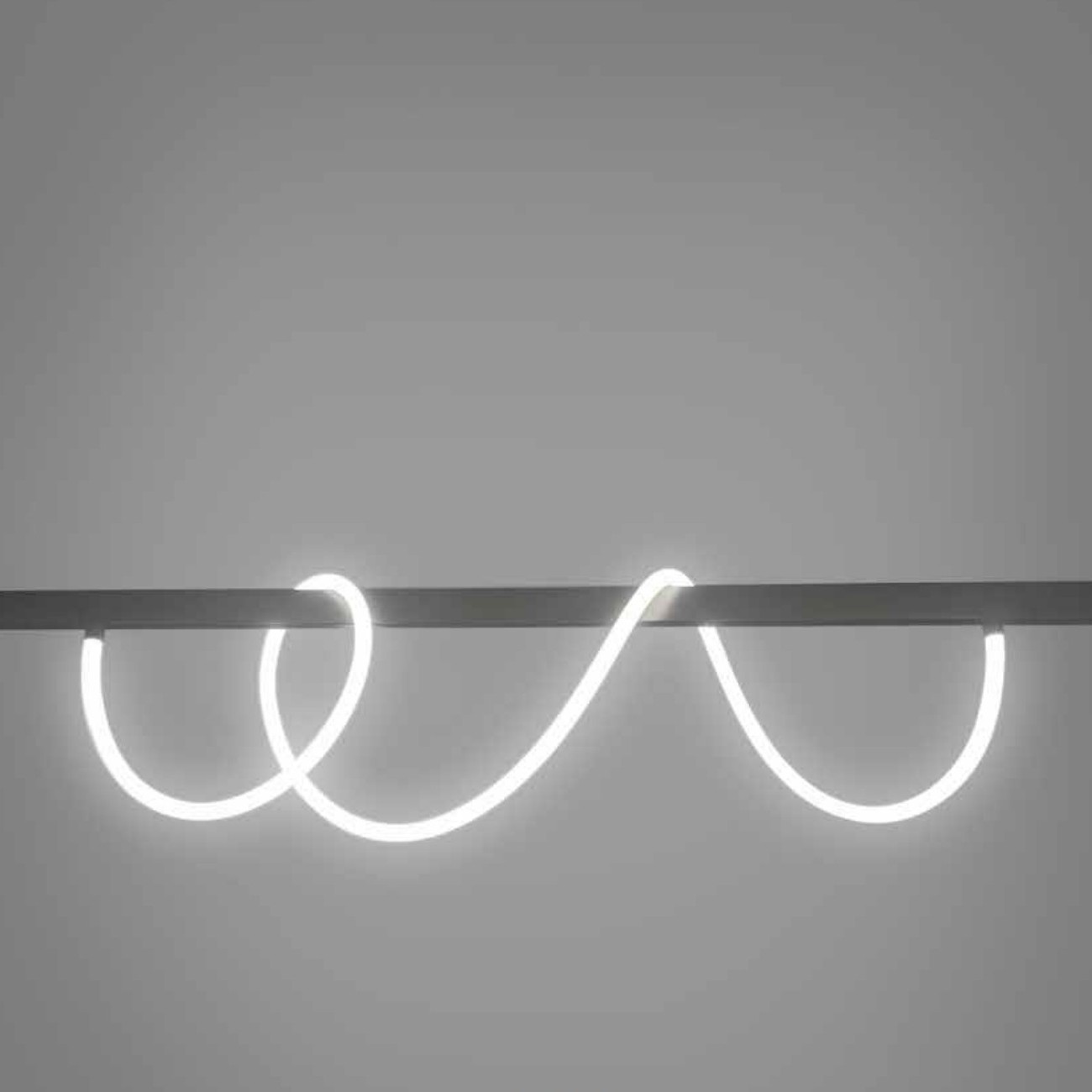

HS26-GJ soft light tube shaped into a curve on a 48V magnetic track. See the reference sheet for dimensions.
View dimensions & original product sheet ↓VOC Lighting’s HS26-GJ soft light tube is a flexible silica gel tube that bends into arcs and waves on the 48V magnetic track. It is listed in five lengths from 500 mm to 3000 mm, from 8W to 48W, with Ra ≥90 and a 360° beam.
500 / 1000 / 1500 / 2000 / 3000 mm · 8W–48W · 360° beam · silica gel diffuser
Color temperature and finish selection are carried into the quotation brief. The product photograph does not change with the selected configuration.
Select the tube length for the run you are building. Power scales with length, while input, optic, CRI, beam and CCT are common to the five models. Wattage alone does not establish illuminance at the target surface.
| Model | Length | Power | Input | Optic | CRI | Beam | Listed CCT |
|---|---|---|---|---|---|---|---|
| HS26-GJ500 | 500 mm | 8W | 48V | Silica gel | Ra ≥90 | 360° | 3000K / 4000K |
| HS26-GJ1000 | 1000 mm | 16W | 48V | Silica gel | Ra ≥90 | 360° | 3000K / 4000K |
| HS26-GJ1500 | 1500 mm | 24W | 48V | Silica gel | Ra ≥90 | 360° | 3000K / 4000K |
| HS26-GJ2000 | 2000 mm | 32W | 48V | Silica gel | Ra ≥90 | 360° | 3000K / 4000K |
| HS26-GJ3000 | 3000 mm | 48W | 48V | Silica gel | Ra ≥90 | 360° | 3000K / 4000K |
All five lengths: flexible silica gel tube; 360° emission; 48V input. Lengths above describe the tube only — confirm the adapter, rail and driver configuration for your run. Other CCT options, finish and driver details require confirmation.
The body is a flexible silica gel diffuser, listed with a 360° beam so the lit face reads from any direction of the curve.
Lengths run from 500 mm to 3000 mm with matching power from 8W to 48W, so one run can be a single short arc or a longer wave.
The supplied drawing shows a magnetic track adapter at each end of the tube. Confirm the number and position of adapters for the shape you plan to build.
All five HS26-GJ lengths are listed on the 48V system and are powered from the HS26 magnetic track. Dimming and control hardware are specified with the track system rather than the tube, so confirm the method for your project before ordering.
Every HS26-GJ length is listed with 48V input. Confirm the rail, adapter and driver combination for the run you are building.
Confirm the dimming protocol, driver and control hardware for your project. The sheet supplied for HS26-GJ lists input, power, optic, CRI, beam and CCT only.
Control and dimming are specified separately from the tube. Confirm the exact combination for the HS26-GJ length you select before ordering.

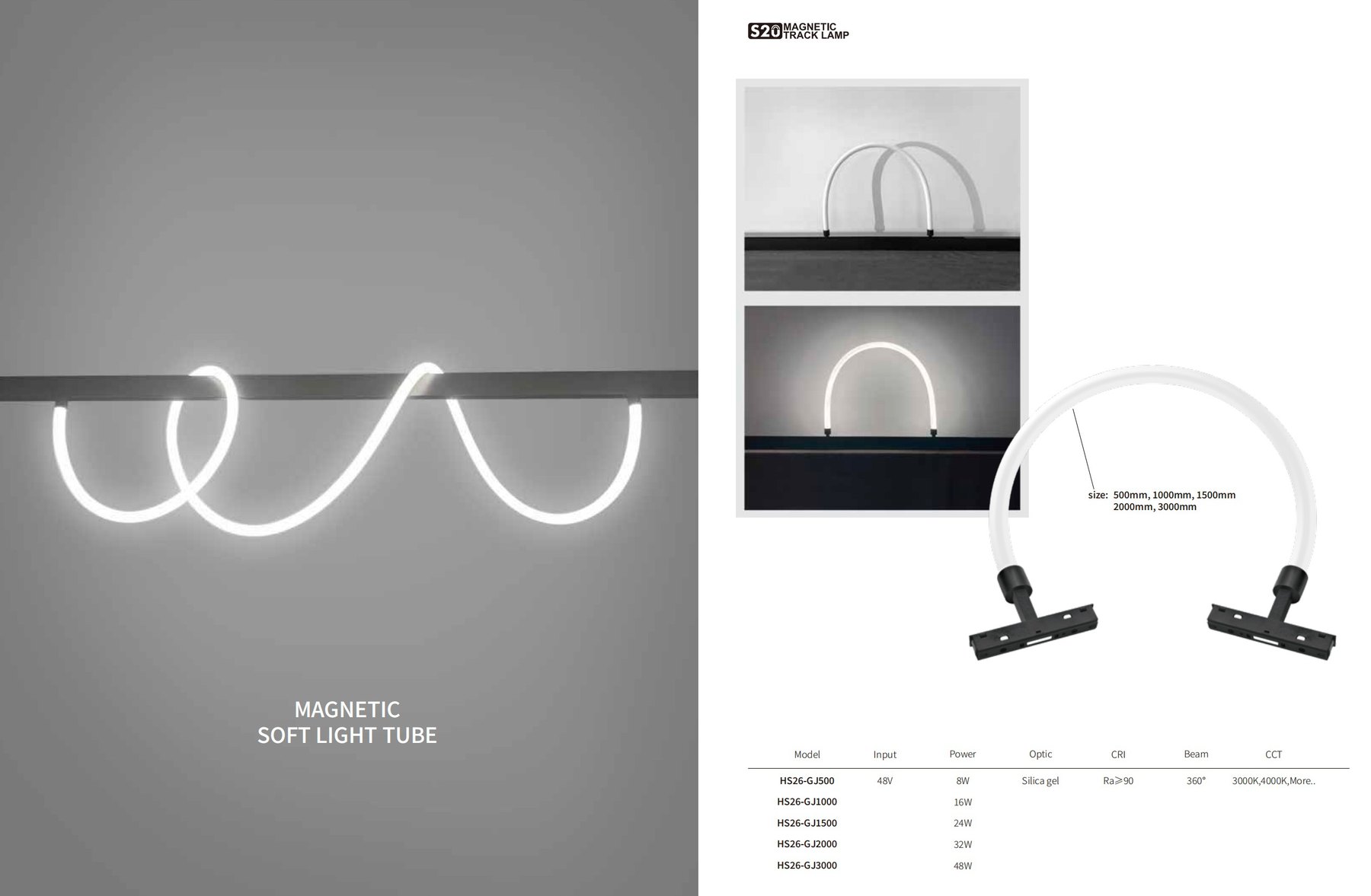

The original supplied sheet shows all five HS26-GJ lengths, the flexible tube drawing, the mounting adapters and the listed specifications. Refer to the text table above for searchable values.
Reference: product sheet supplied for this page. Click the image to download the reference. Request current technical drawings and model-specific documents for project approval.
The VOC Lighting HS26-GJ is a flexible soft light tube for the 48V magnetic track. It is listed in five lengths from 500 mm to 3000 mm with matching power from 8W to 48W, a silica gel diffuser, Ra ≥90 and a 360° beam.
Lengths are listed as 500, 1000, 1500, 2000 and 3000 mm, with power of 8W, 16W, 24W, 32W and 48W. Choose by the shape and run length you plan to build, then confirm the layout with your quotation.
Yes. The body is a flexible silica gel tube, so it can be shaped into arcs and waves between its mounting points. Confirm the planned shape and the adapter positions before ordering.
Yes. The supplied sheet lists power per length, from 8W at 500 mm to 48W at 3000 mm. Confirm the circuit loading and driver for the run you are building.
Compatibility must be checked against the rail and adapter design, the electrical connection and the control configuration. A shared 48V input rating alone does not establish compatibility with another track system.
Specify the HS26-GJ model and length, quantity, color temperature, required control method and the track components needed. Include your track information and project country. Price, lead time, warranty terms and applicable documents are confirmed with the quotation.
Choose components to include in your project brief. Final rail, connection and power compatibility is confirmed against the selected lighting and control configuration.
11 components shown

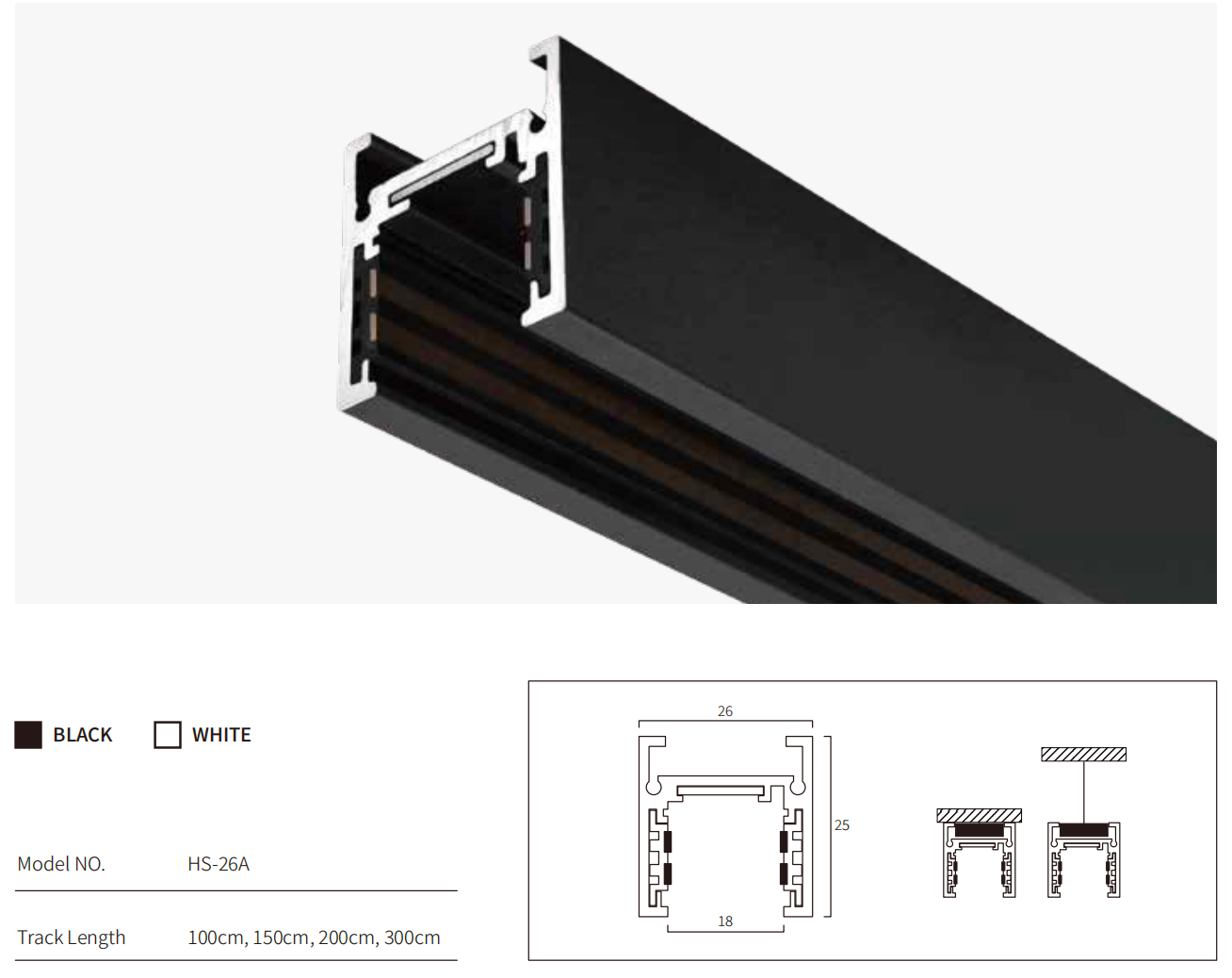

Surface / suspended profile
100 / 150 / 200 / 300 cm; black / white

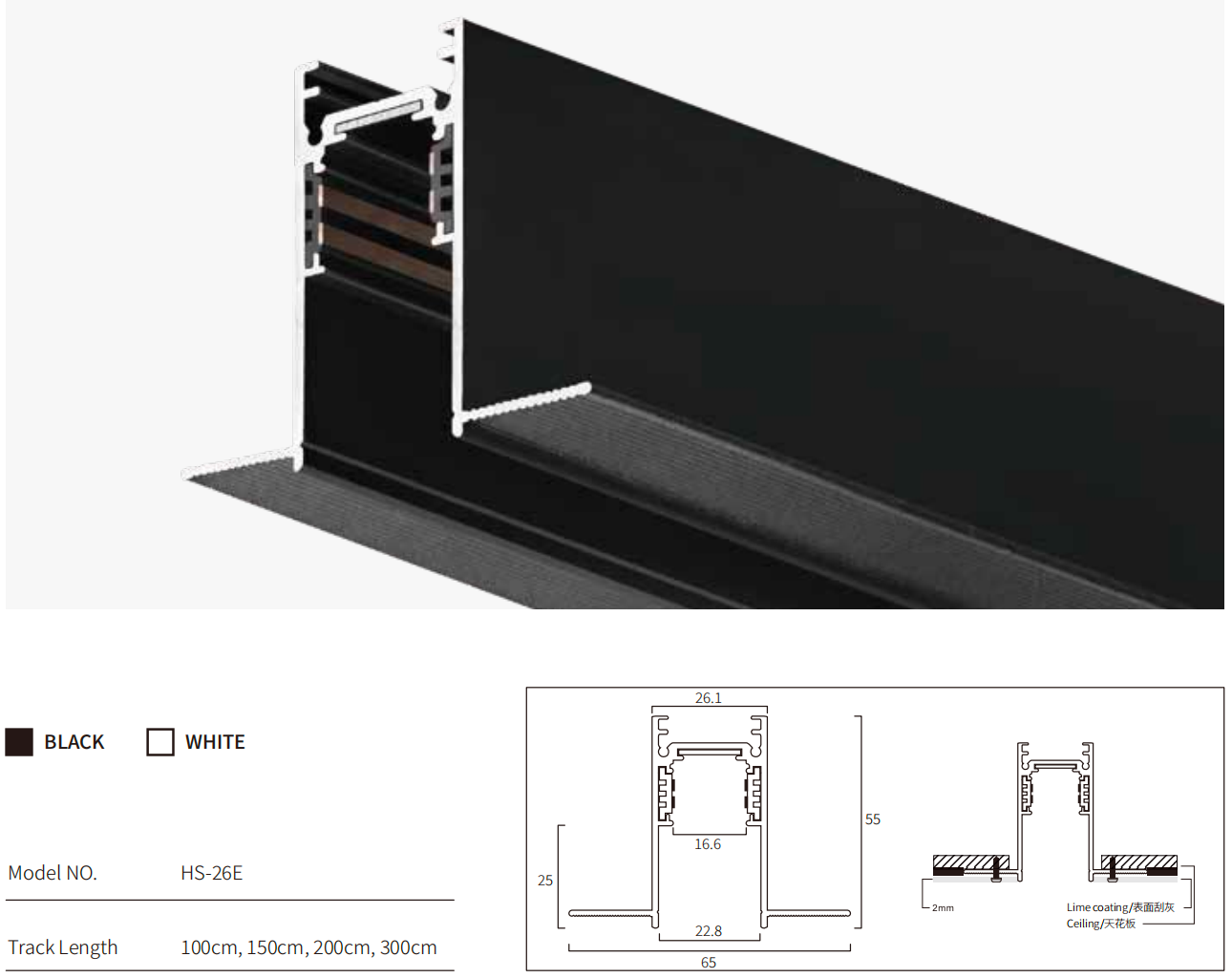

Recessed profile
100 / 150 / 200 / 300 cm; black / white

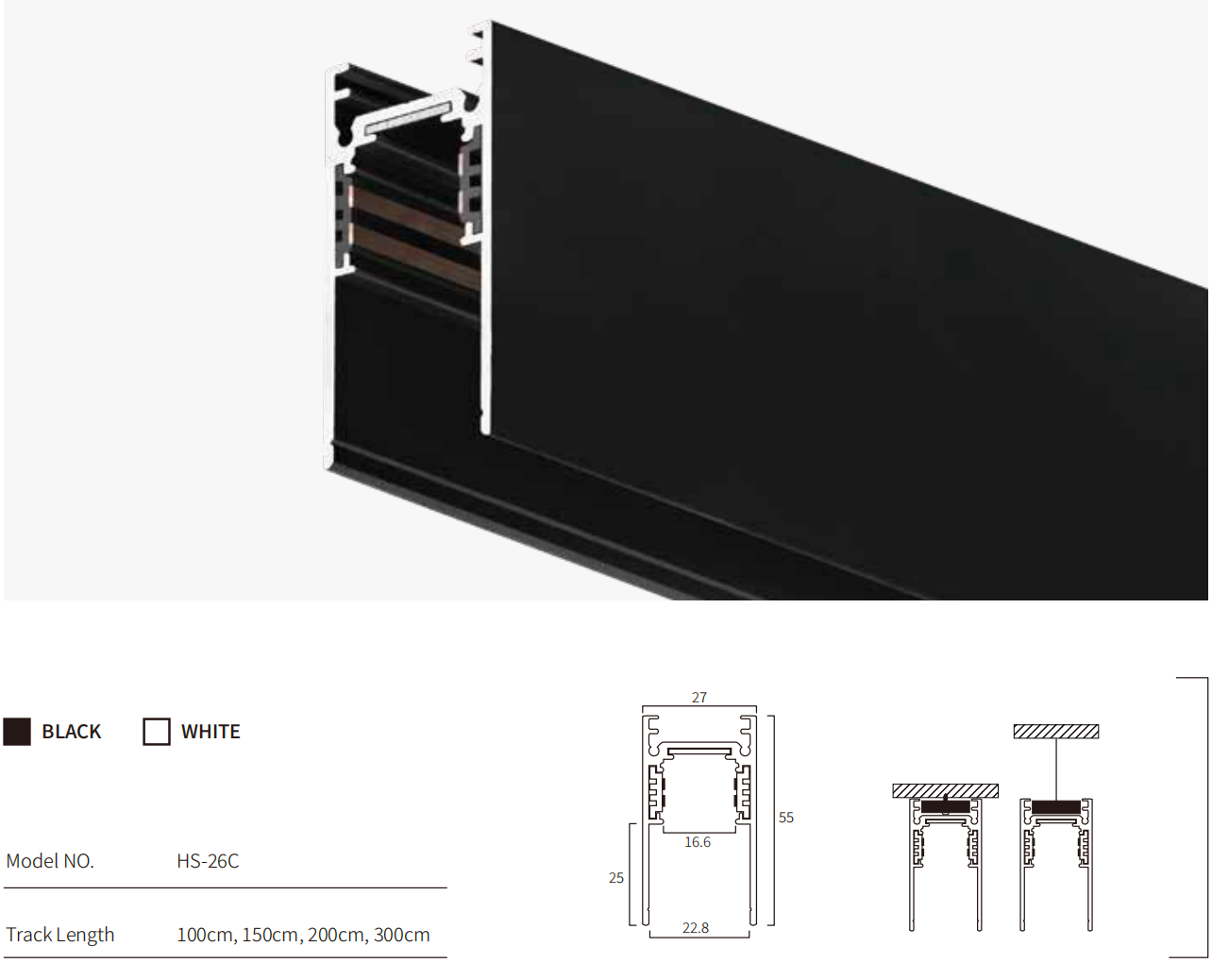

Deep surface / suspended profile
100 / 150 / 200 / 300 cm; black / white

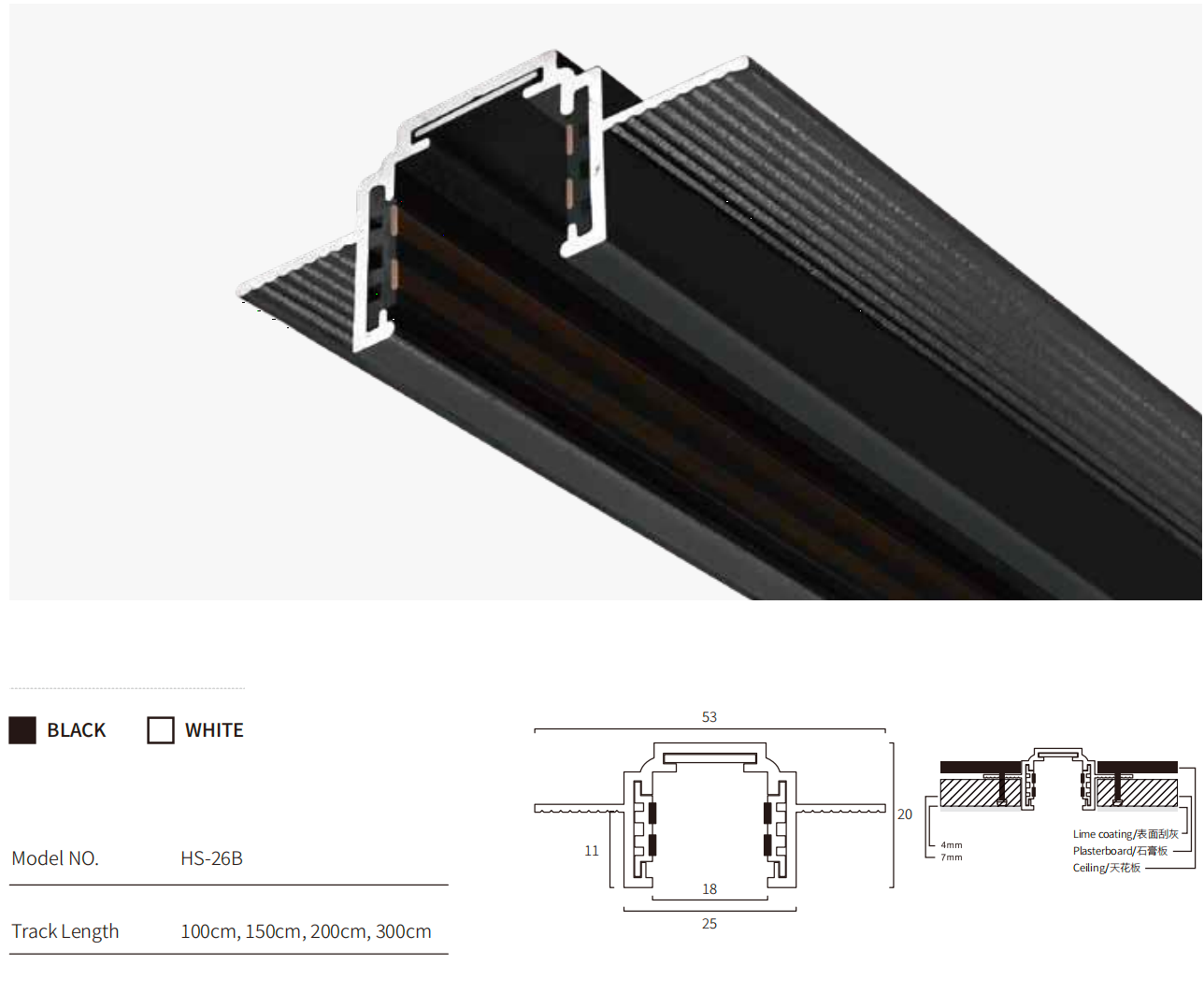

Recessed profile
100 / 150 / 200 / 300 cm; black / white

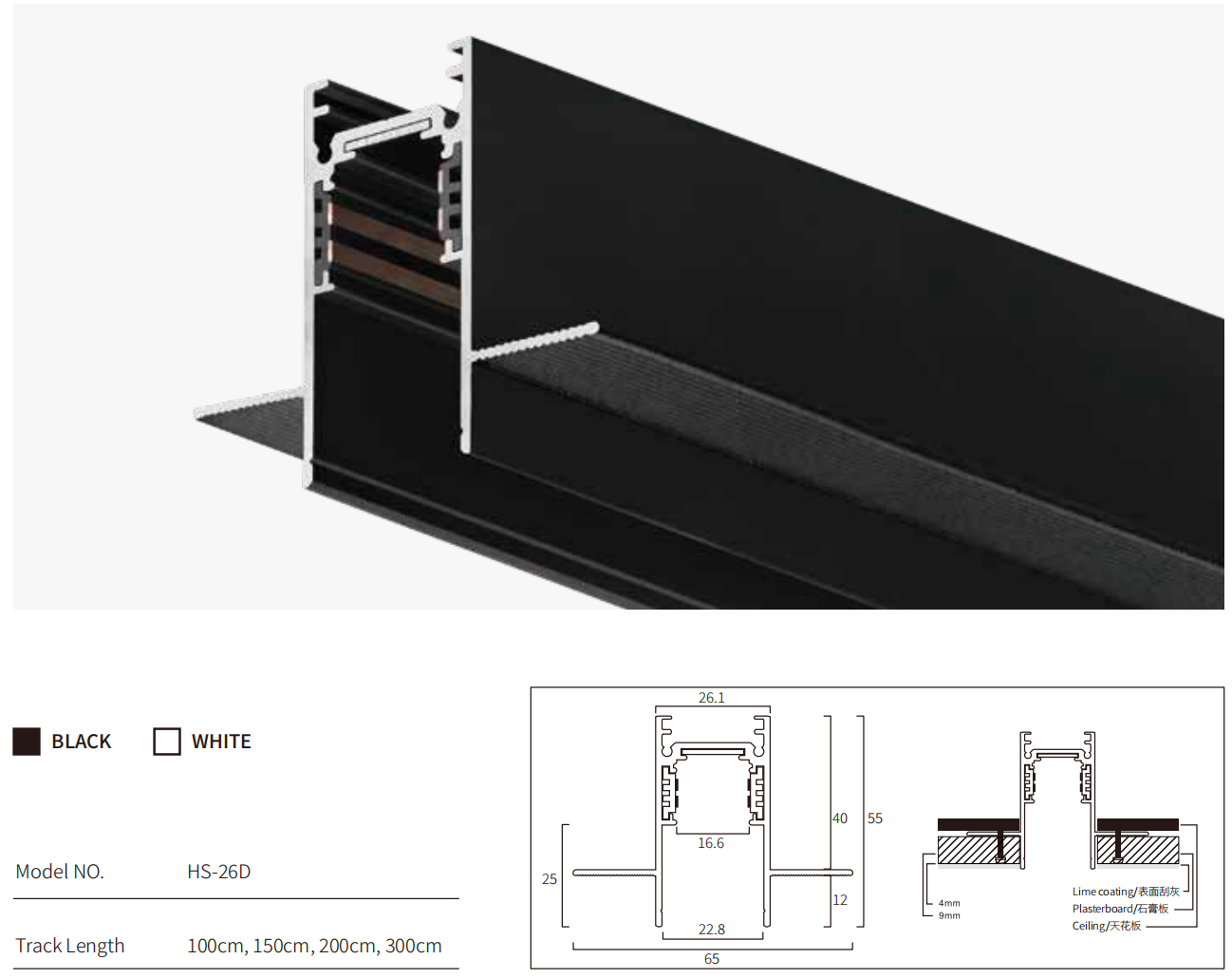

Recessed profile
100 / 150 / 200 / 300 cm; black / white

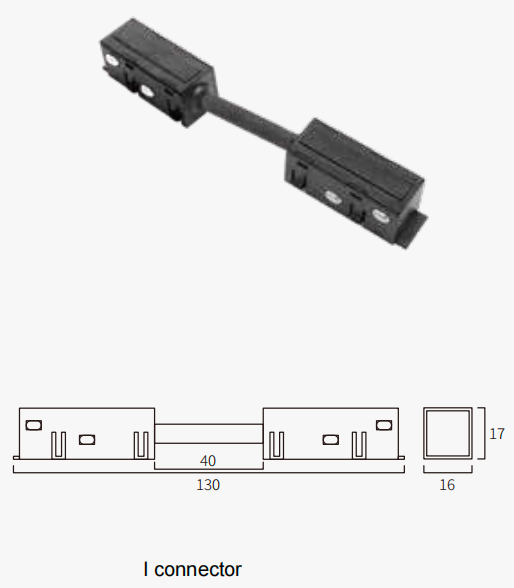

Straight electrical connection
Overall 130 mm; section 16 × 17 mm

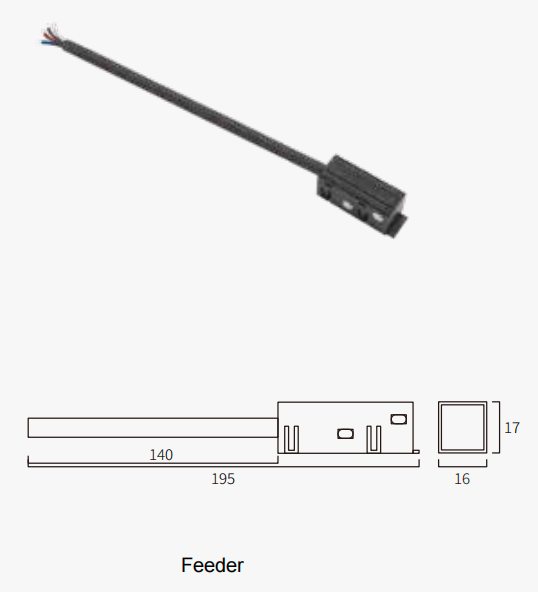

Track power feed
Overall 195 mm; section 16 × 17 mm

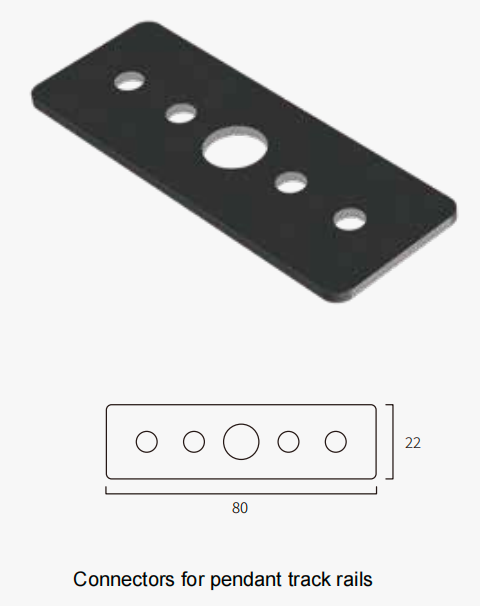

Mechanical connection plate
80 × 22 mm

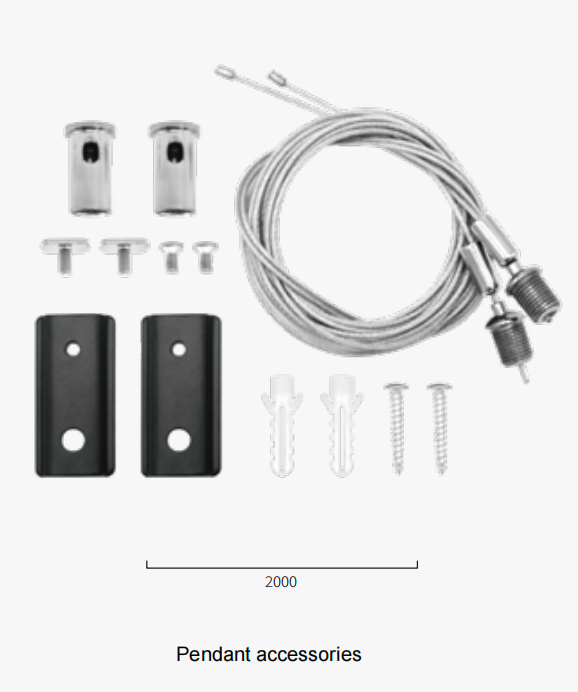

Suspension components
2000 mm as shown in supplied drawing

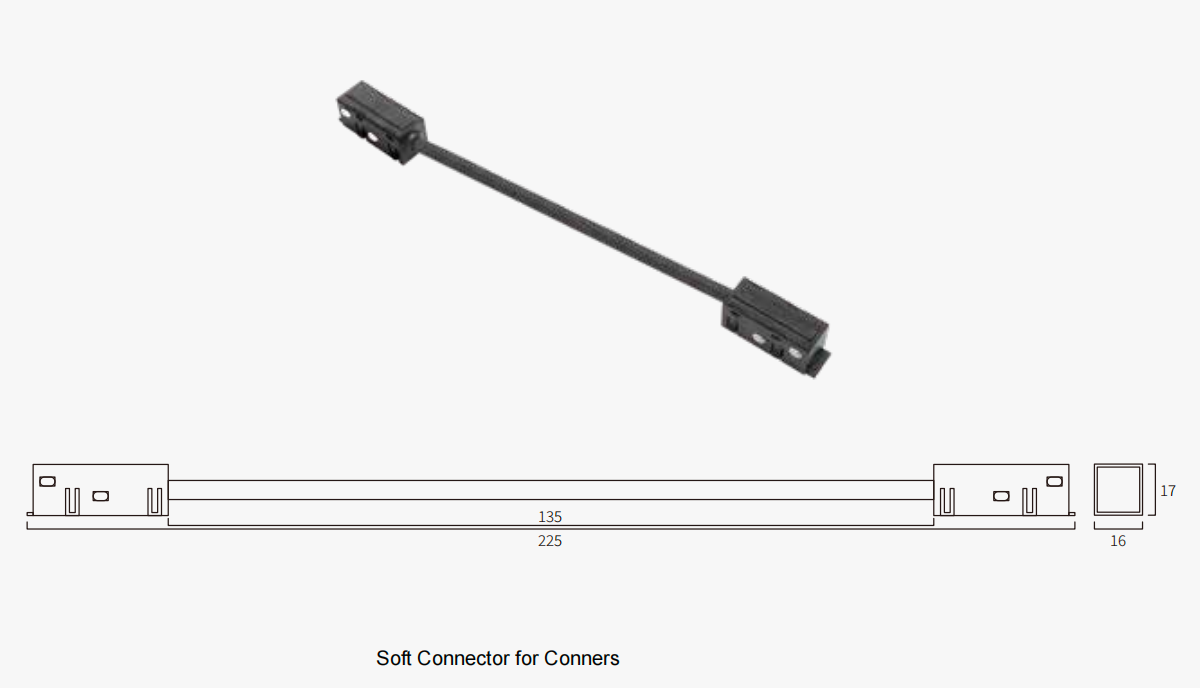

Flexible electrical connection
Overall 225 mm; section 16 × 17 mm

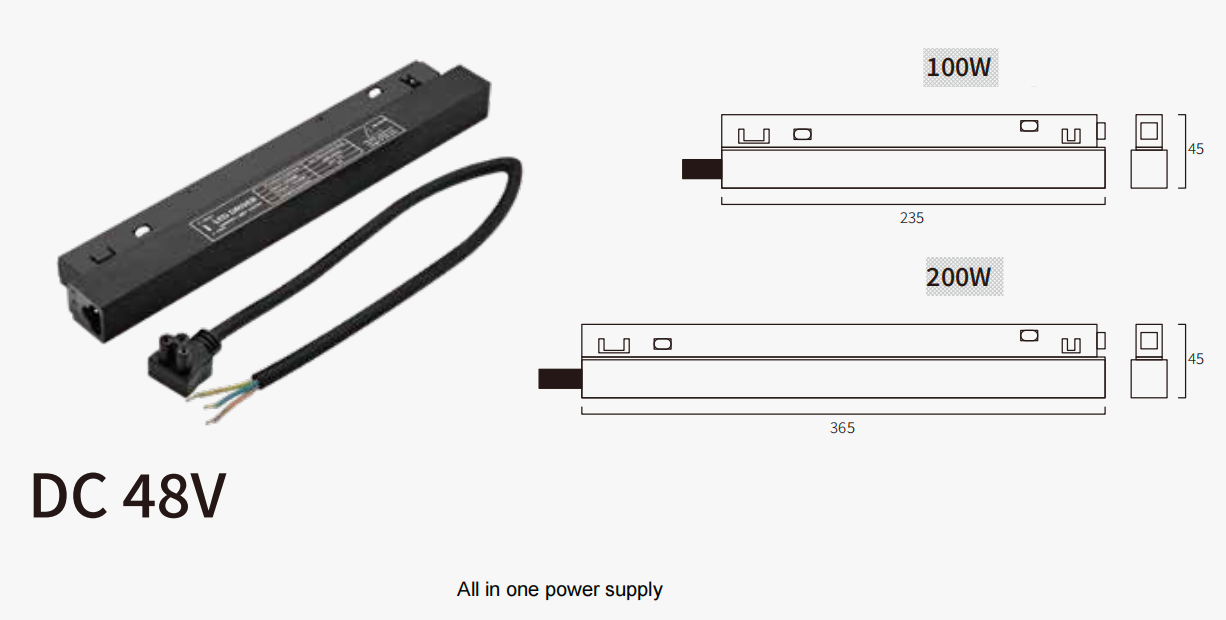

100W / 200W options
100W: 235 mm; 200W: 365 mm; section height 45 mm
Original images and drawing annotations are preserved. Click any image for a larger view. Mechanical mounting parts and electrical connectors serve different purposes. The pictured power supply is not automatically compatible with every dimming method.
Send the model, quantity, finish, color temperature, control method and required track components. Pricing, delivery and the final control package are confirmed with your quotation.
