PC optic, 120° listed beam
HS26-L-300F is listed with a PC optic at Ra ≥90 color rendering and a 120° beam, so the lit face reads as an even line along the corner rather than a concentrated spot.

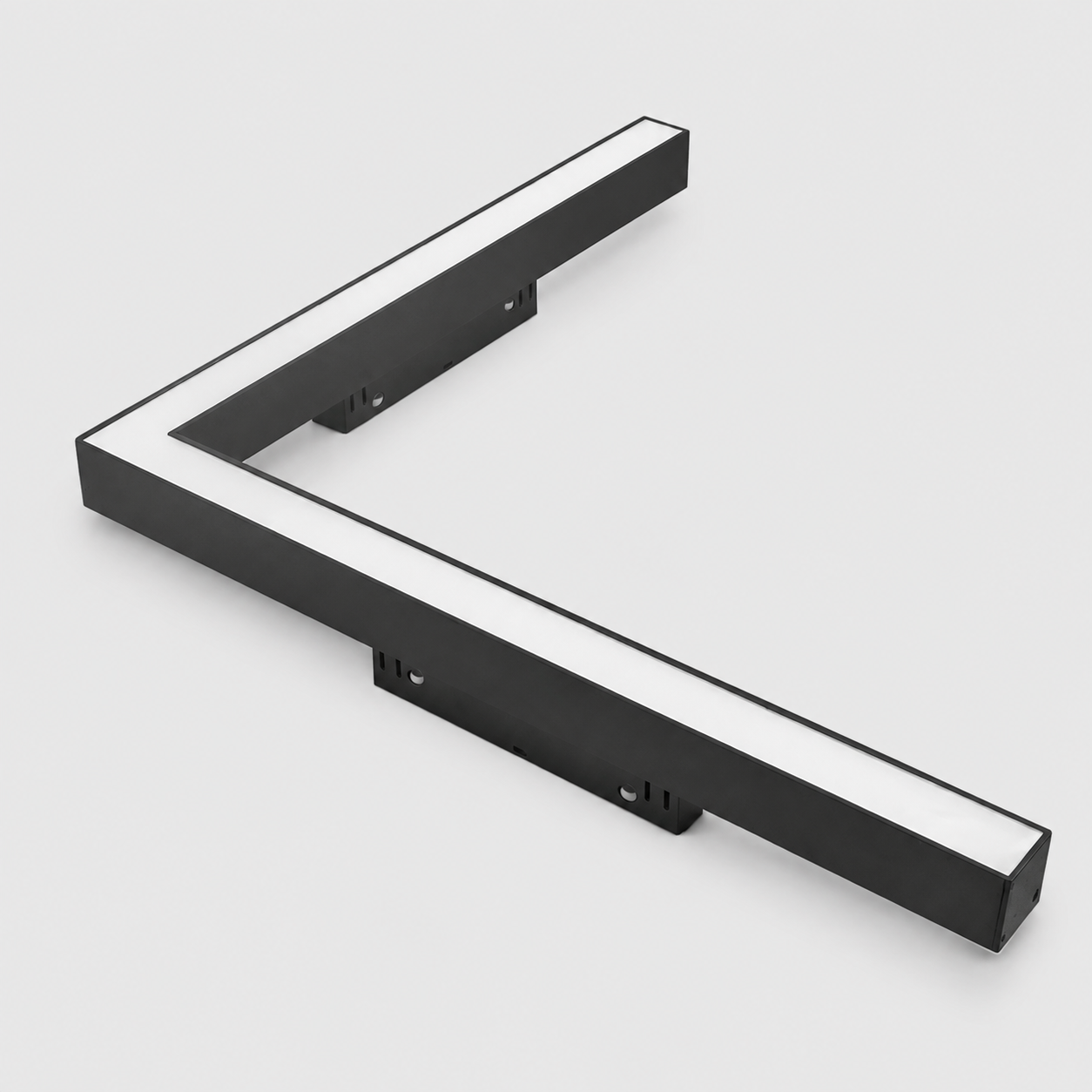

HS26-L-300F L-corner linear light, black body. See the reference sheet for dimensions.
View dimensions & original product sheet ↓VOC Lighting’s HS26-L-300F is a 20W linear light for the 48V magnetic track, built as a right-angle (L) corner with two 315 mm arms. The PC diffuser is listed at Ra ≥90 with a 120° beam, the profile is drawn 22 mm wide by 45 mm high, and the body is offered in black or white.
315 × 315 mm L-corner · 22 × 45 mm profile · 20W · PC diffuser · Ra ≥90 · 120°
Color temperature and finish selection are carried into the quotation brief. The product photograph does not change with the selected configuration.
HS26-L-300F is listed as a single configuration class: 20W, 48V input, PC optic, Ra ≥90 and a 120° beam, in a 315 mm L-corner profile. The supplied sheet lists no dimming method and no LED source brand — confirm both with your quotation, and note that wattage alone does not establish illuminance at the target surface.
| Item | Listed specification |
|---|---|
| Model | HS26-L-300F |
| Product name | Magnetic linear light — L-corner |
| Body shape | Right-angle (L) linear profile with two 315 mm arms |
| Dimensions | 315 × 315 mm L-corner; profile 22 mm wide × 45 mm high (per the supplied drawing) |
| Optic | PC |
| Power | 20W |
| Beam | 120° |
| Input | 48V DC |
| CRI | Ra ≥90 |
| Listed CCT | 3000K / 4000K (the sheet also carries a “More..” entry) |
| Lamp body color | Black / White |
| Mounting | 48V magnetic track — rear brackets shown in the drawing |
| LED source | Not listed on the supplied sheet — require confirmation |
| Dimming | Not listed on the supplied sheet — require confirmation |
Dimensions above describe the L-corner profile as drawn. The track rail, adapters and mounting hardware are specified with the track system. The sheet carries no warranty or packing detail, so those are confirmed with the quotation; other CCT options and the dimming method require confirmation.
HS26-L-300F is listed with a PC optic at Ra ≥90 color rendering and a 120° beam, so the lit face reads as an even line along the corner rather than a concentrated spot.
The supplied drawing dimensions the corner at 315 mm × 315 mm, with a 22 mm profile width and a 45 mm profile height. Check the corner against your ceiling layout and the rail run before ordering.
The drawing shows the mounting brackets on the rear of the profile. Confirm the rail type, the adapter and the number of brackets for the run you are building.
The supplied sheet for HS26-L-300F lists input, power, optic, CRI, beam and CCT only — it names no dimming method. Dimming is a separate specification from the light source: match the driver and control package to the method your project uses.
Wired dimming is not specified on the supplied sheet for this model. Confirm the protocol, the driver and the control hardware for the method your project uses.
Wireless or smart dimming is likewise not specified on the sheet. Confirm the gateway, app and receiver requirements before the order is placed.
Each control method is specified with its own driver and hardware package. Confirm the exact combination for HS26-L-300F before ordering.

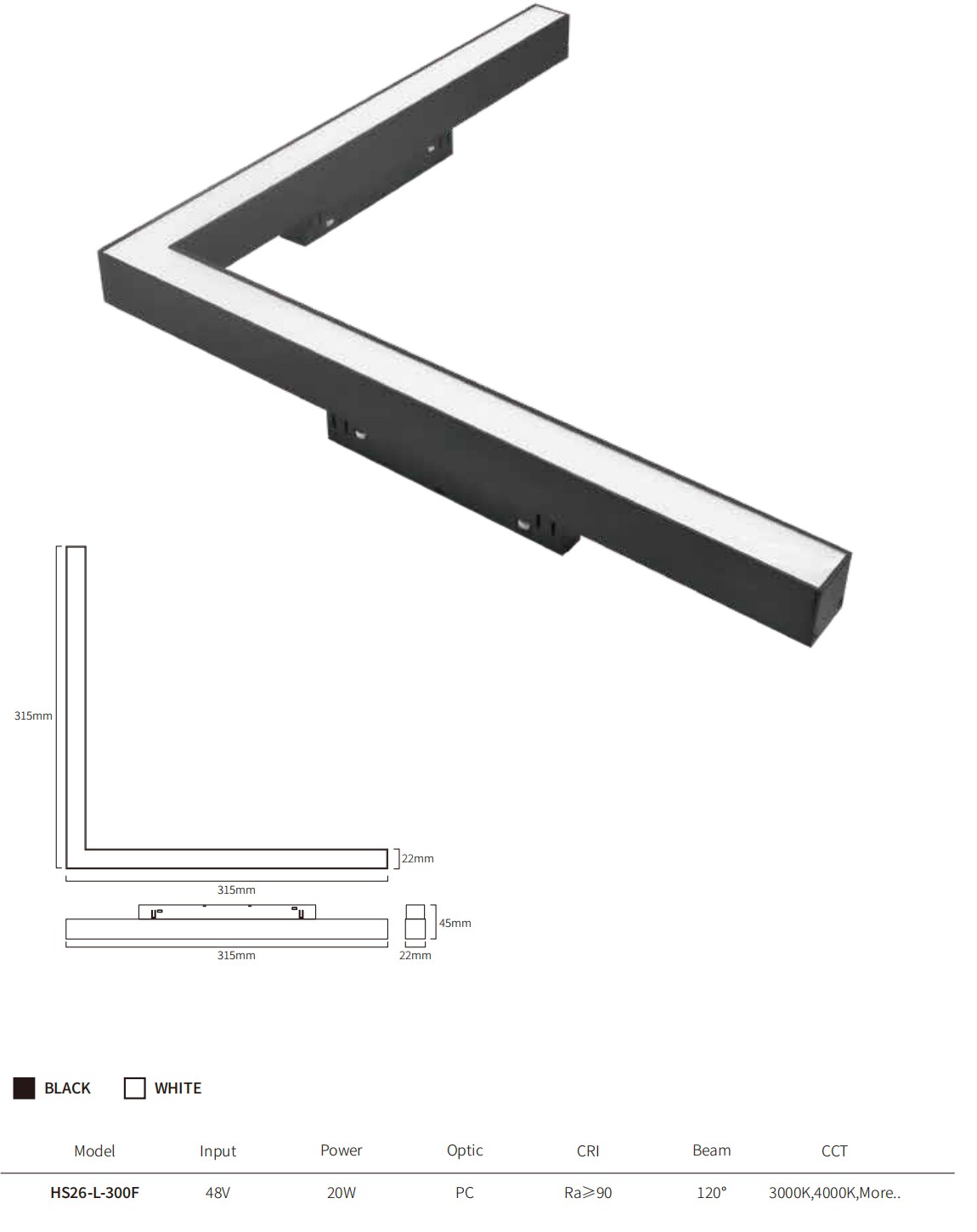

The original supplied sheet shows HS26-L-300F, its dimension drawing with the 315 mm × 315 mm L-corner and the 22 / 45 mm profile details, the BLACK / WHITE finish key and the listed specification row. Refer to the text table above for searchable values.
Reference: product sheet supplied for this page. Click the image to download the reference. Request current technical drawings and model-specific documents for project approval.
The VOC Lighting HS26-L-300F is a 20W linear light for the 48V magnetic track, drawn as a right-angle (L) corner with two 315 mm arms. It uses a PC optic at Ra ≥90 with a 120° beam and is offered with a black or white body.
The supplied drawing dimensions the corner at 315 mm × 315 mm, with a 22 mm profile width and a 45 mm profile height. Arm lengths, corner radius and overall size for your run require confirmation against the current drawing before quotation.
3000K and 4000K are listed on the supplied sheet, which also carries a “More..” entry in the CCT column. Additional color temperatures require confirmation before quotation.
No. Dimming is a separate specification from the light source, and the supplied sheet for HS26-L-300F lists input, power, optic, CRI, beam and CCT only. Confirm the dimming method, the driver and the control hardware with your quotation.
HS26-L-300F is a 48V magnetic track fixture; the drawing shows brackets on the rear of the profile. Compatibility must be checked against the rail and adapter design, the electrical connection and the control configuration — a shared 48V input rating alone does not establish compatibility with another track system.
Specify the HS26-L-300F model, quantity, color temperature, body finish and the track components needed, including the corner position in your ceiling layout. Include your track information and project country. Price, lead time, warranty terms and applicable documents are confirmed with the quotation.
Choose components to include in your project brief. Final rail, connection and power compatibility is confirmed against the selected lighting and control configuration.
11 components shown

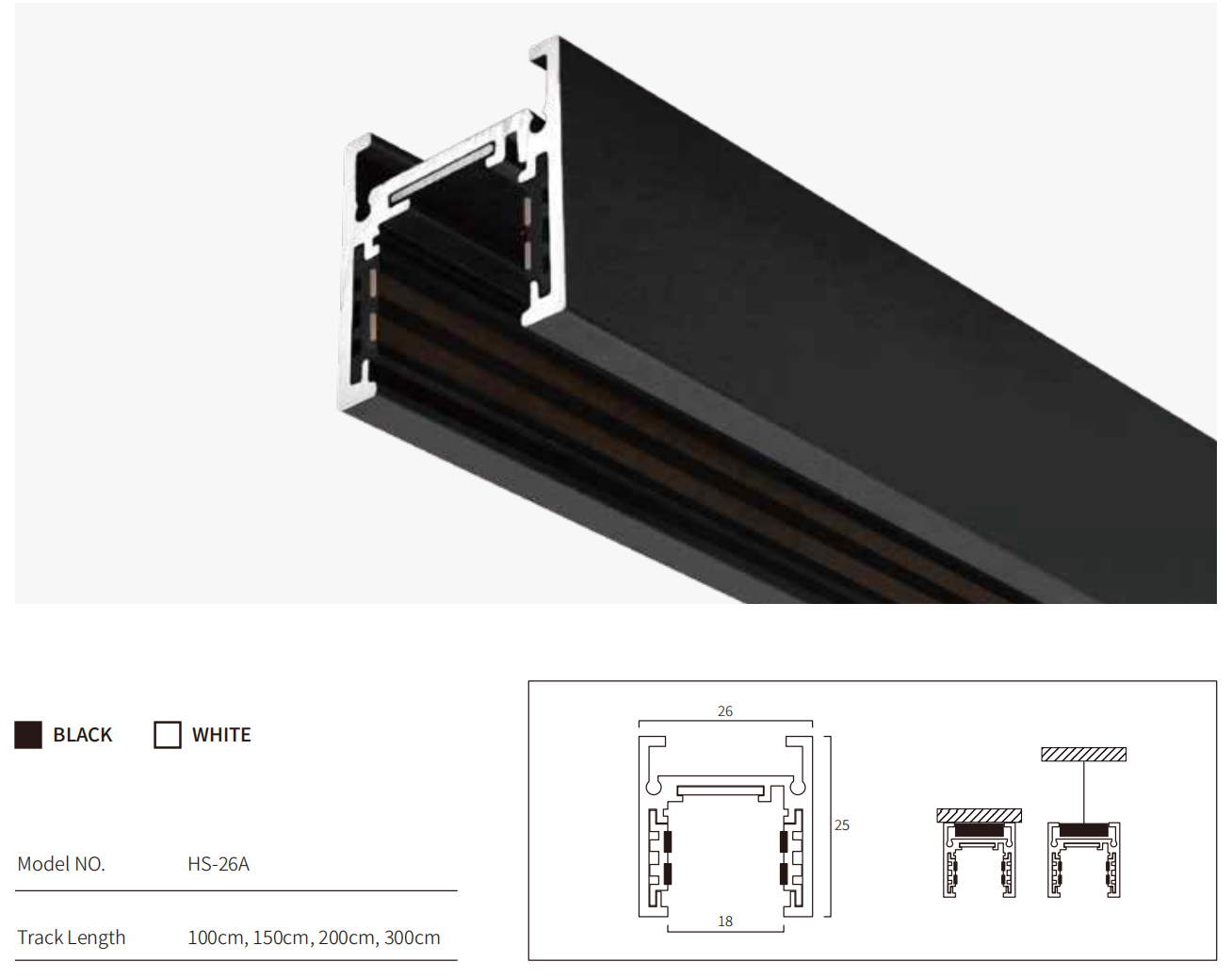

Surface / suspended profile

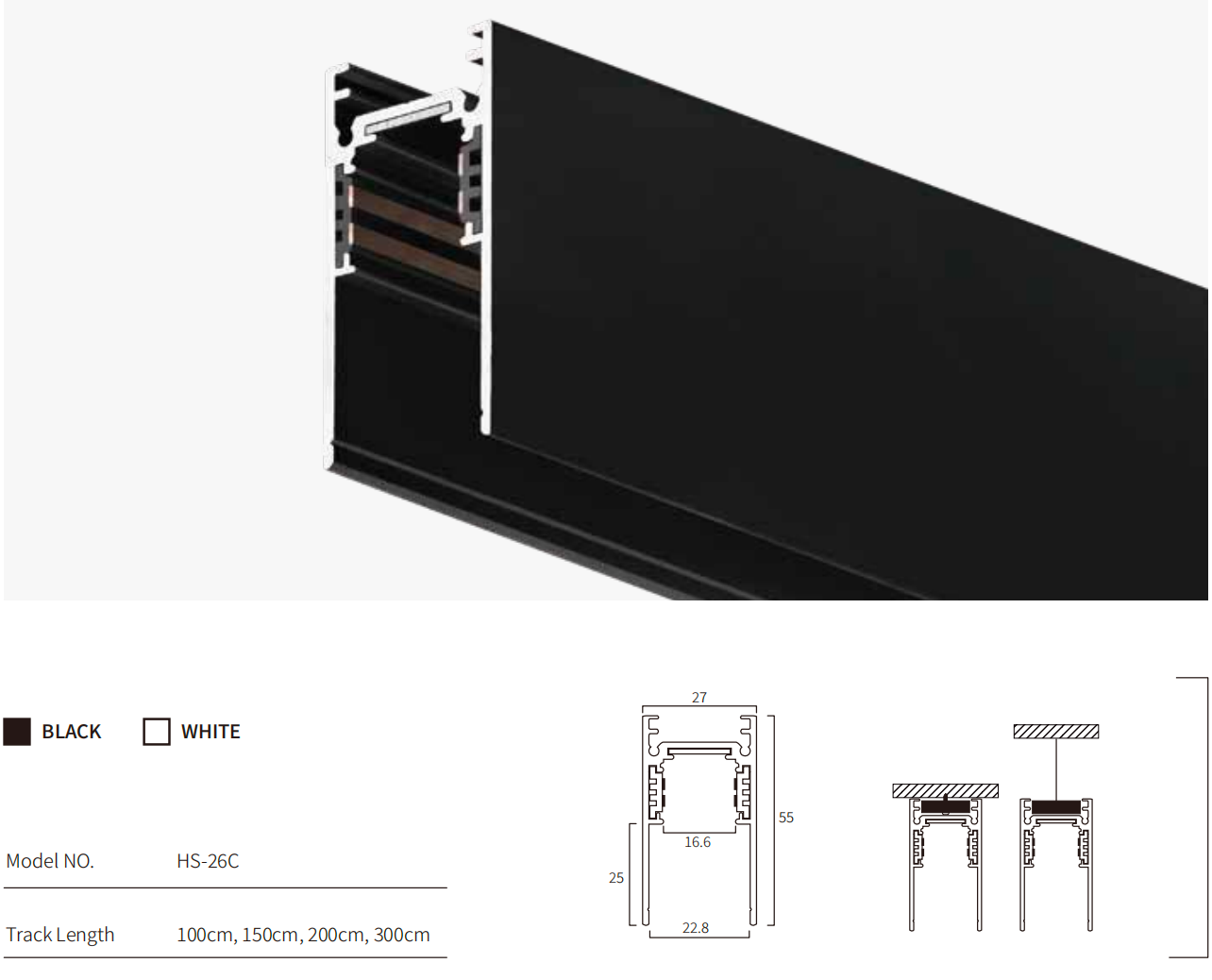

100 / 150 / 200 / 300 cm; black / white

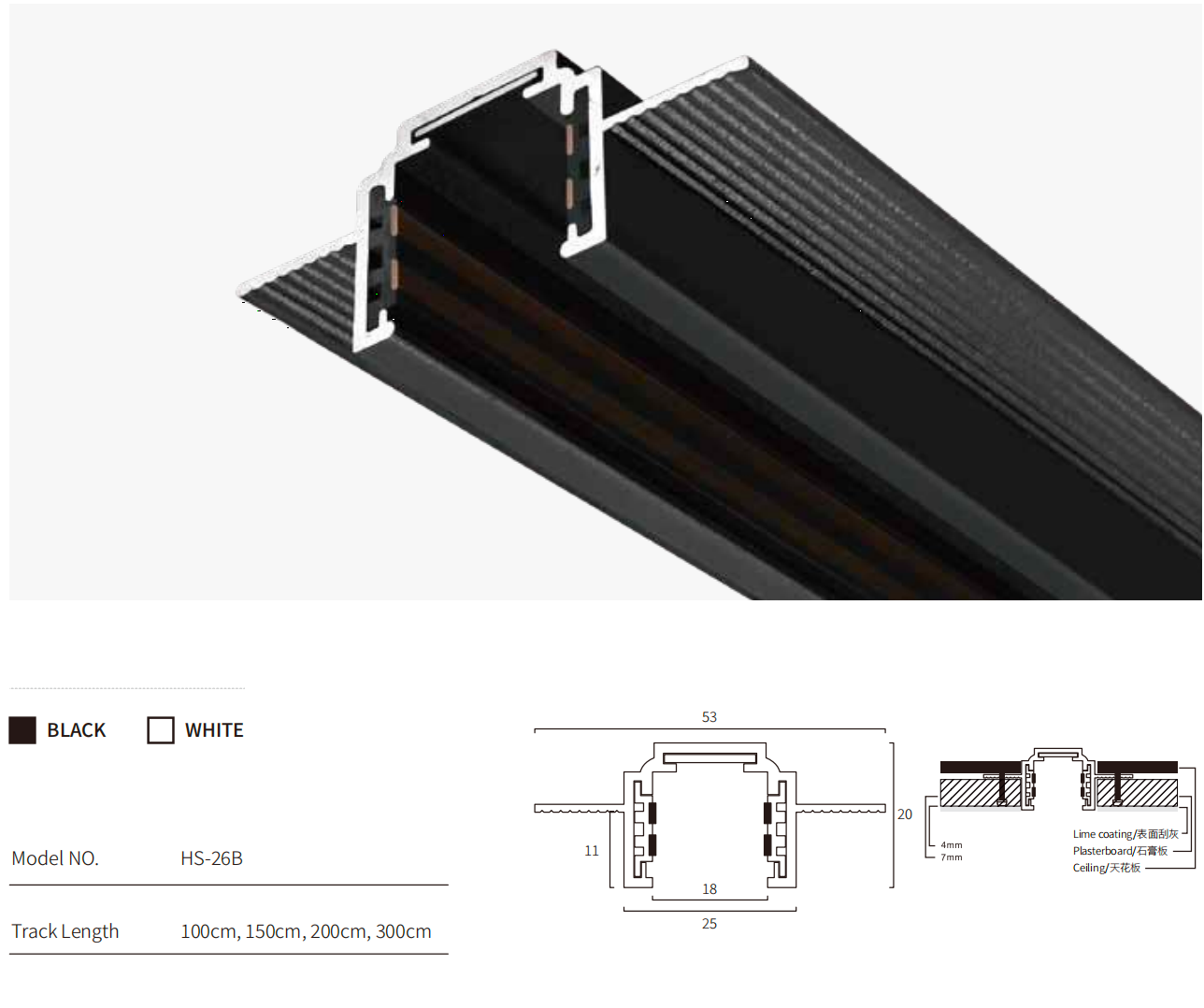

Recessed profile

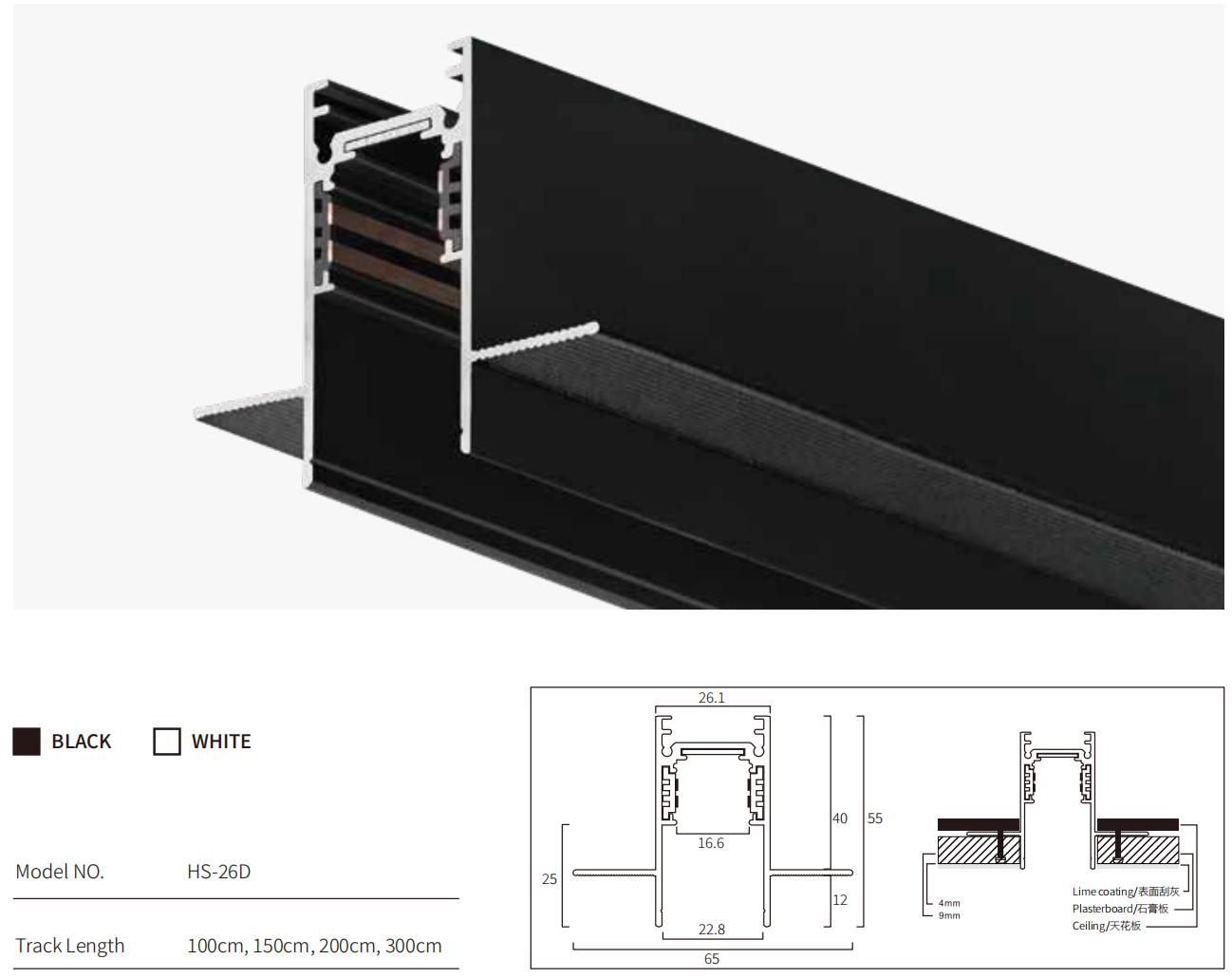

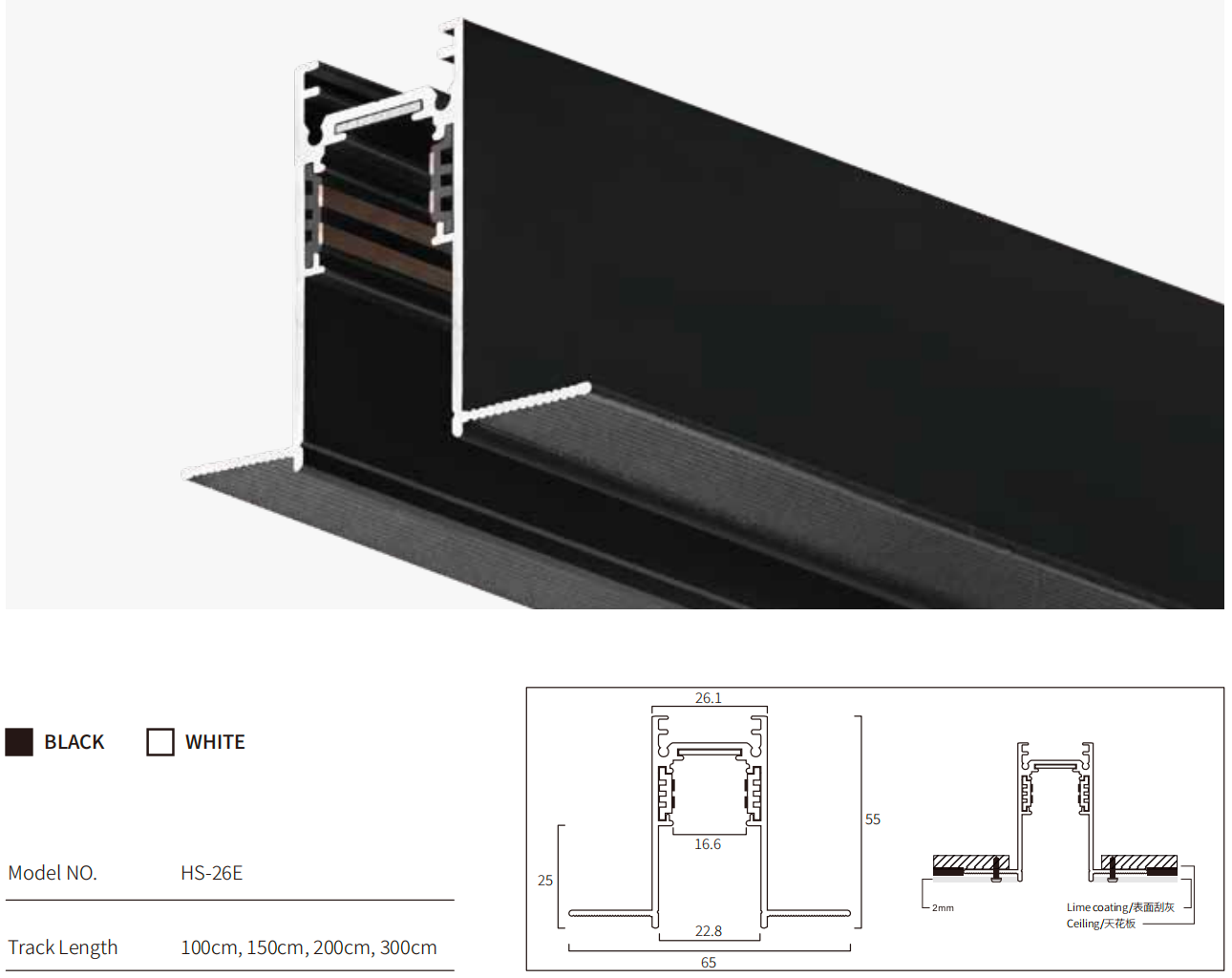

100 / 150 / 200 / 300 cm; black / white
Deep surface / suspended profile
100 / 150 / 200 / 300 cm; black / white
Recessed profile
100 / 150 / 200 / 300 cm; black / white
Recessed profile
100 / 150 / 200 / 300 cm; black / white

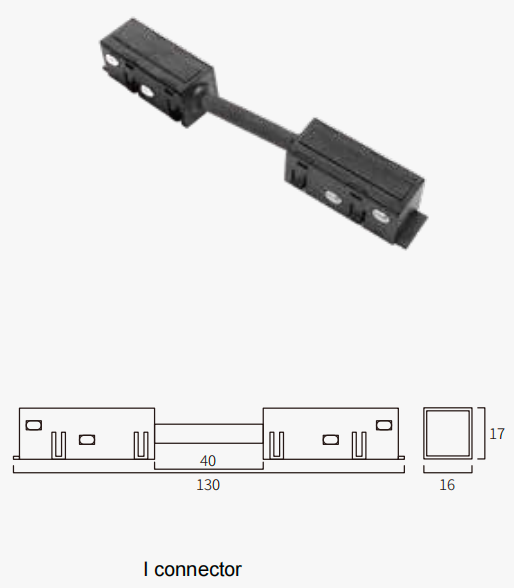

Straight electrical connection
Overall 130 mm; section 16 × 17 mm

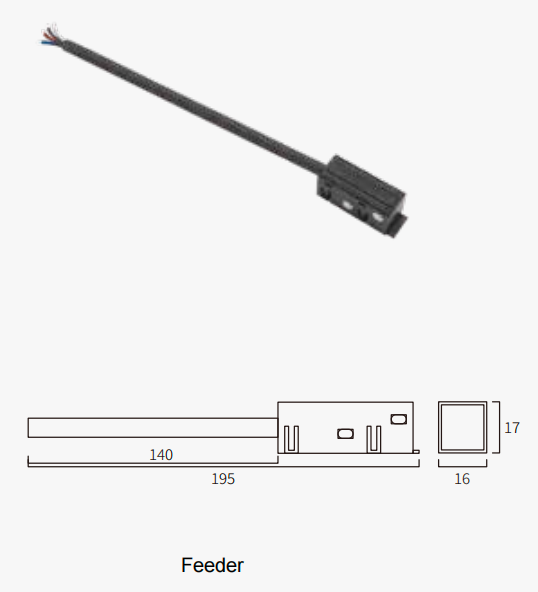

Track power feed
Overall 195 mm; section 16 × 17 mm

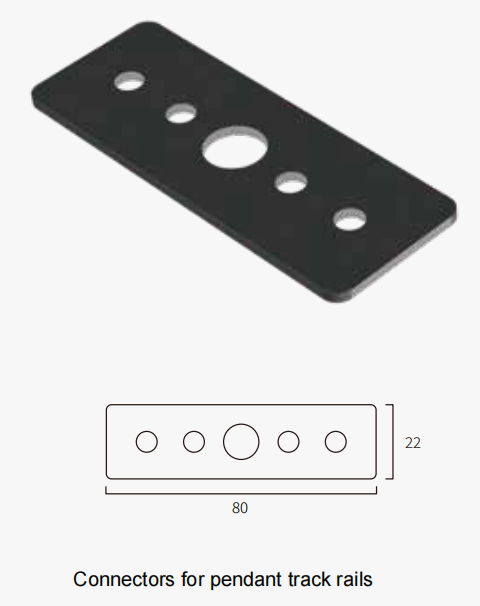

Mechanical connection plate
80 × 22 mm

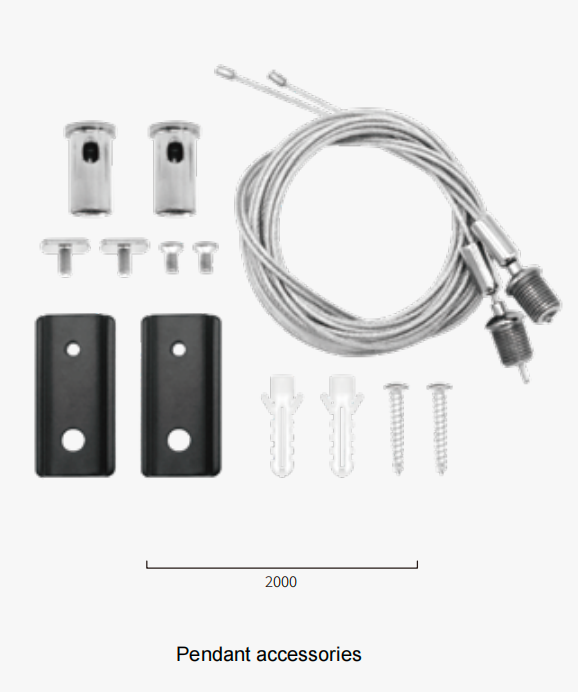

Suspension components
2000 mm as shown in supplied drawing

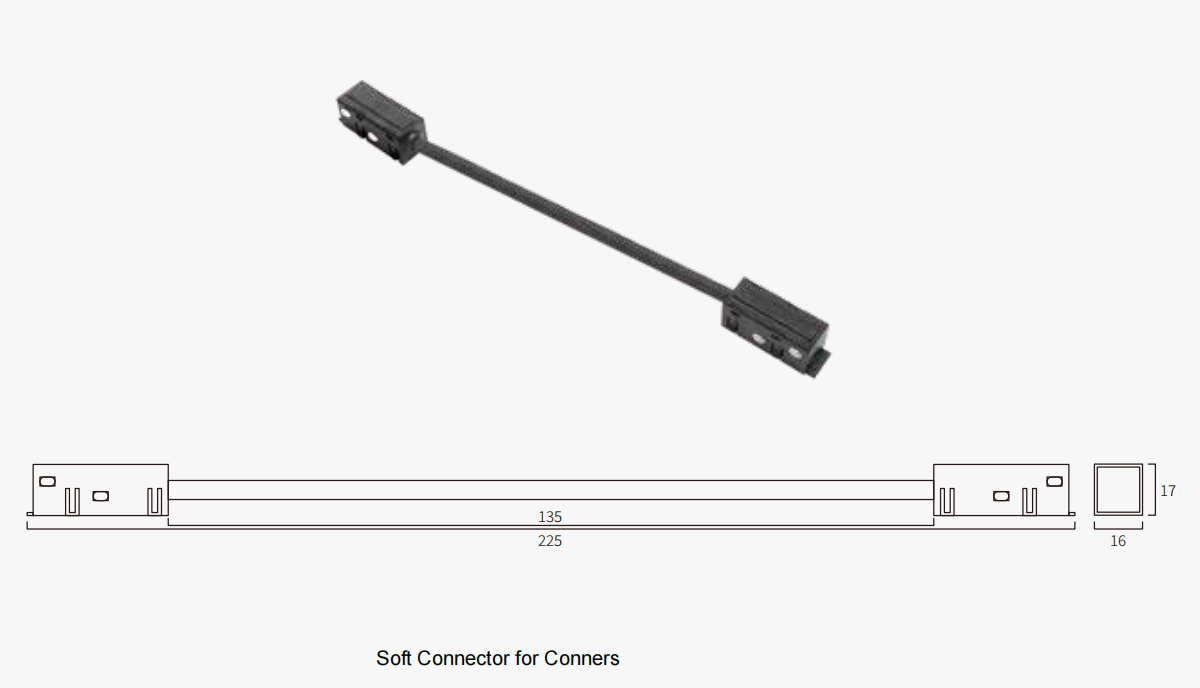

Flexible electrical connection
Overall 225 mm; section 16 × 17 mm

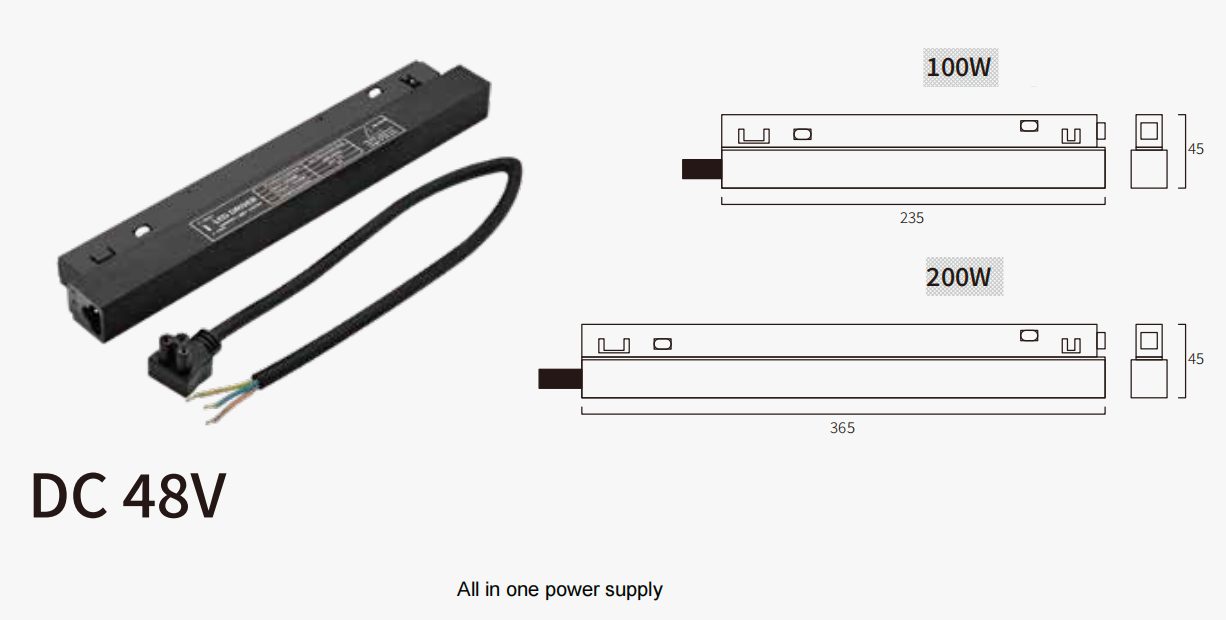

100W / 200W options
100W: 235 mm; 200W: 365 mm; section height 45 mm
Original images and drawing annotations are preserved. Click any image for a larger view. Mechanical mounting parts and electrical connectors serve different purposes. The pictured power supply is not automatically compatible with every dimming method.
Send the model, quantity, finish, color temperature, required control method and the track components you need — including where the corner sits in your ceiling layout. Pricing, delivery and the final control package are confirmed with your quotation.
Request a quotation ↗
