grille module
HS26-6T
The shortest module in the series, for accents and end fills.
112 mm · 6W system power · black / white

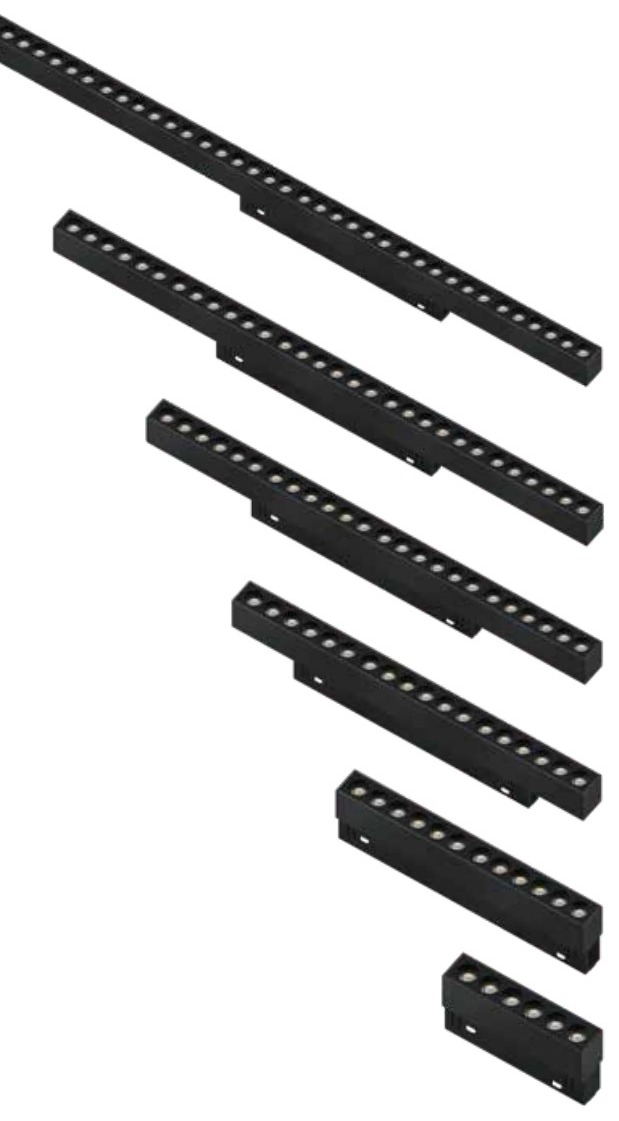

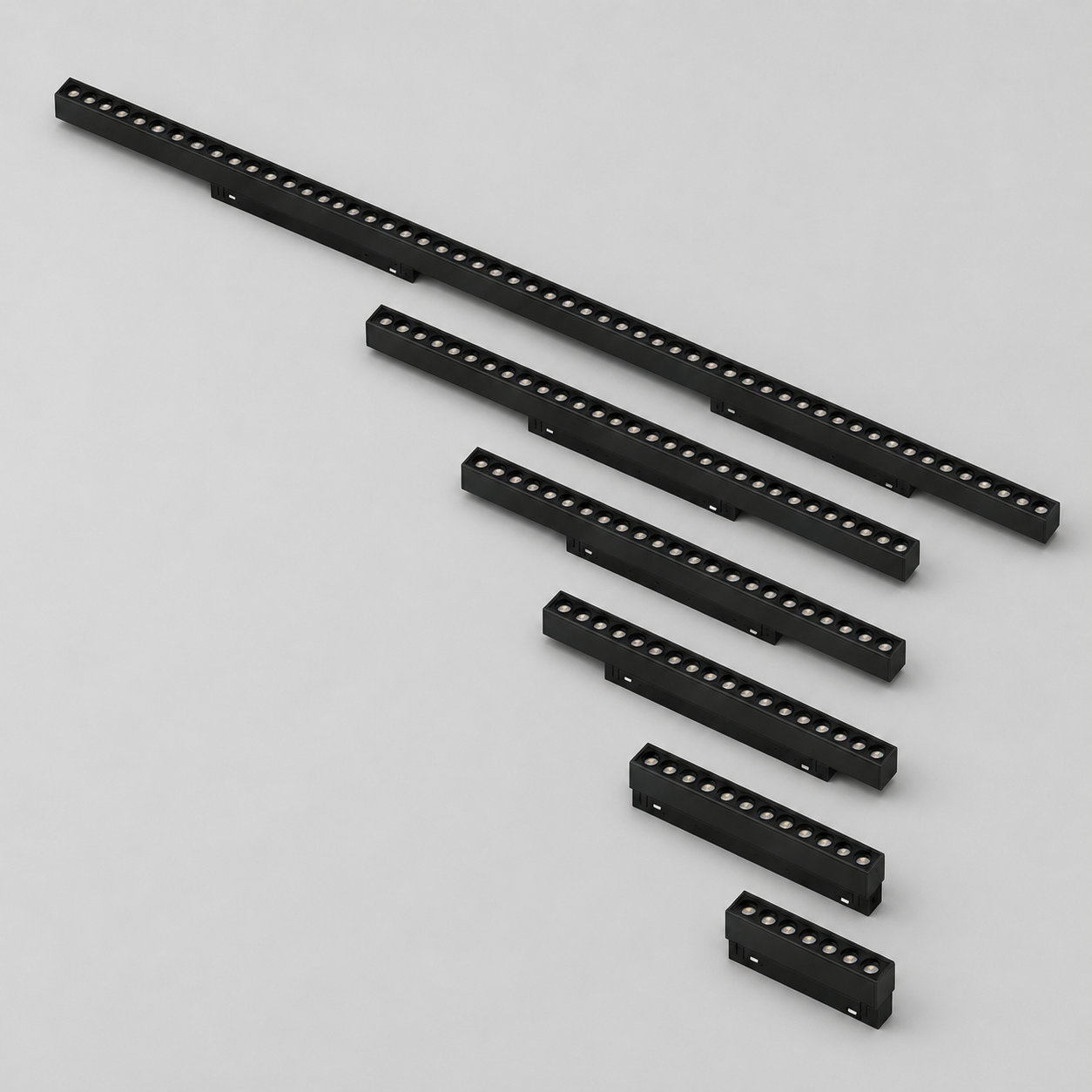

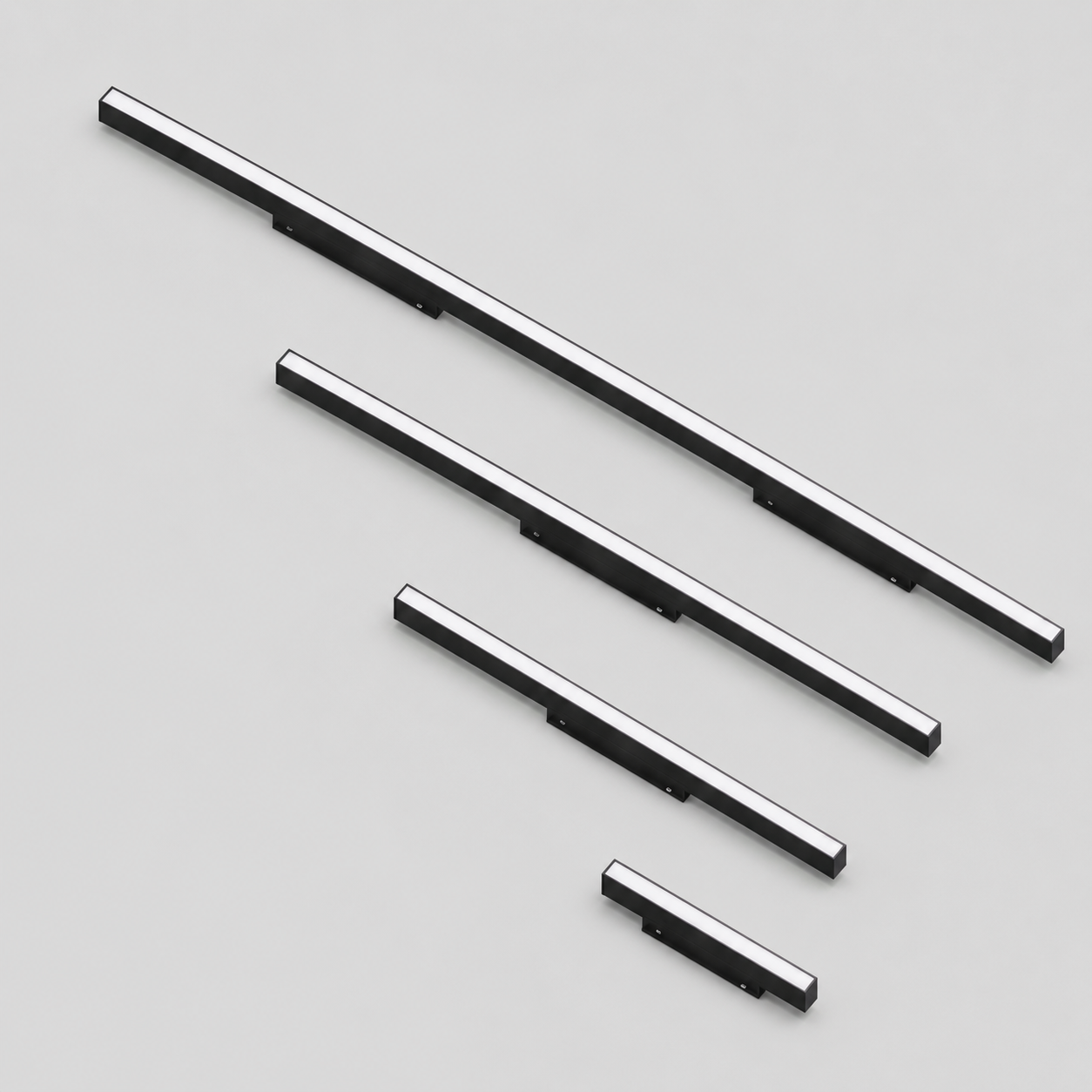

The HS26 grille light series in black: six module lengths, from HS26-6T at 112 mm to HS26-60T at 1080 mm.
View the original sheet & the six module drawings ↓The VOC Lighting HS26 magnetic grille light is a linear module that mounts to the magnetic track and is listed in six lengths. System power rises with length, from 6W on the 112 mm HS26-6T to 45W on the 1080 mm HS26-60T, in black or white. The supplied sheet lists the model number, overall length and system power of each module; optical, driver and dimming values are confirmed per project.
Listed on the supplied sheet: 112 / 220 / 328 / 435 / 543 / 1080 mm · 6 / 12 / 18 / 24 / 30 / 45 W · black / white
Overall lengths are the module lengths listed on the supplied sheet. The finish selection is carried into your quotation brief; the drawings do not change with the selected configuration.
Length and system power are the two values that decide which module you specify, and they are listed per model on the supplied sheet. Power does not rise at a constant rate across the series: HS26-60T is 1080 mm at 45W, so the longest module carries less power per 100 mm than the shorter ones.
| Model | Overall length | System power | W per 100 mm (derived) | Finish |
|---|---|---|---|---|

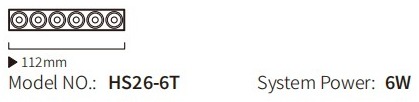

| HS26-6T | 112 mm | 6W | 5.4W | Black / white |
| HS26-12T | 220 mm | 12W | 5.5W | Black / white |

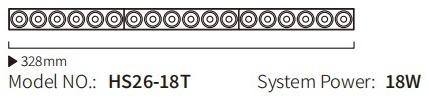

| HS26-18T | 328 mm | 18W | 5.5W | Black / white |
| HS26-24T | 435 mm | 24W | 5.5W | Black / white |
| HS26-30T | 543 mm | 30W | 5.5W | Black / white |
| HS26-60T | 1080 mm | 45W | 4.2W | Black / white |
| Listed on the supplied sheet | Requires confirmation |
|---|---|
| Model number, overall length (112 / 220 / 328 / 435 / 543 / 1080 mm), system power (6 / 12 / 18 / 24 / 30 / 45 W) and the black / white finish key | Input voltage, CCT, CRI, beam angle, dimming method, driver and power supply, IP rating, body material, warranty and packing |
“W per 100 mm” is derived for comparison only, using system power ÷ overall length × 100, rounded to 0.1W. It is not a listed specification. No value in the second table appears on the supplied sheet, so nothing is assumed for HS26-6T to HS26-60T.
Each module is a linear grille bar, drawn to scale below. The longest and shortest modules differ by a factor of about 9.6 in overall length, which is what changes the number of fixtures needed for a run.
Bar lengths are drawn to scale from the overall module lengths listed on the supplied sheet.
The shortest module in the series, for accents and end fills.
112 mm · 6W system power · black / white
A short module for small bays and display niches.
220 mm · 12W system power · black / white
A mid-length module for counters and shelf runs.
328 mm · 18W system power · black / white
A mid-length module that pairs well in continuous rows.
435 mm · 24W system power · black / white
The longest module below the 1080 mm model, for longer runs.
543 mm · 30W system power · black / white
The longest module, covering 1080 mm per fixture at 45W.
1080 mm · 45W system power · black / white
HS26-6T is 112 mm and HS26-60T is 1080 mm — about 9.6× the length. That ratio, not the wattage, is what changes how many fixtures a rail run needs.
Power per 100 mm is 5.4W on HS26-6T, 5.5W on HS26-12T to HS26-30T, and 4.2W on HS26-60T. HS26-60T is listed at 45W, so sizing a driver from the model number will oversize it.
The modules are grille bars with magnetic mounting for the track. The supplied sheet lists module length and system power; the rail profile, connector, feeder and power supply are specified separately and confirmed by VOC Lighting with your quotation.
The supplied sheet for this series lists model, overall length and system power only. It does not list a dimming protocol, a driver model or a voltage, so no control value is assumed here — the package is confirmed against your track layout before quotation.
Not listed on the supplied sheet for HS26-6T to HS26-60T. Confirm whether you need a wired protocol or wireless control, and ask for the matching driver for the modules you select.
System power is listed per module, from 6W to 45W. The driver and power supply must be sized against the number and mix of modules on the rail, so send the layout and the total load is confirmed.
Send the rail layout with the module list and the control requirement — VOC Lighting confirms the complete package, including driver sizing, in the quotation.

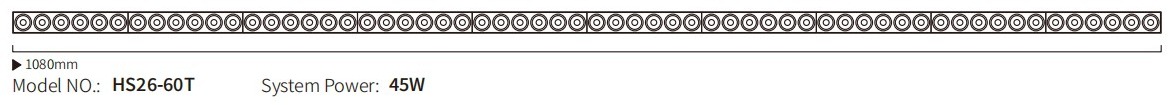

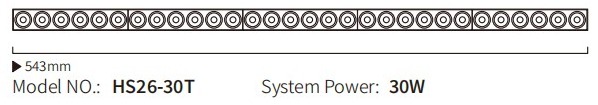

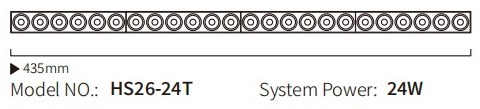

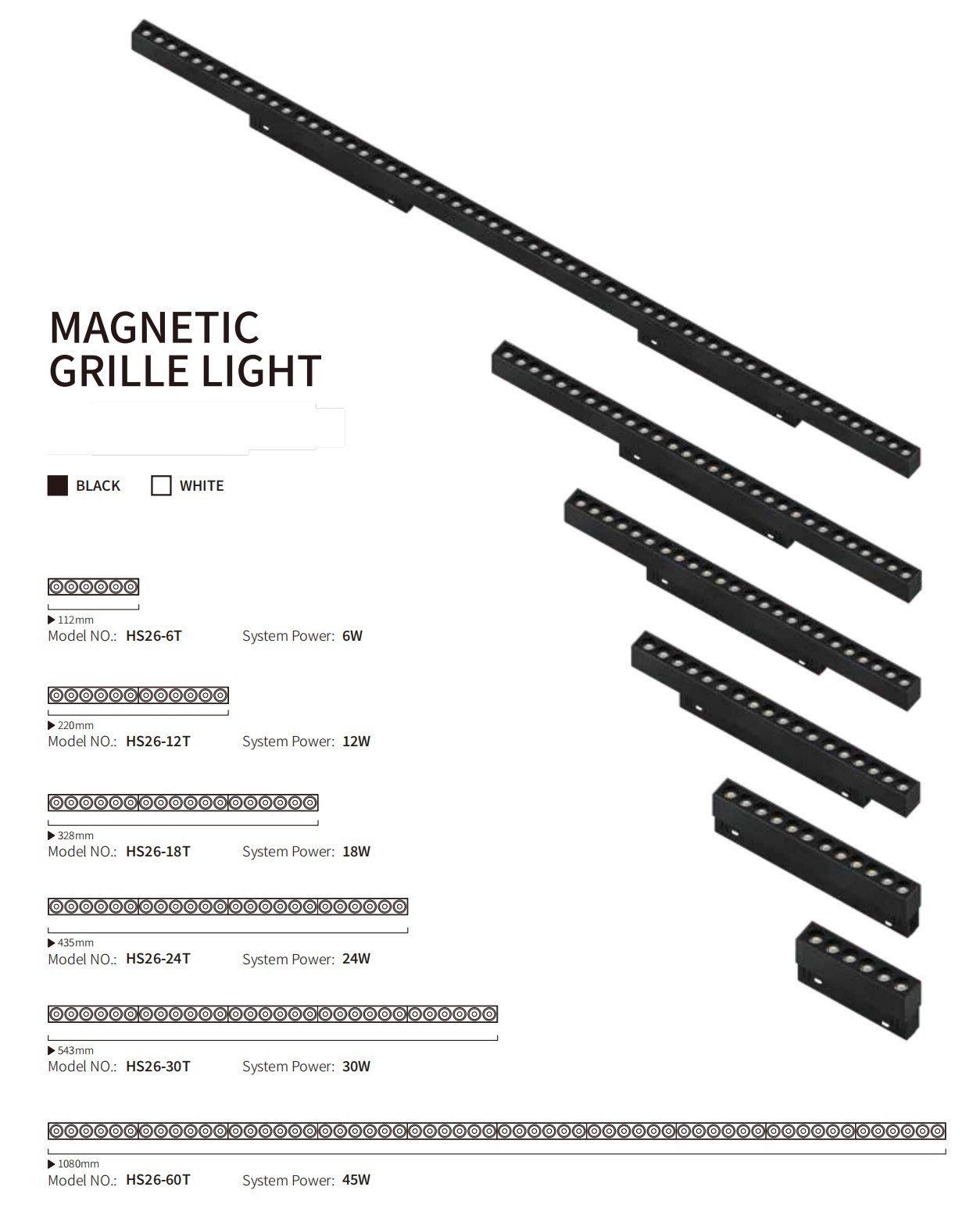

The supplied sheet is headed “MAGNETIC GRILLE LIGHT”. It shows the black / white finish key, the six module drawings with their overall lengths (112 / 220 / 328 / 435 / 543 / 1080 mm) and the listed system power for each model number. The module drawings are repeated per model in the six-length section above.
Overall length is the only dimension carried by the sheet. Depth, beam angle and driver data are not shown and require confirmation.
It is the VOC Lighting linear grille module for the HS26 magnetic track, listed in six lengths: HS26-6T (112 mm / 6W), HS26-12T (220 mm / 12W), HS26-18T (328 mm / 18W), HS26-24T (435 mm / 24W), HS26-30T (543 mm / 30W) and HS26-60T (1080 mm / 45W), in black or white.
No. The supplied sheet lists HS26-60T at 45W system power over 1080 mm. The shorter modules run at 5.5W per 100 mm, which would suggest about 59W for 1080 mm, but the listed value is 45W — so do not size a driver from the model number.
The sheet lists module lengths, not rail lengths. As a starting point, each module covers its own length — 1080 mm for HS26-60T, 543 mm for HS26-30T, 435 mm for HS26-24T, 328 mm for HS26-18T, 220 mm for HS26-12T and 112 mm for HS26-6T. Rail lengths, joints and the load per power supply are confirmed with your layout.
For short accents the smallest listed modules are HS26-6T at 112 mm and HS26-12T at 220 mm. For a continuous line, HS26-60T covers the most length per fixture at 1080 mm. Confirm the total load when mixing modules on one power supply.
The supplied sheet does not list CCT, CRI or beam angle for this series. All three require confirmation for your project before quotation.
The sheet does not list a dimming protocol for HS26-6T to HS26-60T, so it is confirmed per project rather than assumed. Tell us the control system you use and the matching driver is quoted with the modules.
HS26 is the 48V magnetic track system. The module sheet lists system power only, so the driver and voltage compatibility are confirmed in the quotation against your track layout.
Black and white, per the finish key on the supplied sheet.
Send the module list with model codes and quantities, the rail run length, the finish, the control requirement and the project country. VOC Lighting confirms length compatibility, driver sizing, price and lead time in the quotation.
Choose components to include in your project brief. Final rail, connection and power compatibility is confirmed against the selected lighting and control configuration.
11 components shown

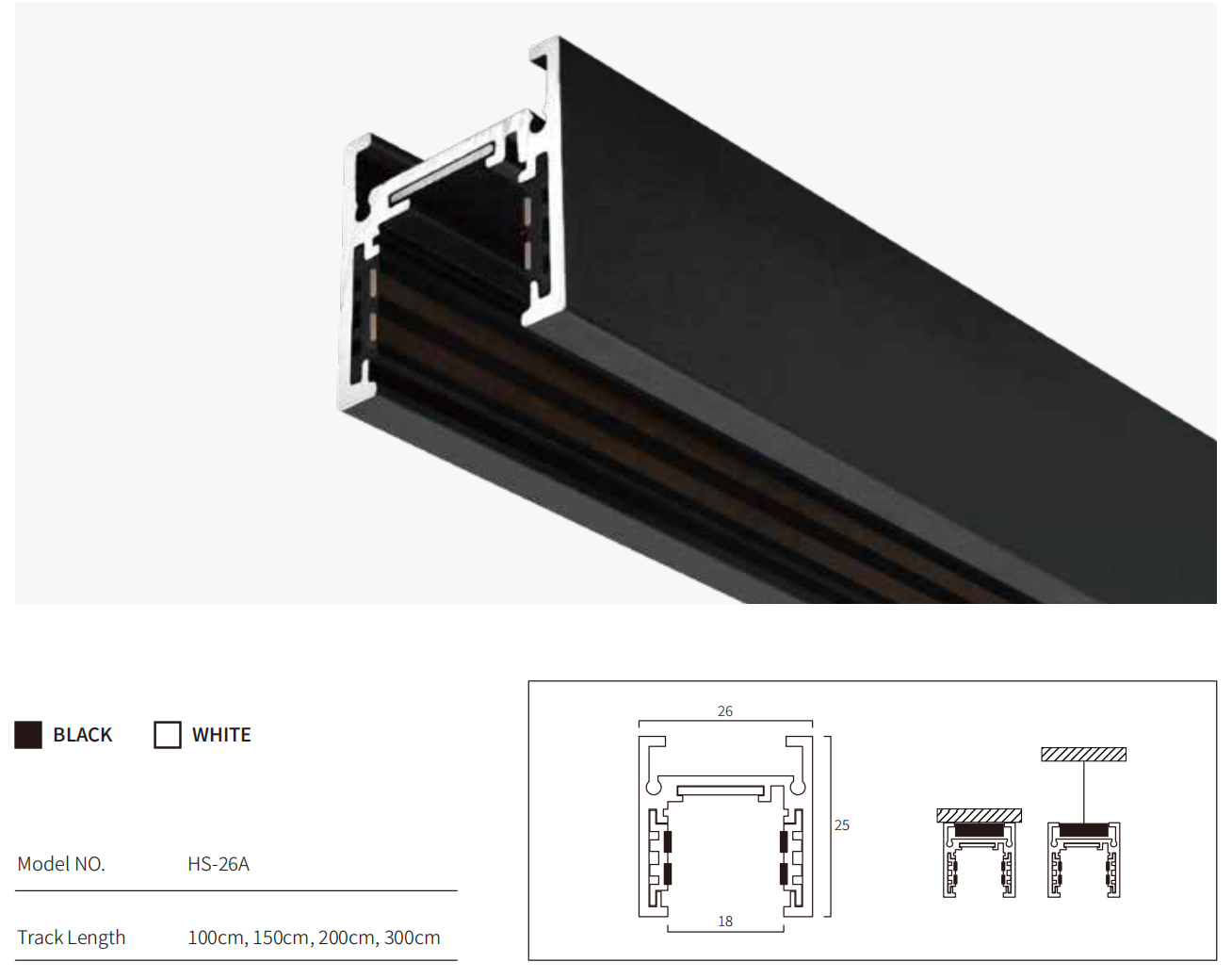

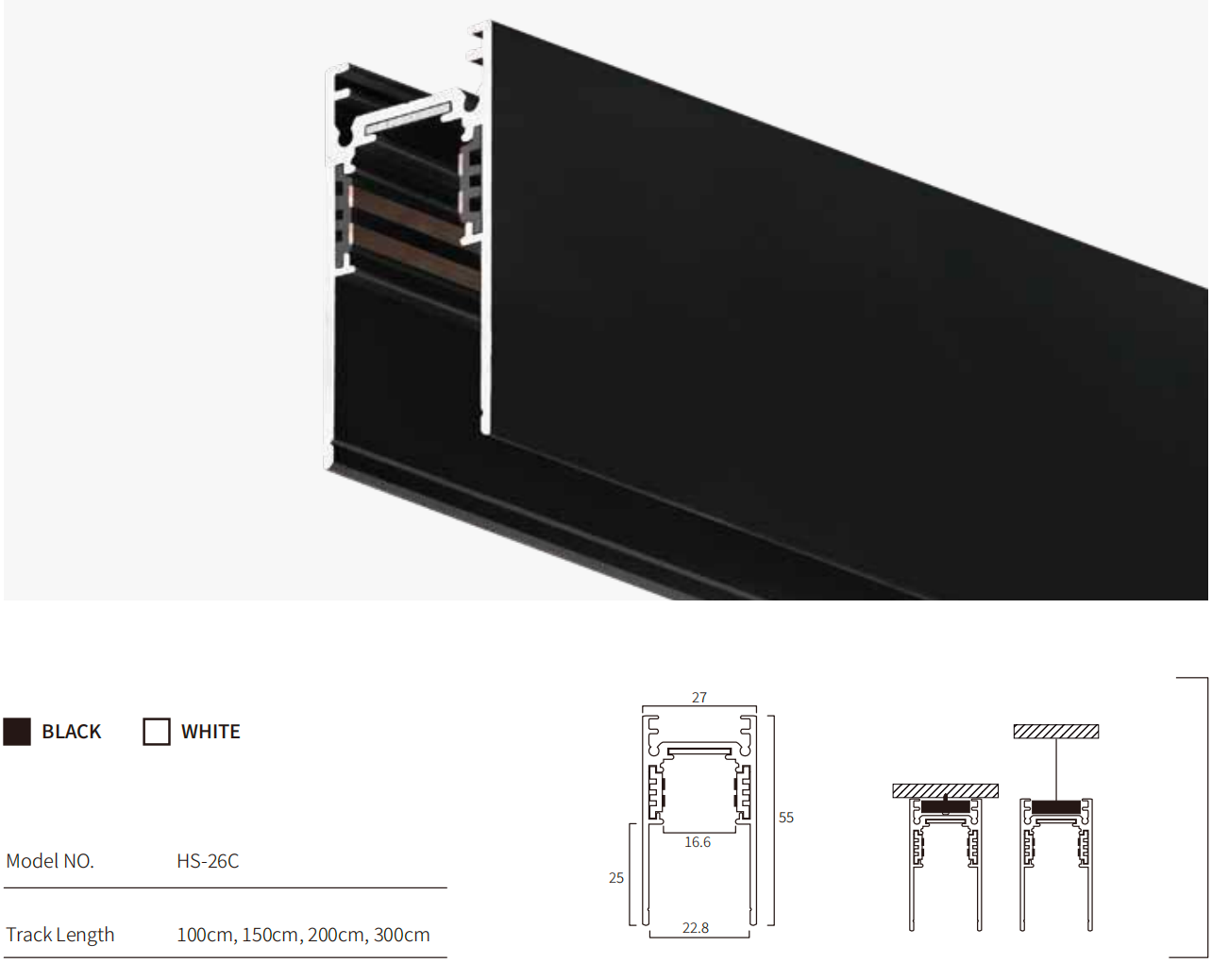

Surface / suspended profile
100 / 150 / 200 / 300 cm; black / white

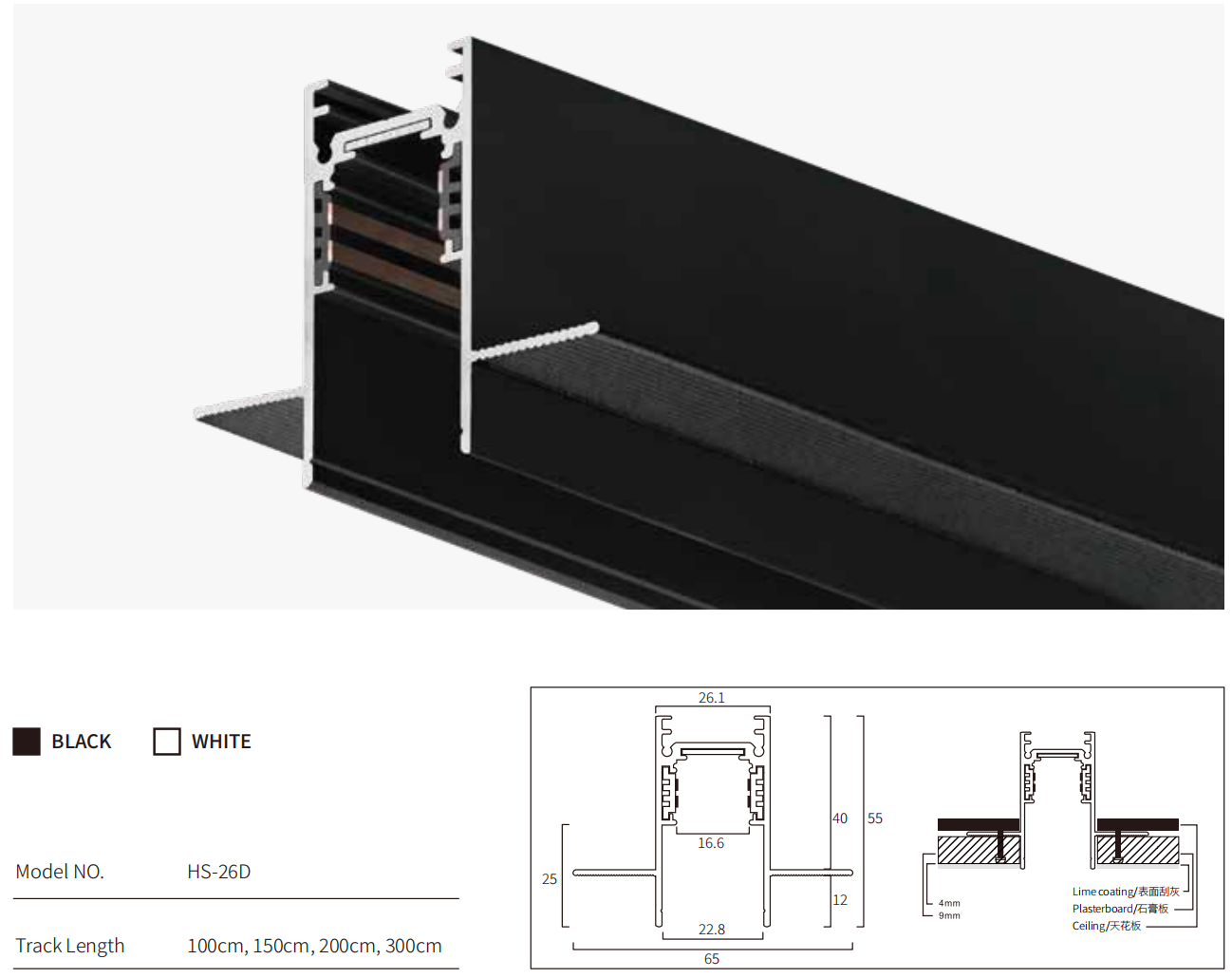

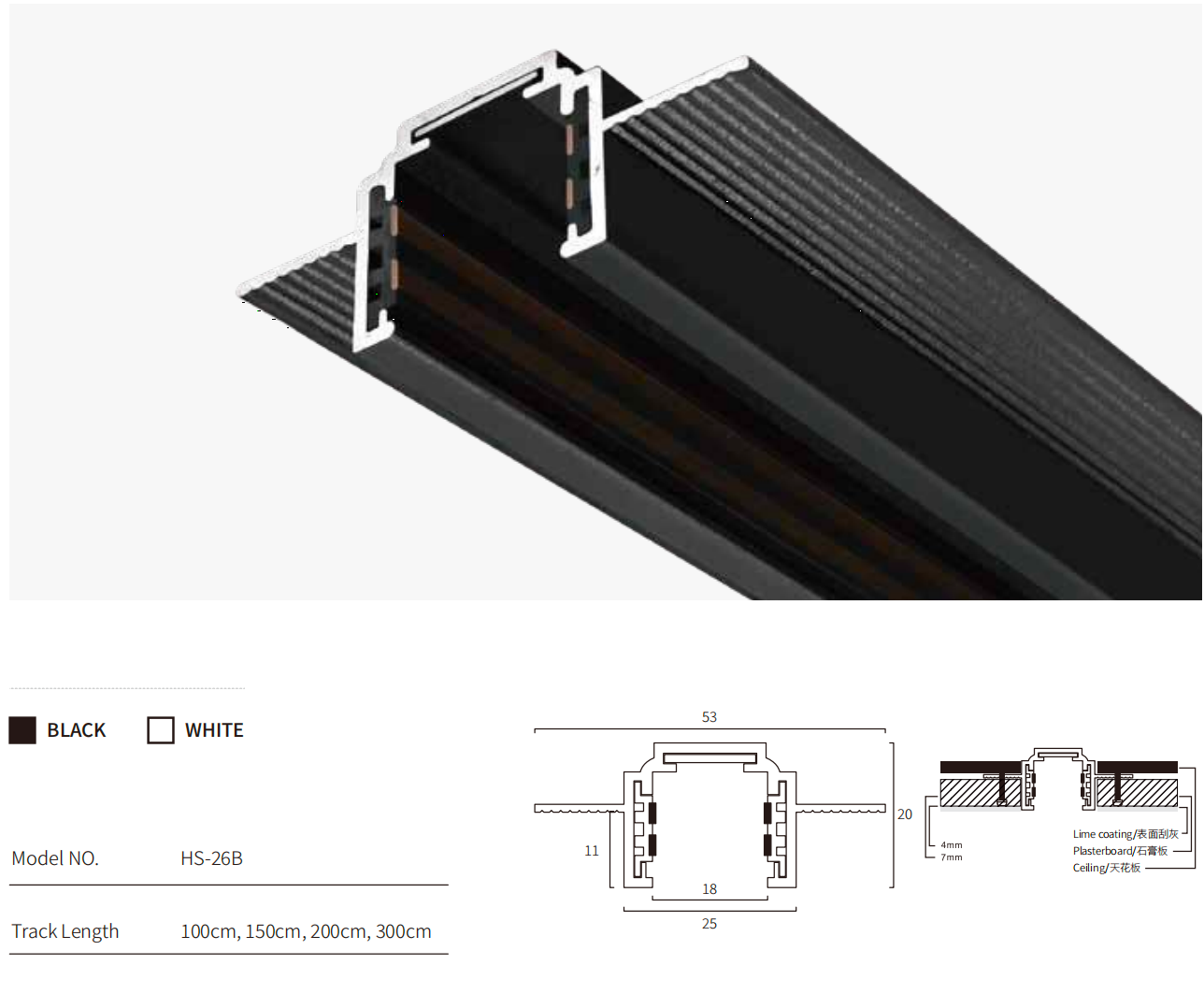

Recessed profile
100 / 150 / 200 / 300 cm; black / white

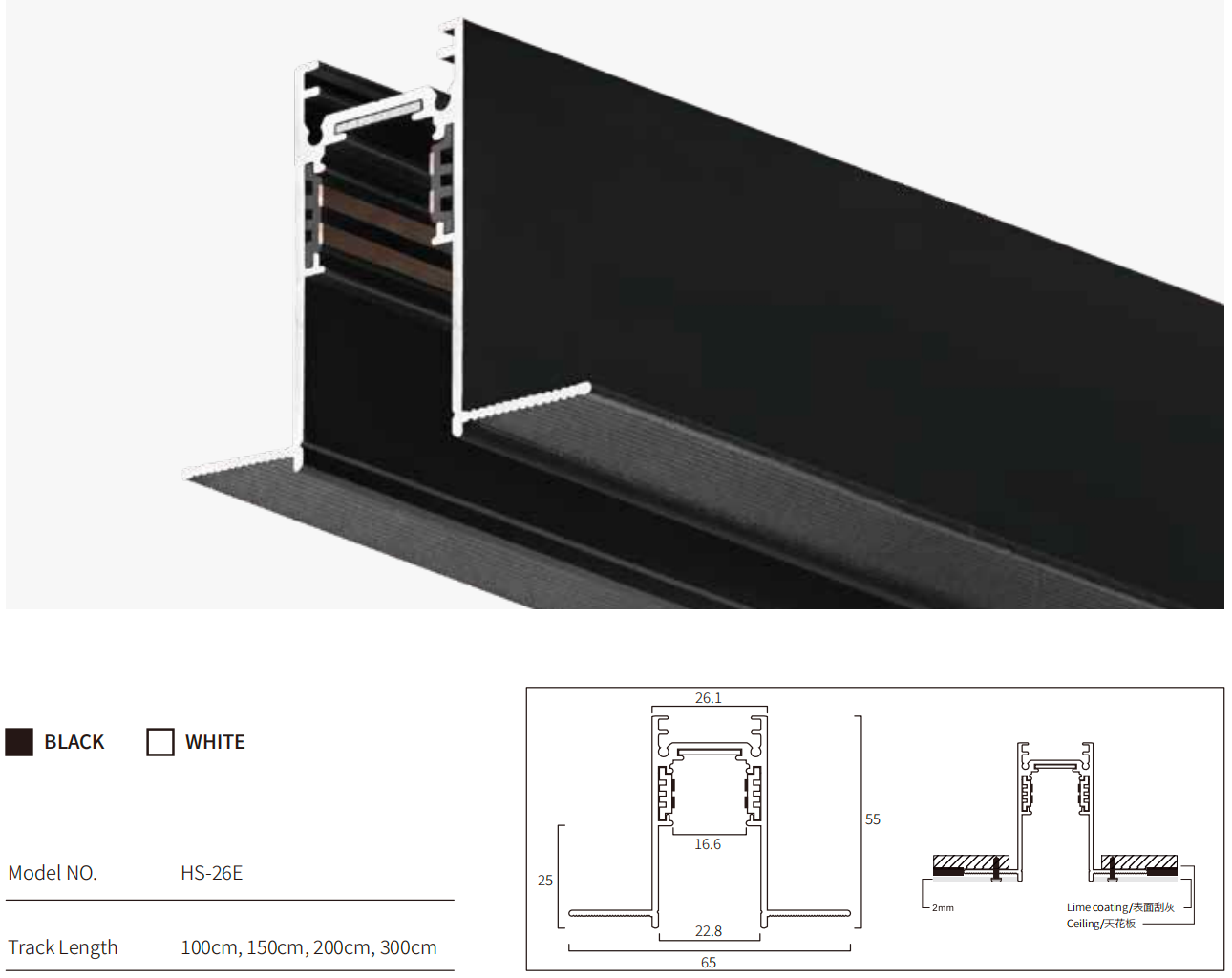

Deep surface / suspended profile
100 / 150 / 200 / 300 cm; black / white
Recessed profile
100 / 150 / 200 / 300 cm; black / white
Recessed profile
100 / 150 / 200 / 300 cm; black / white

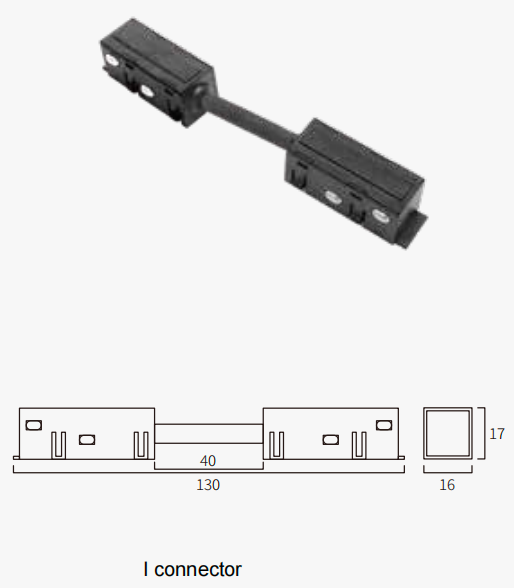

Straight electrical connection
Overall 130 mm; section 16 × 17 mm

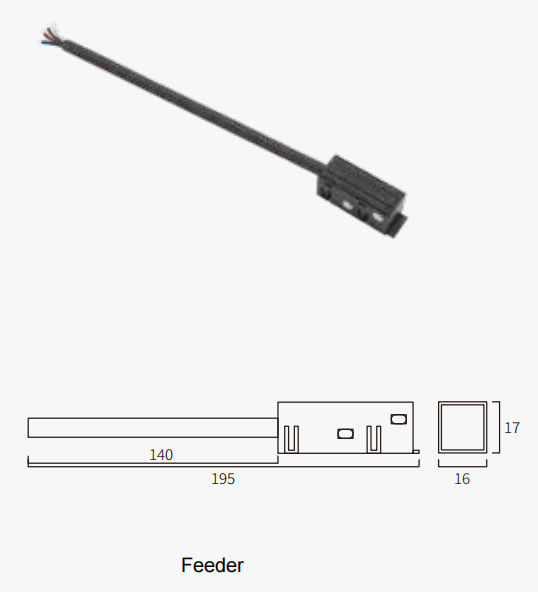

Track power feed
Overall 195 mm; section 16 × 17 mm

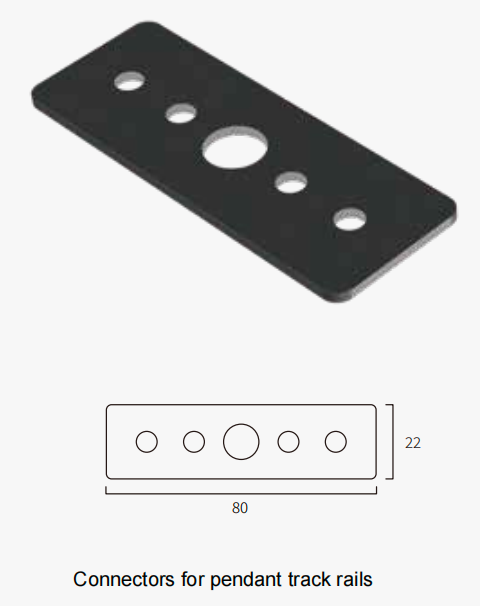

Mechanical connection plate
80 × 22 mm

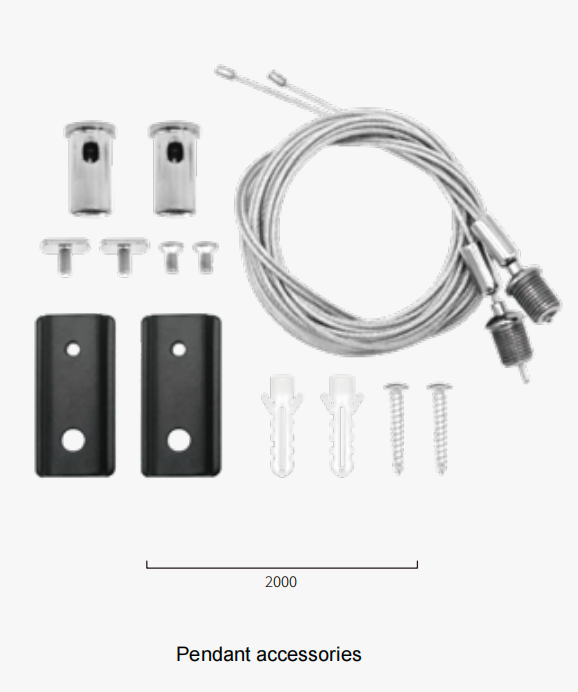

Suspension components
2000 mm as shown in supplied drawing

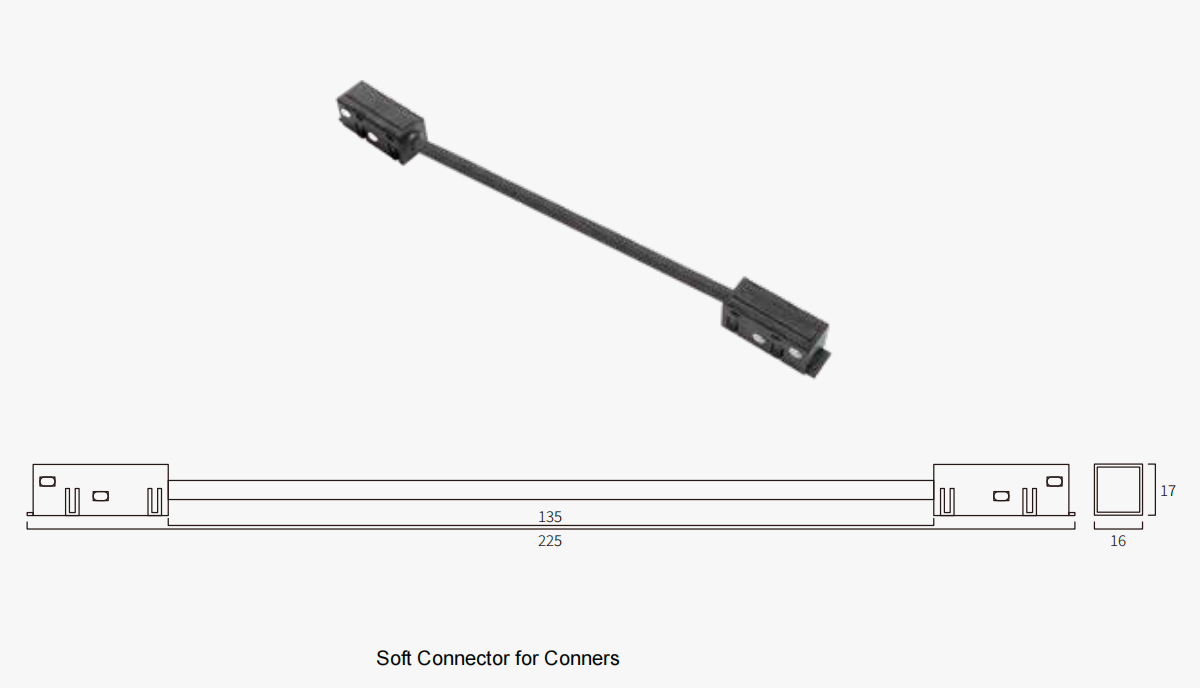

Flexible electrical connection
Overall 225 mm; section 16 × 17 mm

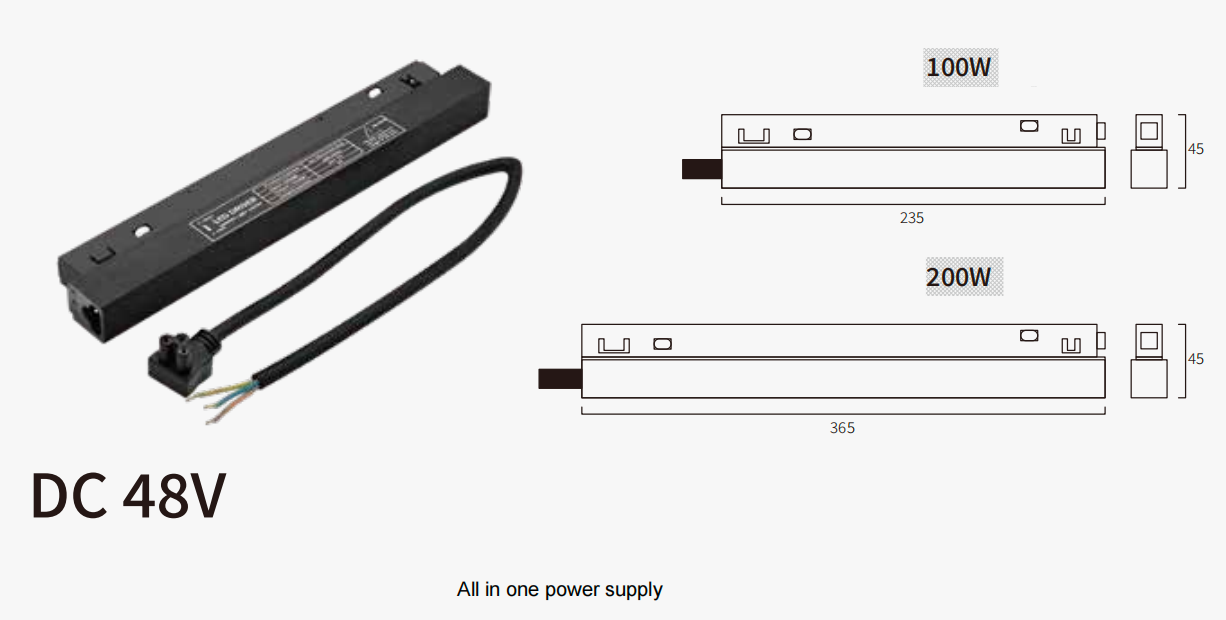

100W / 200W options
