PRODUCT OVERVIEW
The W Series IP54 Adjustable Recessed Spotlight is designed for commercial and architectural lighting projects requiring flexible aiming, controlled glare and reliable moisture protection. Its 355° adjustable structure allows precise light direction for accent lighting, display lighting and general commercial illumination.
The series is available in 45W and 60W versions with round, square and trimless housings. Lens and reflector optical versions are offered to suit different project requirements.
KEY FEATURES
- IP54 Protection
Designed for improved protection against dust and water splashes, with optional honeycomb anti-glare accessory. - UGR<16 Anti-Glare Performance
Deep optical structure helps reduce direct glare and improves visual comfort in professional commercial spaces. - 355° Adjustable Direction
Flexible aiming allows precise control of the lighting direction for displays, retail zones and architectural features. - Lens & Reflector Versions
W + model number indicates the lens version; F-W + model number indicates the reflector version. - Multiple Housing Styles
Round, square and trimless versions are available for different ceiling and architectural requirements. - Die-Cast Construction
Die-cast housing provides structural stability and effective heat dissipation for long-term commercial use. - Multiple Reflector Finishes
Reflector options include gunmetal black, bright silver, matte black and matte white.
SIZE & POWER OPTIONS

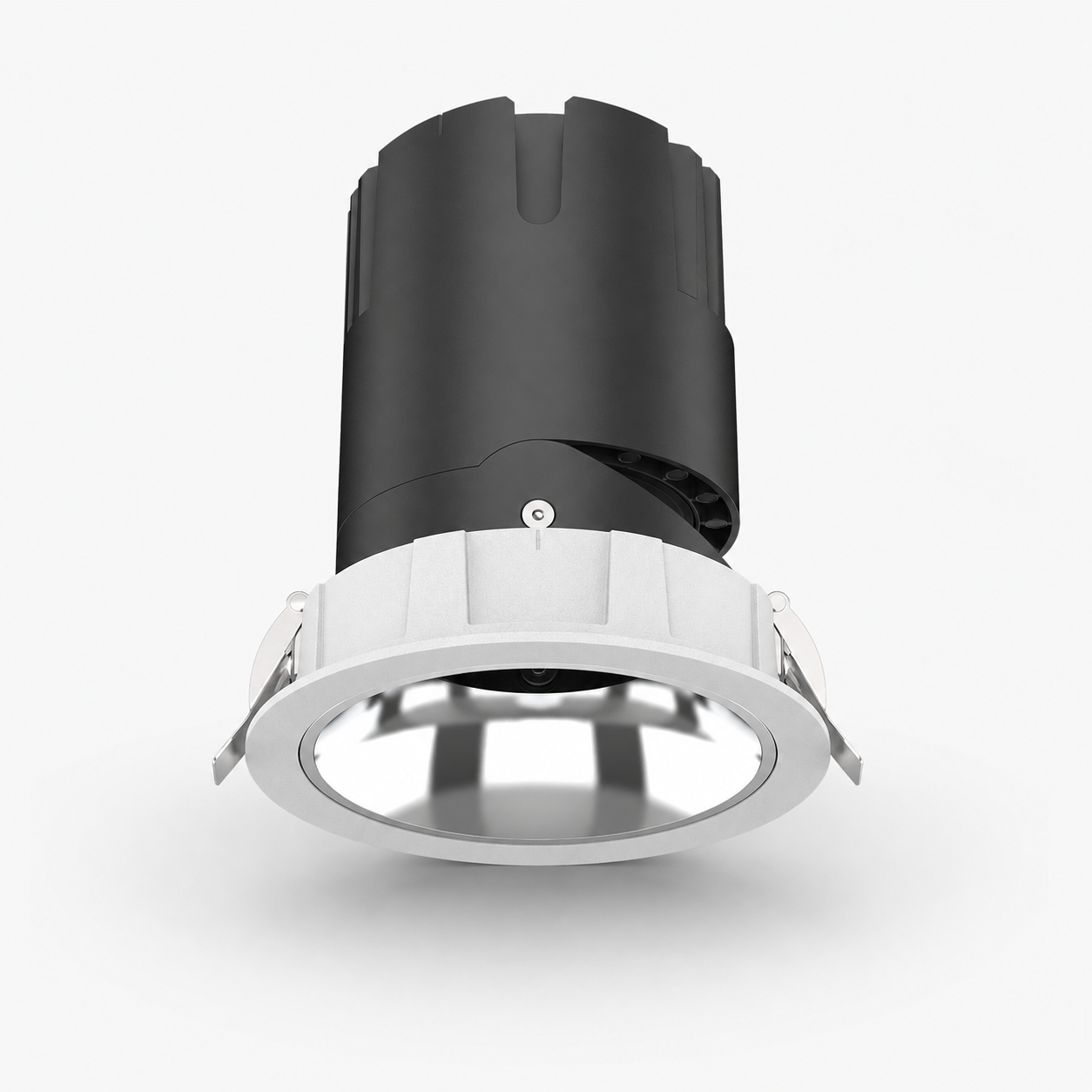

- W326 / F-W326 — Ø140mm, Cut-out Ø125mm, H155mm — 45W

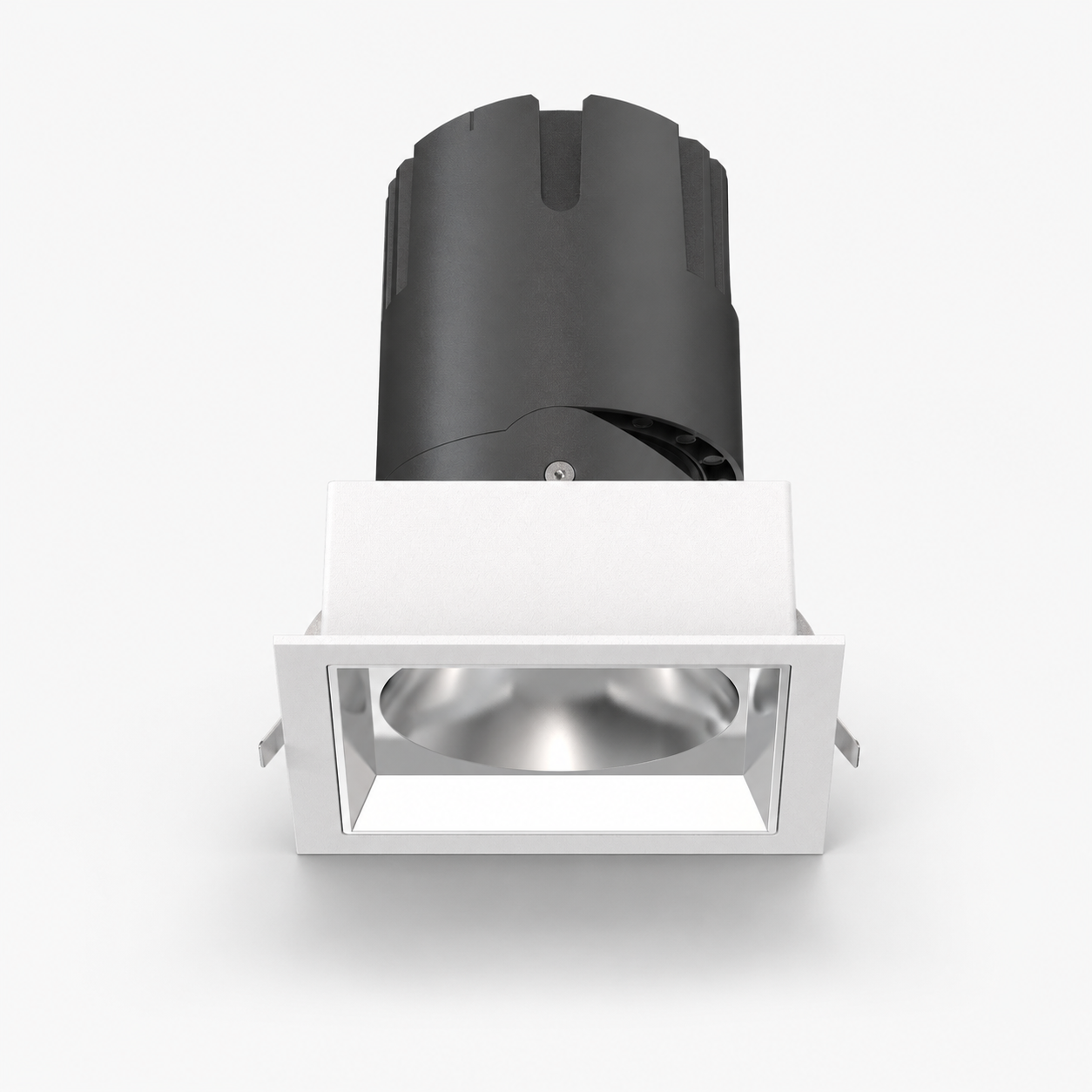

- W326-1 / F-W326-1 — 144×144mm, Cut-out 125×125mm, H171mm — 45W
- W326 Trimless / F-W326 Trimless — Ø148mm, Cut-out Ø125mm, H155mm — 45W
- W327 / F-W327 — Ø160mm, Cut-out Ø150mm, H175mm — 60W
- W327-1 / F-W327-1 — 169×169mm, Cut-out 150×150mm, H191mm — 60W
- W327 Trimless / F-W327 Trimless — Ø176mm, Cut-out Ø150mm, H176mm — 60W
TECHNICAL OPTIONS
- Protection Rating: IP54
- UGR: <16
- Adjustment: 355° Directional
- Power: 45W / 60W
- Lens Beam Angle: 15° / 24° / 36° / 55°
- Light-Emitting Surface: 11mm / 16mm / 17mm / 20mm depending on model
- Face Ring Finish: Sand White
- Heat Sink Finish: Spray Coating / Gray
- Reflector Colors: Gunmetal Black / Bright Silver / Matte Black / Matte White
- Compatible LED Holders: 020 / 1507 / 1830 / 030 / 2520 depending on model
- Waterproof Accessory: Honeycomb
RECOMMENDED APPLICATIONS
- Retail Stores & Shopping Malls
- Hotels & Restaurants
- Showrooms & Galleries
- Offices & Commercial Spaces
- Exhibition & Display Lighting
- Architectural Accent Lighting
