PRODUCT OVERVIEW

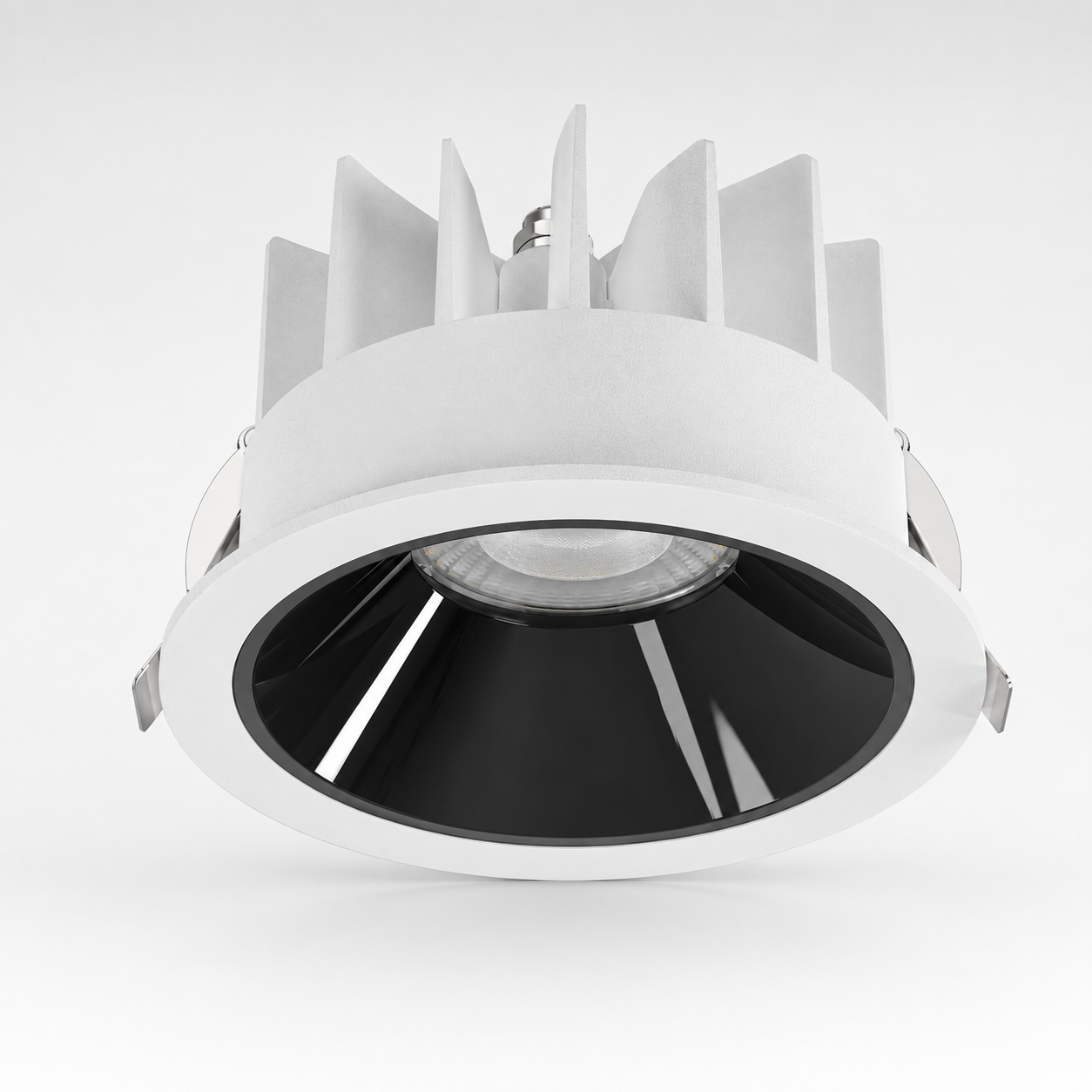

The JNS Series IP65 Anti-Glare Recessed LED Downlight is designed for professional commercial, hospitality and architectural lighting projects requiring reliable moisture protection, controlled glare and flexible optical performance.
The series covers six housing sizes from Ø85mm to Ø215mm with power options from 12W to 60W. Its deep recessed reflector design provides comfortable illumination while IP65 protection makes the luminaire suitable for both standard commercial interiors and moisture-prone applications.
MODEL & SIZE OPTIONS
| Model |
Dimension |
Cut-out |
Power |
| JNS-250IH |
Ø85×H58mm |
Ø75mm |
12W |
| JNS-300IH |
Ø105×H65mm |
Ø95mm |
18W |
| JNS-400IH |
Ø132×H75mm |
Ø115mm |
30W |
| JNS-500IH |
Ø150×H80mm |
Ø135mm |
35W |
| JNS-600IH |
Ø191×H95mm |
Ø175mm |
45W |
| JNS-800IH |
Ø215×H105mm |
Ø200mm |
60W |
KEY FEATURES
- IP65 Protected Design — Enhanced resistance to dust and moisture for commercial and moisture-prone interior applications.
- UGR<19 Anti-Glare Optics — Deep recessed reflector structure helps reduce direct glare and improve visual comfort.
- Flexible Product Family — Six housing sizes and power options from 12W to 60W support different ceiling heights and illumination requirements.
- Multiple Beam Angles — 15° / 24° / 36° / 55° optics support narrow accent lighting through wider general illumination.
- High Color Quality — Ra90+ color rendering provides accurate presentation of merchandise, materials and architectural finishes.
- Reliable Thermal Management — ADC12 die-cast aluminum construction supports efficient heat dissipation and long-term operation.
- Professional Lighting Control — Optional 0-10V, Phase Dimming and DALI configurations support different commercial lighting control systems.
CONFIGURATION OPTIONS
- Optics: 15° / 24° / 36° / 55°
- Color Temperature: 3000K / 4000K / 6000K
- Color Rendering: Ra90+
- Housing: ADC12 Die-Cast Aluminum
- Driver: Lifud / OSRAM / Eaglerise / Philips / Tridonic Optional
- Dimming: 0-10V / Phase Dimming / DALI Optional
- Protection Rating: IP65
RECOMMENDED APPLICATIONS
- Hotels & Hospitality Spaces
- Retail Stores & Showrooms
- Restaurants & Cafés
- Commercial Offices & Public Areas
- Bathrooms & Moisture-Prone Interiors
- Architectural Accent Lighting
