PRODUCT OVERVIEW
The JC-0010 Series is an ultra-compact recessed LED spotlight designed for precise accent lighting in commercial and architectural interiors. With small cut-outs from Ø18mm to Ø30mm and a slim Ø22-35mm body, it integrates discreetly into ceilings, display cabinets and architectural details.
The series includes 3W, 5W and 7W options. XPE LED configurations and multiple narrow beam angles provide controlled illumination for merchandise, exhibits and feature lighting.
KEY FEATURES
- Ultra-Compact Recessed Design
Small Ø18mm, Ø25mm and Ø30mm cut-outs allow discreet installation in ceilings, cabinets and display structures. - Precision Accent Lighting
Narrow beam options from 5° to 36° support focused illumination for retail displays, showcases and architectural details. - 3W / 5W / 7W Power Options
Three compact wattages provide flexible selection for different accent-lighting requirements. - XPE LED Platform
Compact high-intensity LED configuration delivers controlled light output in a miniature fixture body. - Multiple Bezel Finishes

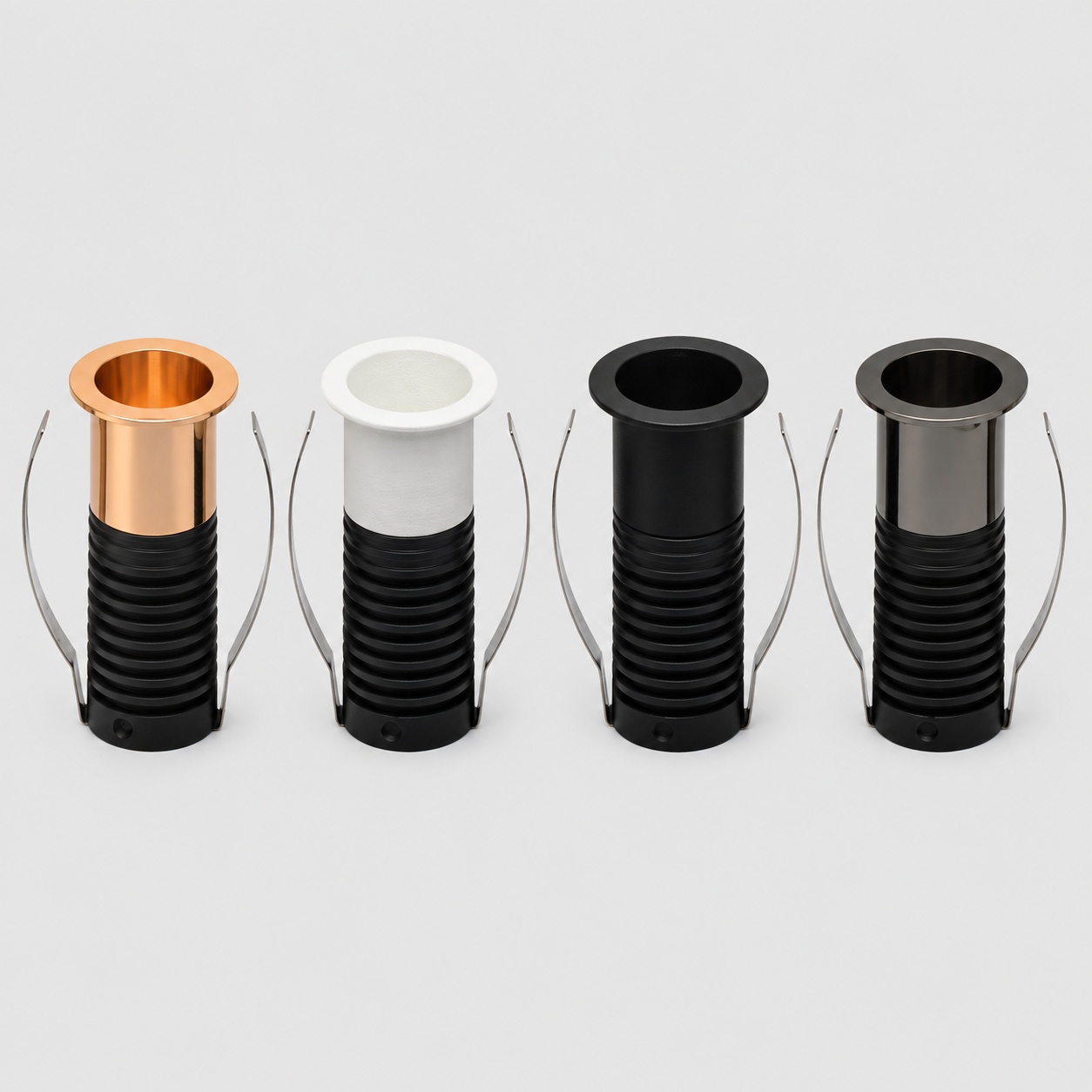

Available bezel colors include white, black, gunmetal black and rose gold for different interior design styles. - Black Fixture Housing
Standard black body provides a clean, discreet appearance and integrates easily into dark ceiling details. - Flexible Driver & Dimming Options
Optional Lifud, Osram, Eaglerise, Philips or Tridonic drivers with 0-10V, phase dimming and DALI configurations.
MODEL & SIZE OPTIONS
- Xingxin 18 — Ø22×H66mm, Cut-out Ø18mm — 3W — Beam Angle 15° / 24° / 36°
- Xingxin 25 — Ø30×H66mm, Cut-out Ø25mm — 5W — Beam Angle 15° / 24° / 36°
- Xingxin 30 — Ø35×H66mm, Cut-out Ø30mm — 7W — Beam Angle 5° / 8° / 10° / 15° / 24° / 36°
TECHNICAL OPTIONS
- Series: JC-0010
- LED / Optics: XPE
- Input Voltage: AC220V / AC110V Optional
- Protection Rating: IP20
- Installation: Recessed
- CCT: 3000K / 4000K / 6000K
- CRI: Ra90+
- Luminous Efficiency: 80 lm/W
- Fixture Color: Black
- Bezel Colors: White / Black / Gunmetal Black / Rose Gold
- Driver: Lifud / Osram / Eaglerise / Philips / Tridonic Optional
- Dimming: 0-10V / Phase Dimming / DALI Optional
RECOMMENDED APPLICATIONS
- Retail Displays & Showcases
- Jewelry & Luxury Stores
- Museums & Galleries
- Display Cabinets & Shelving
- Hotels & Restaurants
- Residential Accent Lighting
- Architectural Detail Lighting
