Compact JC-0067 mini recessed LED spotlight for precise accent lighting. Available in 5W, 10W, 15W and 18W with small Ø35-70mm cut-outs, COB light source, multiple beam angles and decorative trim color options.

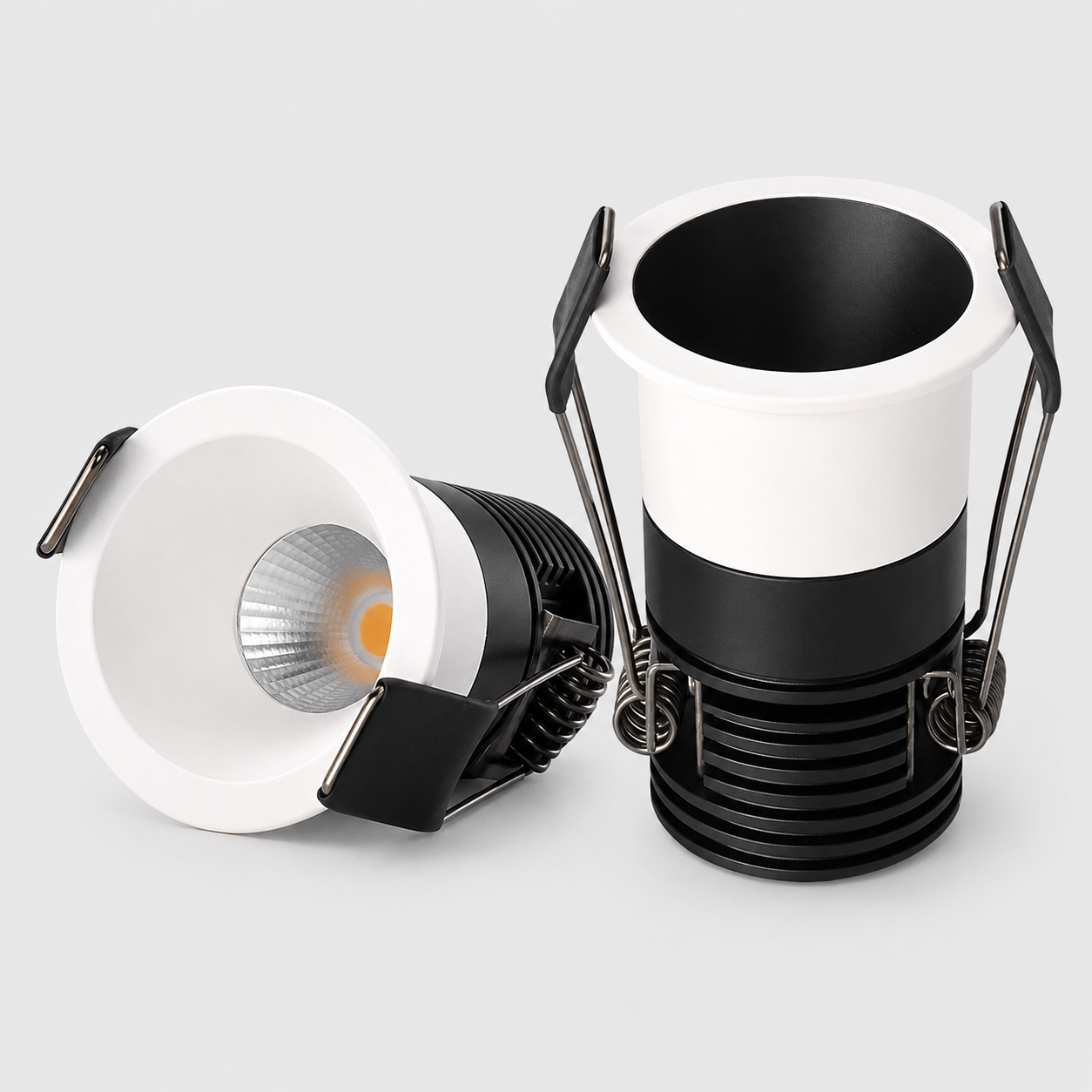

JC-0067 mini recessed LED spotlight designed for compact commercial and architectural accent lighting.
Four sizes cover 5W, 10W, 15W and 18W power options with Ø35mm to Ø70mm ceiling cut-outs.
Deep compact optical structure provides focused illumination while maintaining a clean recessed appearance.
KEY FEATURES
Compact mini recessed spotlight design for applications with limited ceiling space.
COB LED light source for concentrated and controlled accent lighting.
15° / 24° / 36° beam angle options for narrow spot and general accent lighting.
5W model uses a 24° optical configuration.
Black lamp body with multiple trim finish options.
Trim colors: White / Black / Gun Black / Rose Gold / White Outside & Black Inside.
ADC12 die-cast aluminum housing for stable heat dissipation.
Ra90+ color rendering suitable for retail, hospitality and display applications.
Optional Lifud, OSRAM, Eaglerise, Philips and Tridonic drivers.
Optional 0-10V, Phase Dimming and DALI Dimming control.
MODEL & SIZE OPTIONS
Model
Power
Dimension
Cut-out
Beam Angle
JC-0067-35
5W
Ø40×H58mm
Ø35mm
24°
JC-0067-55
10W
Ø60×H82mm
Ø55mm
15° / 24° / 36°
JC-0067-65
15W
Ø70×H87mm
Ø65mm
15° / 24° / 36°
JC-0067-70
18W
Ø75×H100mm
Ø70mm
15° / 24° / 36°
RECOMMENDED APPLICATIONS
Retail stores and display cabinets
Boutiques and showrooms
Hotels and hospitality spaces
Restaurants and cafés
Galleries and exhibition areas
Residential accent lighting
TECHNICAL OPTIONS
Power: 5W / 10W / 15W / 18W
Beam Angle: 15° / 24° / 36°
CCT: 3000K / 4000K / 6000K
CRI: Ra90+
Input Voltage: 220V / 110V Option
Protection: IP20
Installation: Recessed
Dimming: 0-10V / Phase Dimming / DALI Dimming Optional
