PRODUCT OVERVIEW

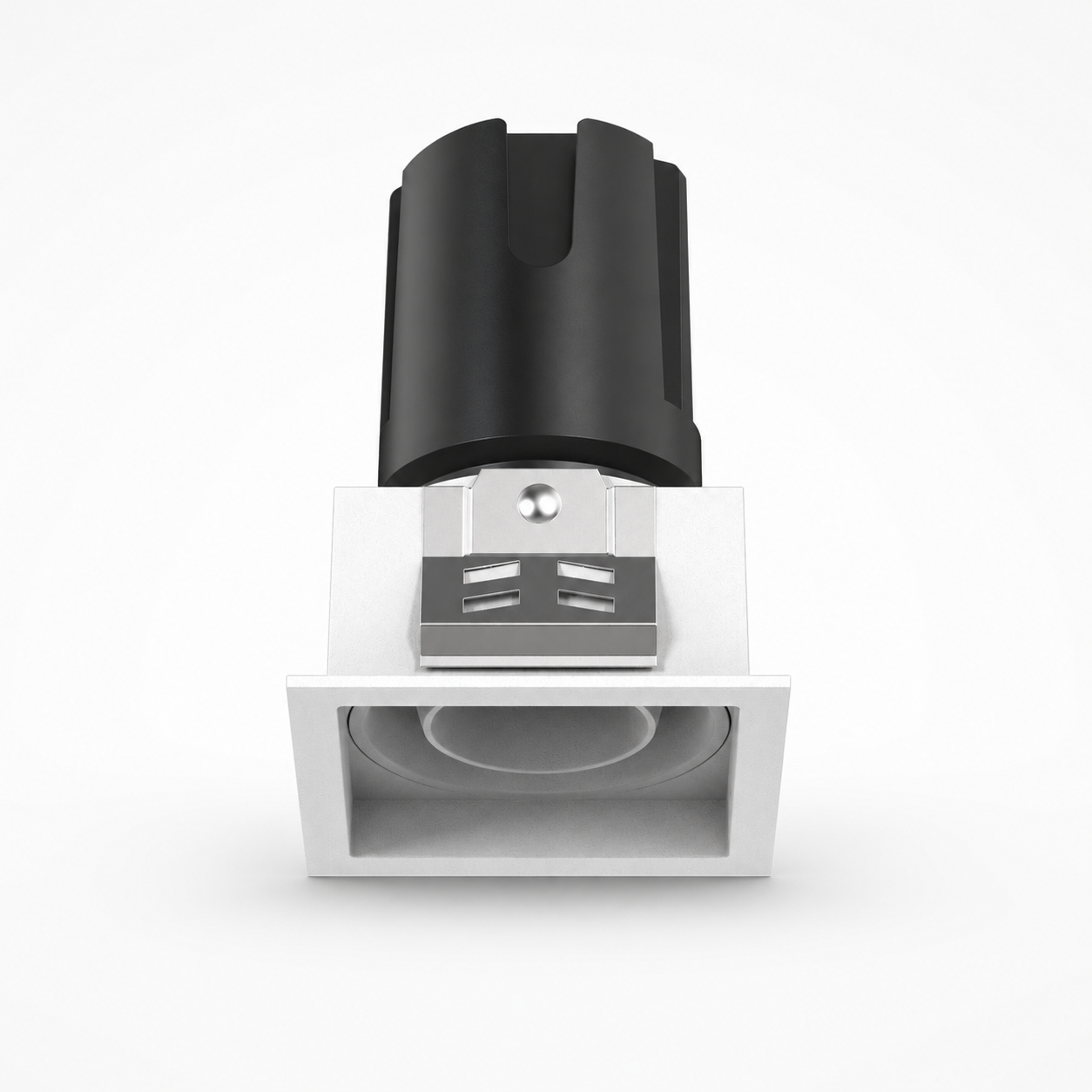

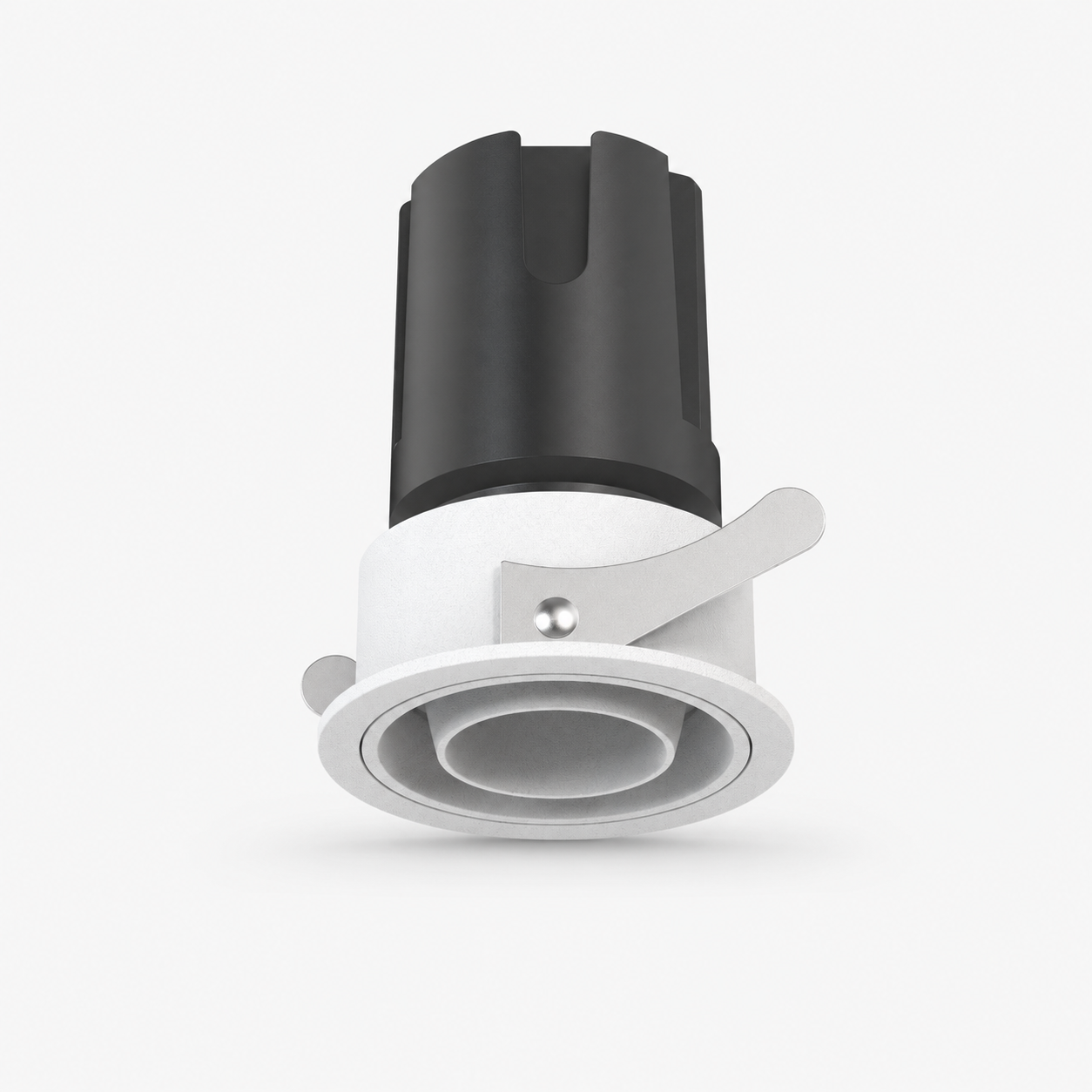

The N Series 355° Adjustable Recessed COB Spotlight is designed for commercial and architectural interiors requiring flexible directional lighting, compact recessed installation and controlled accent illumination.
The spotlight can be adjusted through 355° for precise aiming toward merchandise, artwork, feature walls and architectural details. The series is available in 10W, 20W and 35W versions with both standard trim and trimless housing options.
KEY FEATURES
- 355° Adjustable Direction
Flexible gimbal-style adjustment allows precise aiming for accent, display and feature lighting. - COB Light Source Design
COB optical structure provides concentrated, uniform illumination suitable for professional commercial spaces. - Trim & Trimless Options
Standard face-ring and trimless versions are available to suit different ceiling and interior design requirements. - ADC12 Die-Cast Aluminum
Durable die-cast aluminum construction supports structural stability and efficient heat dissipation. - Multiple Beam Angles
15° / 24° / 36° / 55° options support narrow accent lighting through to wider general spotlight distribution. - High Color Rendering
Ra90+ CRI helps reproduce merchandise, materials and interior finishes with improved color quality. - Optional Dimming
0-10V, Phase Dim and DALI dimming options support different commercial lighting control systems. - Anti-Glare Accessory
Optional honeycomb accessory helps reduce direct glare for improved visual comfort.
SIZE & POWER OPTIONS
- N323 — Ø62mm, Cut-out Ø55mm, H80mm — 10W
- N324 — Ø84mm, Cut-out Ø75mm, H100mm — 20W
- N325 — Ø105mm, Cut-out Ø95mm, H120mm — 35W

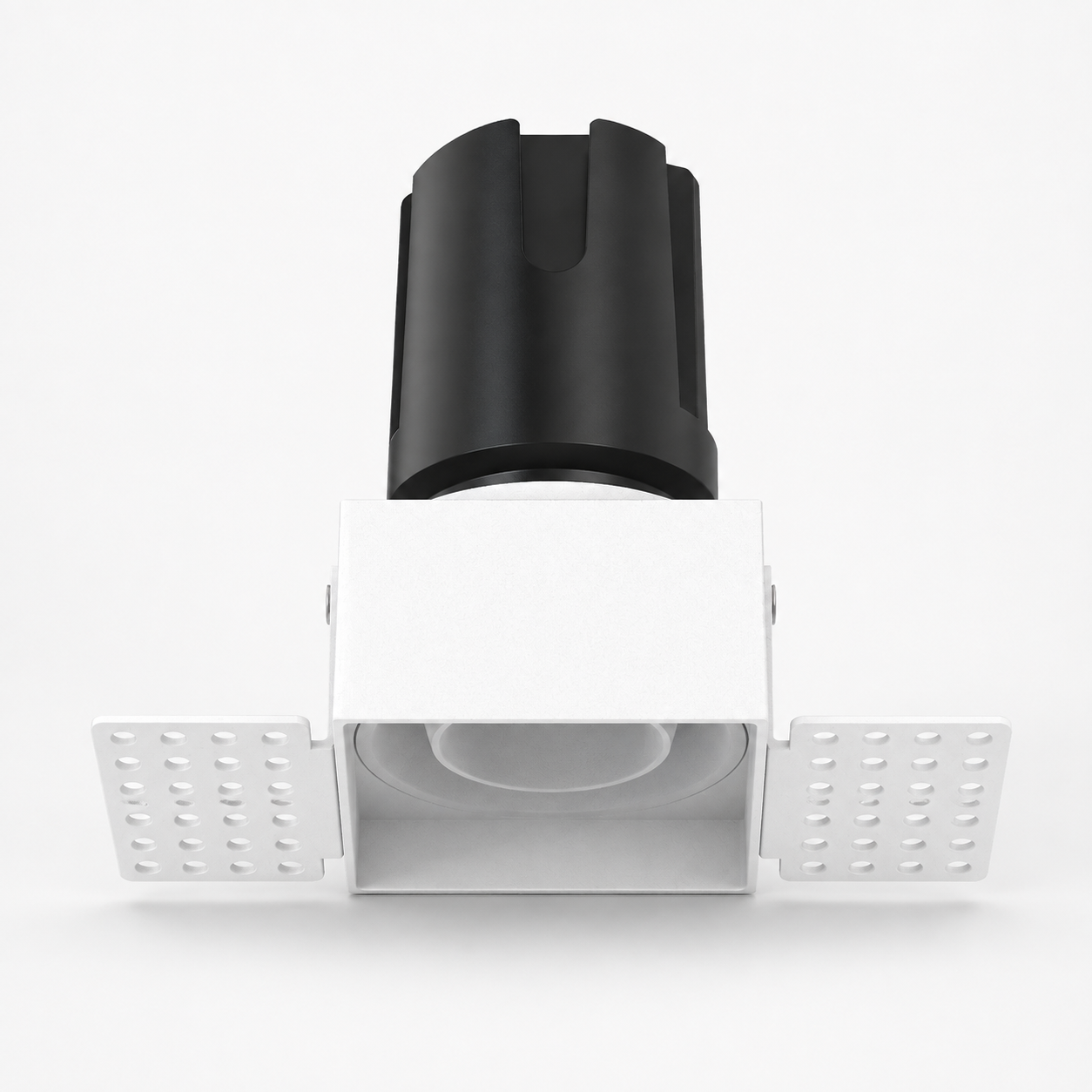

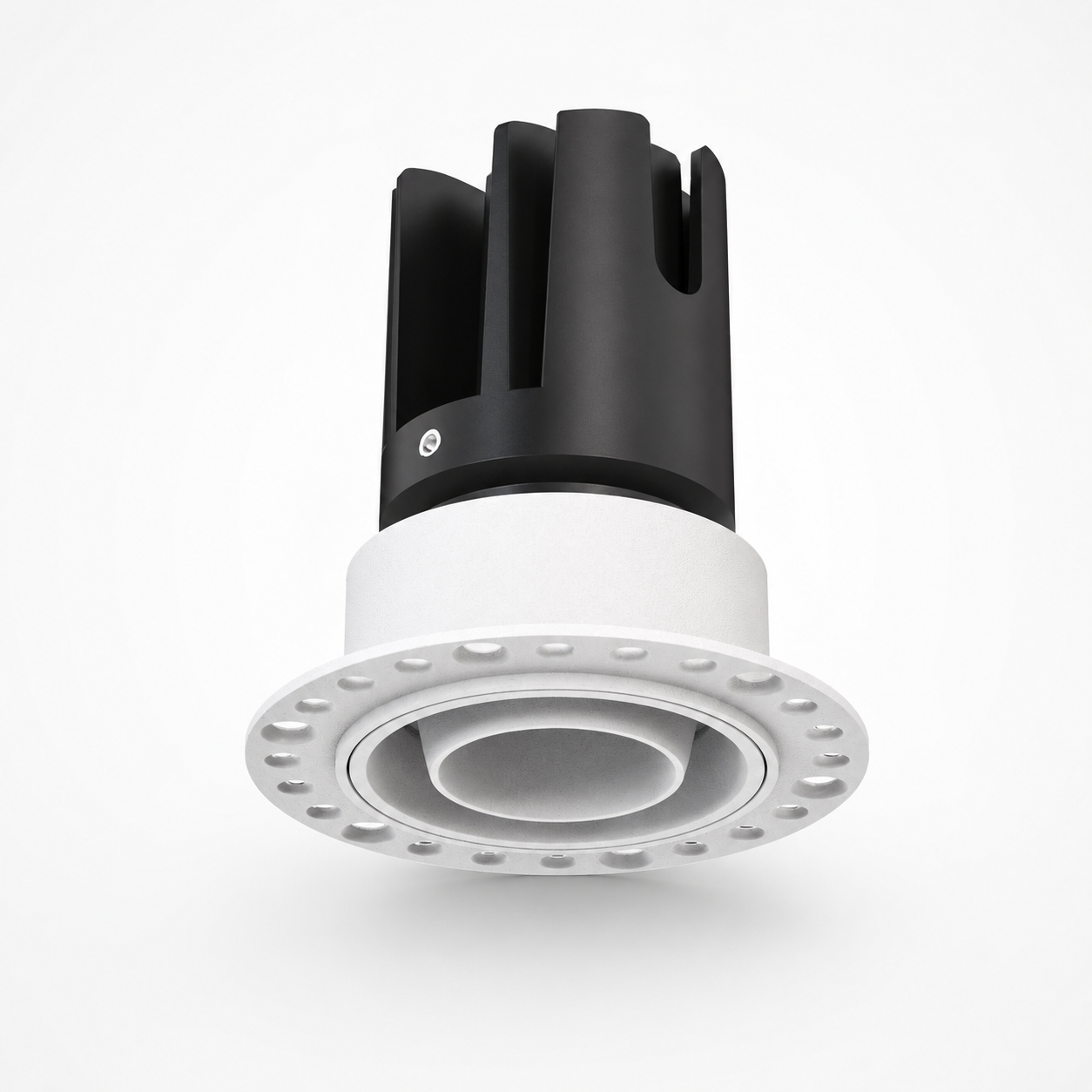

- N323 Trimless — Ø75mm, Cut-out Ø55mm, H50mm — 10W
- N324 Trimless — Ø95mm, Cut-out Ø75mm, H100mm — 20W
- N325 Trimless — Ø115mm, Cut-out Ø95mm, H120mm — 35W
TECHNICAL OPTIONS
- Product Type: 355° Adjustable Recessed COB Spotlight
- Models: N323 / N324 / N325 / N323 Trimless / N324 Trimless / N325 Trimless
- Power: 10W / 20W / 35W
- Material / Process: ADC12 Die-Cast Aluminum
- Input Voltage: 220V / 110V Option
- Protection Rating: IP20
- Installation: Recessed
- Beam Angle: 15° / 24° / 36° / 55°
- CCT: 3000K / 4000K / 6000K
- CRI: Ra90+
- Luminous Efficiency: 80 lm/W
- Face Ring Finish: Sand White
- Heat Sink Finish: Spray Coating / Black
- Driver: Lifud / Osram / Eaglerise / Philips / Tridonic Optional
- Dimming: 0-10V / Phase Dim / DALI Dim Option
- Optional Anti-Glare Accessory: Honeycomb
RECOMMENDED APPLICATIONS
- Retail Stores & Brand Shops
- Hotels & Restaurants
- Showrooms & Exhibition Spaces
- Art Galleries & Museums
- Commercial Offices
- Architectural Accent Lighting
