PRODUCT OVERVIEW

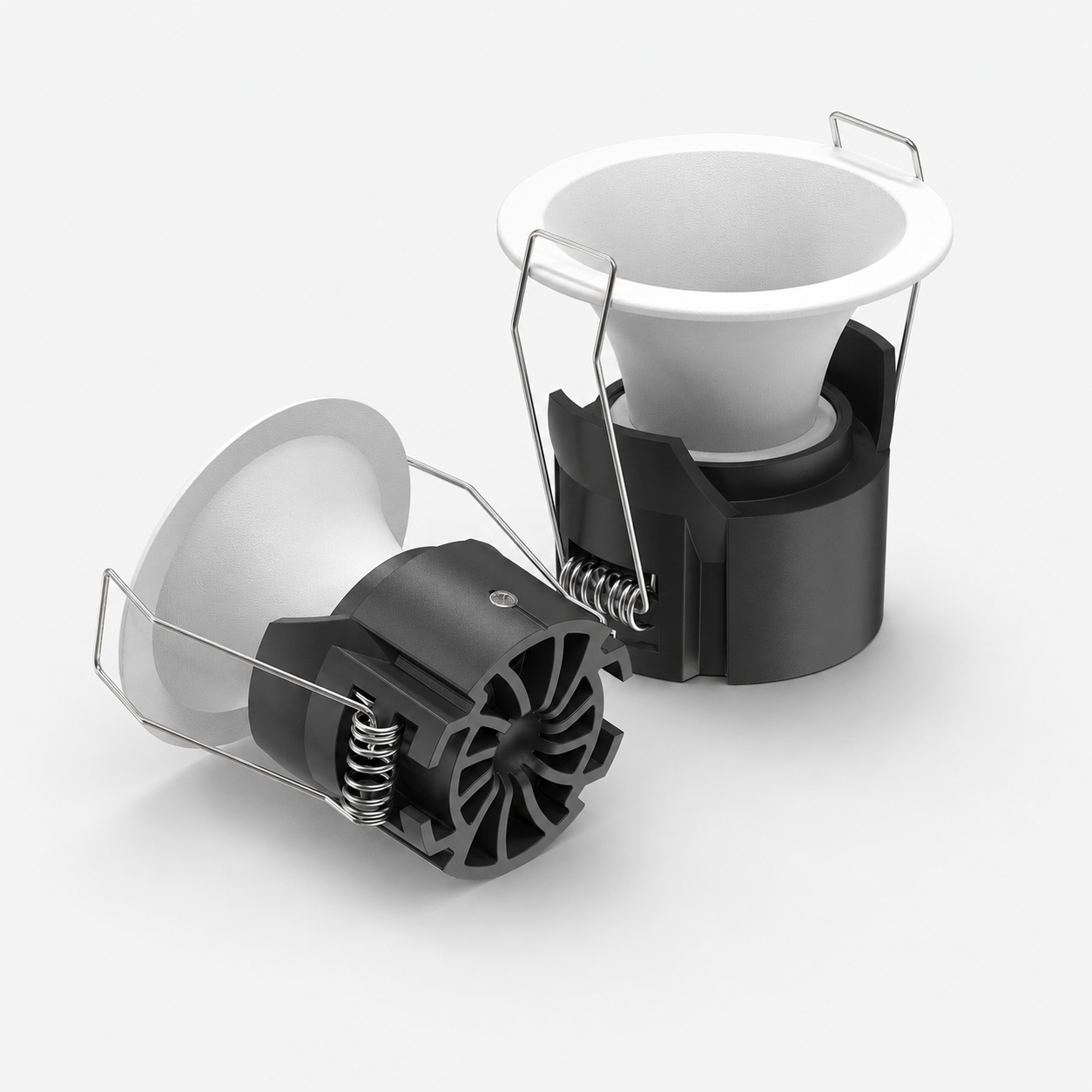

The J Series UGR<19 Recessed LED Downlight is a compact anti-glare lighting solution designed for commercial, residential and architectural interiors. Its deep reflector structure helps control direct glare while maintaining precise and comfortable illumination.
The series includes 6W, 9W, 12W and 18W models with cut-out sizes from Ø45mm to Ø75mm. Multiple beam angles are available for accent lighting, display lighting and general illumination.
KEY FEATURES
- UGR<19 Anti-Glare Design
Deep optical structure reduces direct glare and improves visual comfort in professional interiors. - Compact Recessed Installation
Small housing and multiple cut-out sizes make the series suitable for ceilings with limited installation space. - 6W-18W Power Range
Four power options provide flexible selection for different ceiling heights and lighting requirements. - 15° / 24° / 36° / 55° Beam Angles
Multiple optical distributions support narrow accent lighting, medium beam lighting and wider general illumination. - ADC12 Integrated Die-Cast Housing
All-aluminum die-cast construction provides stable heat dissipation and reliable long-term performance. - Matte Reflector Options
Standard reflector finishes are available in matte black and matte white. - IP20 Indoor Design
Designed for dry indoor applications where waterproof protection is not required.

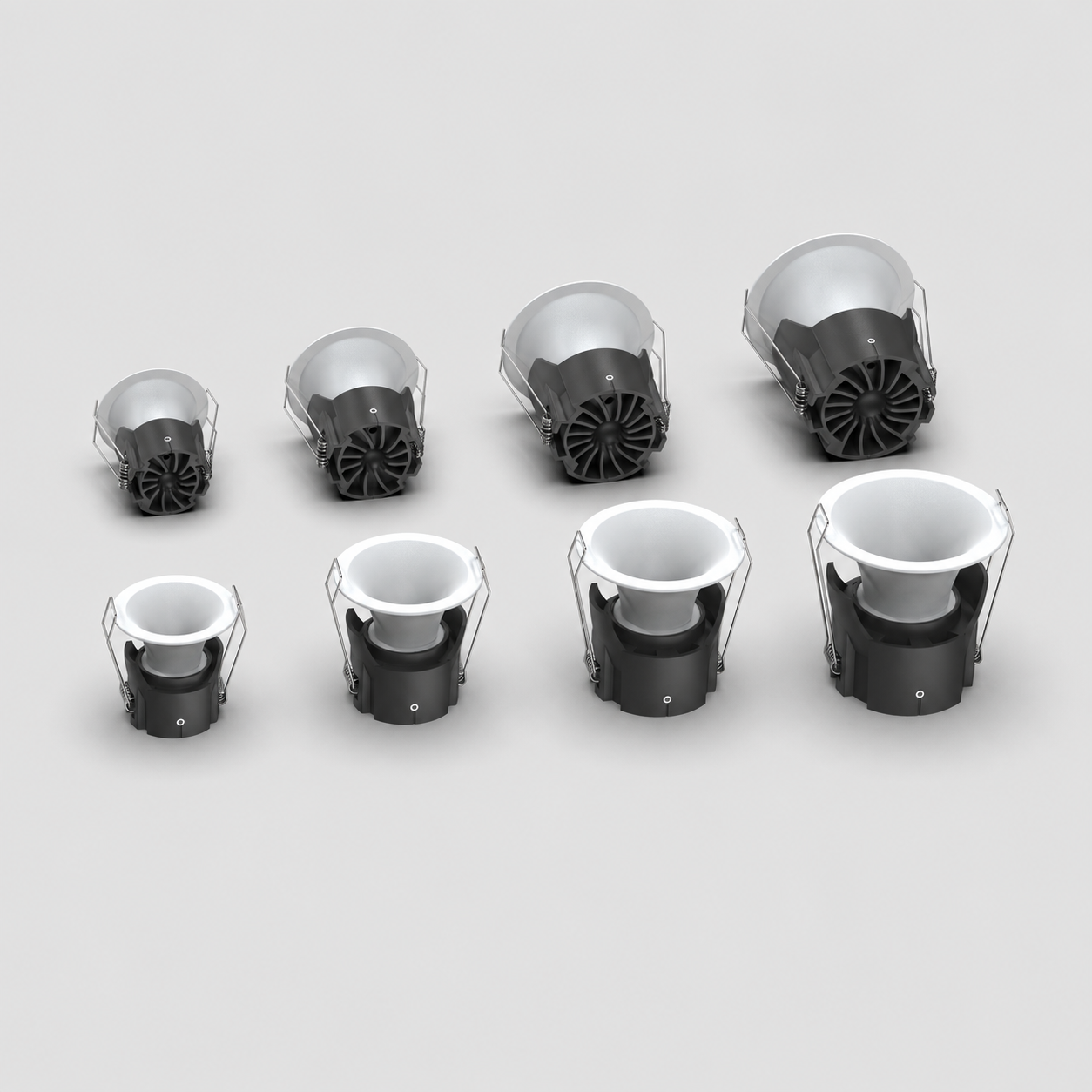

SIZE & POWER OPTIONS
- J45 — Ø54×H52mm, Cut-out Ø45mm — 6W
- J55 — Ø65×H61mm, Cut-out Ø55mm — 9W
- J65 — Ø75×H71mm, Cut-out Ø65mm — 12W
- J75 — Ø85×H82mm, Cut-out Ø75mm — 18W
TECHNICAL OPTIONS
- Protection Rating: IP20
- UGR: <19
- Installation: Recessed
- Power: 6W / 9W / 12W / 18W
- Beam Angle: 15° / 24° / 36° / 55°

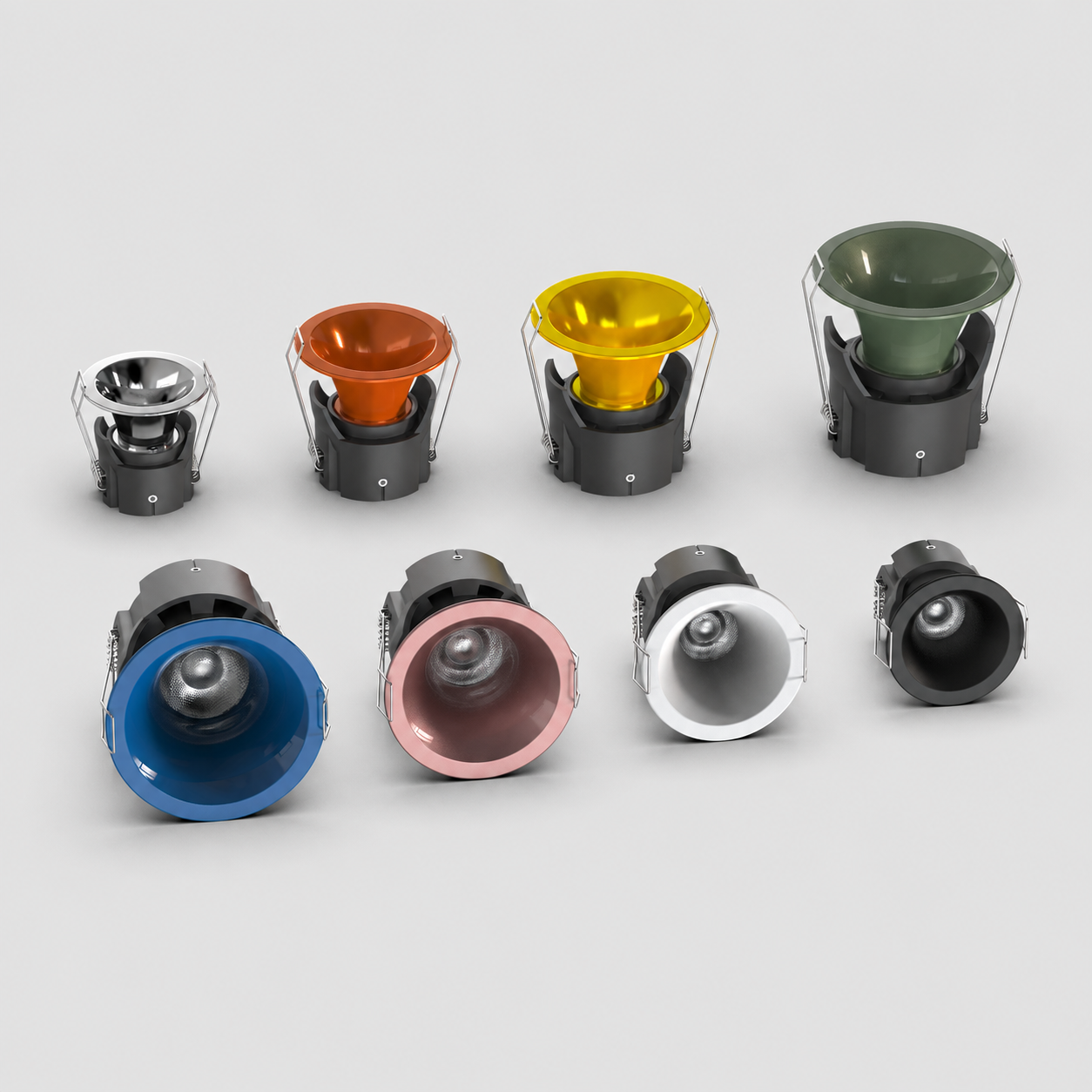

- Reflector Finish: Matte Black / Matte White
- Heat Sink Finish: Spray Coating / Gray
- Material / Process: Aluminum / ADC12 Integrated Die-Cast Housing
- Compatible LED Holders: 1304 / 1507 / 020 / 1830 / 030 depending on model
RECOMMENDED APPLICATIONS
- Retail Stores & Boutiques
- Hotels & Restaurants
- Residential Interiors
- Showrooms & Galleries
- Offices & Commercial Spaces
- Display & Accent Lighting
- Architectural Interior Lighting
