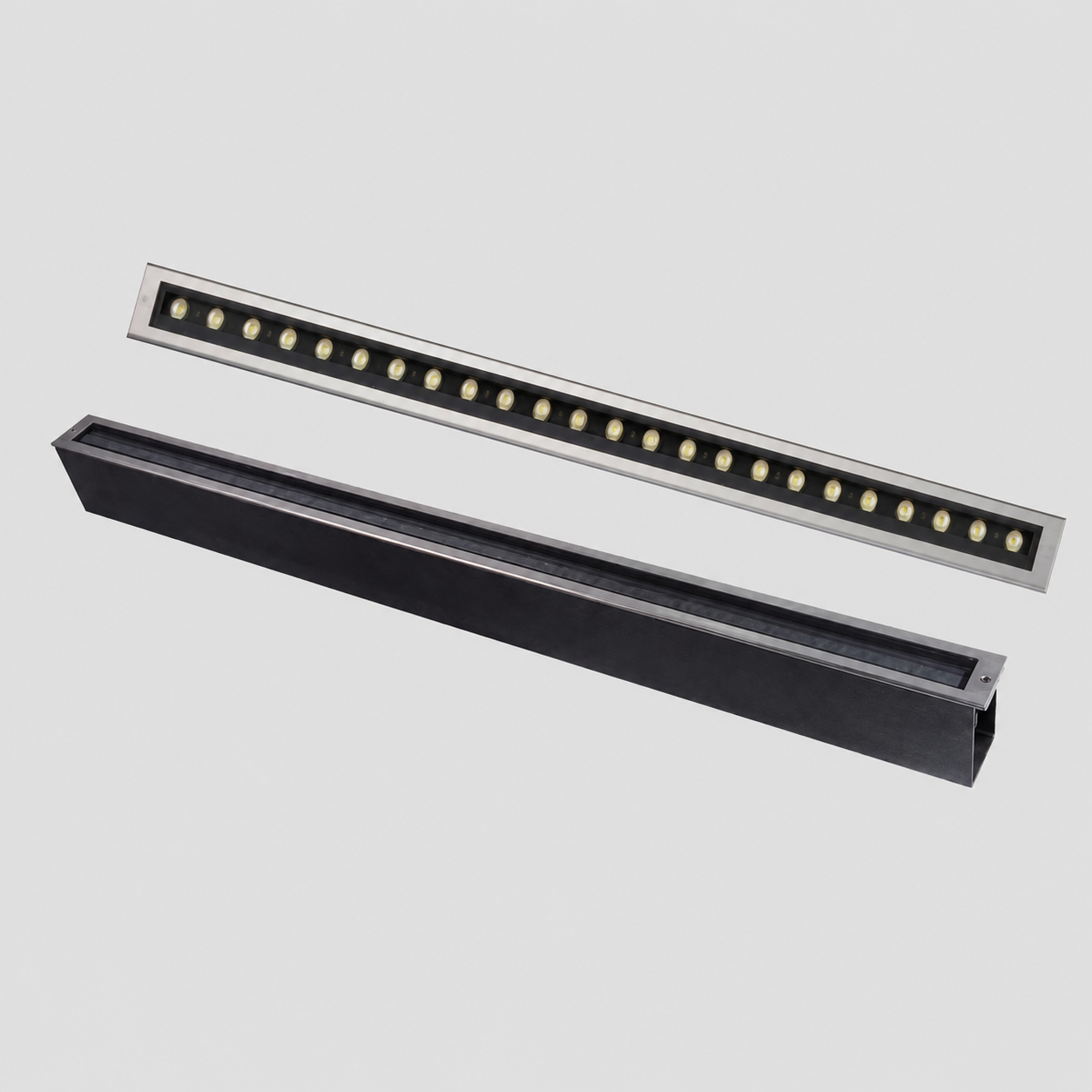

WB2055L2 LED Linear In-ground Light

Name: WB2055L2 LED Linear In-ground Light
Brand: VOC Lighting
SKU: VOC-WB2055L2

No.VOC-WB2055L2

Professional WB2055L2 recessed LED linear in-ground light in 275mm, 500mm and 1000mm lengths. Available with OSRAM single-color, RGB and RGBW LED configurations, IK10 impact resistance, multiple narrow, wide and elliptical beam options for façade, wall and landscape lighting.

Model

WB2055L2-0.275M / WB2055L2-0.5M / WB2055L2-1M

Power

6×2W / 12×2W / 24×2W / 24×2.5W RGB / 24×3.5W RGBW

Dimension

275mm / 500mm / 1000mm Length; Profile Width 55mm; Installation Depth approx. 90mm

LED

OSRAM

Luminous Flux

700 / 1390 / 2780 lm

Protection

IK10

CCT / Color

Single Color / RGB 3-in-1 / RGBW 4-in-1

CRI

—

Beam Angle

15° / 20° / 30° / 45° / 60° / Elliptical Options

Input Voltage

12/24VDC / 220-240VAC Depending on Configuration

REQUEST A QUOTE

Add to Quote List View Quote List

Description

PRODUCT OVERVIEW

WB2055L2 is a professional recessed LED linear in-ground light designed for façade, wall, pathway and landscape lighting.
Three standard lengths — 275mm, 500mm and 1000mm — provide flexible linear lighting solutions for different project scales.
Single-color, RGB 3-in-1 and RGBW 4-in-1 configurations are available with OSRAM LED sources.

KEY FEATURES

Three Linear Length Options
Available in 275mm, 500mm and 1000mm lengths for modular architectural layouts.
OSRAM LED Source
Manufacturer-specified OSRAM LEDs provide reliable performance for professional outdoor applications.
Single Color / RGB / RGBW
Supports white-light, RGB 3-in-1 and RGBW 4-in-1 configurations.
IK10 Impact Resistance
High mechanical resistance supports demanding ground-level commercial applications.
High Luminous Output
Single-color versions provide approximately 700 lm, 1390 lm and 2780 lm depending on fixture length.
Multiple Beam Options
Round beams and elliptical distributions are available for façade grazing, wall washing and landscape accent lighting.
Flexible Voltage Configurations
12/24VDC is available across the range, while 220-240VAC is shown for single-color versions.
Professional Recessed Installation
Linear housing is designed for flush in-ground integration in architectural and landscape projects.

MODEL & SIZE OPTIONS

Model	LED Configuration	Power	Luminous Flux	Input Voltage	Beam Angle
WB2055L2-0.275M	Single Color	6×2W	700 lm	12/24VDC / 220-240VAC	15° / 20° / 30° / 45° / 60° / Elliptical Options
WB2055L2-0.5M	Single Color	12×2W	1390 lm	12/24VDC / 220-240VAC	15° / 20° / 30° / 45° / 60° / Elliptical Options
WB2055L2-1M	Single Color	24×2W	2780 lm	12/24VDC / 220-240VAC	15° / 20° / 30° / 45° / 60° / Elliptical Options
WB2055L2-1M	RGB 3-in-1	24×2.5W	2780 lm	12/24VDC	15° / 20° / 30° / 45° / 60° / Elliptical Options
WB2055L2-1M	RGBW 4-in-1	24×3.5W	2780 lm	12/24VDC	15° / 20° / 30° / 45° / 60° / Elliptical Options

SIZE & INSTALLATION

Standard Lengths: 275mm / 500mm / 1000mm
1M Faceplate Length: 1000mm
1M Housing Length: Approximately 992mm
Profile Width: 55mm
Installation Depth: Approximately 90mm

TECHNICAL OPTIONS

Product Type: LED Linear In-ground Light
Model: WB2055L2-0.275M / WB2055L2-0.5M / WB2055L2-1M
LED: OSRAM
Color Options: Single Color / RGB 3-in-1 / RGBW 4-in-1
Impact Resistance: IK10
Input Voltage: 12/24VDC / 220-240VAC depending on configuration
Beam Angle: 15° / 20° / 30° / 45° / 60° plus elliptical optics
Installation: Recessed In-ground

RECOMMENDED APPLICATIONS

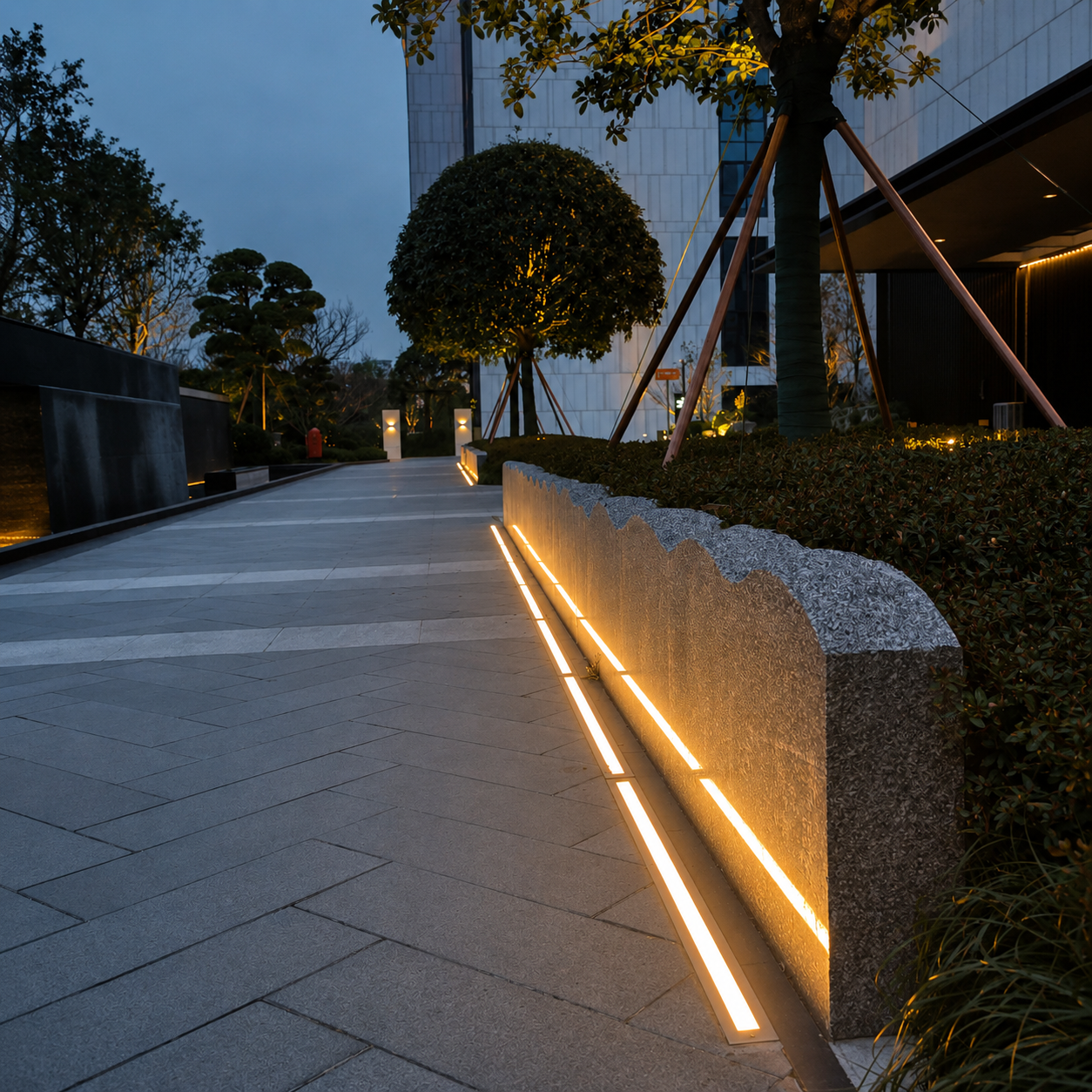

Building Façade Lighting
Architectural Wall Grazing
Linear Wall Washing
Pathways & Plazas
Hotels & Commercial Exteriors
Landscape Features
Courtyards & Gardens
Public Architecture
