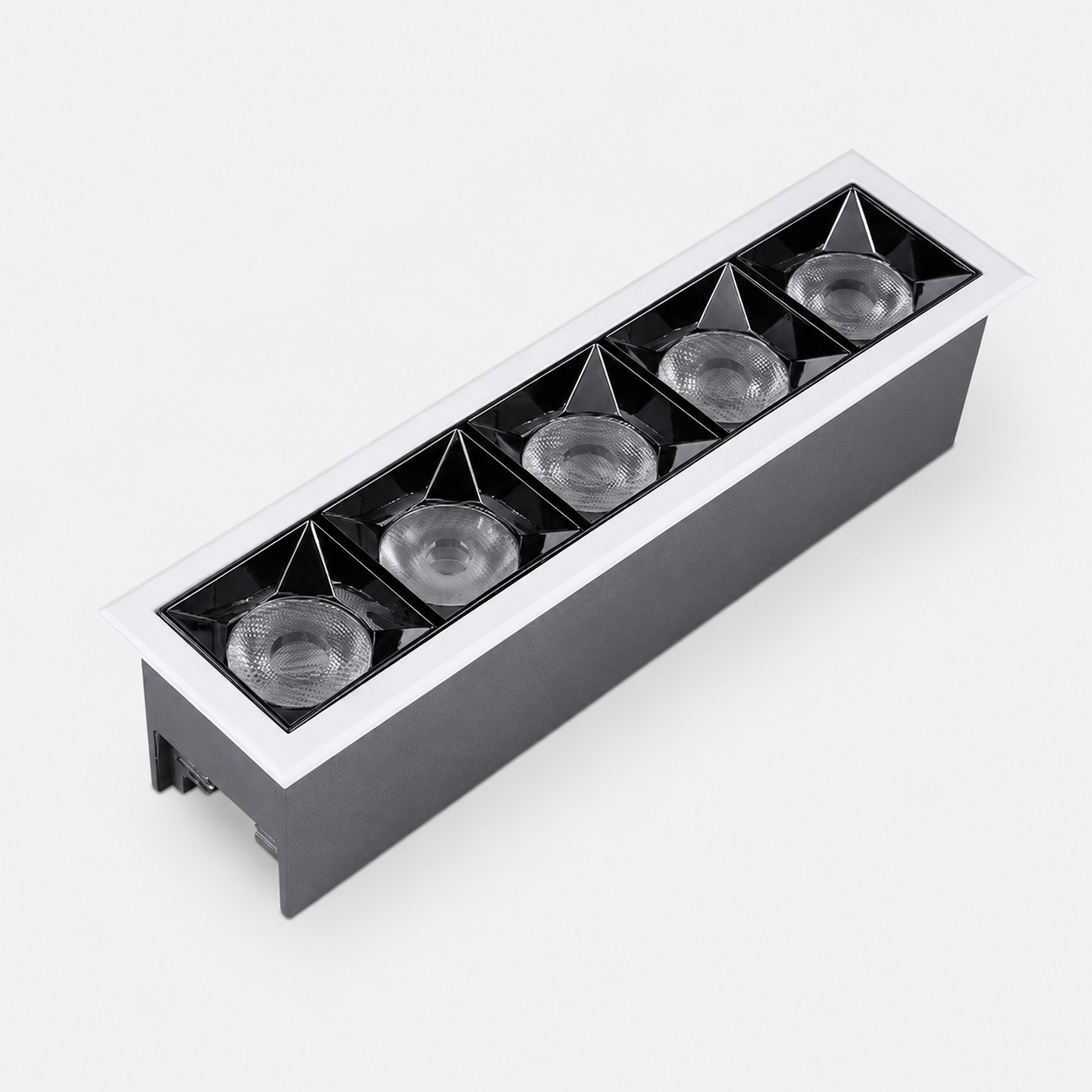

XTD2-5 20W Anti-Glare Recessed Linear Grille Downlight

PRODUCT OVERVIEW

• XTD2 Series is a recessed anti-glare grille LED downlight family designed for commercial, retail, hospitality and architectural lighting.
• The series includes single, linear multi-cell and square multi-cell configurations with power options from 5W to 40W.
• Deep optical cells help reduce direct glare while providing precise and controlled light distribution.
• Available with CREE 5050 or OSRAM 5050 LED modules and multiple beam angle options for different project requirements.

KEY FEATURES

• Deep anti-glare grille optical design for improved visual comfort.
• Complete 5W / 12W / 15W / 20W / 36W / 40W power range.
• Single-head, linear multi-head and square multi-head configurations.
• Spot beam options: 12° / 23° / 38° / 50°.
• Additional optical distributions: 35°×70° / 50°×50°.
• OSRAM 5050 36V-5W LED module options.
• Recessed installation for clean integration into commercial ceilings.
• Die-cast aluminum housing for efficient heat dissipation and stable operation.
• Ra90+ color rendering option for retail, hospitality and display applications.
• Optional Lifud, OSRAM, Eaglerise, Philips and Tridonic drivers.
• Optional 0-10V, Phase Dimming, DALI and Tuya Zigbee control configurations.

MODEL & SIZE OPTIONS

OPTICAL OPTIONS

• Standard Beam Angles: 12° / 23° / 38° / 50°
• Additional Optical Distribution: 35°×70° / 50°×50°
• Optical Structure: Deep Anti-Glare Grille
• Light Distribution: Spot / Accent / Wall-Wash Optical Options

LED OPTIONS

• CREE 5050 — 36V / 5W LED Module
• OSRAM 5050 — 36V / 5W LED Module
• High-performance LED modules for stable output and controlled optical performance.

TECHNICAL OPTIONS

• Product Type: Recessed Anti-Glare Grille LED Downlight
• Series: XTD2
• Power: 5W / 12W / 15W / 20W / 36W / 40W
• Installation: Recessed
• Material / Process: Die-Cast Aluminum
• Beam Angle: 12° / 23° / 38° / 50°
• Additional Optics: 35°×70° / 50°×50°
• CCT: 3000K / 4000K / 6000K
• CRI: Ra90+
• Input Voltage: AC220V / AC110V Optional
• Protection Rating: IP20
• Driver: Lifud / OSRAM / Eaglerise / Philips / Tridonic Optional
• Dimming / Control: 0-10V / Phase Dimming / DALI / Tuya Zigbee Optional

RECOMMENDED APPLICATIONS

• Retail Stores & Boutiques
• Shopping Malls
• Hotels & Hospitality Spaces
• Restaurants & Cafés
• Showrooms & Galleries
• Commercial Offices
• Reception & Lobby Areas
• Display Shelves & Product Displays
• Feature Walls
• Architectural Accent Lighting
