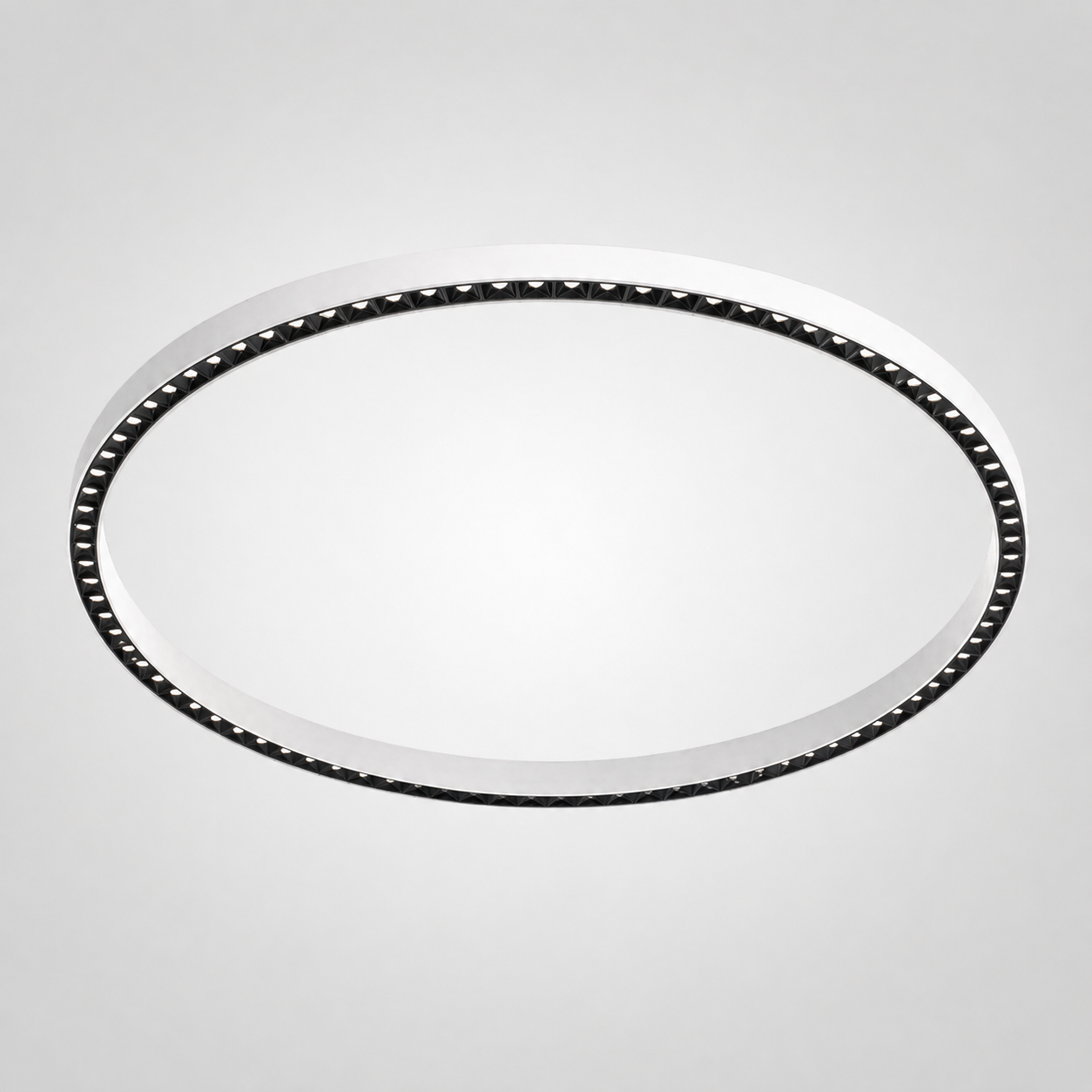

ZG-3035 Circular LED Line Lens Ring Light

PRODUCT OVERVIEW

• ZG-3035 is a circular LED line lens ring light designed for office, education, healthcare and commercial lighting applications.
• The series is available in five standard sizes: 600mm, 800mm, 1200mm, 1500mm and 1800mm, with matching power options from 36W to 112W.
• High-quality aluminum construction with PC optical material provides a durable housing, uniform light output and clean architectural appearance.

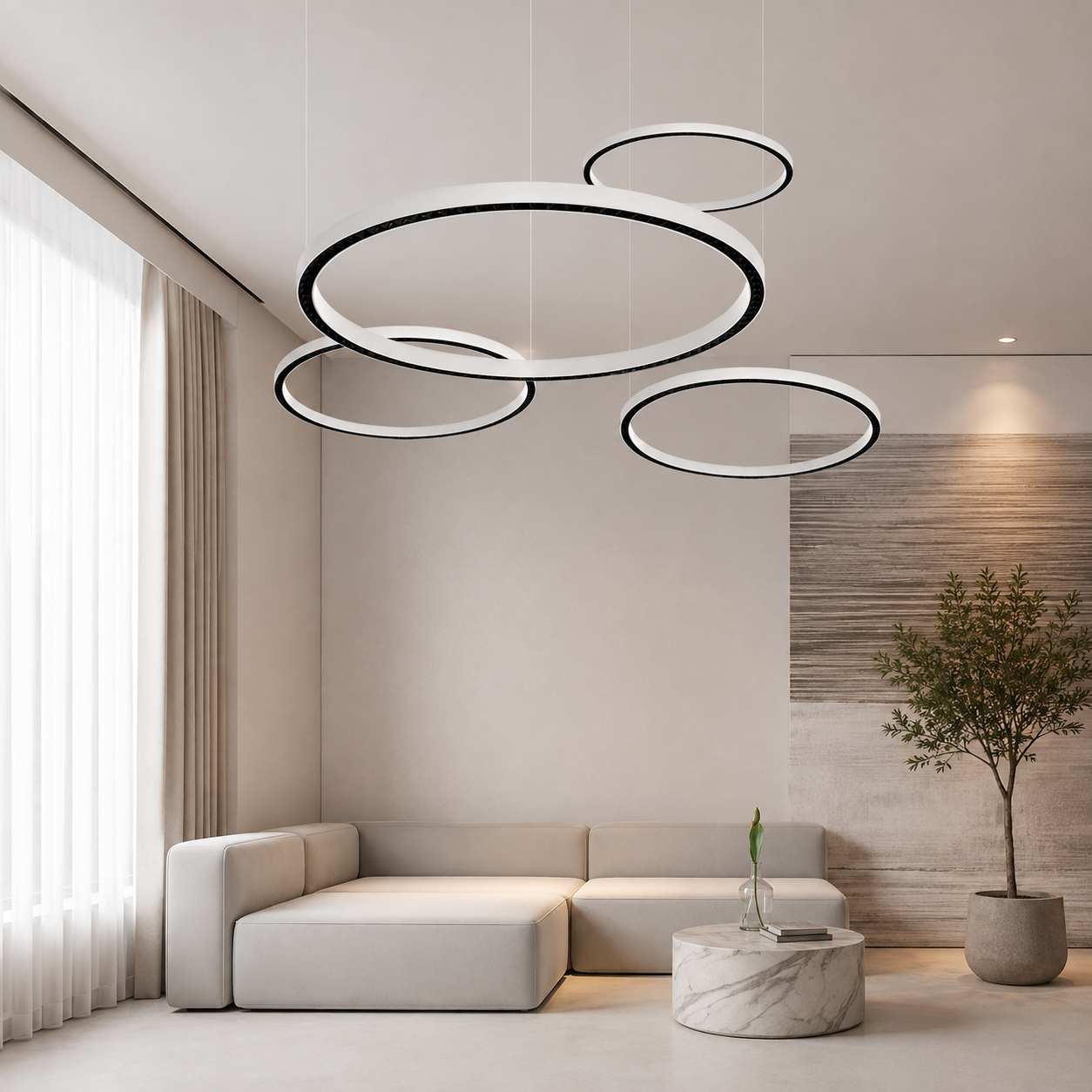

• Pendant and surface-mounted installation options support different ceiling conditions and interior design requirements.

KEY FEATURES

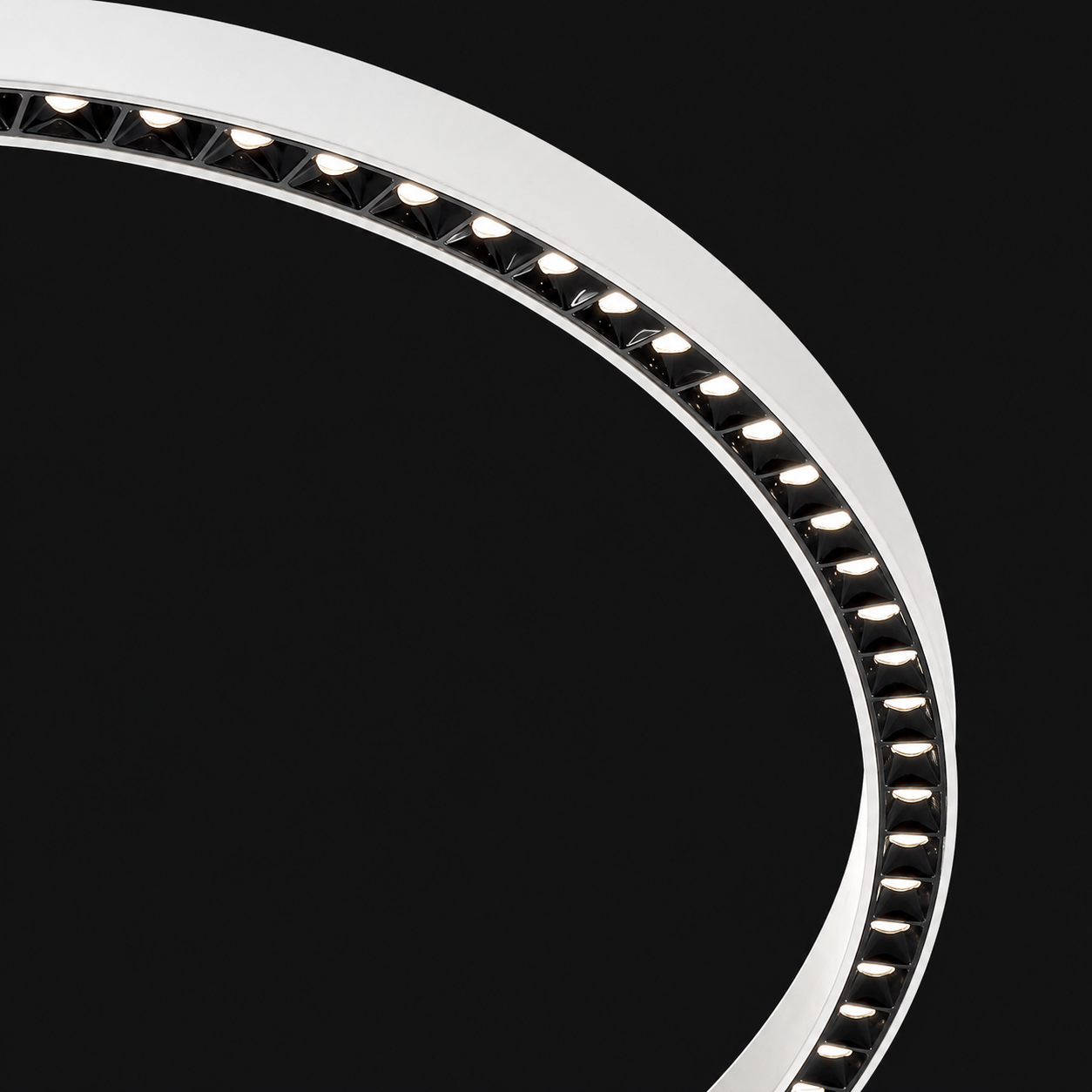

• LED Line Lens Optical Design
  High-efficiency optical system provides uniform illumination with reduced shadowing.
• Up to 110 lm/W Efficiency
  High-brightness LED source delivers efficient illumination for commercial and office environments.
• Five Standard Size Options
  Available in 600mm, 800mm, 1200mm, 1500mm and 1800mm sizes.
• 36W-112W Power Range
  Power is matched to each fixture size for different space and illumination requirements.
• High-Quality Aluminum Housing
  Aluminum body with electrostatic spray treatment provides durability and resistance to discoloration and scratching.
• Uniform Light Output
  High-reflectance optical structure helps achieve even lighting without obvious shadows.
• Flexible Electrical Configuration
  Standard constant-current system with optional constant-voltage configuration for project requirements.
• Multiple Finish Options
  Silver oxide, white and black finishes are available.
• Optional Lighting Control
  0-10V, Phase Dimming, DALI and Tuya Zigbee control options are available for compatible project configurations.

MODEL & SIZE OPTIONS

LIGHTING OPTIONS

• Light Source: LED
• Luminous Efficiency: Up to 110 lm/W
• CCT: 3000K / 4000K / 6000K
• CRI: Ra≥82
• Optical Material: PC
• Body Color: Silver Oxide / White / Black

TECHNICAL OPTIONS

• Product Type: Circular LED Line Lens Ring Light
• Model: ZG-3035
• Power: 36W / 48W / 72W / 96W / 112W
• Dimension: 600×30×35mm / 800×30×35mm / 1200×30×35mm / 1500×30×35mm / 1800×30×35mm
• Material / Process: High-Quality Aluminum + PC Material / Electrostatic Spray Finish
• Connection: Non-Connectable
• Installation: Pendant / Surface Mounted
• CRI: Ra≥82
• CCT: 3000K / 4000K / 6000K
• Luminous Efficiency: Up to 110 lm/W
• Electrical System: Standard Constant Current / Optional Constant Voltage
• Output Voltage: AC220V Constant Current / DC24V Constant Voltage
• Driver: Lifud / AAA
• Protection Rating: IP20
• Dimming / Control: 0-10V / Phase Dimming / DALI / Tuya Zigbee Optional
• Customization: Custom Size Available

RECOMMENDED APPLICATIONS

• Offices & Meeting Rooms
• Schools & Educational Facilities
• Hospitals & Healthcare Areas
• Shopping Malls & Commercial Spaces
• Office Corridors
• Reception Areas
• Architectural Interior Lighting
