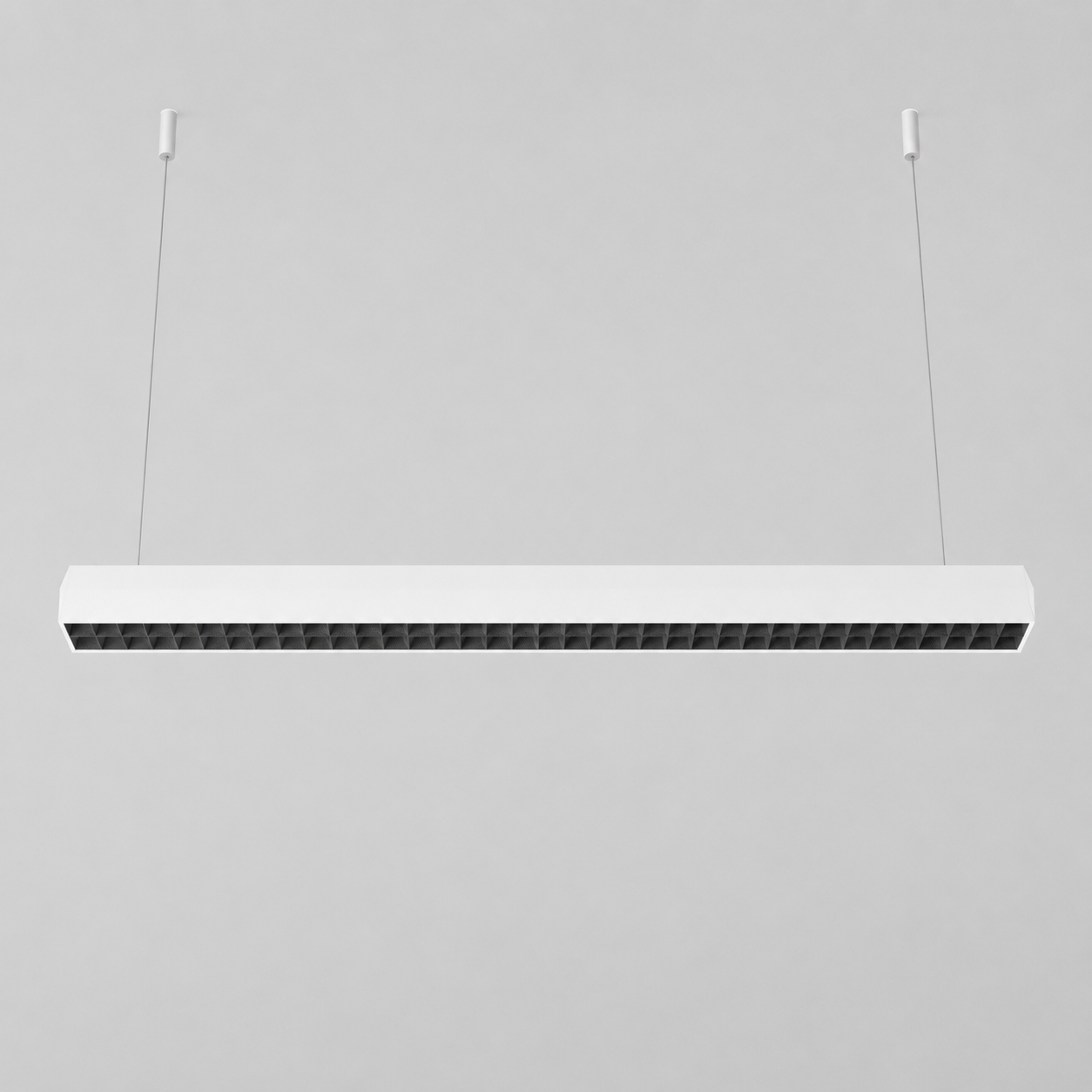

ZG-5575 LED Linear Office Light

PRODUCT OVERVIEW

• ZG-5575 is a 36W LED linear office light designed for modern offices, cafés, schools, hospitals and commercial interiors.

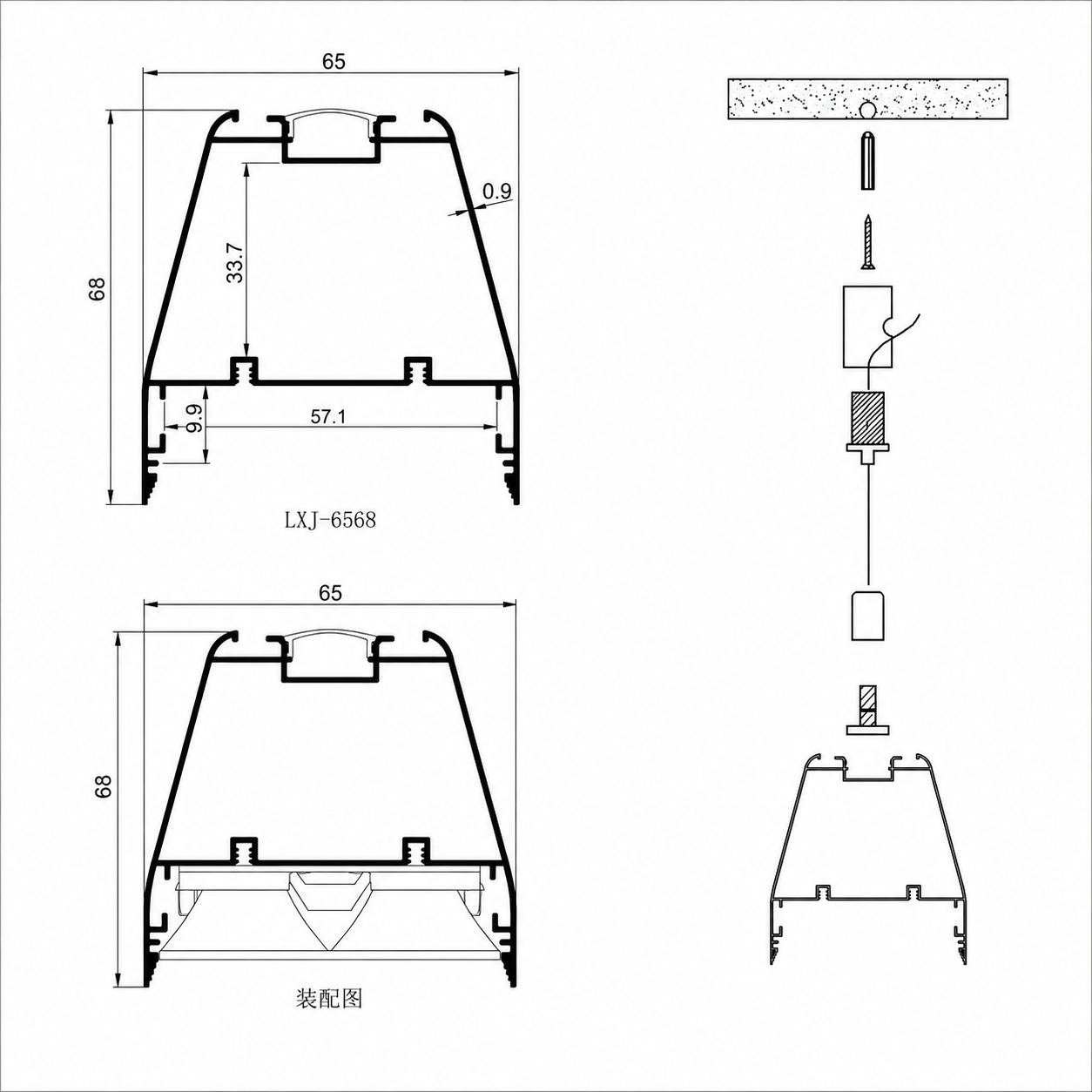

• The fixture uses a 1205×55×75mm aluminum + PC housing with a clean rectangular profile suitable for suspended or direct ceiling installation.
• Inner-joint and outer-joint connection options support flexible project layouts and continuous linear arrangements.

KEY FEATURES

• 36W Linear Lighting
  Suitable for general illumination in offices, meeting areas, cafés and commercial interiors.
• 55×75mm Architectural Profile
  Provides a strong visual presence while maintaining a clean, minimalist linear form.
• Inner & Outer Connection
  Supports both internal and external joining methods for project installation flexibility.
• Pendant or Surface Mounted
  Suitable for suspended installations or direct ceiling mounting.
• High-Quality Aluminum + PC
  Durable housing with good heat dissipation and reliable long-term operation.
• Up to 110 lm/W Efficiency
  High-brightness LED source provides efficient commercial illumination.
• Multiple Finish Options
  Available in silver oxide, white and black.
• Custom Length Available
  Standard 600mm / 1200mm sizes and customized lengths can be supplied for project requirements.
• Optional Lighting Control
  0-10V, Phase Dimming, DALI and Tuya Zigbee configurations are available for compatible projects.

MODEL & SIZE OPTIONS

LIGHTING OPTIONS

• Light Source: LED
• CCT: 3000K / 4000K / 6000K
• CRI: Ra≥82
• Luminous Efficiency: Up to 110 lm/W
• Body Color: Silver Oxide / White / Black

TECHNICAL OPTIONS

• Product Type: LED Linear Office Light
• Model: ZG-5575
• Power: 36W
• Dimension: 1205×55×75mm
• Standard Size: 600mm / 1200mm / Customized
• Material / Process: High-Quality Aluminum + PC Material
• Connection: Inner Joint / Outer Joint
• Installation: Pendant / Surface Mounted
• CRI: Ra≥82
• CCT: 3000K / 4000K / 6000K
• Luminous Efficiency: Up to 110 lm/W
• Electrical System: Standard Constant Current / Optional Constant Voltage
• Output Voltage: AC220V Constant Current / DC24V Constant Voltage
• Driver: Lifud / AAA
• Protection Rating: IP20
• Dimming / Control: 0-10V / Phase Dimming / DALI / Tuya Zigbee Optional
• Customization: Custom Length Available

RECOMMENDED APPLICATIONS

• Offices & Meeting Rooms
• Cafés & Restaurants
• Schools & Educational Facilities
• Hospitals & Healthcare Areas
• Shopping Malls & Retail Spaces
• Commercial Corridors
• Reception Areas
• Architectural Interior Lighting
